		Product Date
Model Name:PHILIPS BVP492 LED181/CW 135W SMB FP DALI/CM P7 911401664607
12NC:911401664607
Ingress protection code: IP66
Control interface: depends on driver (1-10V, DALI…)
Initial luminous flux: 18100 lm
Initial LED luminaire efficacy: 134 lm/W
Init. Corr. Color Temperature: 5700K
Init. Color Rendering Index: >70
Initial input power: 135 W
Dimmable: YES
PRODUCT DATA
Product Date
Model Name:PHILIPS BVP492 LED181/CW 135W SMB FP DALI/CM P7 911401664607
12NC:911401664607
Ingress protection code: IP66
Control interface: depends on driver (1-10V, DALI…)
Initial luminous flux: 18100 lm
Initial LED luminaire efficacy: 134 lm/W
Init. Corr. Color Temperature: 5700K
Init. Color Rendering Index: >70
Initial input power: 135 W
Dimmable: YES

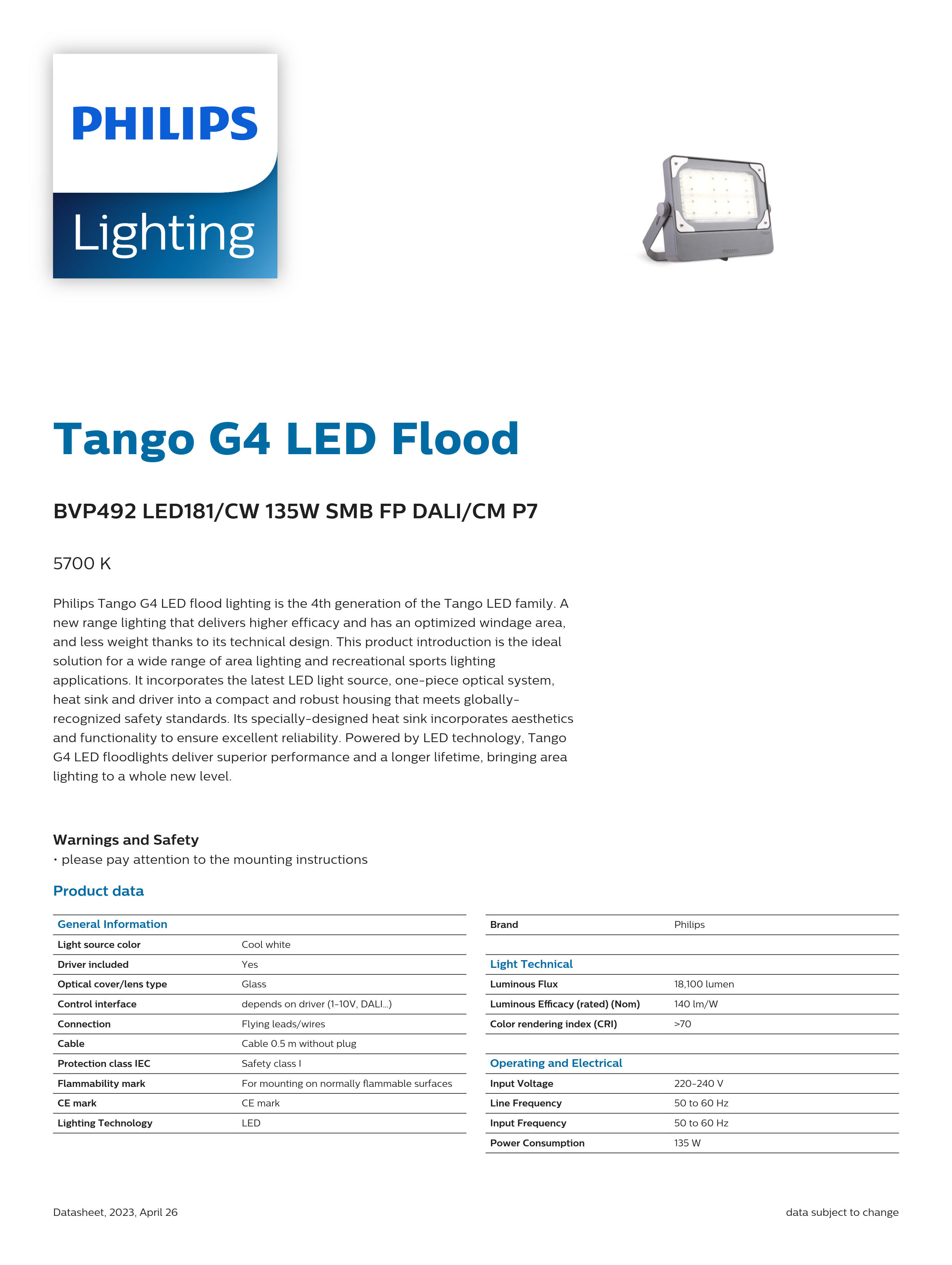

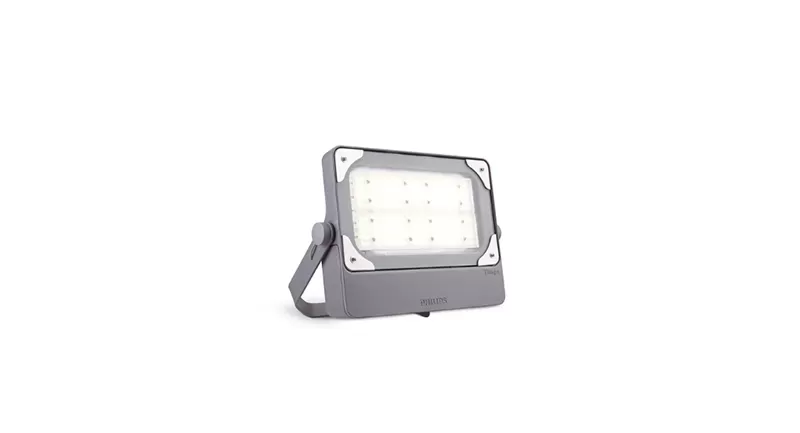

Tango G4 LED Flood
PHILIPS BVP492 LED181/CW 135W SMB FP DALI/CM P7 911401664607 5700 K
Philips Tango G4 LED flood lighting is the 4th generation of the Tango LED family. A new range lighting that delivers higher efficacy and has an optimized windage area, and less weight thanks to its technical design. This product introduction is the ideal solution for a wide range of area lighting and recreational sports lighting applications. It incorporates the latest LED light source, one-piece optical system, heat sink and driver into a compact and robust housing that meets globallyrecognized safety standards. Its specially-designed heat sink incorporates aesthetics and functionality to ensure excellent reliability. Powered by LED technology, Tango G4 LED floodlights deliver superior performance and a longer lifetime, bringing area lighting to a whole new level.


PHILIPS Product 12NC List
12NC List:
911401661307 BVP492 LED166/WW 135W AMB
911401661907 BVP492 LED181/CW 135W SMB 1-10V
911401662507 BVP492 LED183/NW 135W SWB 1-10V P7
911401663107 BVP492 LED166/WW 135W AMB LP
911401663707 BVP492 LED181/CW 135W SMB LP P7
911401664307 BVP492 LED181/CW 135W SMB FP DALI/CM
911401664607 BVP492 LED181/CW 135W SMB FP DALI/CM P7
911401664907 BVP492 LED181/CW 140W SMB SR
