		Product Date
Model Name:PHILIPS BVP492 LED242/CW 180W SMB 1-10V 911401662207
12NC:911401662207
Ingress protection code: IP66
Control interface: depends on driver (1-10V, DALI…)
Initial luminous flux: 24200 lm
Initial LED luminaire efficacy: 134 lm/W
Init. Corr. Color Temperature: 5700K
Init. Color Rendering Index: >70
Initial input power: 180 W
Dimmable: YES
PRODUCT DATA
Product Date
Model Name:PHILIPS BVP492 LED242/CW 180W SMB 1-10V 911401662207
12NC:911401662207
Ingress protection code: IP66
Control interface: depends on driver (1-10V, DALI…)
Initial luminous flux: 24200 lm
Initial LED luminaire efficacy: 134 lm/W
Init. Corr. Color Temperature: 5700K
Init. Color Rendering Index: >70
Initial input power: 180 W
Dimmable: YES

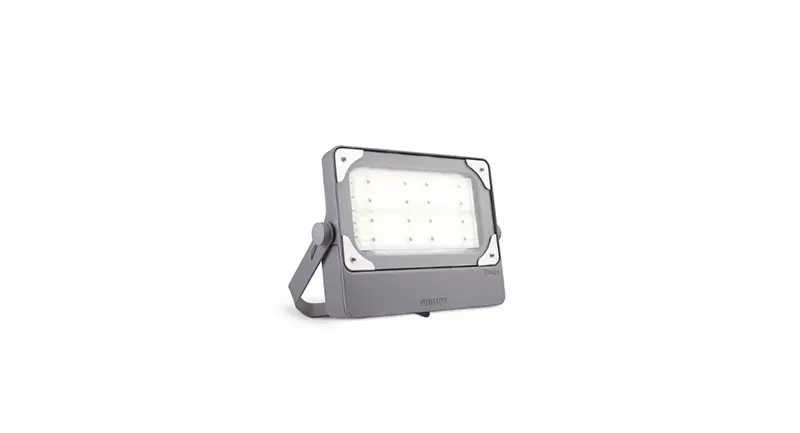

Tango G4 LED Flood
PHILIPS BVP492 LED242/CW 180W SMB 1-10V 911401662207 5700 K
Philips Tango G4 LED flood lighting is the 4th generation of the Tango LED family. A new range lighting that delivers higher efficacy and has an optimized windage area, and less weight thanks to its technical design. This product introduction is the ideal solution for a wide range of area lighting and recreational sports lighting applications. It incorporates the latest LED light source, one-piece optical system, heat sink and driver into a compact and robust housing that meets globallyrecognized safety standards. Its specially-designed heat sink incorporates aesthetics and functionality to ensure excellent reliability. Powered by LED technology, Tango G4 LED floodlights deliver superior performance and a longer lifetime, bringing area lighting to a whole new level.


PHILIPS Product 12NC List
12NC List:
911401661607 BVP492 LED222/WW 180W AMB
911401662207 BVP492 LED242/CW 180W SMB 1-10V
911401662807 BVP492 LED244/NW 180W SWB 1-10V P7
911401663407 BVP492 LED222/WW 180W AMB LP
911401664007 BVP492 LED242/CW 180W SMB LP P7
 PHILIPS BVP493 LED370/WW 300W NB FP DALI/CM 911401668007

                                    PHILIPS BVP493 LED370/WW 300W NB FP DALI/CM 911401668007
                                 PHILIPS BVP492 LED144/WW 120W AMB 911401661207

                                    PHILIPS BVP492 LED144/WW 120W AMB 911401661207
                                 PHILIPS BVP492 LED157/CW 120W SMB FP DALI/CM 911401664207

                                    PHILIPS BVP492 LED157/CW 120W SMB FP DALI/CM 911401664207
                                 PHILIPS BVP491 LED90/CW 70W AMB 1-10V 911401658607

                                    PHILIPS BVP491 LED90/CW 70W AMB 1-10V 911401658607
                                 PHILIPS BVP493 LED261/WW 230W SAWB LP 911401666607

                                    PHILIPS BVP493 LED261/WW 230W SAWB LP 911401666607
                                 PHILIPS BVP491 LED127/WW 100W SMB 1-10V P7 911401659107

                                    PHILIPS BVP491 LED127/WW 100W SMB 1-10V P7 911401659107
                                 PHILIPS BVP492 LED244/WW 200W AMB LP 911401663507

                                    PHILIPS BVP492 LED244/WW 200W AMB LP 911401663507
                                 PHILIPS BVP492 LED200/WW 165W AMB 911401661507

                                    PHILIPS BVP492 LED200/WW 165W AMB 911401661507
                                 PHILIPS BVP493 LED341/NW 255W SWB 1-10V P7 911401666207

                                    PHILIPS BVP493 LED341/NW 255W SWB 1-10V P7 911401666207
                                 PHILIPS BVP493 LED341/NW 255W SWB 911401665207

                                    PHILIPS BVP493 LED341/NW 255W SWB 911401665207
