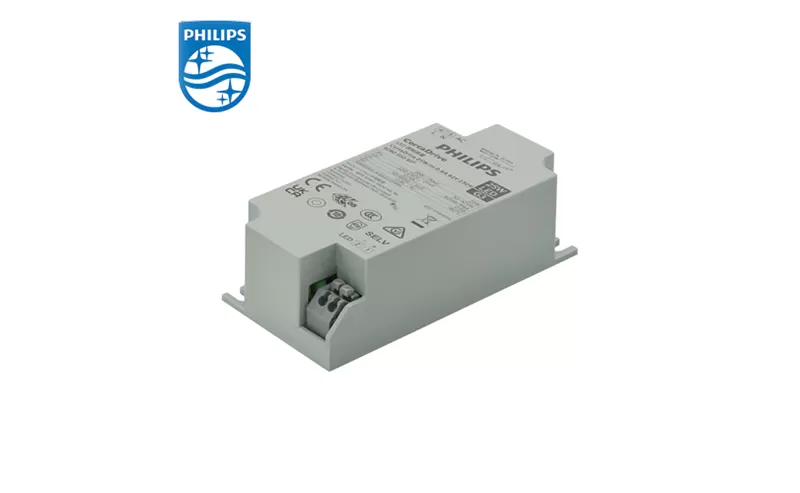

PHILIPS CertaDrive 21W/m 0.5A 42V 230V 929003387680

Product date

PHILIPS CertaDrive 21W/m 0.5A 42V 230V 929003387680

12NC:929003387680

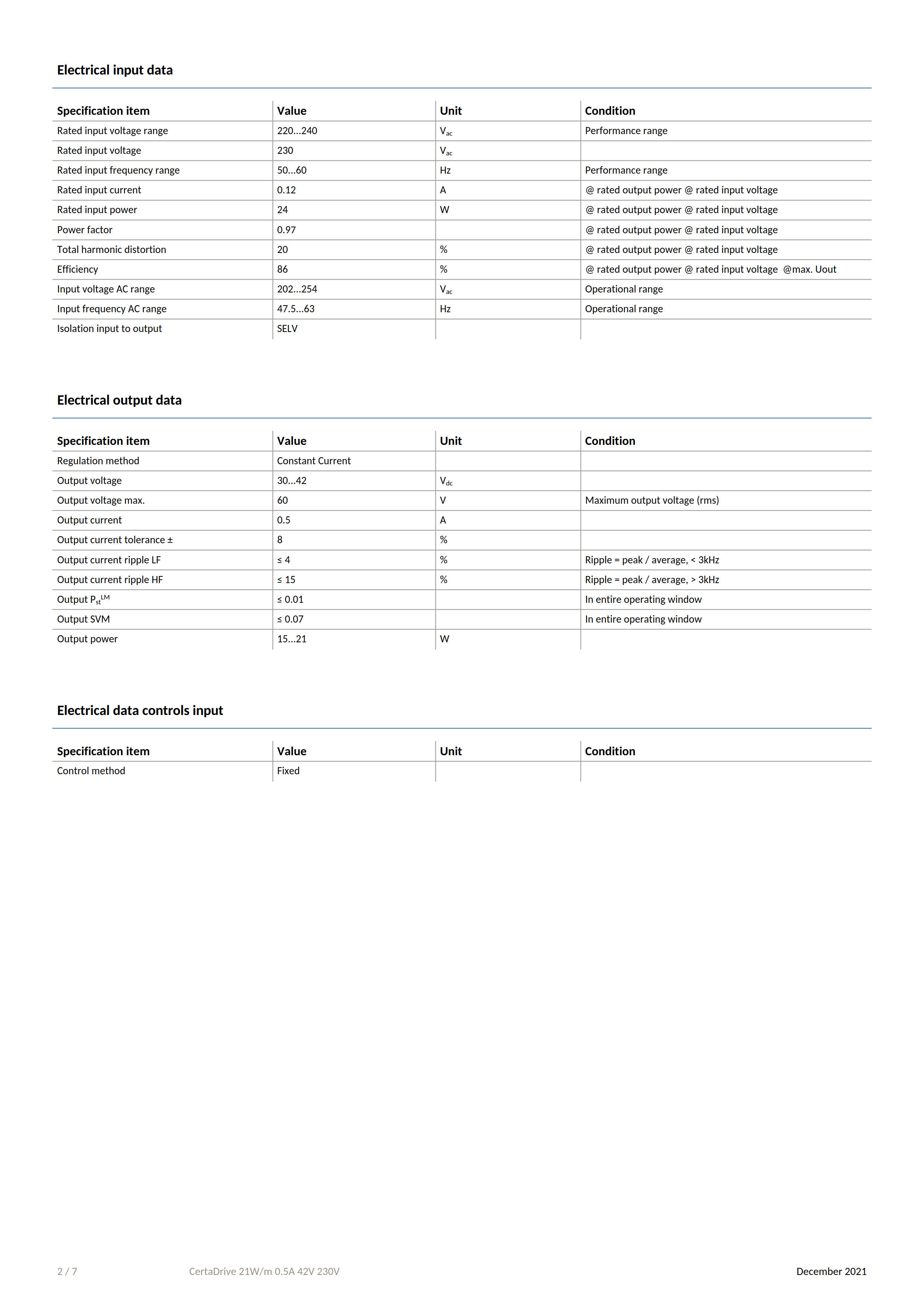

Output voltage: 30 to 42 Vdc

Output current: 0.5 A

Output power: 15 to 21 W

Pieces per box: 40

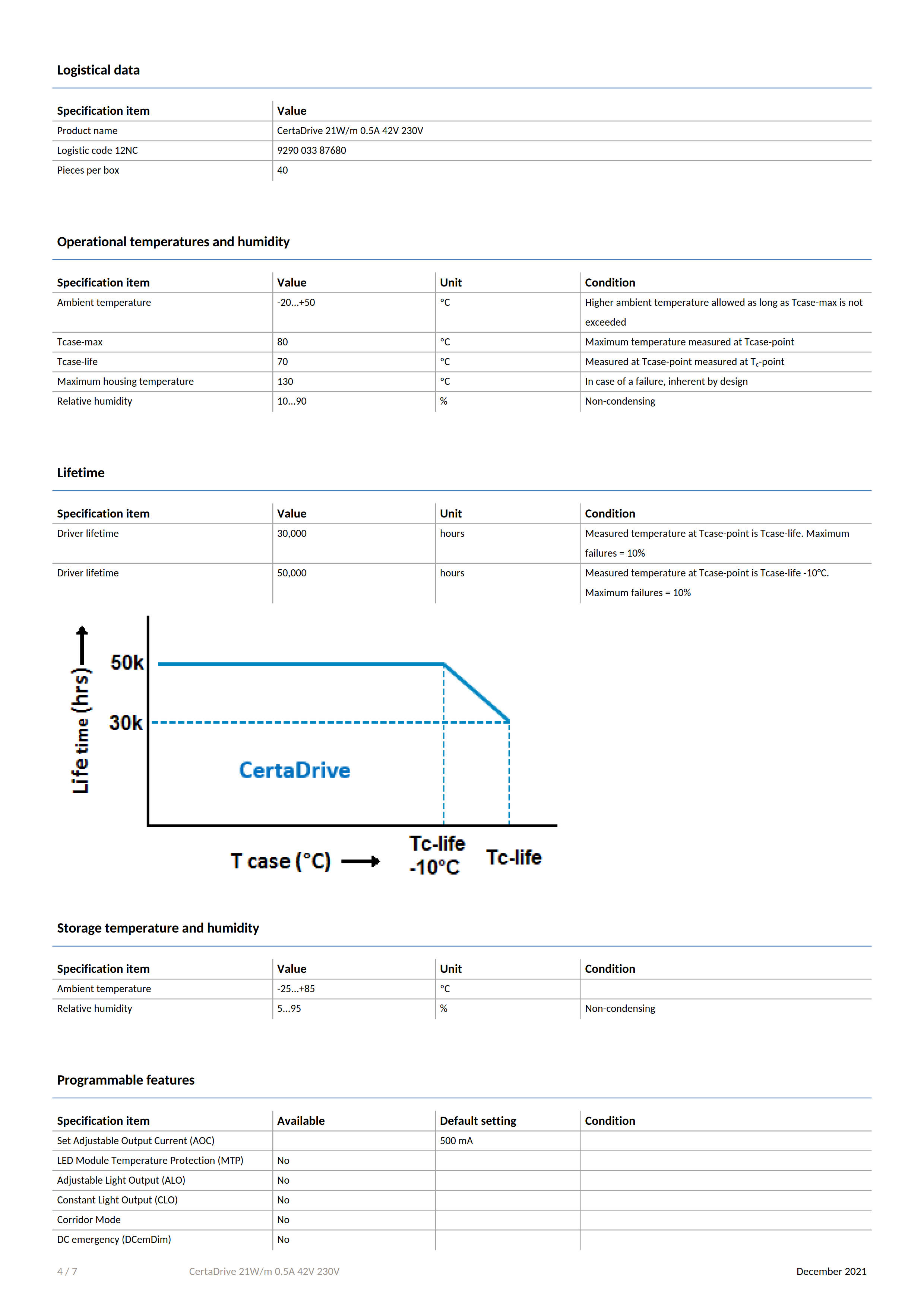

Driver lifetime: 30,000 hours

Control method: Fixed

12NC:929003387780

Output voltage: 30 to 42 Vdc

Output current: 0.6 A

Output power: 18 to 25 W

Pieces per box: 40

Driver lifetime: 30,000 hours

Control method: Fixed

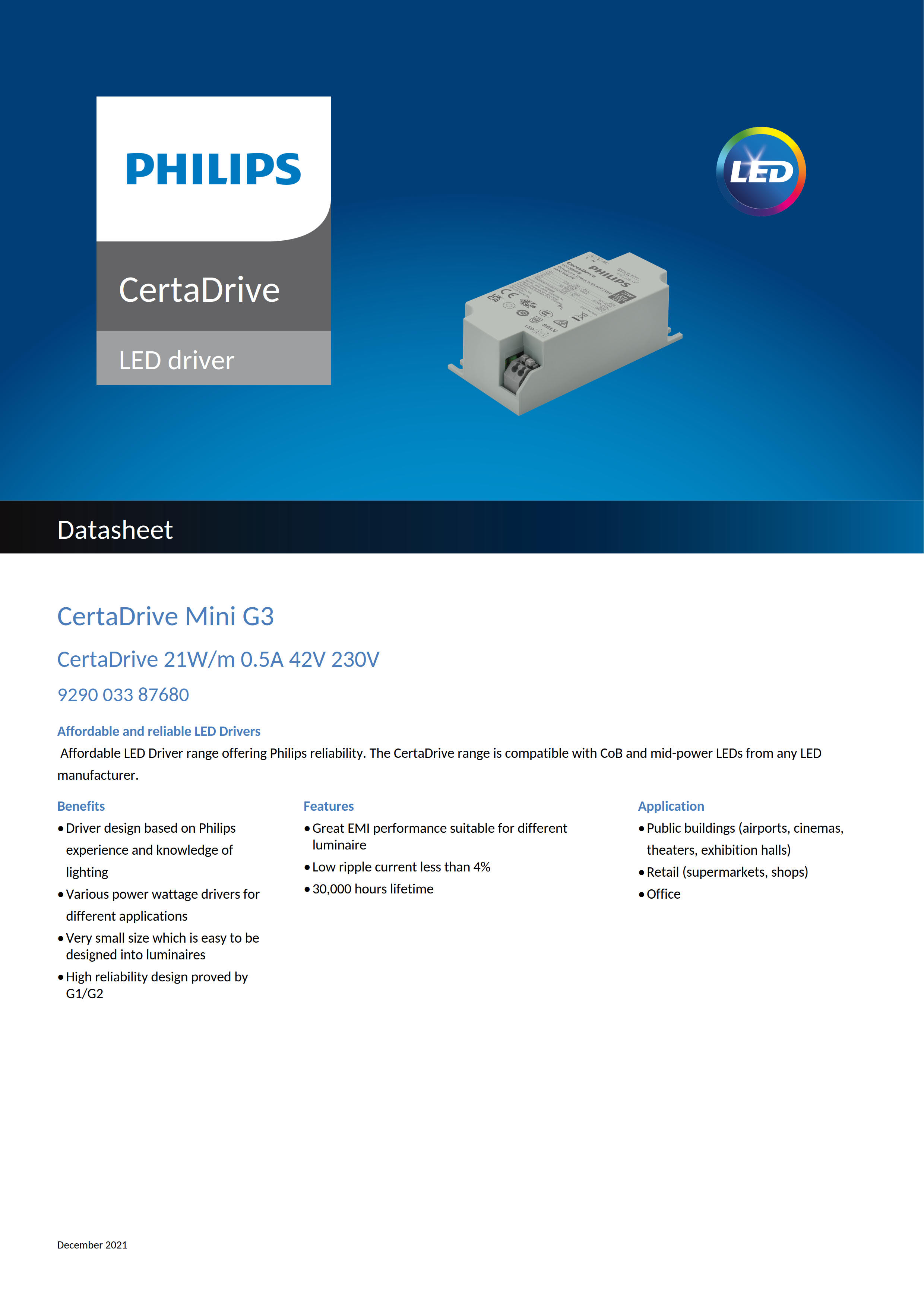

CertaDrive Mini G3

CertaDrive 21W/m 0.5A 42V 230V 929003387680

Affordable and reliable LED Drivers Affordable LED Driver range offering Philips reliability. The CertaDrive range is compatible with CoB and mid-power LEDs from any LED manufacturer.

Benefits

• Driver design based on Philips experience and knowledge of lighting

• Various power wattage drivers for different applications

• Very small size which is easy to be designed into luminaires

•High reliability design proved by G1/G2

Features

•Great EMI performance suitable for different luminaire

• Low ripple current less than 4%

• 30,000 hours lifetime

Application

• Public buildings (airports, cinemas, theaters, exhibition halls…)

•Retail (supermarkets, shops)

•Office

12NC List:

929003387680 CertaDrive 21W/m 0.5A 42V 230V

929003387780 CertaDrive 25W/m 0.6A 42V 230V

929003387880 CertaDrive 30W/m 0.7A 42V 230V

929003387980 CertaDrive 34W/m 0.8A 42V 230V

929003388080 CertaDrive 40W/m 0.9A 44V 230V

929003388180 CertaDrive 41W/m 1.05A 39V 230V
