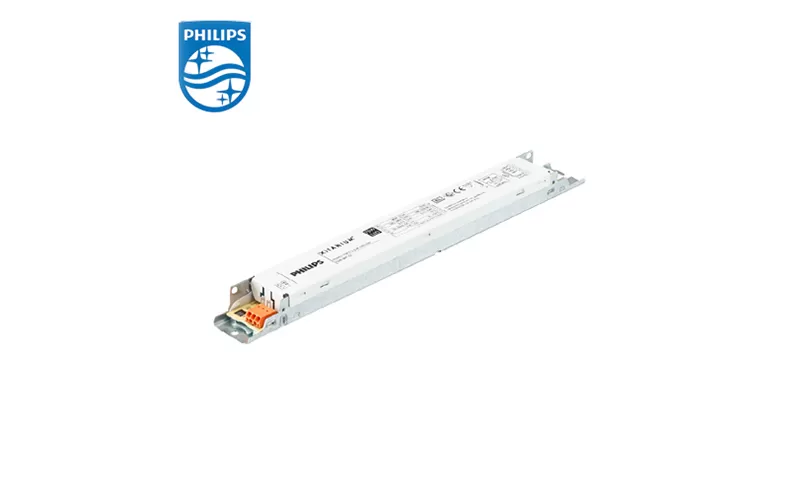

PHILIPS CertaDrive 30W 350mA 85V 230V 929002108480

Product date

Model name:PHILIPS CertaDrive 30W 350mA 85V 230V 929002108480

12NC:929002108480

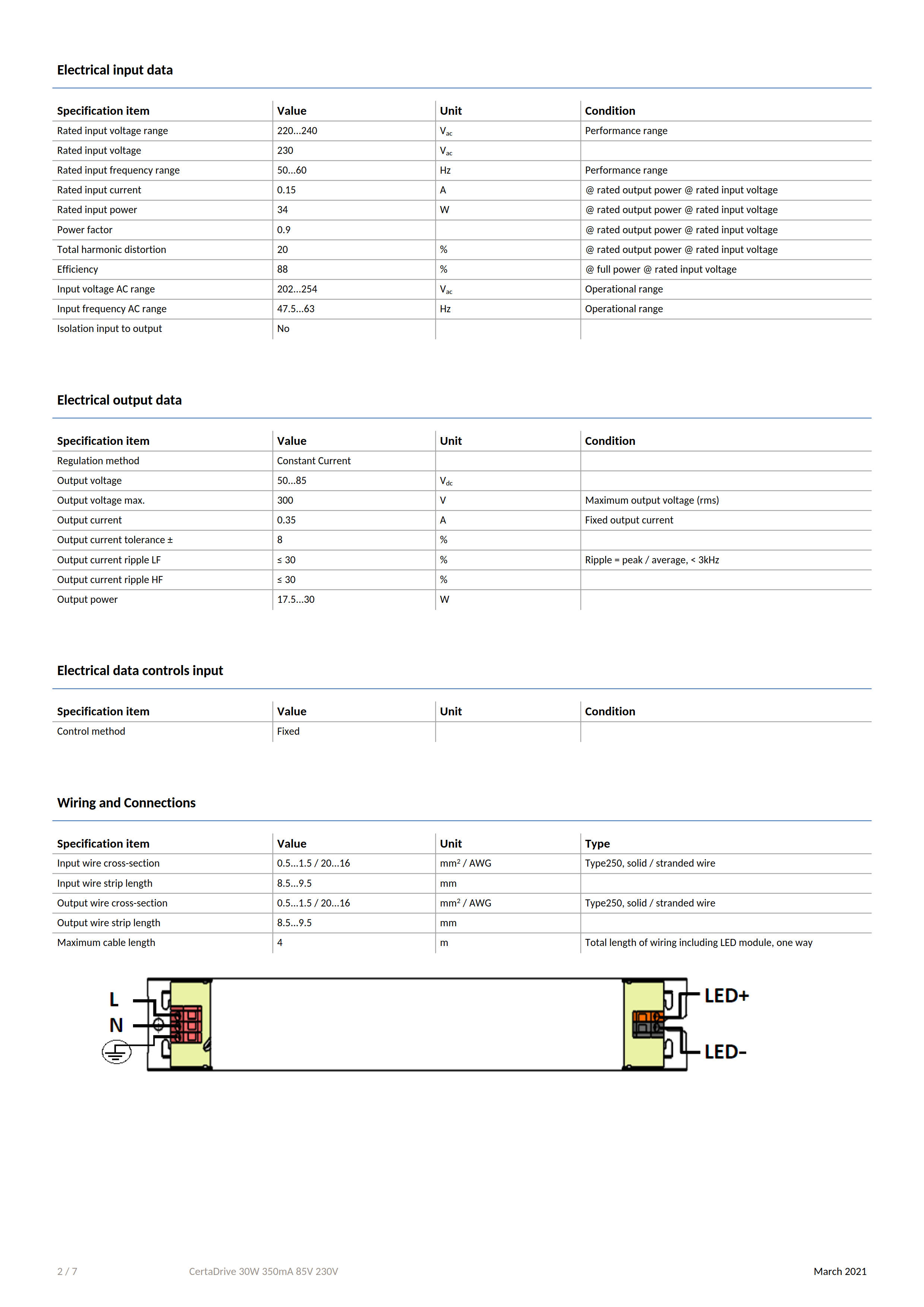

Output voltage: 50 to 85 Vdc

Output current: 0.35 A

Output power: 17.5 to 30 W

Pieces per box: 50

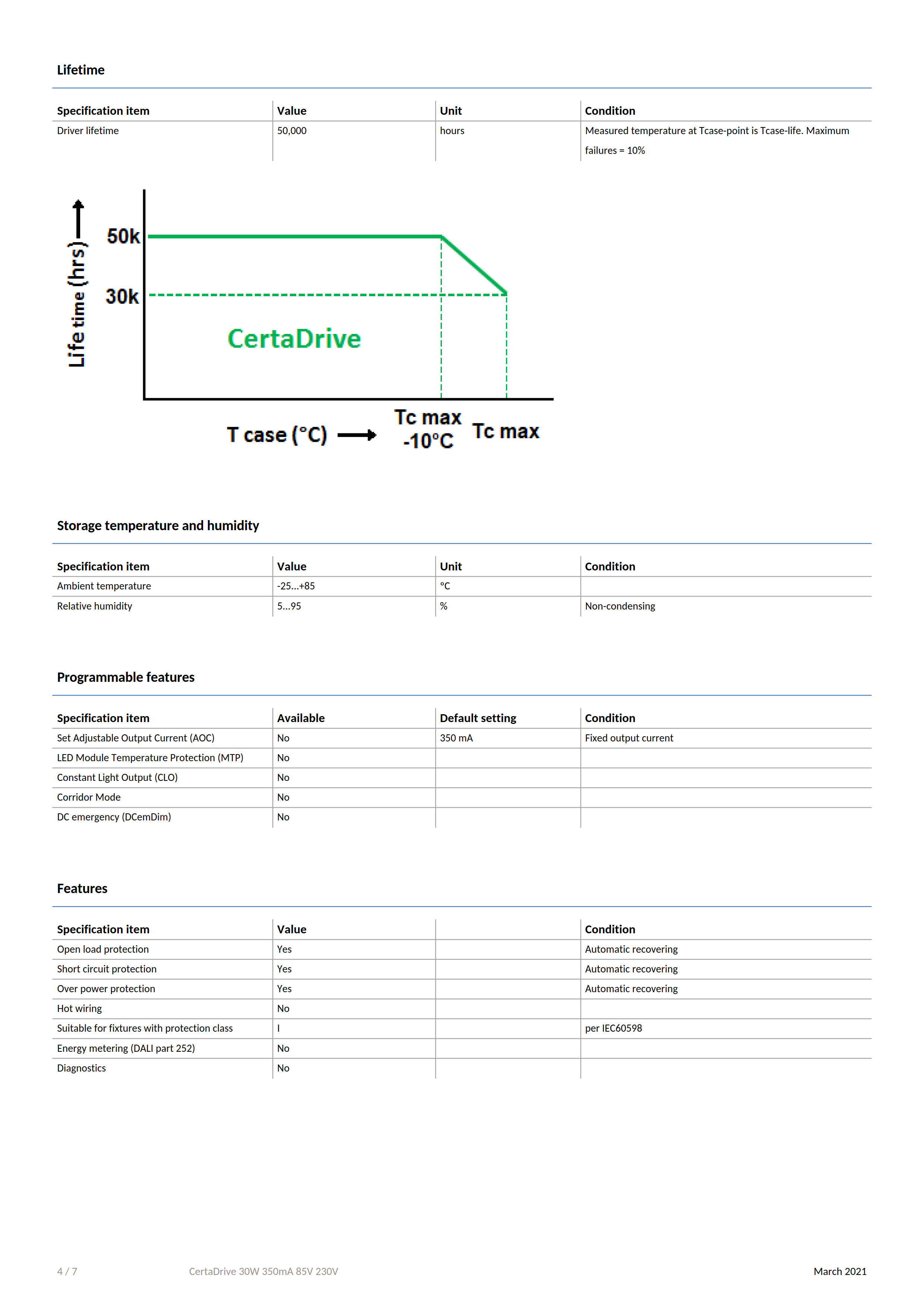

Driver lifetime: 50,000 hours

Control method: Fixed

Control method: Fixed

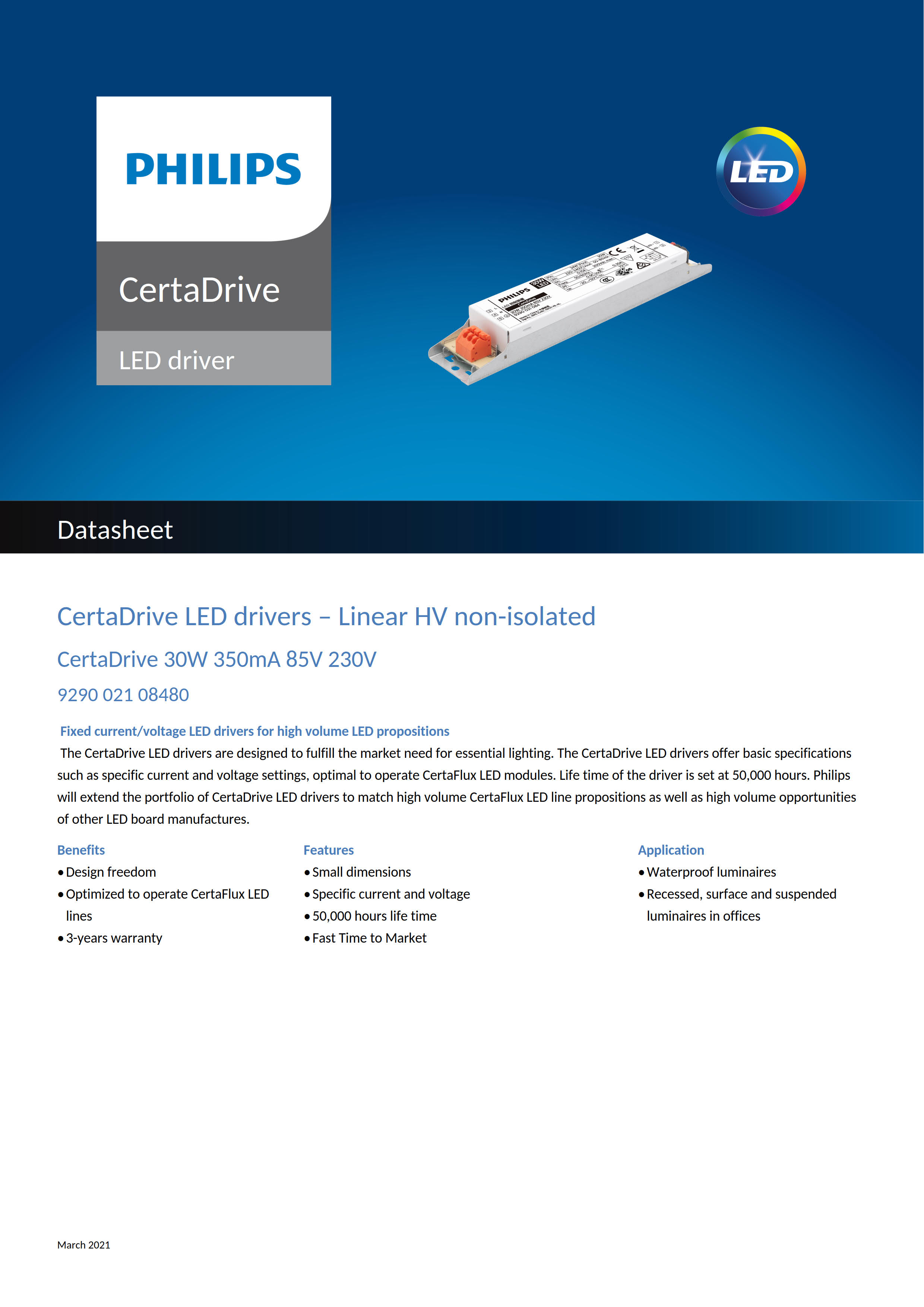

CertaDrive LED drivers – Linear HV non-isolated CertaDrive 30W 350mA 85V 230V 929002108480

The CertaDrive LED drivers are designed to fulfill the market need for essential lighting. The CertaDrive LED drivers offer basic specifications such as specific current and voltage settings, optimal to operate CertaFlux LED modules. Life time of the driver is set at 50,000 hours. Philips will extend the portfolio of CertaDrive LED drivers to match high volume CertaFlux LED line propositions as well as high volume opportunities of other LED board manufactures.

Benefits

• Design freedom

• Optimized to operate CertaFlux LED lines

• 3-years warranty

Features

• Small dimensions

• Specific current and voltage

• 50,000 hours life time

• Fast Time to Markets

Application

• Waterproof luminaires

• Recessed, surface and suspended luminaires in offices

12NC List:

929002108380 CertaDrive 20W 350mA 57V 230V

929002108480 CertaDrive 30W 350mA 85V 230V

929002108580 CertaDrive 40W 350mA 115V 230V

929002108680 CertaDrive 60W 350mA 170V 230V
