PRODUCT DATA
Product date

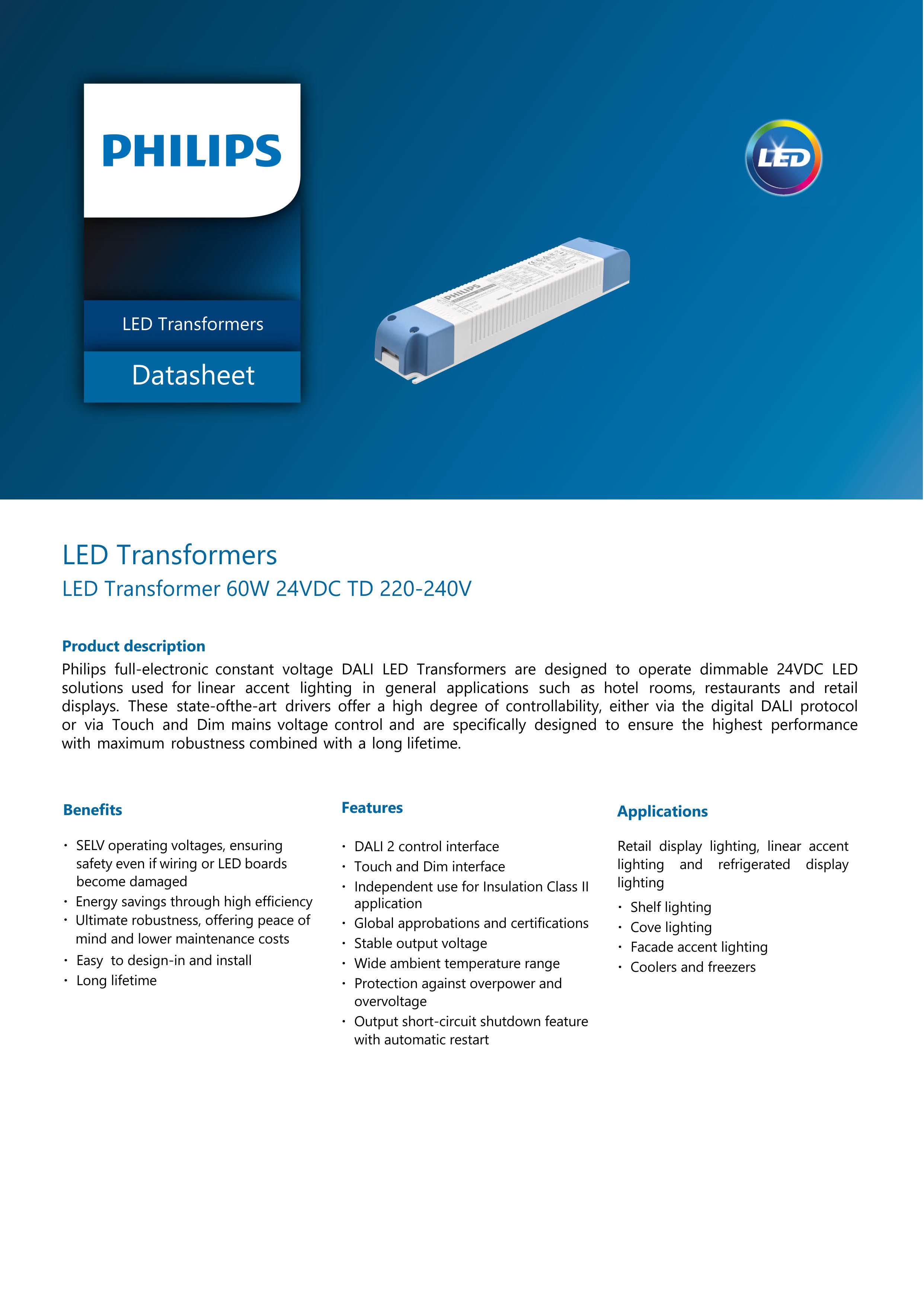

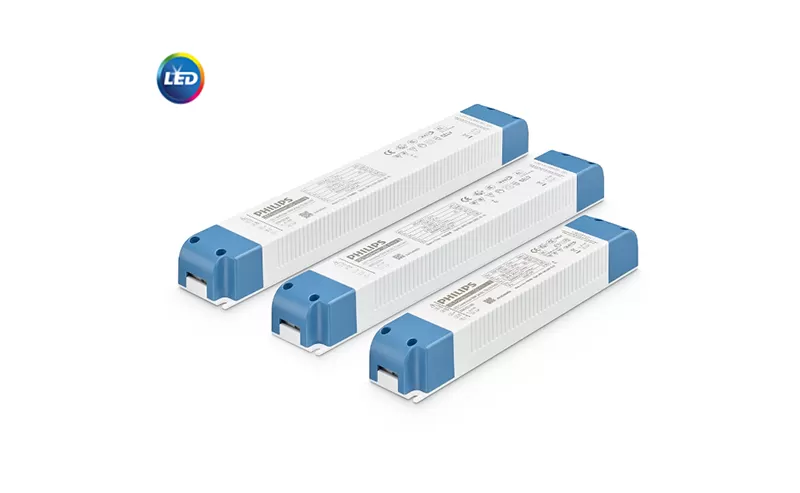

PHILIPS LED Transformer 60W 24VDC TD 220-240V 929002200506
12NC:929002200506
Wattage:60W
Dim:Dali:
Hours:50k HOURS
LED Transformers
LED Transformer 60W 24VDC TD 220-240V
Product description
Philips full-electronic constant voltage DALI LED Transformers are designed to operate dimmable 24VDC LED
solutions used for linear accent lighting in general applications such as hotel rooms, restaurants and retail
displays. These state-ofthe-art drivers offer a high degree of controllability, either via the digital DALI protocol
or via Touch and Dim mains voltage control and are specifically designed to ensure the highest performance
with maximum robustness combined with a long lifetime.
Benefits
•Driver design based on Philips experience and knowledge of conventional fluorescent and HID technologies
•Various power wattage Drivers that are related to the lumen packages/applications
• Fixed output Drivers
• Independent-version housing design for stand-alone installations
Features
• Small, super compact dimensions
• Specific, optimized output current and voltage
• 30,000 hours lifetime
• Fast Time to Market
• Low ripple current
Application
• Public buildings (airports, cinemas, theaters, exhibition halls…)
•Retail (supermarkets, shops
•Office
PHILIPS Product 12NC List
12NC List:
PHILIPS LED Transformer 60W 24VDC TD 220-240V 929002200506
PHILIPS LED Transformer 100W 24VDC TD 220-240V 929002200606
PHILIPS LED Transformer 150W 24VDC TD 220-240V 929002200706
