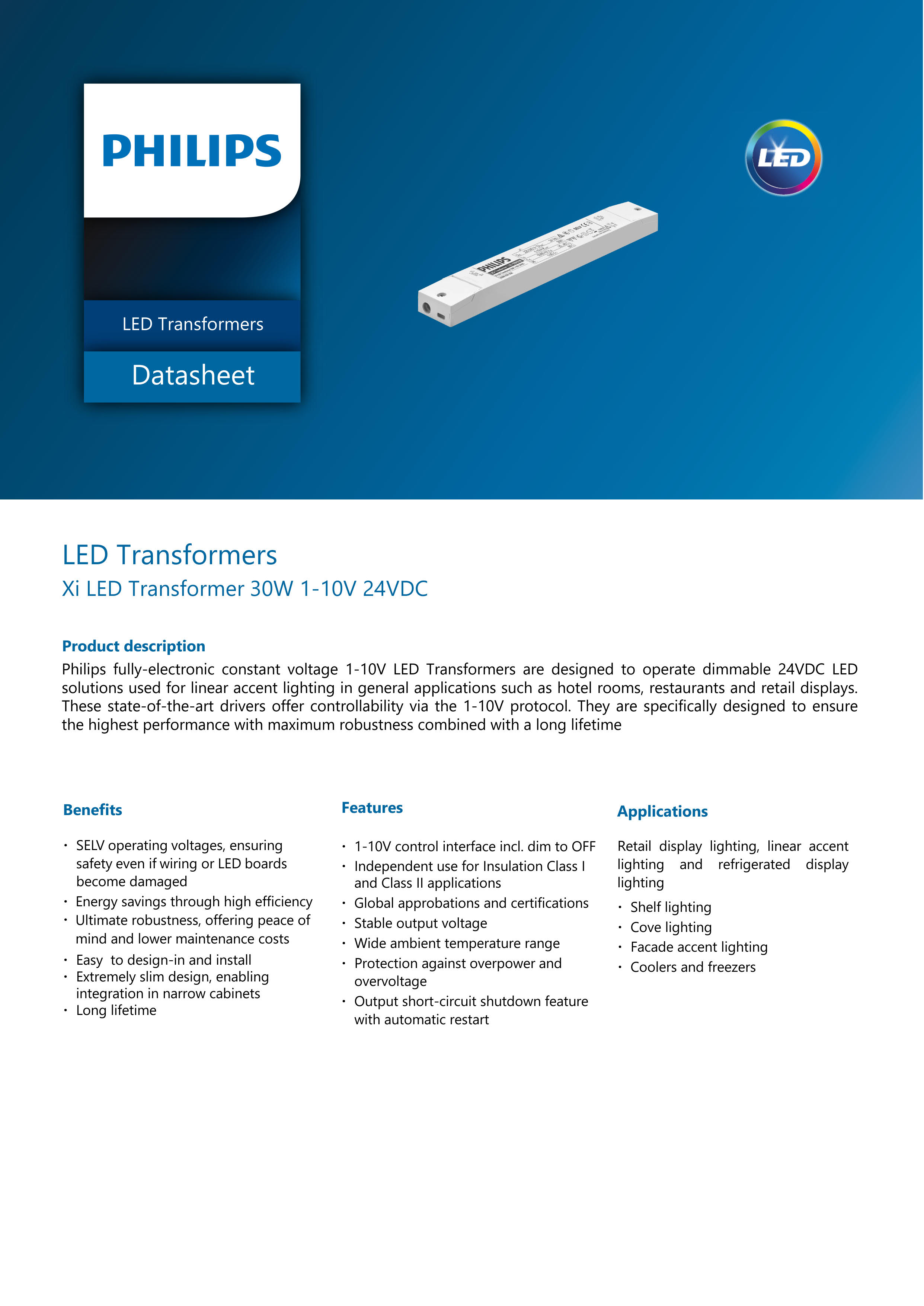

PRODUCT DATA
Product date
PHILIPS Xi LED Transformer 30W 1-10V 24VDC 929002825880
12NC:929002825880
Wattage:30W
Dim:1-10v
Hours:50k HOURS
LED Transformers

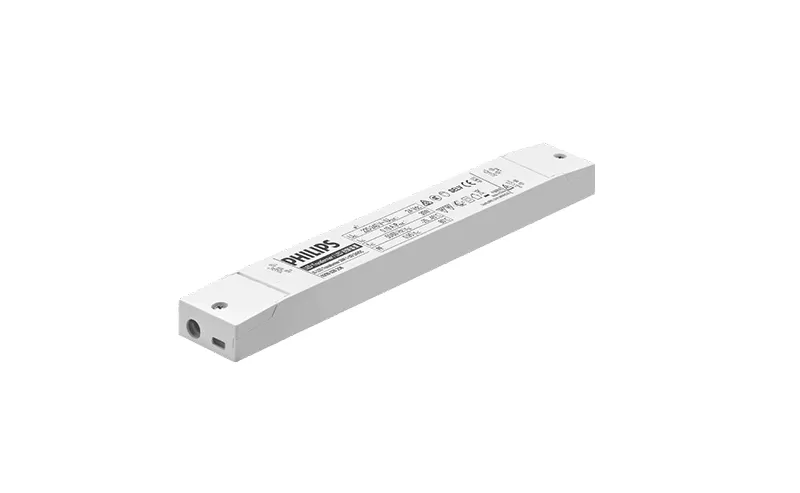

Xi LED Transformer 30W 1-10V 24VDC
Product description
Philips fully-electronic constant voltage 1-10V LED Transformers are designed to operate dimmable 24VDC LED
solutions used for linear accent lighting in general applications such as hotel rooms, restaurants and retail displays.
These state-of-the-art drivers offer controllability via the 1-10V protocol. They are specifically designed to ensure
the highest performance with maximum robustness combined with a long lifetime
Benefits • SELV operating voltages, ensuring safety even if wiring or LED boards become damaged •
• Energy savings through high efficiency Ultimate robustness, offering peace of mind and lower maintenance costs
• Easy to design-in and install • Extremely slim design, enabling integration in narrow cabinets • Long lifetime
Features
• 1-10V control interface incl. dim to OFF
• Independent use for Insulation Class I
and Class II applications
• Global approbations and certifications
• Stable output voltage
• Wide ambient temperature range
• Protection against overpower and
overvoltage
• Output short-circuit shutdown feature
with automatic restart
Applications
Retail display lighting, linear accent
lighting and refrigerated display
lighting
• Shelf lighting
• Cove lighting
• Facade accent lighting
• Coolers and freezers
PHILIPS Product 12NC List
12NC List:
9290 028 25880 Xi LED Transformer 30W 1-10V 24VDC
9290 028 25980 Xi LED Transformer 60W 1-10V 24VDC
9290 028 26080 Xi LED Transformer 100W 1-10V 24VDC
9290 028 26180 Xi LED Transformer 150W 1-10V 24VDC
9290 028 26280 Xi LED Transformer 250W 1-10V 24VDC
