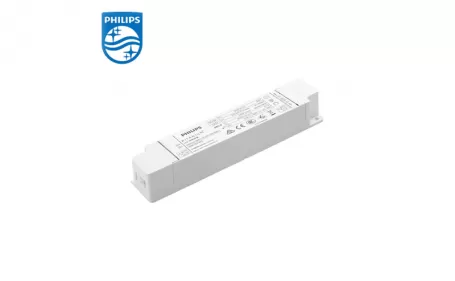

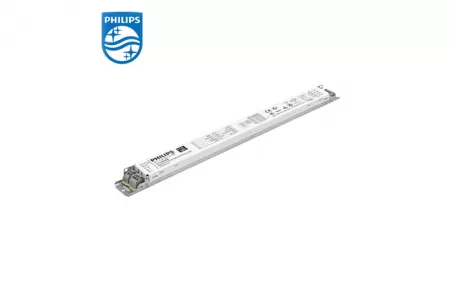

PHILIPS Xitanium 10W/m 0.35A 30V SC 230V 929001412280

Product date

12NC:929001412280

Output voltage: 20 to 30 Vdc

Output current: 0.35 A

Output power: 7 to 10.5 W

Pieces per box: 20

Driver lifetime: 50,000 hours

Control method: Fixed

Inquire Now Next Product

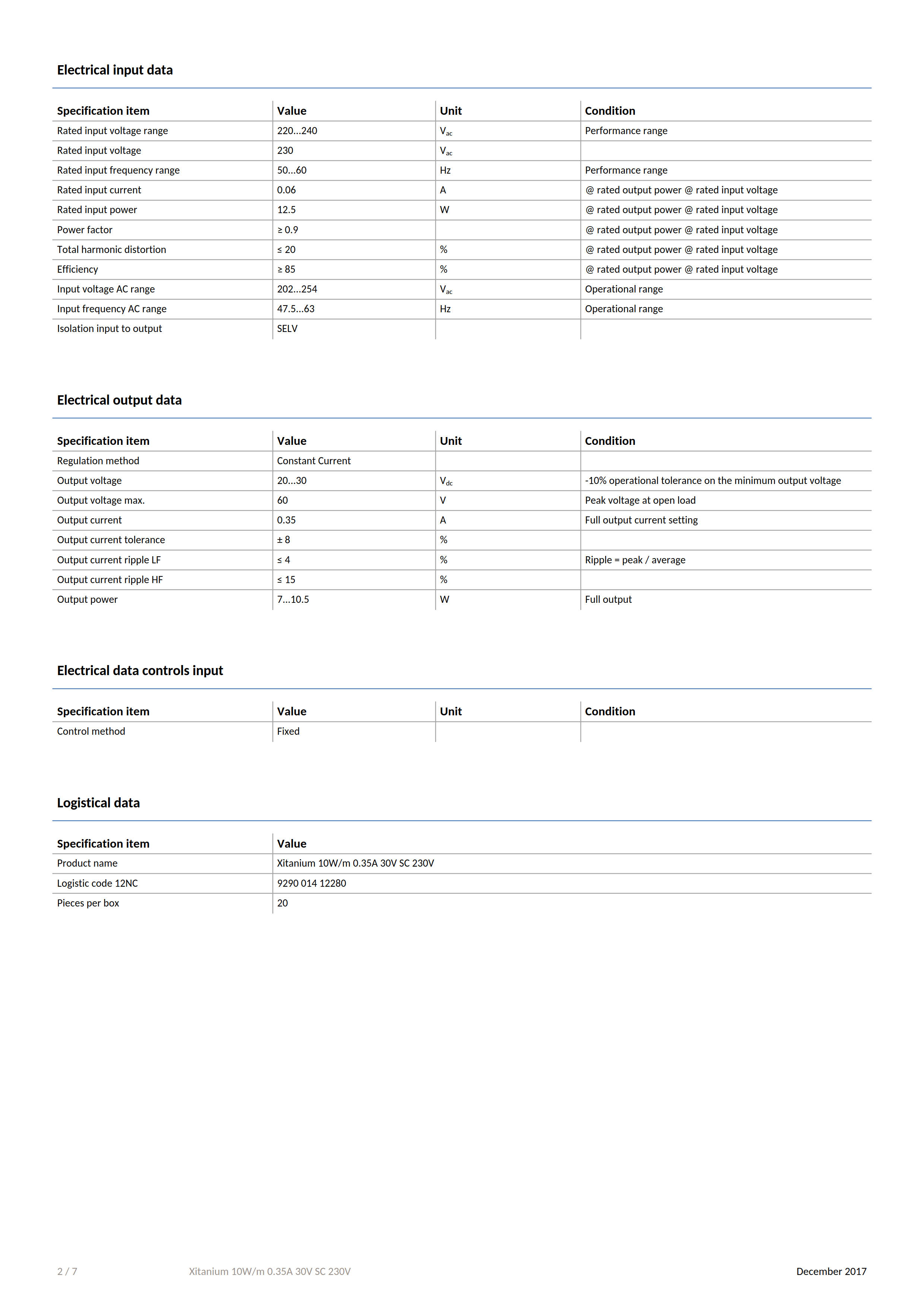

PRODUCT DATA

Product date

PHILIPS Xitanium 10W/m 0.35A 30V SC 230V 929001412280

12NC:929001412280

Output voltage: 20 to 30 Vdc

Output current: 0.35 A

Output power: 7 to 10.5 W

Pieces per box: 20

Driver lifetime: 50,000 hours

Control method: Fixed

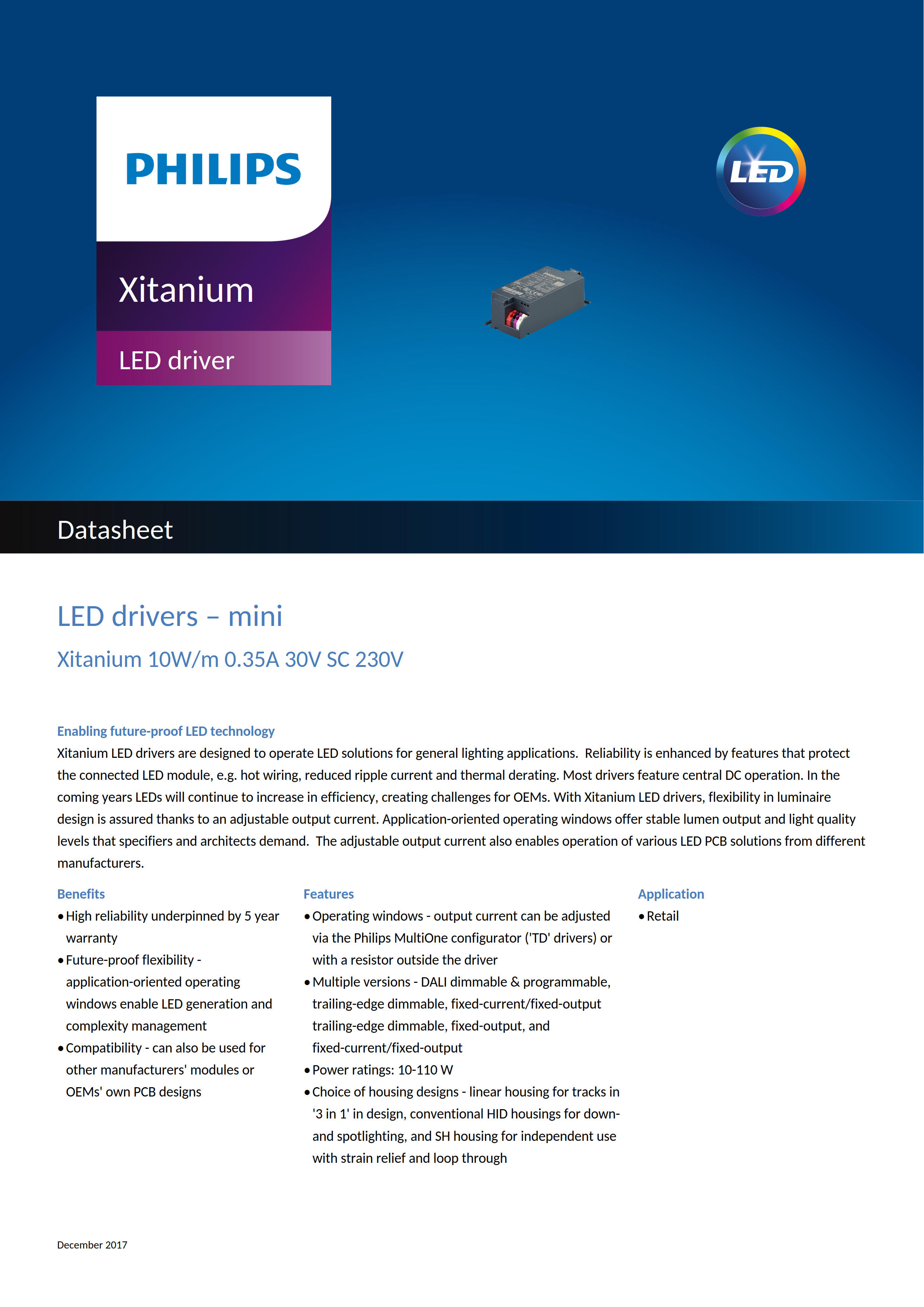

LED drivers – mini Xitanium 10W/m 0.35A 30V SC 230V

Enabling future-proof LED technology Xitanium LED drivers are designed to operate LED solutions for general lighting applications. Reliability is enhanced by features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal derating. Most drivers feature central DC operation. In the coming years LEDs will continue to increase in efficiency, creating challenges for OEMs. With Xitanium LED drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer stable lumen output and light quality levels that specifiers and architects demand. The adjustable output current also enables operation of various LED PCB solutions from different manufacturers.

Benefits

•High reliability underpinned by 5 year warranty

• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management

•Compatibility - can also be used for other manufacturers' modules or OEMs' own PCB designs

Features

•Operating windows - output current can be adjusted via the Philips MultiOne configurator ('TD' drivers) or with a resistor outside the driver

• Multiple versions - DALI dimmable & programmable, trailing-edge dimmable, fixed-current/fixed-output trailing-edge dimmable, fixed-output, and fixed-current/fixed-output

• Power ratings: 10-110 W

•Choice of housing designs

Application

•Retail

PHILIPS Xitanium 10W/m 0.35A 30V SC 230V 929001412280
