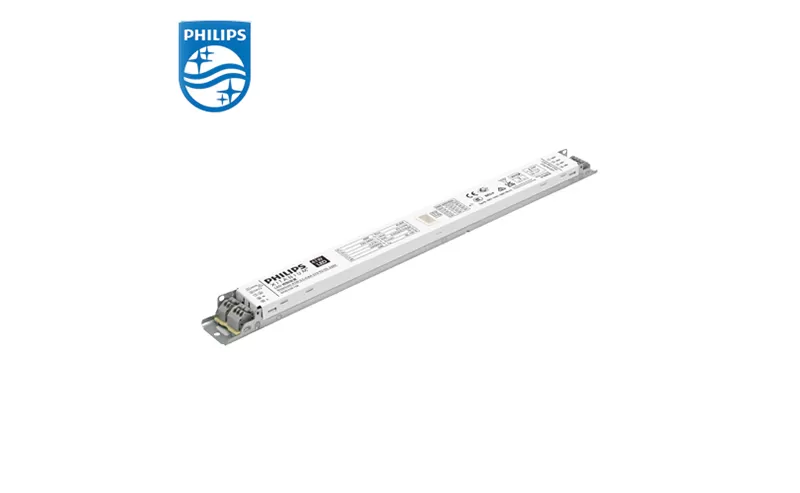

PHILIPS Xitanium 36W 0.3-1A 54V 1-10V 230V 929000854003

Product date

Model name:PHILIPS Xitanium 36W 0.3-1A 54V 1-10V 230V 929000854003

12NC:929000854003

Output voltage: 27 to 54 Vdc

Output current: 0.3 A - 1 A

Output power: 11 to 37 W

Pieces per box: 12

Driver lifetime: 50,000 hours

Control method: 1-10 V

PHILIPS Xitanium 36W 0.3-1A 54V 1-10V 230V 929000854003

Benefits

• High reliability underpinned by 5 year warranty

• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management

• Compatibility - adjustable output current enables operation of various LED solutions from different manufacturers or OEM own designs

Features

• Simpler approval process and easy design-in

• Operating windows - output current configurable via DALI or SimpleSet by means of Philips MultiOne software or via a resistor (LEDset)

•Reduced ripple current and thermal derating for increased reliability

Application

• Offices

• Industry

• Supermarkets / Retail

12NC List:

929000950606 Xitanium 36W 0.12-0.4A 115V 230V

929000950706 Xitanium 75W 0.12-0.4A 220V 230V

929000953606 Xitanium 36W 0.12-0.4A 115V 1-10V 230V

929000953706 Xitanium 75W 0.12-0.4A 220V 1-10V 230V

929000854003 Xitanium 36W 0.3-1A 54V 1-10V 230V

929000863503 Xitanium 75W 0.7-2A 54V 1-10V 230V

929000958706 Xitanium 36W/0.3-1A 54V 230V

929000958806 Xitanium 75W/0.7-2A 54V 230V
