Product date

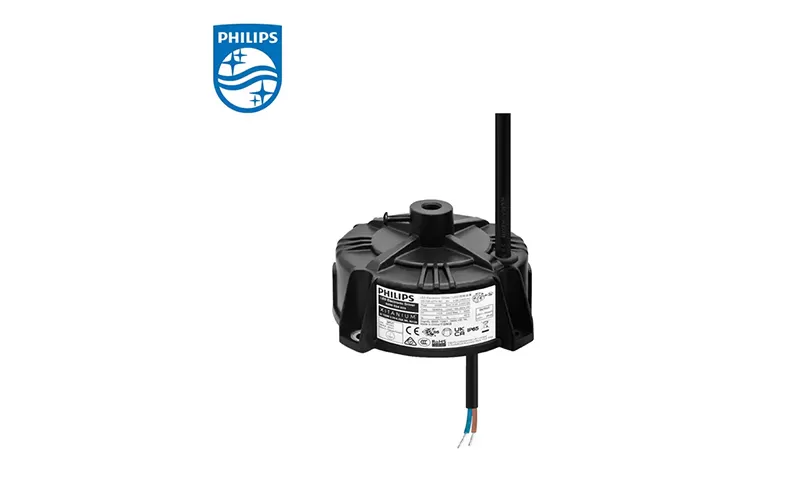

PHILIPS Xitanium High Bay LED Drivers Dimmable Xi 150W 1.0-1.5A 1-10V 220-240V RI132S 929002200080
12NC:929002200080
IP:IP65
Dimmable:1-10V
PRODUCT DATA
Product date
PHILIPS Xitanium High Bay LED Drivers Dimmable Xi 150W 1.0-1.5A 1-10V 220-240V RI132S 929002200080
12NC:929002200080
IP:IP65
Dimmable:1-10V

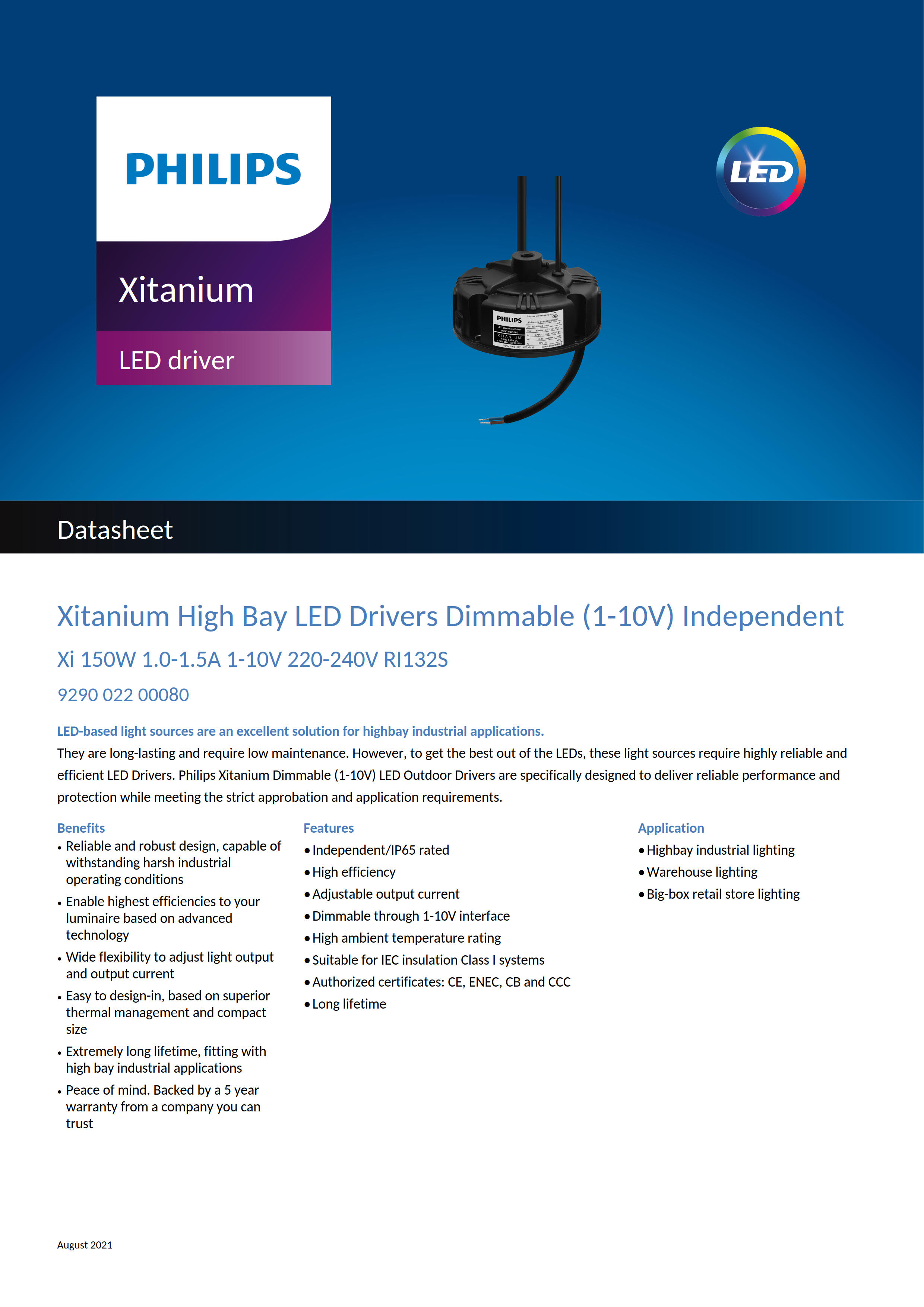

Xitanium High Bay LED Drivers Dimmable (1-10V) Independent
Xi 150W 1.0-1.5A 1-10V 220-240V RI132S 9290 022 00080
LED-based light sources are an excellent solution for highbay industrial applications. They are long-lasting and require low maintenance. However, to get the best out of the LEDs, these light sources require highly reliable and efficient LED Drivers. Philips Xitanium Dimmable (1-10V) LED Outdoor Drivers are specifically designed to deliver reliable performance and protection while meeting the strict approbation and application requirements.
Benefits
• Reliable and robust design, capable of withstanding harsh industrial operating conditions
• Enable highest efficiencies to your luminaire based on advanced technology
• Wide flexibility to adjust light output and output current
• Easy to design-in, based on superior thermal management and compact size
• Extremely long lifetime, fitting with high bay industrial applications
• Peace of mind. Backed by a 5 year warranty from a company you can trust
Features
• Independent/IP65 rated
• High efficiency
• Adjustable output current
• Dimmable through 1-10V interface
• High ambient temperature rating
• Suitable for IEC insulation Class I systems
• Authorized certificates: CE, ENEC, CB and CCC
• Long lifetime
Application
• Highbay industrial lighting
• Warehouse lighting
• Big-box retail store lighting








PHILIPS Product 12NC List
12NC List:
PHILIPS Xi 200W 1.4-2.0A 1-10V 220-240V RI132S 929002200180
PHILIPS Xi 150W 1.0-1.5A 1-10V 220-240V RI132S 929002200080
PHILIPS Xi 100W 0.7-1.0A 1-10V 220-240V RI132S 929002199980
PHILIPS Xi 200W 1.4-2.0A 1-10V 220-240V RI132 929002183480
PHILIPS Xi 150W 1.0-1.5A 1-10V 220-240V RI132 929002183380
PHILIPS Xi 100W 0.7-1.0A 1-10V 220-240V RI132 929002183280
PHILIPS Xi 200W 0.66-1.10A 1-10V GL AUX RI132S 929002825780
PHILIPS Xi 150W 0.52-0.84A 1-10V GL AUX RI132S 929002825680
PHILIPS Xi 100W 0.35-0.55A 1-10V GL AUX RI132S 929002825580
PHILIPS Xi 200W 0.66-1.10A 1-10V GL AUX RI132 929002825480
PHILIPS Xi 150W 0.52-0.84A 1-10V GL AUX RI132 929002825380
PHILIPS Xi 100W 0.35-0.55A 1-10V GL AUX RI132 929002825280
PHILIPS Xi 200W 0.66-1.10A 1-10V 100-277V RI132S 929002815580
PHILIPS Xi 150W 0.52-0.84A 1-10V 100-277V RI132S 92900281548
PHILIPS Xi 100W 0.35-0.55A 1-10V 100-277V RI132S 929002815380
PHILIPS Xi 200W 0.66-1.10A 1-10V 100-277V RI132 929002815280
PHILIPS Xi 150W 0.52-0.84A 1-10V 100-277V RI132 929002815180
PHILIPS Xi 100W 0.35-0.55A 1-10V 100-277V RI132 929002815080
