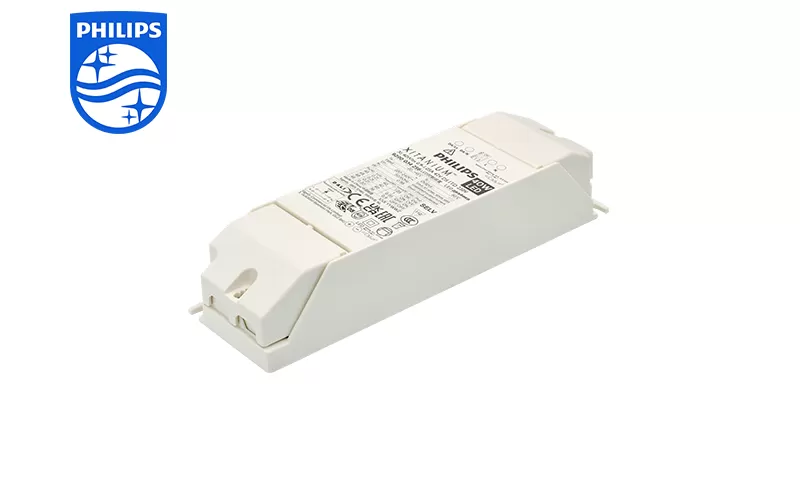

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V 929003425680

Product date:

Model name:PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V 929003425680

12NC:929003425680

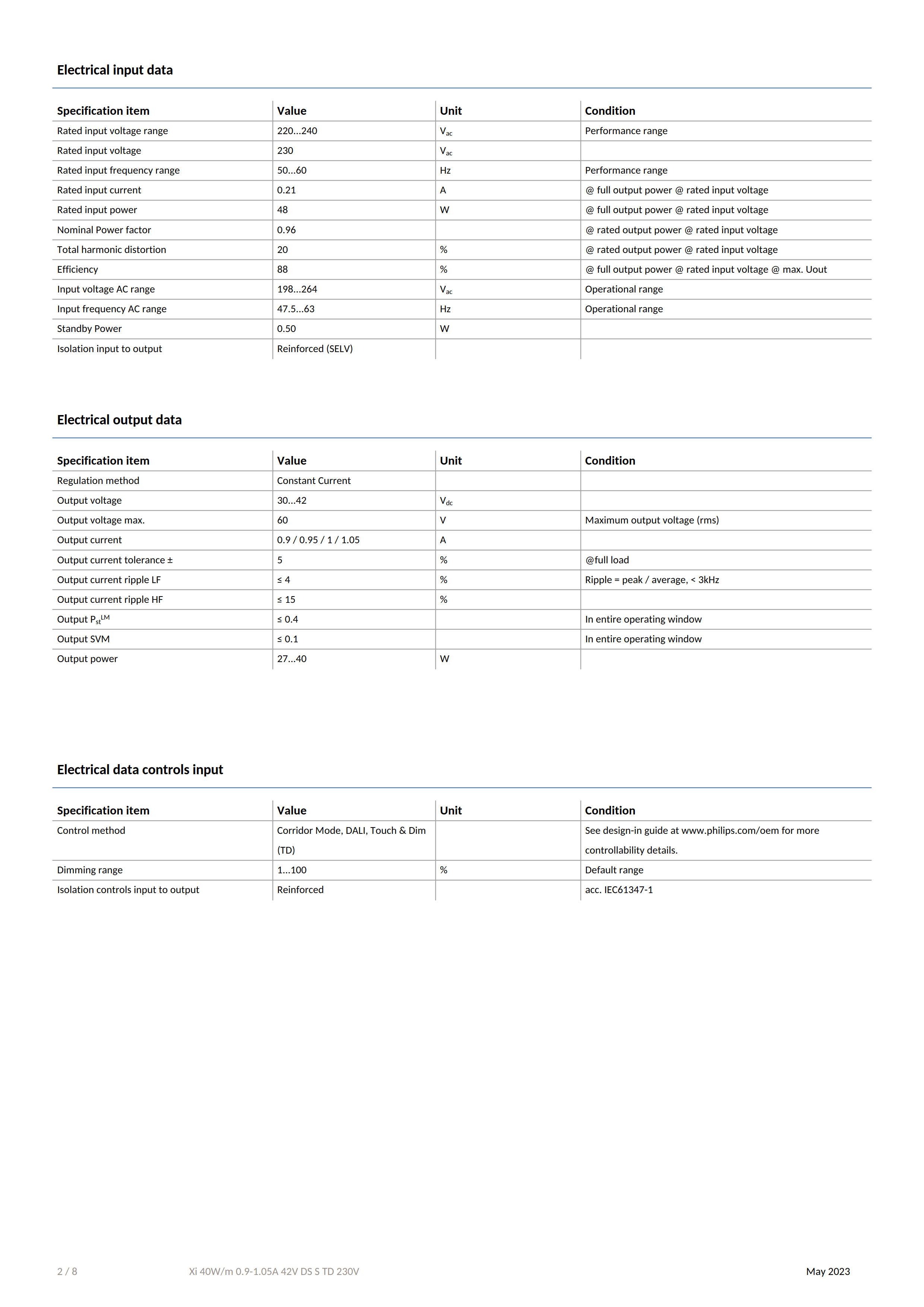

Rated input voltage range: 220...240

Rated input voltage: 230

Rated input frequency range 50...60

Rated input current 0.21

Rated input power 48

Nominal Power factor 0.96


PRODUCT DATA

Product date:

Model name:PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V 929003425680

12NC:929003425680

Rated input voltage range: 220...240

Rated input voltage: 230

Rated input frequency range 50...60

Rated input current 0.21

Rated input power 48

Nominal Power factor 0.96


Enabling future-proof LED technology

Philips Xitanium LED Point drivers are designed to operate with LED COB solutions used both in built-in and independent applications such as down light, spot light and track light. Xitanium drivers have common features such as low ripple output current, adjustable output current by dip switch and 50,000 hours lifetime. They are specifically designed to ensure great EMI performance, high robustness and safe usage.


Benefits

• Dali 2.0 enables wired digital controls

• Provides options for different luminaire designs

• Great EMI performance for easy design-in

• Enables minimization of luminaire

• Selectable output current enables flexibility

• Peace of mind with proven reliability


Features

• Dali 2.0 with 1-100% dimming

• Class I and II application

• Low Ripple less than 4%

• Small size with Mini Shape

• 4 output currents by Dip switch

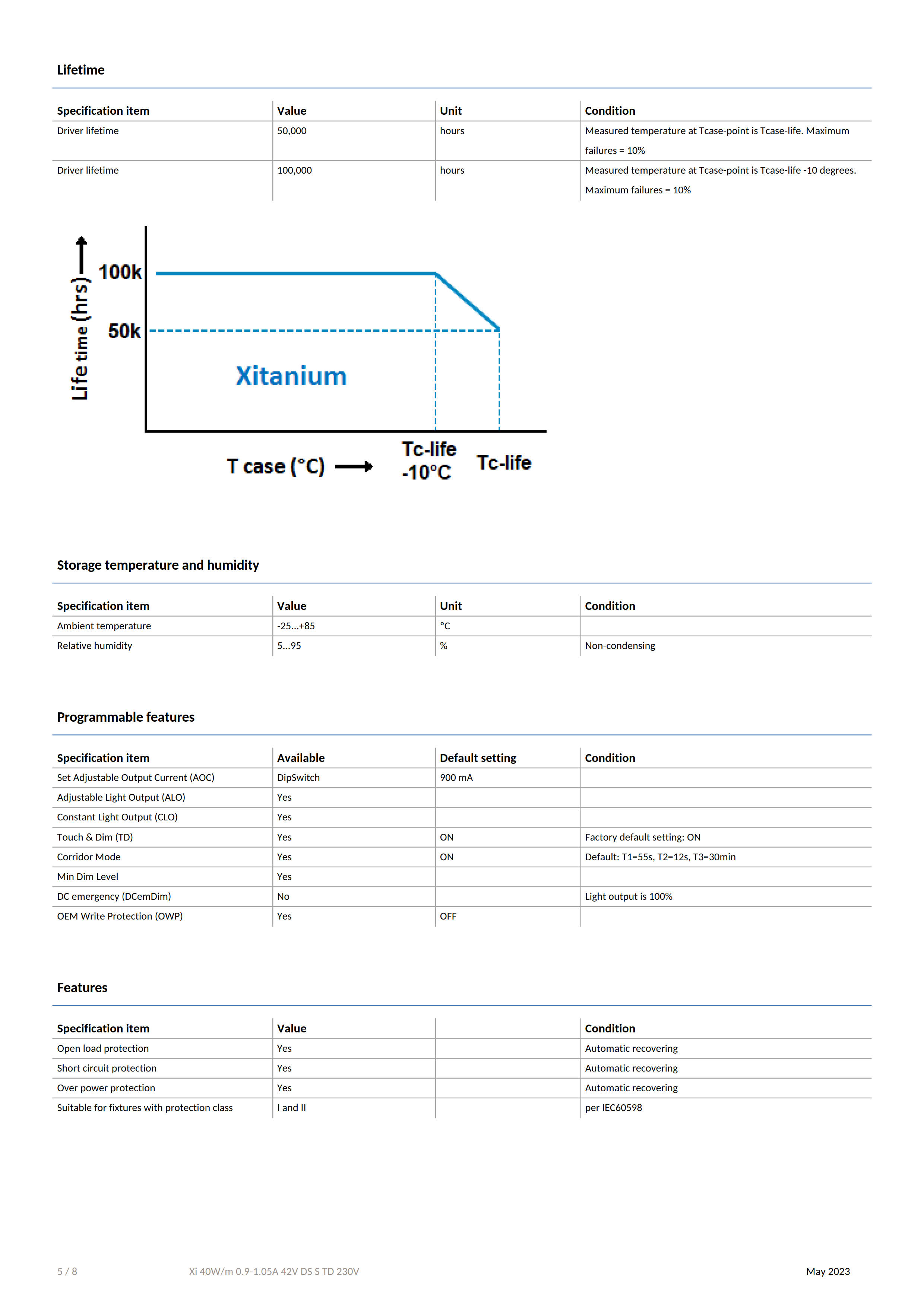

• 50,000 hours lifetime


Application

• Down lighting

• Spot lighting

• Track lighting

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V  929003425680

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V  929003425680

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V  929003425680

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V  929003425680

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V  929003425680

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V  929003425680

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V  929003425680

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V  929003425680


PHILIPS Product 12NC List

12NC LIST:

PHILIPS Xitanium Mini Dali DS Xi 15W/m 0.2-0.35A 42V DS I TD 230V 929003425380

PHILIPS Xitanium Mini Dali DS Xi 25W/m 0.45-0.6A 42V DS I TD 230V 929003425480

PHILIPS Xitanium Mini Dali DS Xi 36W/m 0.7-0.85A 42V DS I TD 230V 929003425580

PHILIPS Xitanium Mini Dali DS Xi 40W/m 0.9-1.05A 42V DS I TD 230V 929003425680
