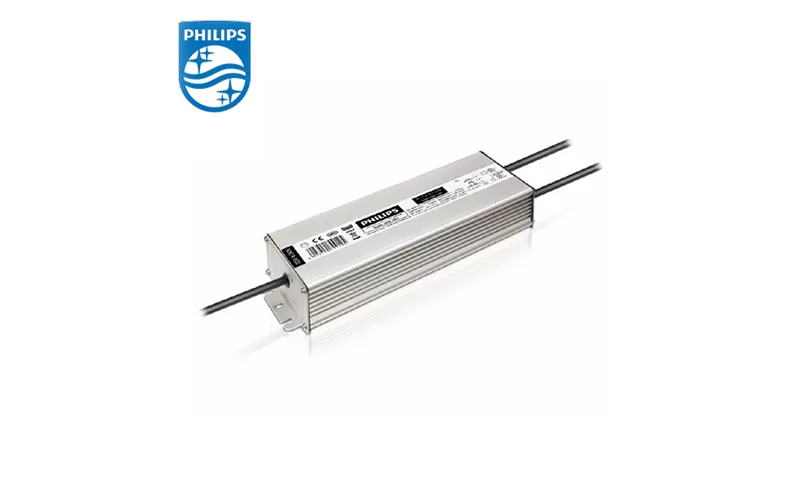

Model name:PHILIPS Outdoor Driver Xitanium 250W 0.7A-Q 1-10V CCC I42 G3 929000838508
12NC:929000838508
Output current: 700 mA
Output power:124.6 - 250 W
Output Voltage: 178 - 357V
Ambient temperature range: -40 °C to 55 °C
Dimmable: Yes
Control method: 1 -10V

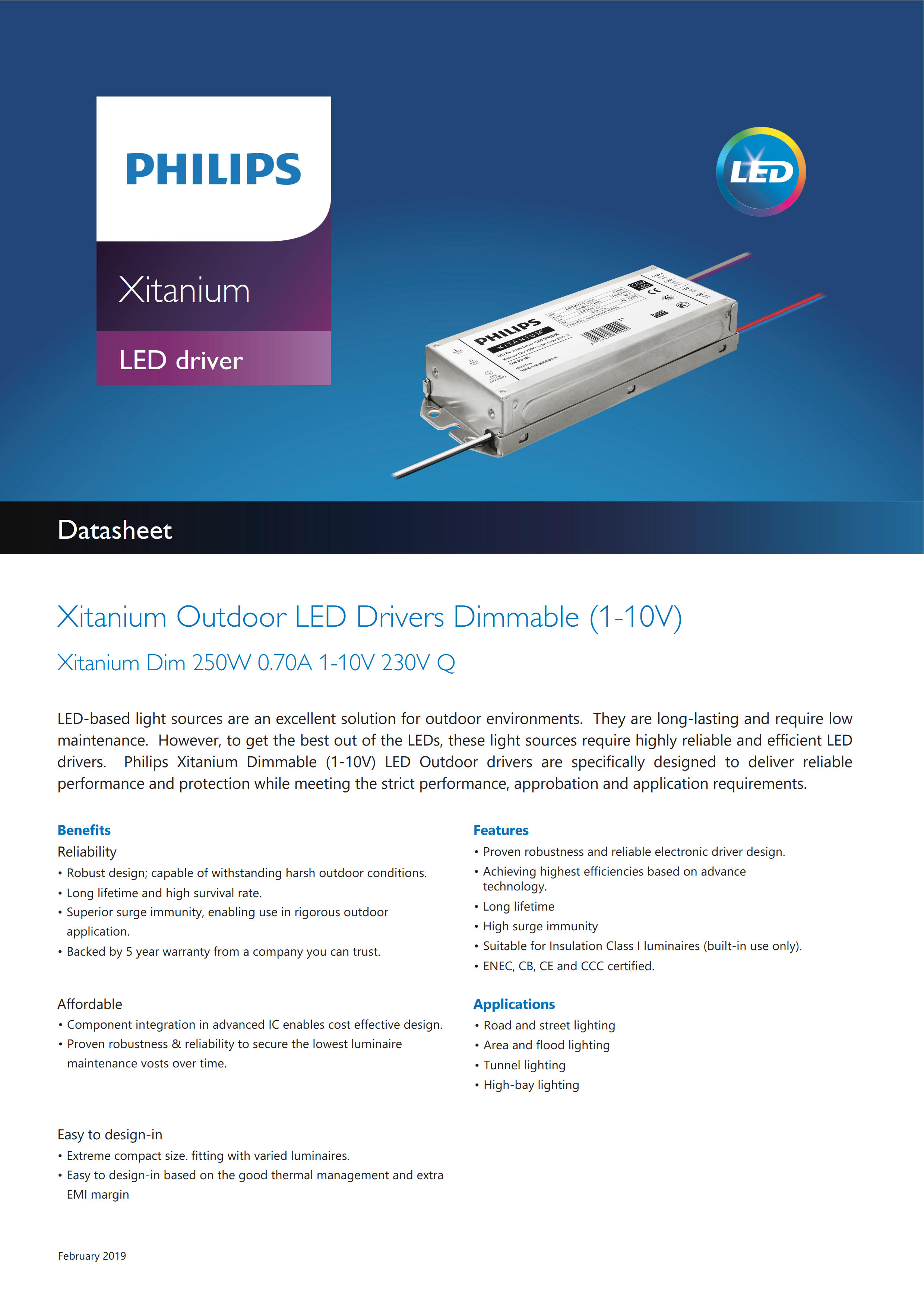

Xitanium Outdoor LED Drivers Dimmable (1-10V)
Xitanium Dim 250W 0.70A 1-10V 230V Q
LED-based light sources are an excellent solution for outdoor environments. They are long-lasting and require low
maintenance. However, to get the best out of the LEDs, these light sources require highly reliable and efficient LED
drivers. Philips Xitanium Dimmable (1-10V) LED Outdoor drivers are specifically designed to deliver reliable
performance and protection while meeting the strict performance, approbation and application requirements.
Benefits
Reliability
• Robust design; capable of withstanding harsh outdoor conditions.
• Long lifetime and high survival rate.
• Superior surge immunity, enabling use in rigorous outdoor
application.
• Backed by 5 year warranty from a company you can trust.
Affordable
• Component integration in advanced IC enables cost effective design.
• Proven robustness & reliability to secure the lowest luminaire
maintenance vosts over time.
Easy to design-in
• Extreme compact size. fitting with varied luminaires.
• Easy to design-in based on the good thermal management and extra
EMI margin
Features
• Proven robustness and reliable electronic driver design.
• Achieving highest efficiencies based on advance
technology.
• Long lifetime
• High surge immunity
• Suitable for Insulation Class I luminaires (built-in use only).
• ENEC, CB, CE and CCC certified.
Applications
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting
