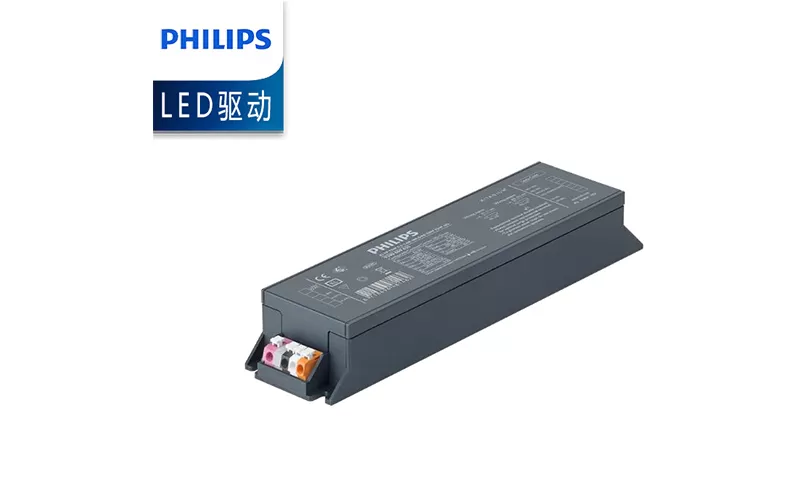

PHILIPS Xitanium LED Xtreme drivers Xi SR 150W 0.3-1.0A SNEMP 230V S240 sXt 929001507606
12NC:929001507606

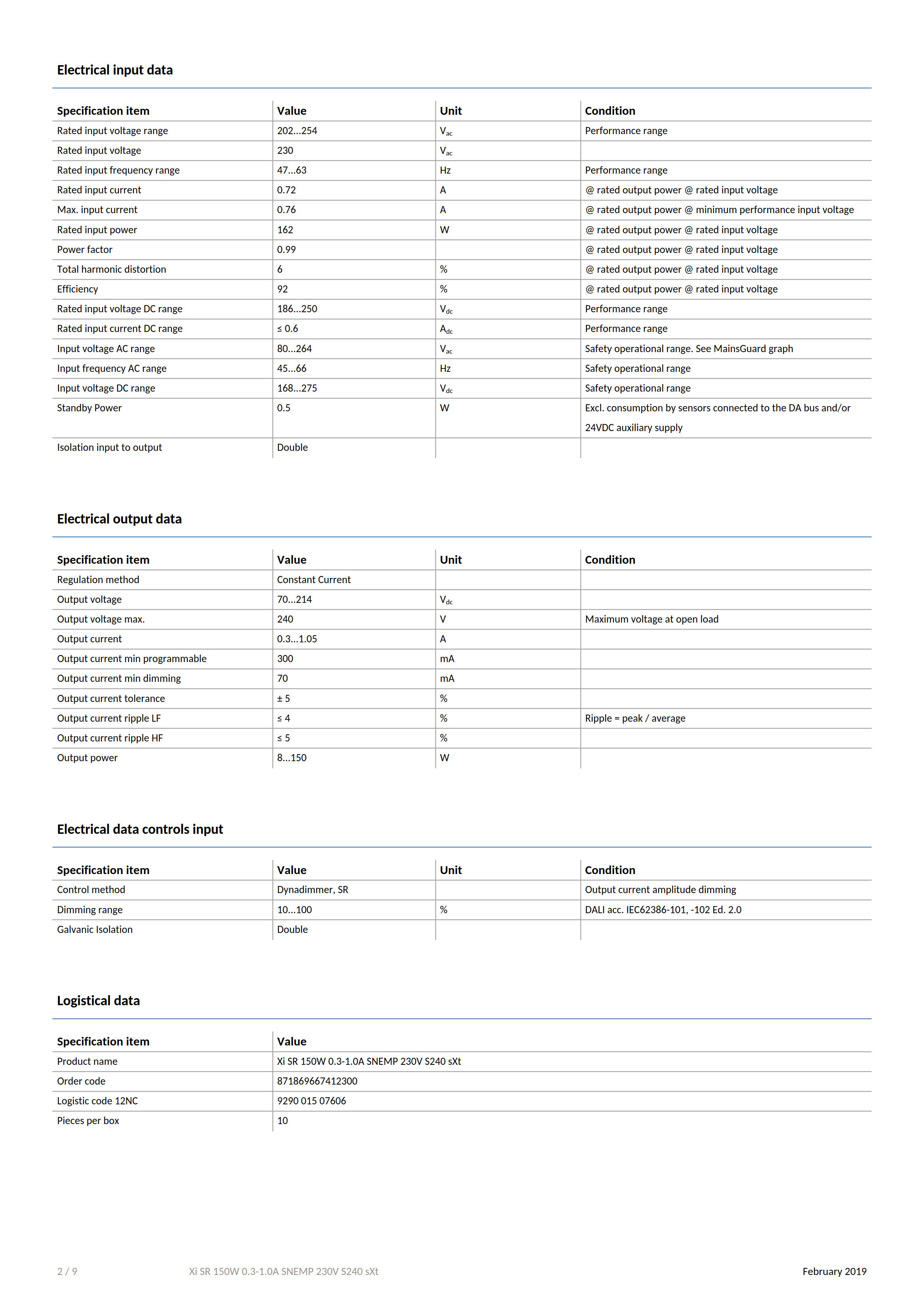

Operating and ElectricalOutput Current Ripple (Max) 4 %
Output Voltage (Max) 214 V

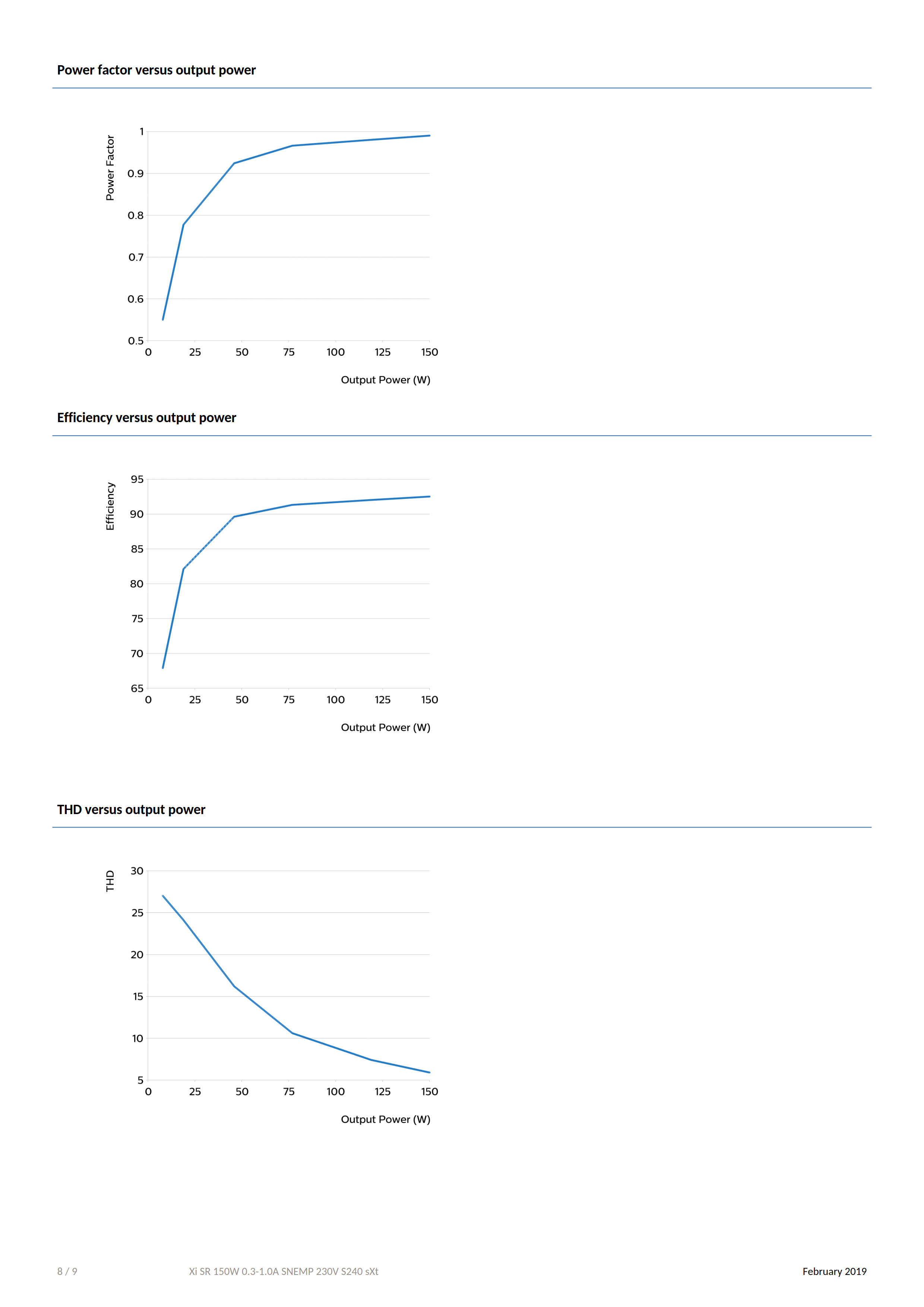

Maximum Efficiency at Full Load 92 %
Open Circuit Voltage (DC) (Max) 260 V
Output Power (Min) 8 W
Output Power (Max) 150 W
Energy Metering Yes
Output Voltage (Min) 70 V

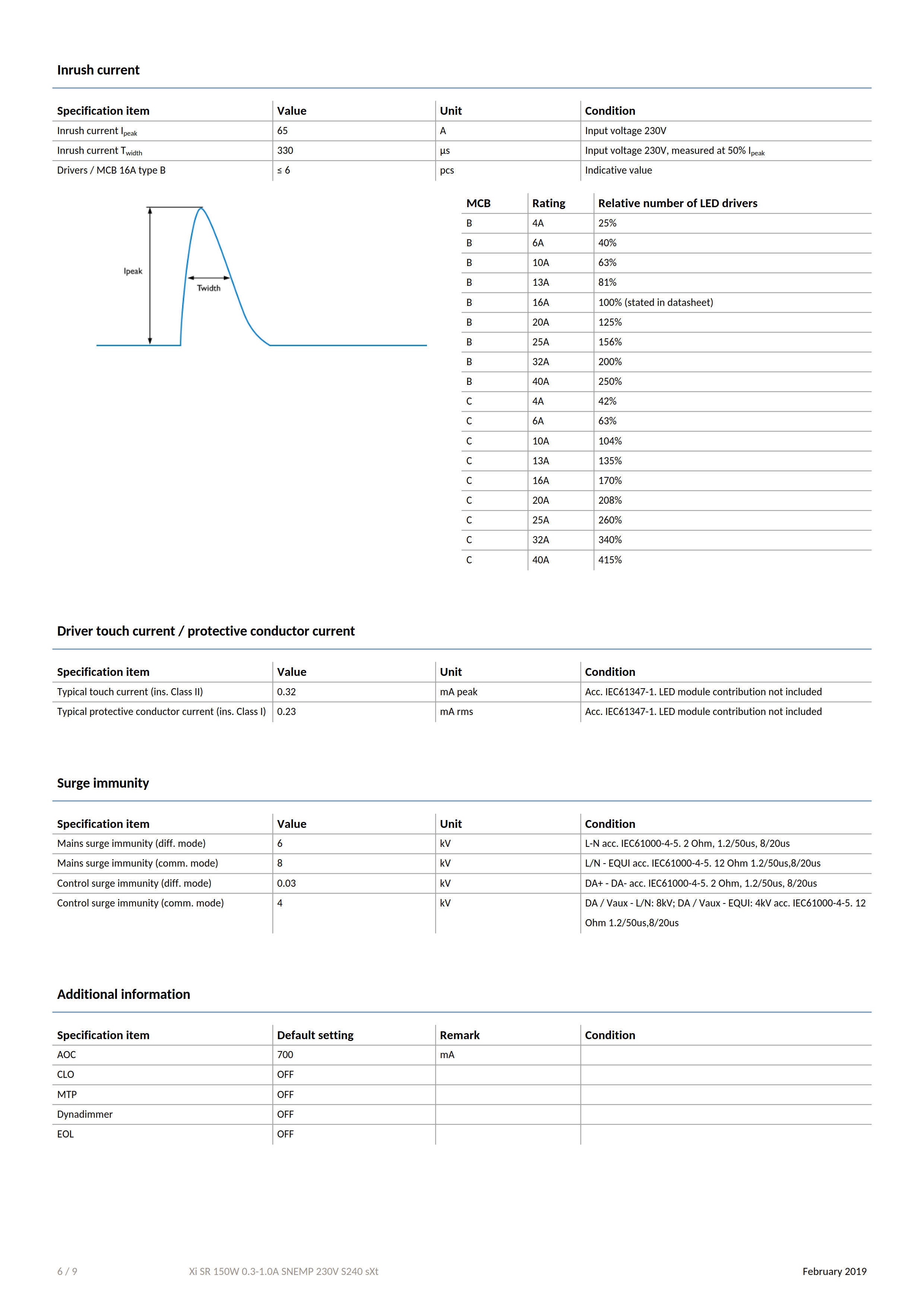

Inrush Current Width to 50% of Peak 135 µs
Output Current (Min) 300 mA
Diagnostics True
Output Current (Max) 1050 mA
Inrush Current Peak (Max) 11.2 A

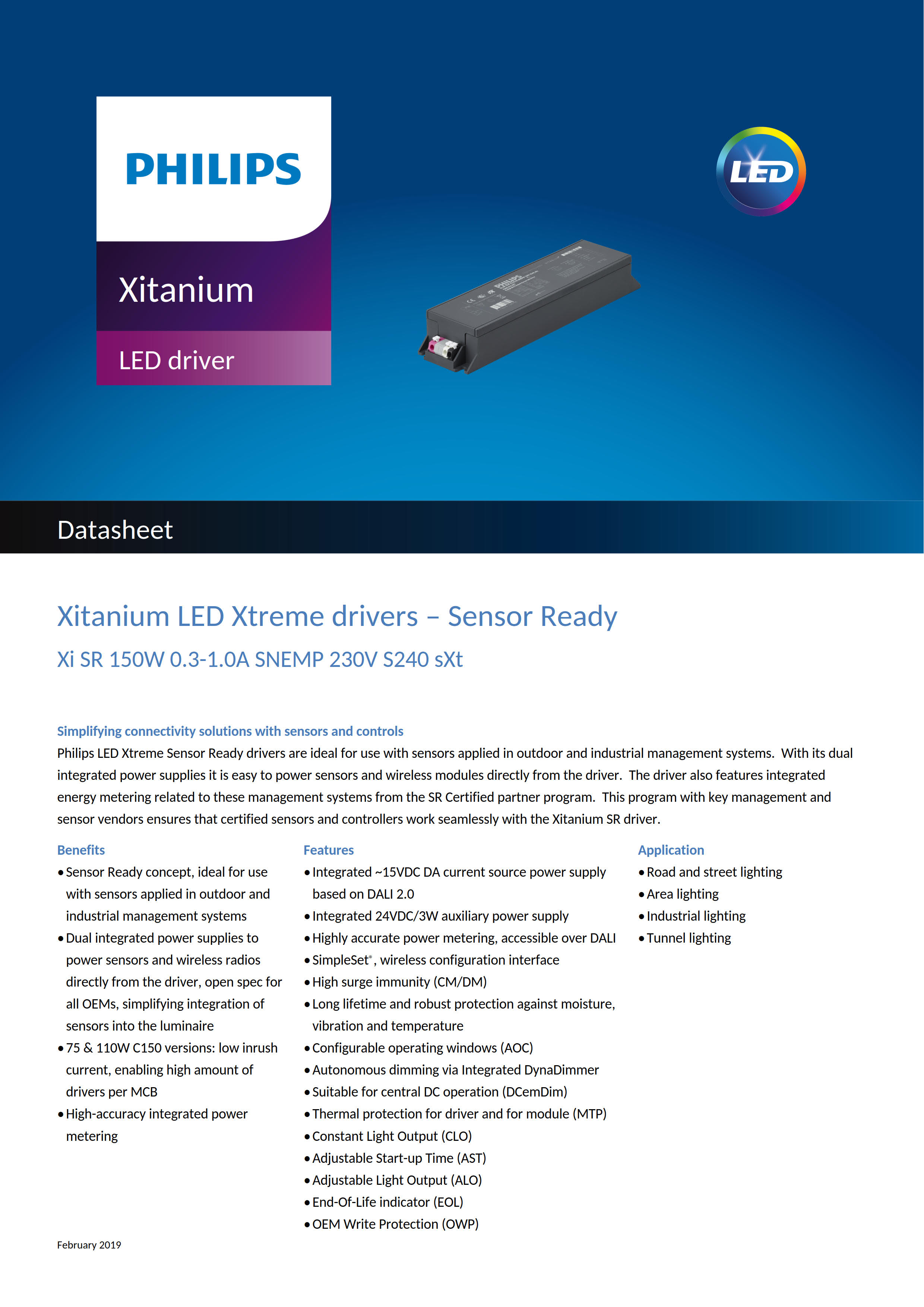

Xitanium LED Xtreme drivers – Sensor Ready
Xi SR 150W 0.3-1.0A SNEMP 230V S240 sXt
Simplifying connectivity solutions with sensors and controls
Philips LED Xtreme Sensor Ready drivers are ideal for use with sensors applied in outdoor and industrial management systems. With its dual
integrated power supplies it is easy to power sensors and wireless modules directly from the driver. The driver also features integrated
energy metering related to these management systems from the SR Certified partner program. This program with key management and
sensor vendors ensures that certified sensors and controllers work seamlessly with the Xitanium SR driver
Benefits
• Sensor Ready concept, ideal for use
with sensors applied in outdoor and
industrial management systems
•Dual integrated power supplies to
power sensors and wireless radios
directly from the driver, open spec for
all OEMs, simplifying integration of
sensors into the luminaire
• 75 & 110W C150 versions: low inrush
current, enabling high amount of
drivers per MCB
•High-accuracy integrated power
metering
Features

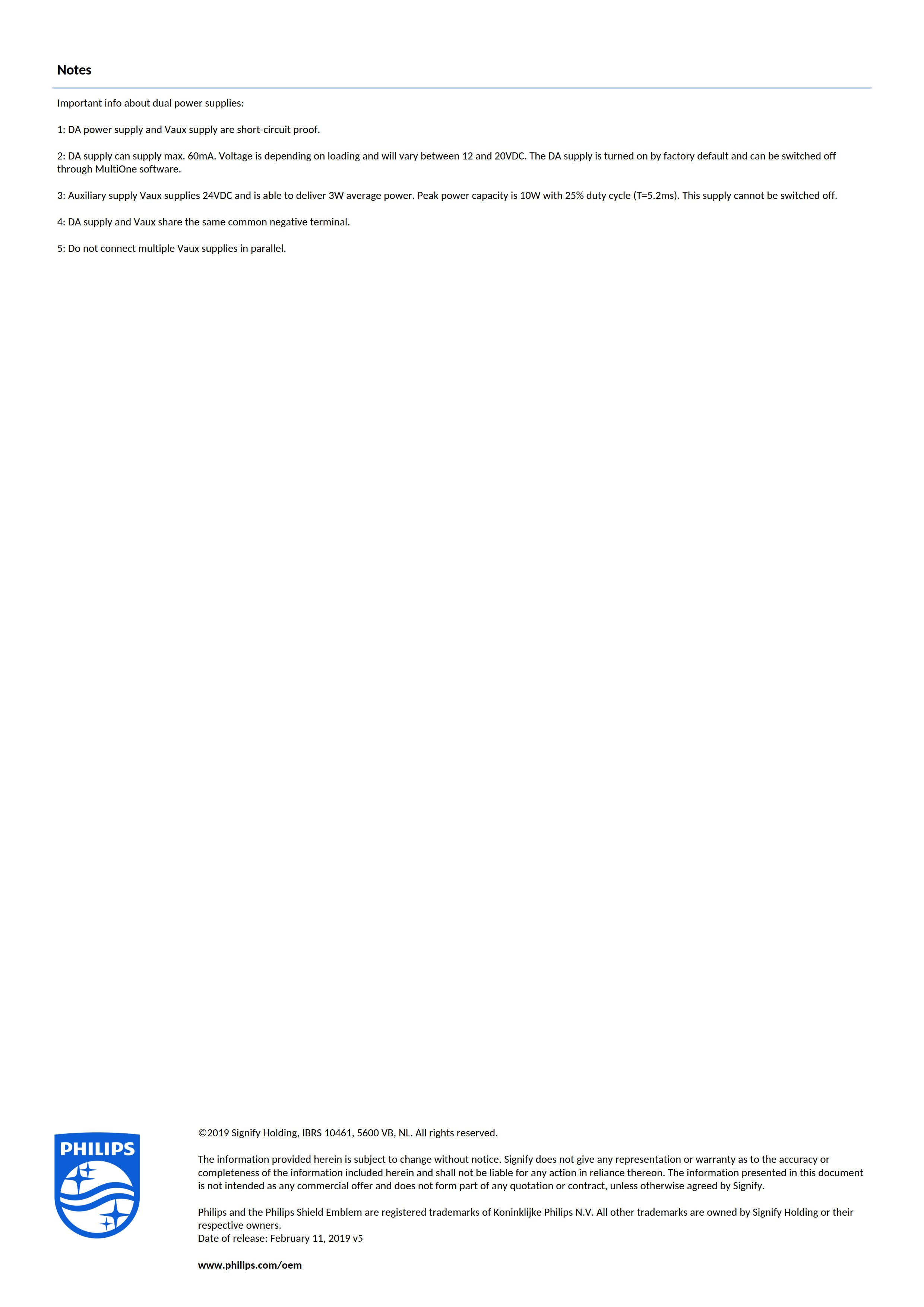

• Integrated ~15VDC DA current source power supply
based on DALI 2.0
• Integrated 24VDC/3W auxiliary power supply
• Highly accurate power metering, accessible over DALI
• SimpleSet®, wireless configuration interface
•High surge immunity (CM/DM)
• Long lifetime and robust protection against moisture,
vibration and temperature

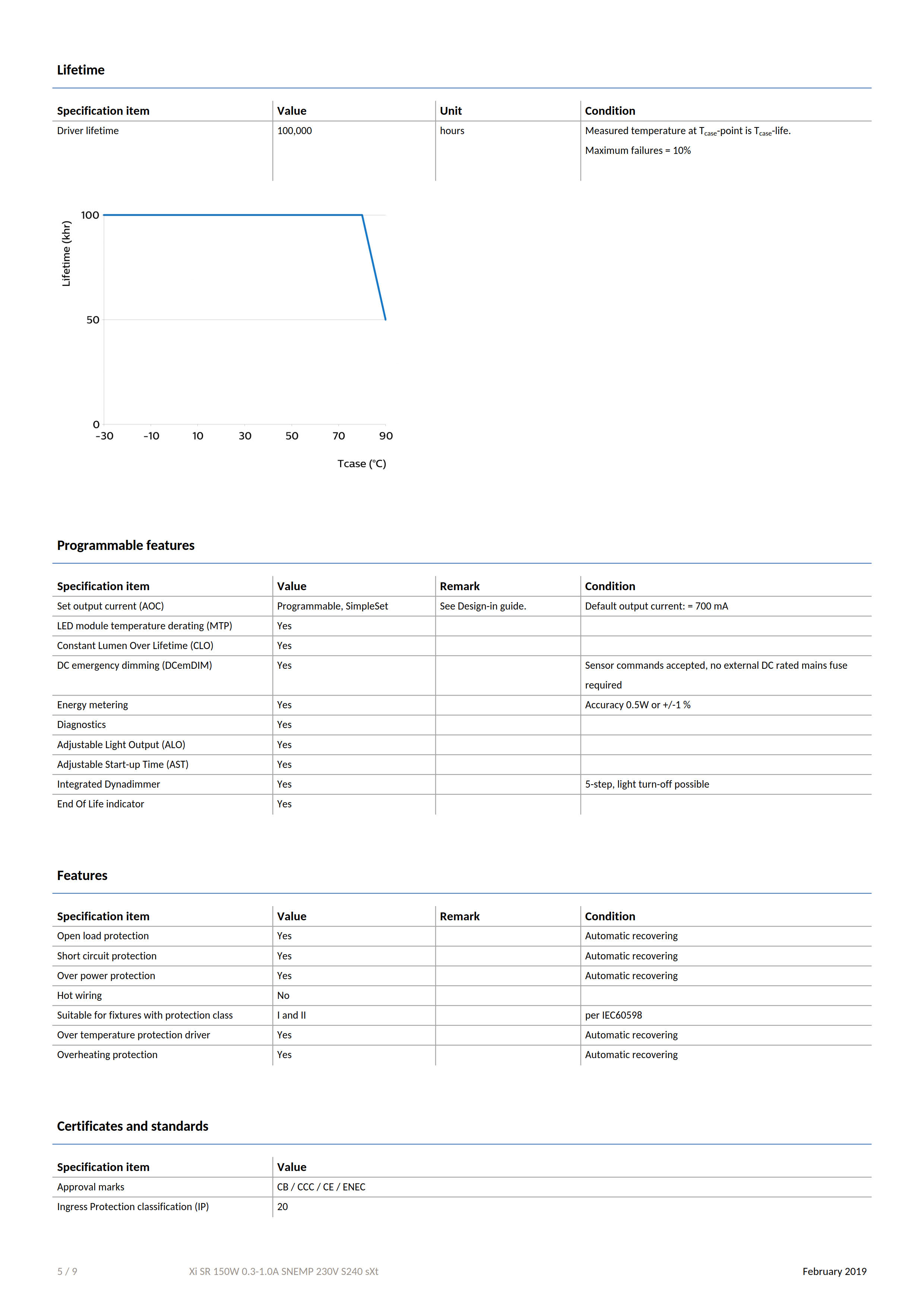

•Configurable operating windows (AOC)
•Autonomous dimming via Integrated DynaDimmer
• Suitable for central DC operation (DCemDim)
• Thermal protection for driver and for module (MTP)
•Constant Light Output (CLO)
•Adjustable Start-up Time (AST)
•Adjustable Light Output (ALO)
Application
•Road and street lighting
• Area lighting
• Industrial lighting
• Tunnel lighting
• End-Of-Life indicator (EOL)
•OEM Write Protection (OWP)
