Product date

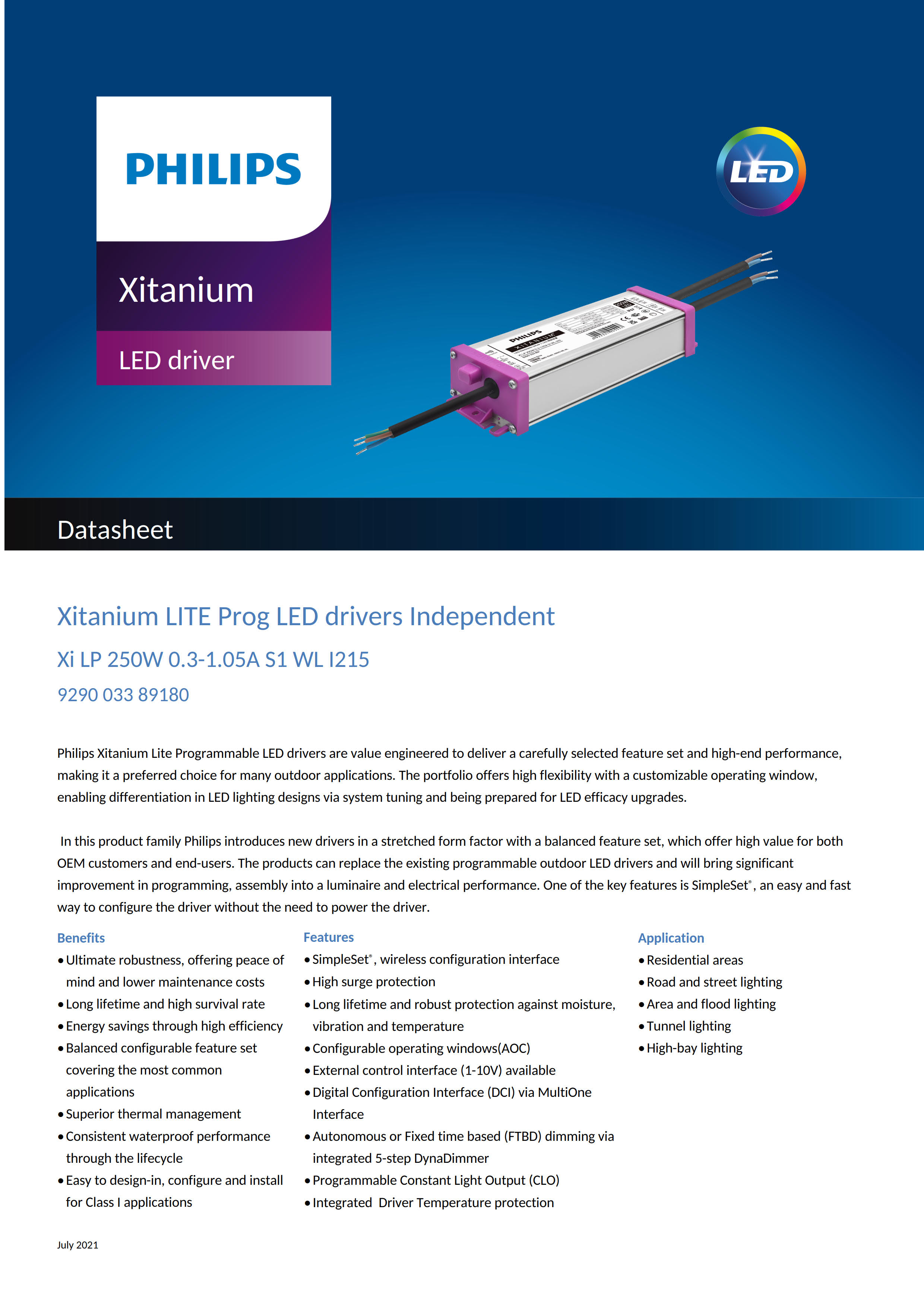

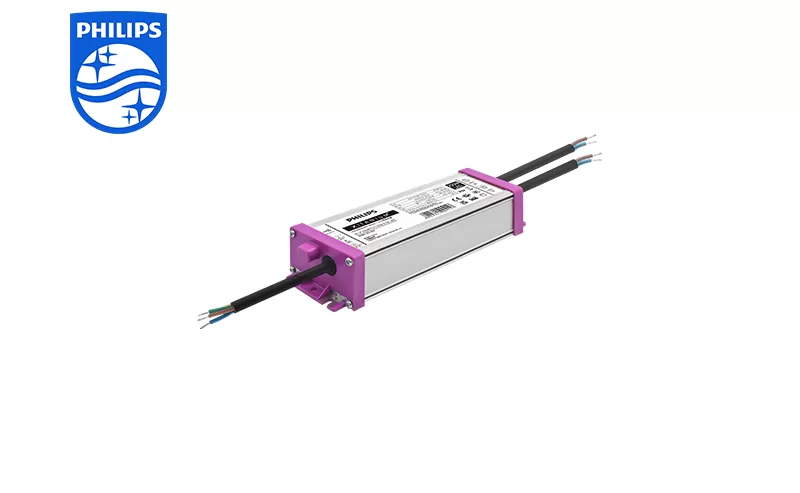

Model name:PHILIPS Xitanium Xi LP 250W 0.3-1.05A S1 WL I215 929003389180
12NC:929003389180

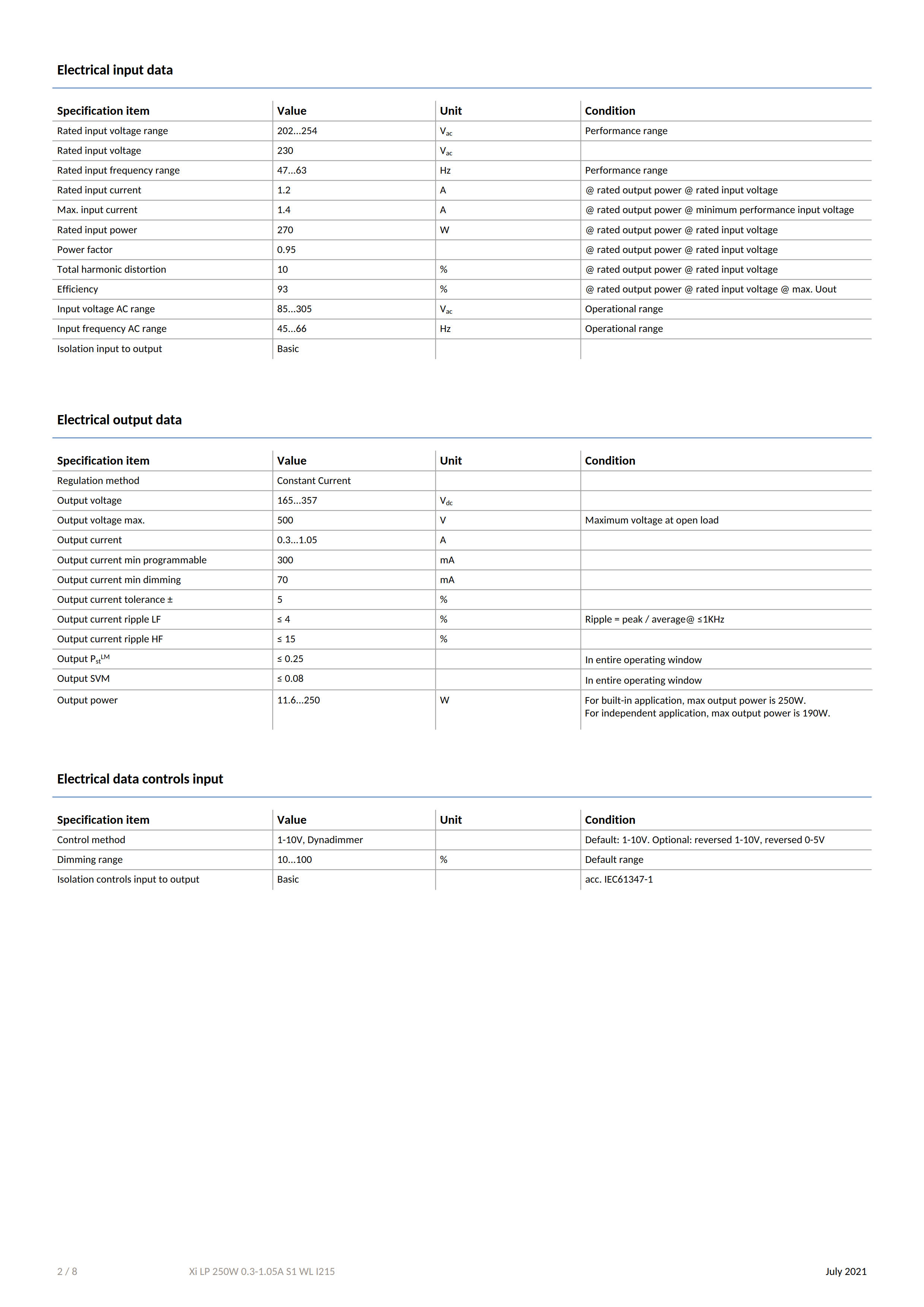

Rated input voltage range 202...254
Rated input voltage 230
Rated input frequency range 47...63
Rated input current 1.2
Max. input current 1.4
Rated input power 270

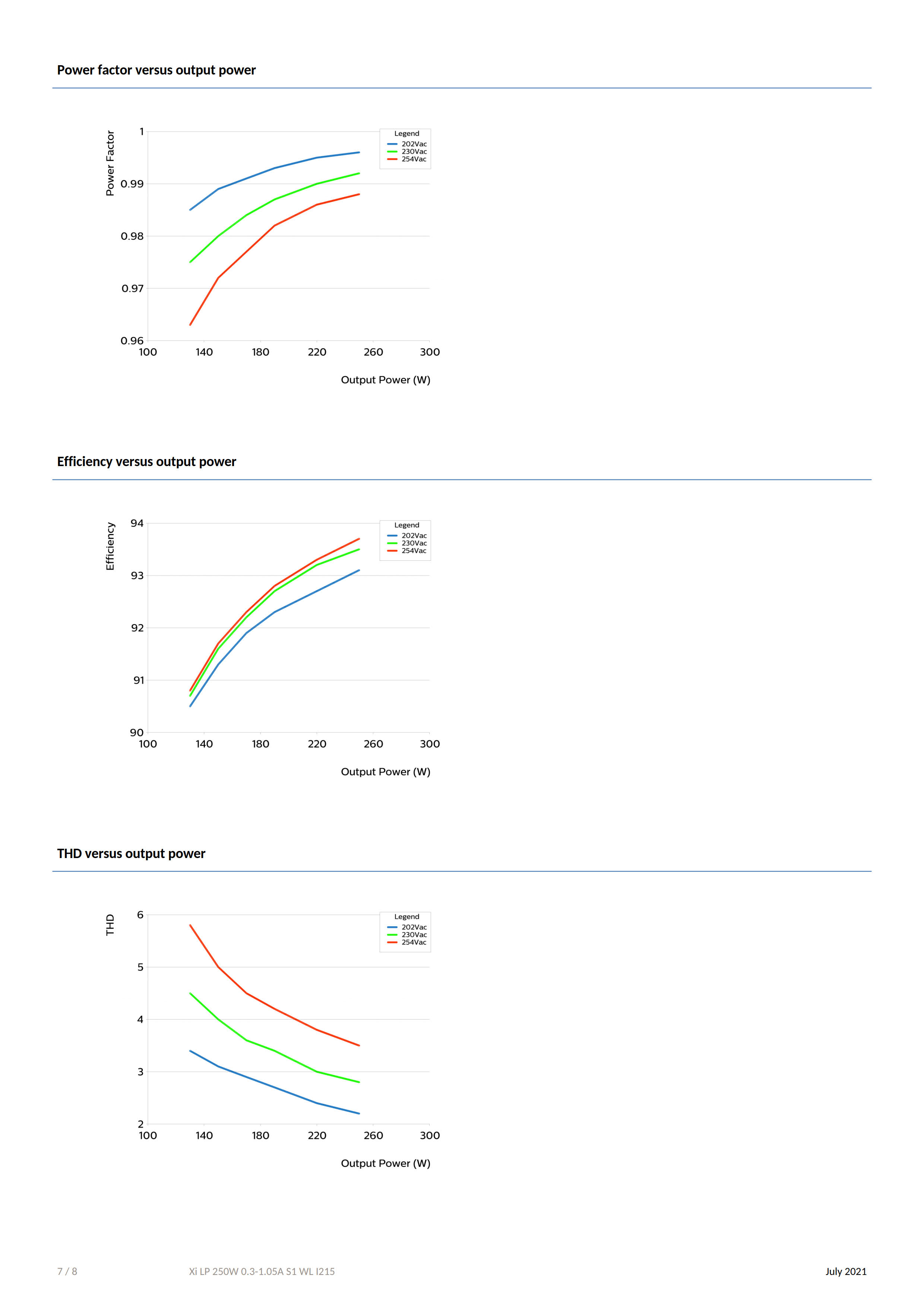

Power factor 0.95
Total harmonic distortion 10
Efficiency 93
Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades.
In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.
Benefits
• Ultimate robustness, offering peace of
mind and lower maintenance costs
• Long lifetime and high survival rate
• Energy savings through high efficiency
• Balanced configurable feature set covering the most common
applications
• Superior thermal management
• Consistent waterproof performance through the lifecycle
• Easy to design-in, configure and install for Class I applications
Features
• SimpleSet®, wireless configuration interface
• High surge protection
• Long lifetime and robust protection against moisture,
vibration and temperature
• Configurable operating windows(AOC)

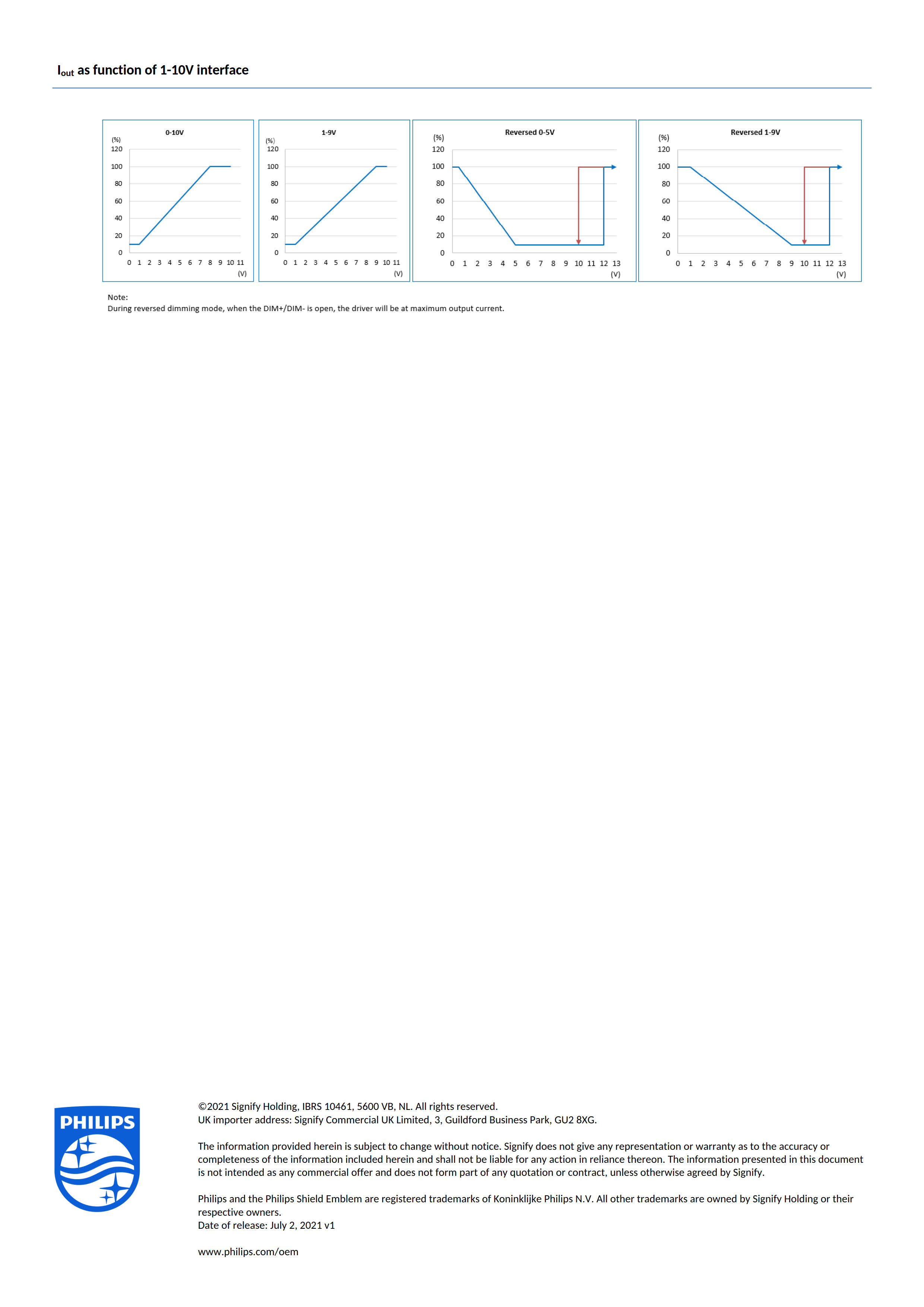

• External control interface (1-10V) available
• Digital Configuration Interface (DCI) via MultiOne
Interface
• Autonomous or Fixed time based (FTBD) dimming via
integrated 5-step DynaDimmer
• Programmable Constant Light Output (CLO)
• Integrated Driver Temperature protection
Application
• Residential areas
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting
