PRODUCT DATA
Product date
Model name:PHILIPS MASTER CityWh CDO-TT Plus 250W/830 E40 928082319230
12NC:928082319230
Cap-Base: E40
Life to 50% Failures: 23000 h
Luminous Flux: 28400 lm
Correlated Color Temperature: 3000 K
Luminous Efficacy: 113 lm/W
Power: 250.0 W
Bulb Shape: T46

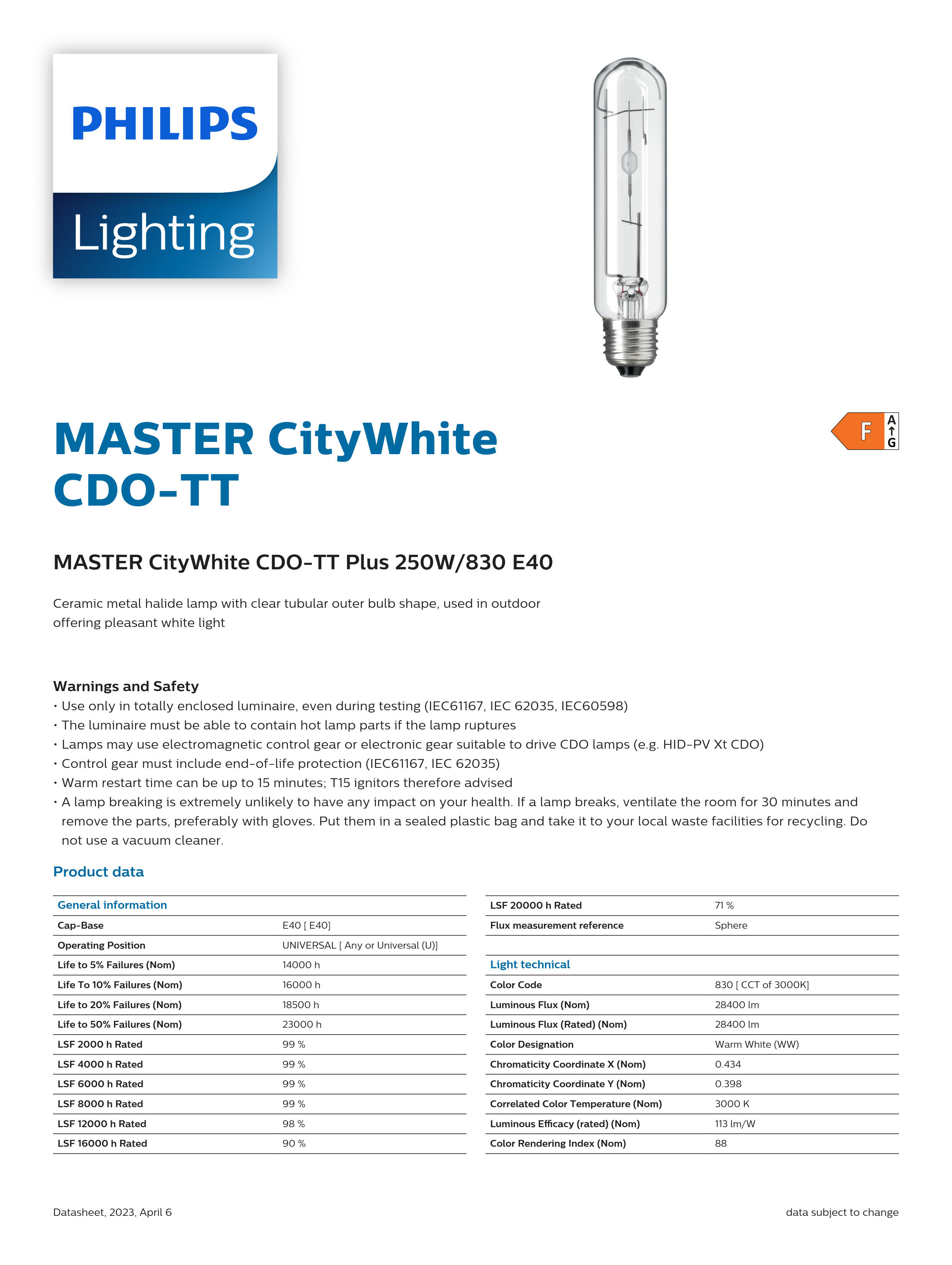

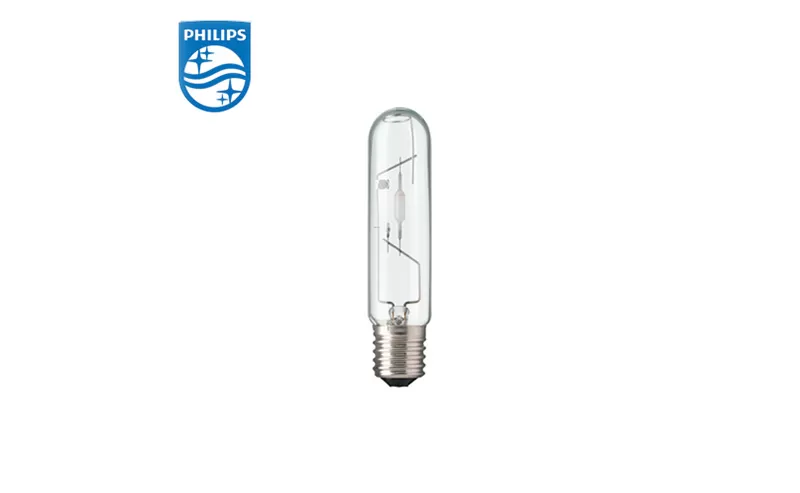

PHILIPS MASTER CityWh CDO-TT Plus 250W/830 E40 928082319230
Ceramic metal halide lamp with clear tubular outer bulb shape, used in outdoor offering pleasant white light
Warnings and Safety
• Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598)
• The luminaire must be able to contain hot lamp parts if the lamp ruptures
• Lamps may use electromagnetic control gear or electronic gear suitable to drive CDO lamps (e.g. HID-PV Xt CDO)
• Control gear must include end-of-life protection (IEC61167, IEC 62035)
• Warm restart time can be up to 15 minutes; T15 ignitors therefore advised
• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
PHILIPS Product 12NC List
12NC List:
928082119231 MASTER CityWh CDO-TT Plus 100W/828 E40
928082219231 MASTER CityWh CDO-TT Plus 150W/828 E40
928082319230 MASTER CityWh CDO-TT Plus 250W/830 E40
928487500191 MASTER CityWh CDO-TT Plus 250W/940 E40
