Product date
Model name:PHILIPS MASTER SDW-TG Mini 100W/825 GX12-1 1CT/12 928158905131
12NC:928158905131
Cap-Base: GX12-1
Life to 50% Failures: 10000 h
Luminous Flux: 5300 lm
Correlated Color Temperature: 2500 K
Power: 102 W
Voltage: 91 V
Dimmable: No
PRODUCT DATA
Product date
Model name:PHILIPS MASTER SDW-TG Mini 100W/825 GX12-1 1CT/12 928158905131
12NC:928158905131
Cap-Base: GX12-1
Life to 50% Failures: 10000 h
Luminous Flux: 5300 lm
Correlated Color Temperature: 2500 K
Power: 102 W
Voltage: 91 V
Dimmable: No

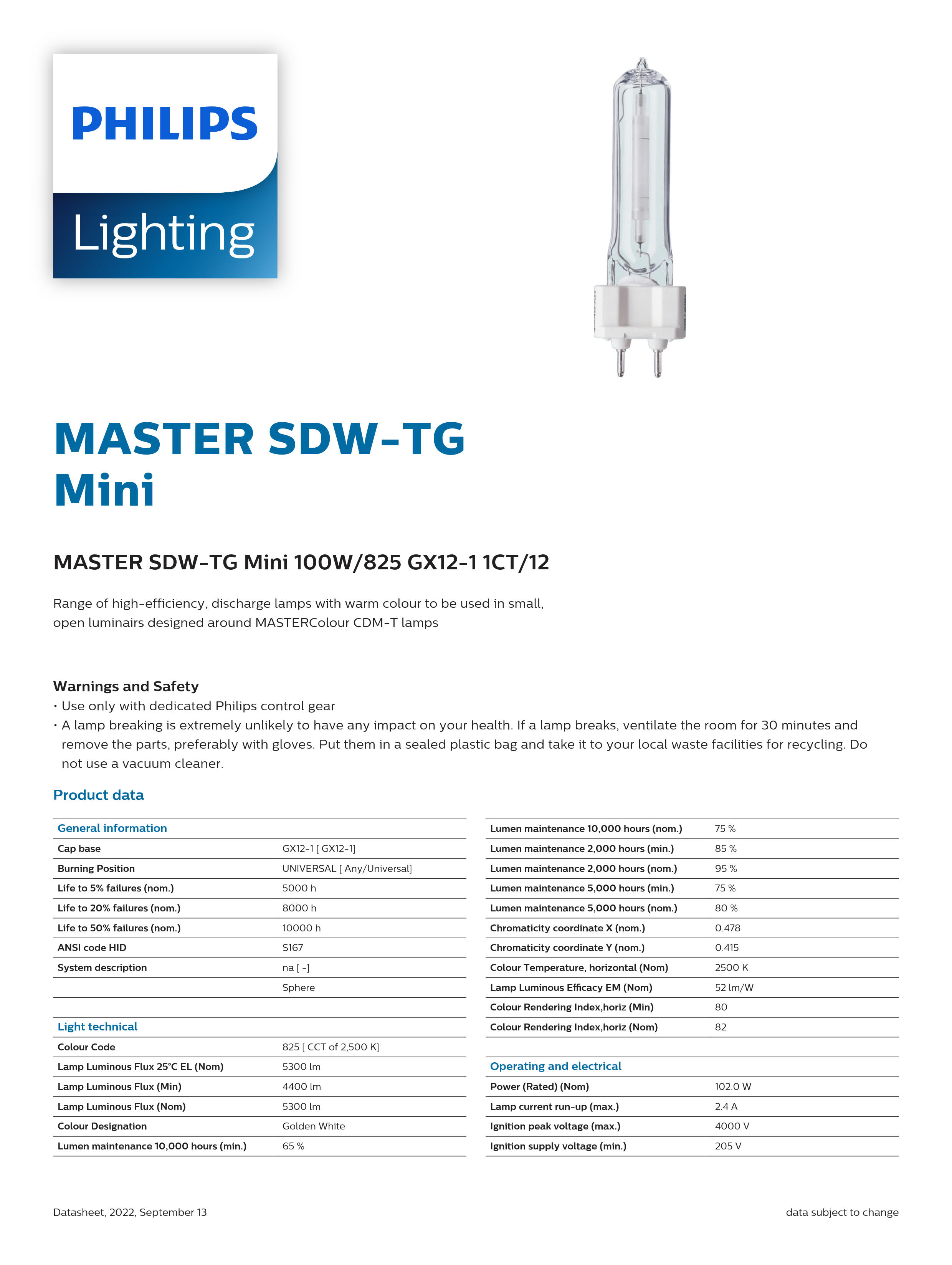

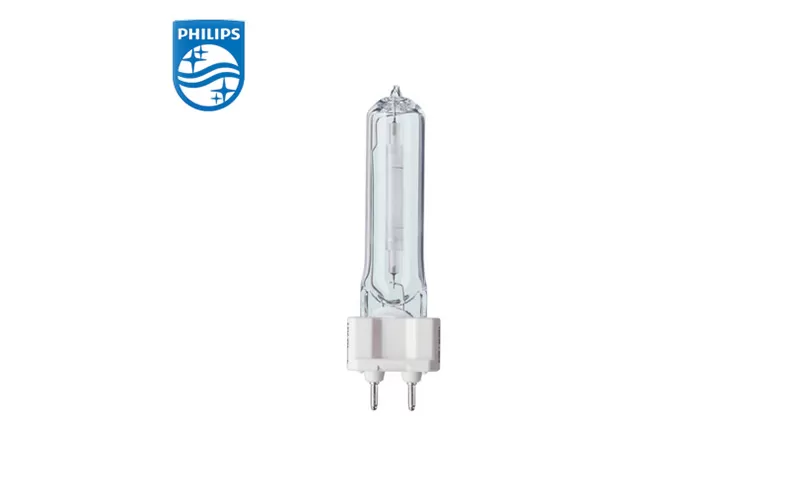

MASTER SDW-TG Mini 100W/825 GX12-1 1CT/12 928158905131
Range of high-efficiency, discharge lamps with warm color to be used in small, open luminairs designed around MASTERColour CDM-T lamps
Warnings and Safety
• Use only with dedicated Philips control gear • A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.



PHILIPS Product 12NC List
12NC List:
928158905131 MASTER SDW-TG Mini 100W/825 GX12-1 1CT/12
928159905131 MASTER SDW-TG Mini 50W/825 GX12-1 1CT/12
