PHILIPS MASTERColour CDM-Tm Mini 20W/830 PGJ5 1CT/12 928087905130

Product date

Model name:PHILIPS MASTERColour CDM-Tm Mini 20W/830 PGJ5 1CT/12 928087905130

12NC:928087905130

Cap-Base: PGJ5

Life to 50% Failures: 12000 h

Luminous Flux: 1600 lm

Correlated Color Temperature:3000 K

Luminous Efficacy: 72 lm/W

Power: 22.1 W

Voltage: 100 V

Dimmable: No

Bulb Shape: T13.3

MASTERColour CDM-Tm Mini 20W/830 PGJ5 1CT/12 928087905130

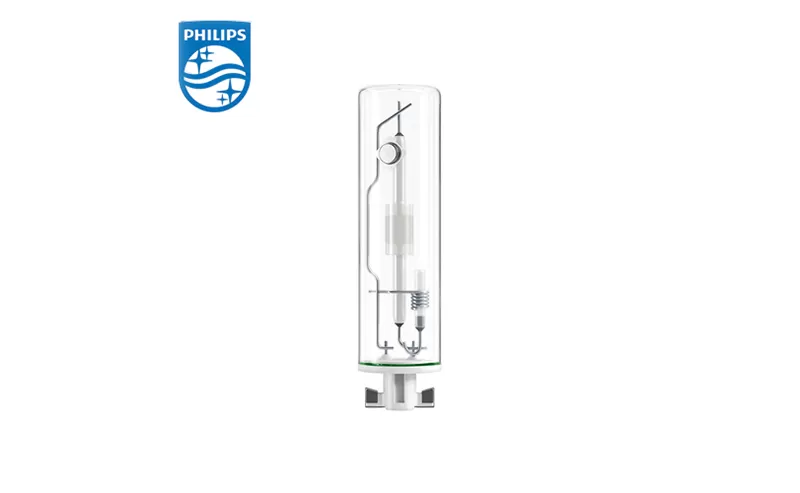

Mini, single-ended, high-efficiency Ceramic Metal Halide discharge lamp producing crisp white sparkling light

Warnings and Safety

• Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598)

• The luminaire must be able to contain hot lamp parts if the lamp ruptures

• Use only with electronic control gear

• Control gear must include end-of-life protection (IEC61167, IEC 62035) • For 20W PGJ5 lamp, use only Philips electronic control gear HID PV mini PGJ5 20W

• For 35W PGJ5 lamp, use only Philips electronic control gear HID PV mini PGJ5 35W

• A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.

12NC List:

928093905130 MASTERColour CDM-Tm Mini 35W/930 PGJ5 1CT/12

928087905130 MASTERColour CDM-Tm Mini 20W/830 PGJ5 1CT/12

928187405130 MASTERColour CDM-Tm Elite Mini 35W/930 GU6.5
