PRODUCT DATA
Model Name:Signify Dynalite PHILIPS Dynalite DUS804CS-UP Multifunction Sensor 913703070409
12NC:913703070409
Surface mount ceiling sensor with ultrasonic capability

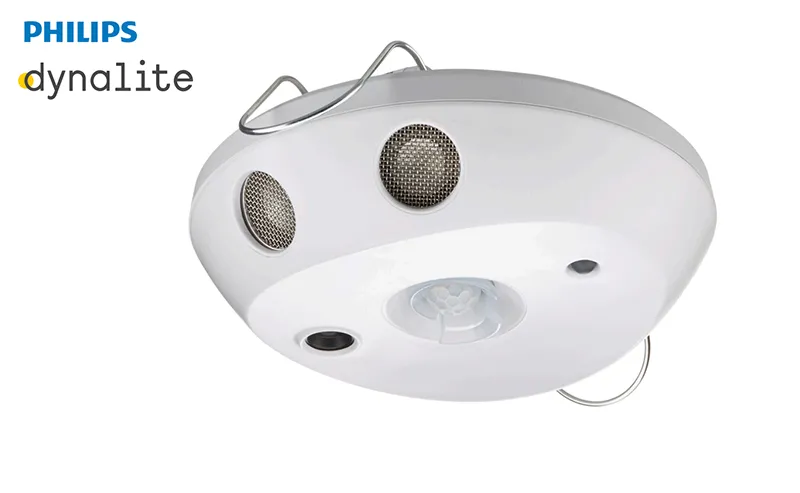

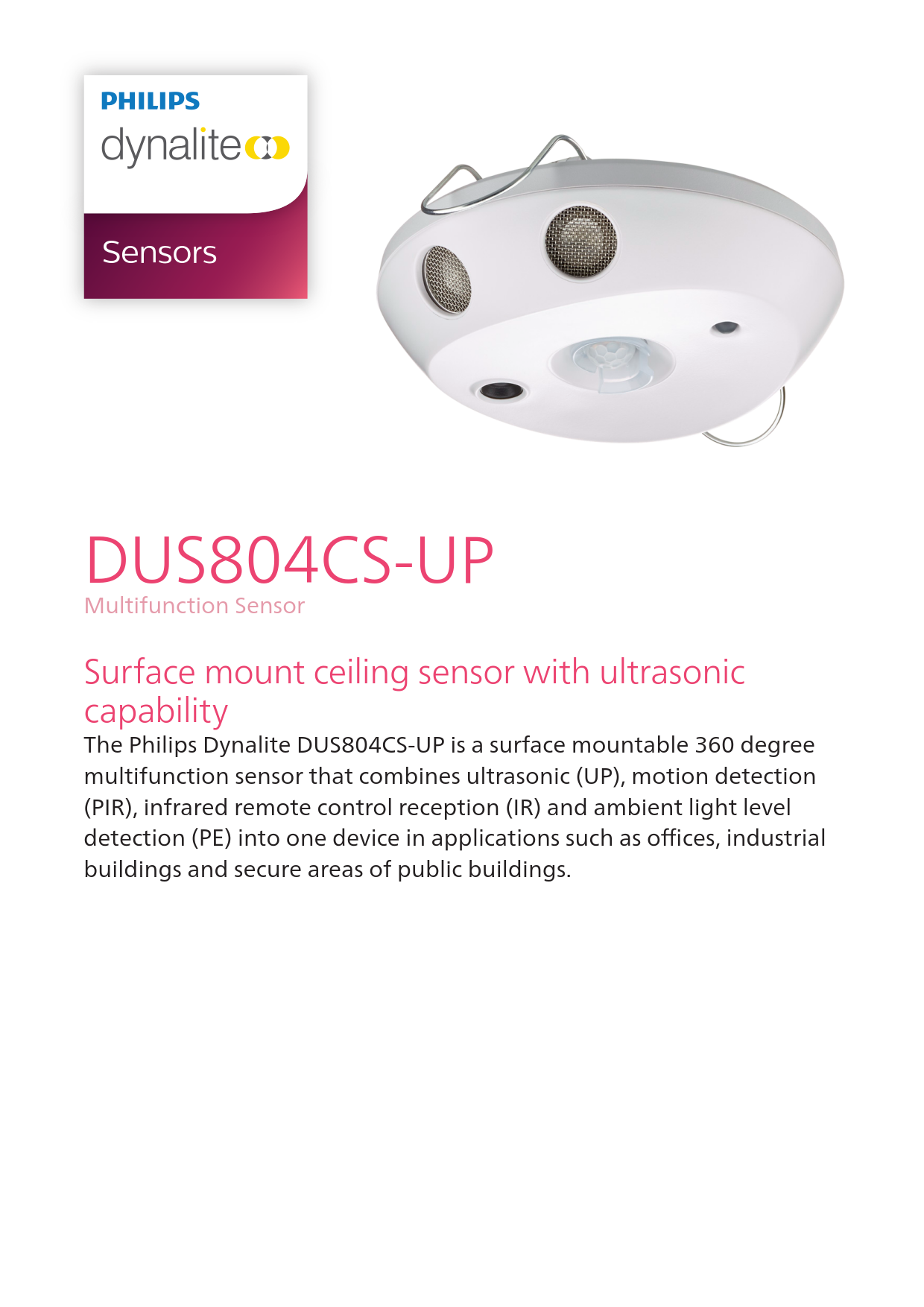

The Philips Dynalite DUS804CS-UP is a surface mountable 360 degree multifunction sensor that combines ultrasonic (UP), motion detection (PIR),
infrared remote control reception (IR) and ambient light level detection (PE)
into one device in applications such as offices, industrial buildings and secure areas of public buildings.

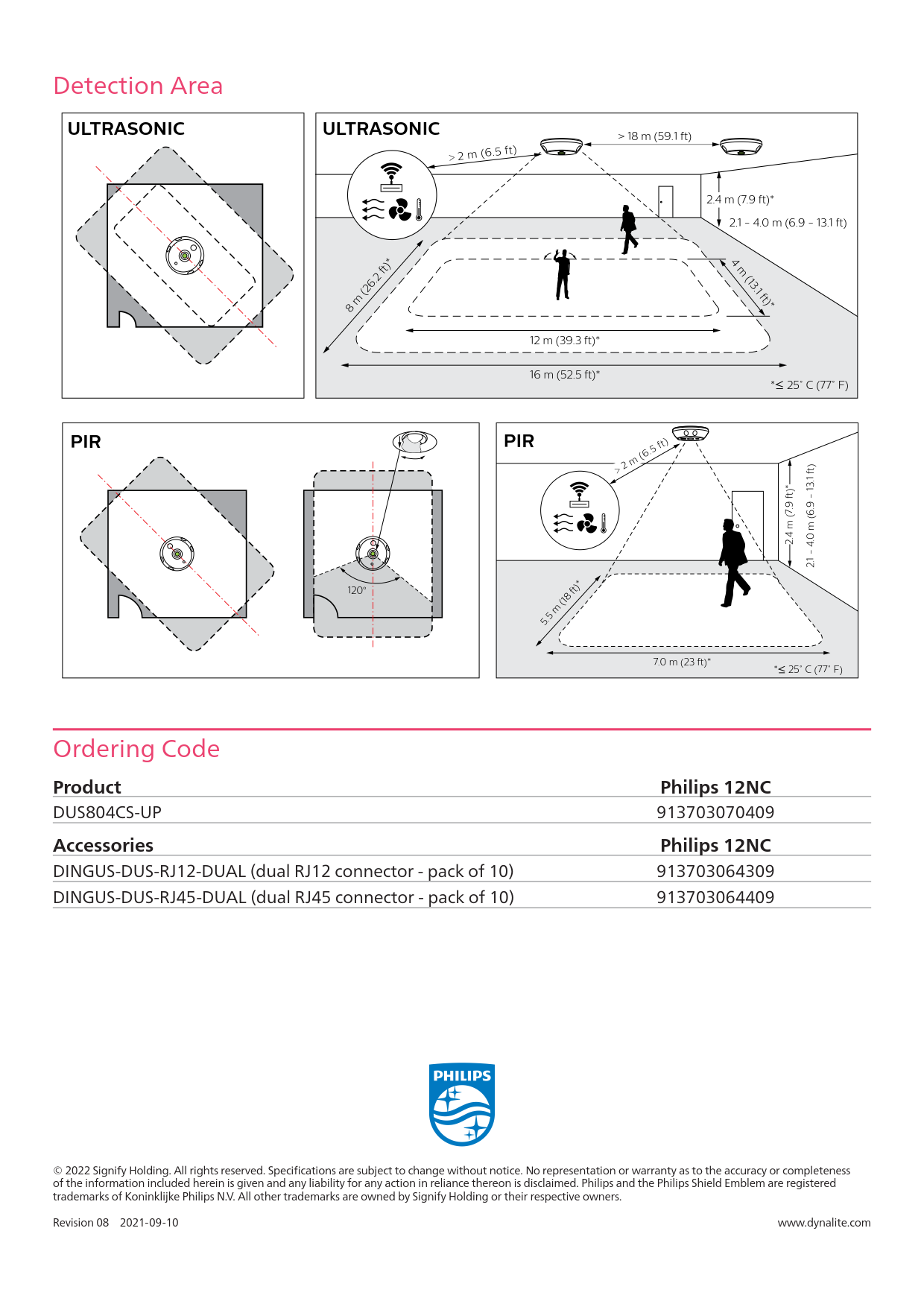

Motion detection feature – Detection of motion within scanned area triggers a programmed lighting action. Ultrasonic technology enables motion detection behind fixed objects.
Ambient light level regulation – In applications where it is critical to maintain precise light levels, the PE function reads ambient levels and adjusts artificial light accordingly.
Infrared receive capability – Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS804CS-UP.
Daylight harvesting mode – Delivers automatic energy savings.
Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.

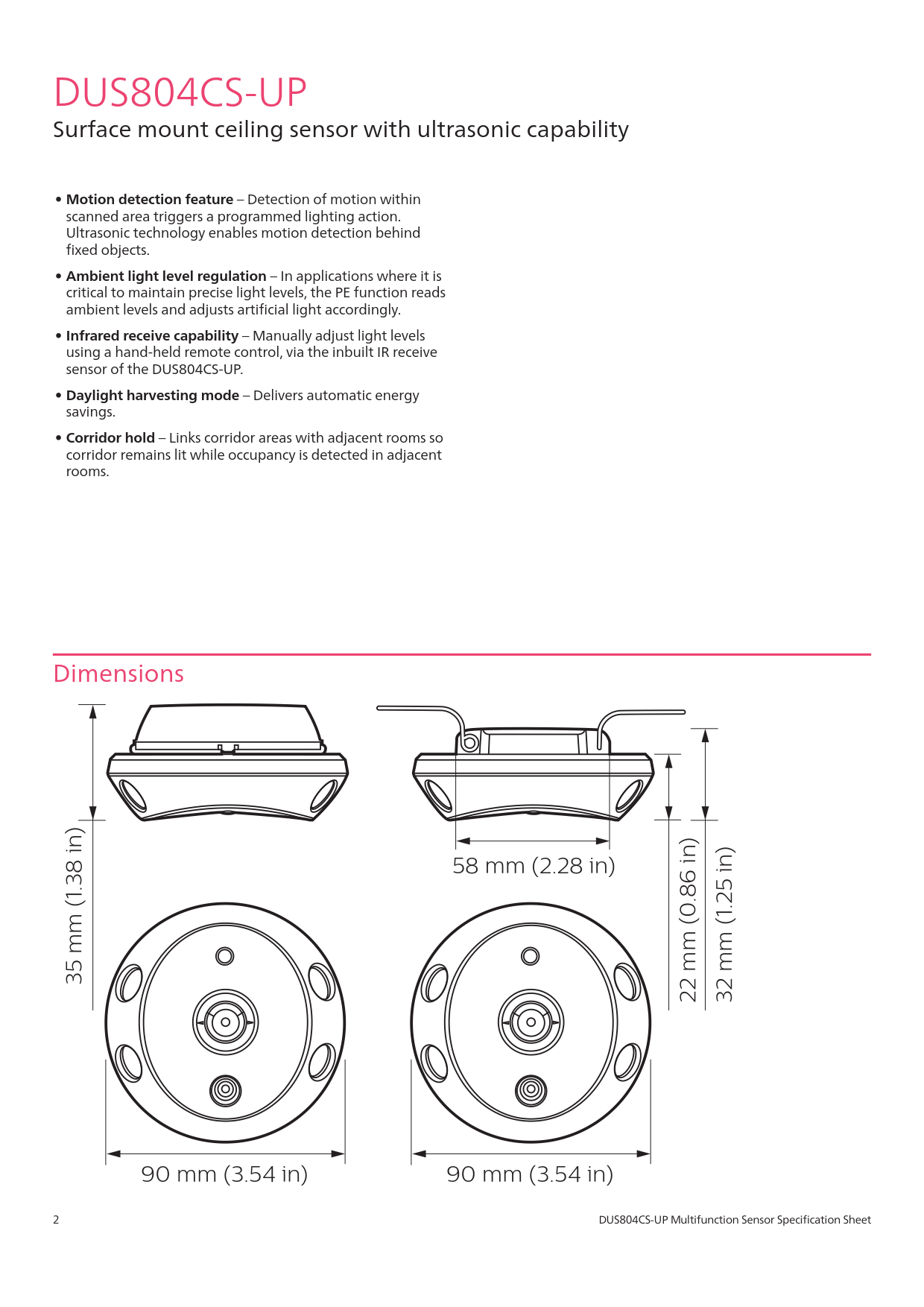

Dimensions:90 dia. x 32 mm (3.54 dia. x 1.26 in)
PHILIPS Product 12NC List
12NC:Signify Dynalite PHILIPS Dynalite DUS804CS-UP Multifunction Sensor 913703070409
