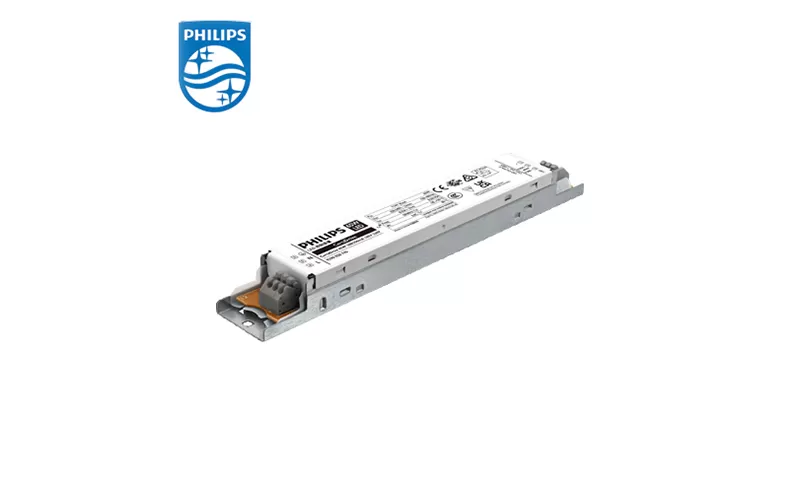

PHILIPS CertaDrive 56W 250/300mA 185V 230V 929002882080

Product date

Model name:PHILIPS CertaDrive 56W 250/300mA 185V 230V 929002882080

12NC:929002882080

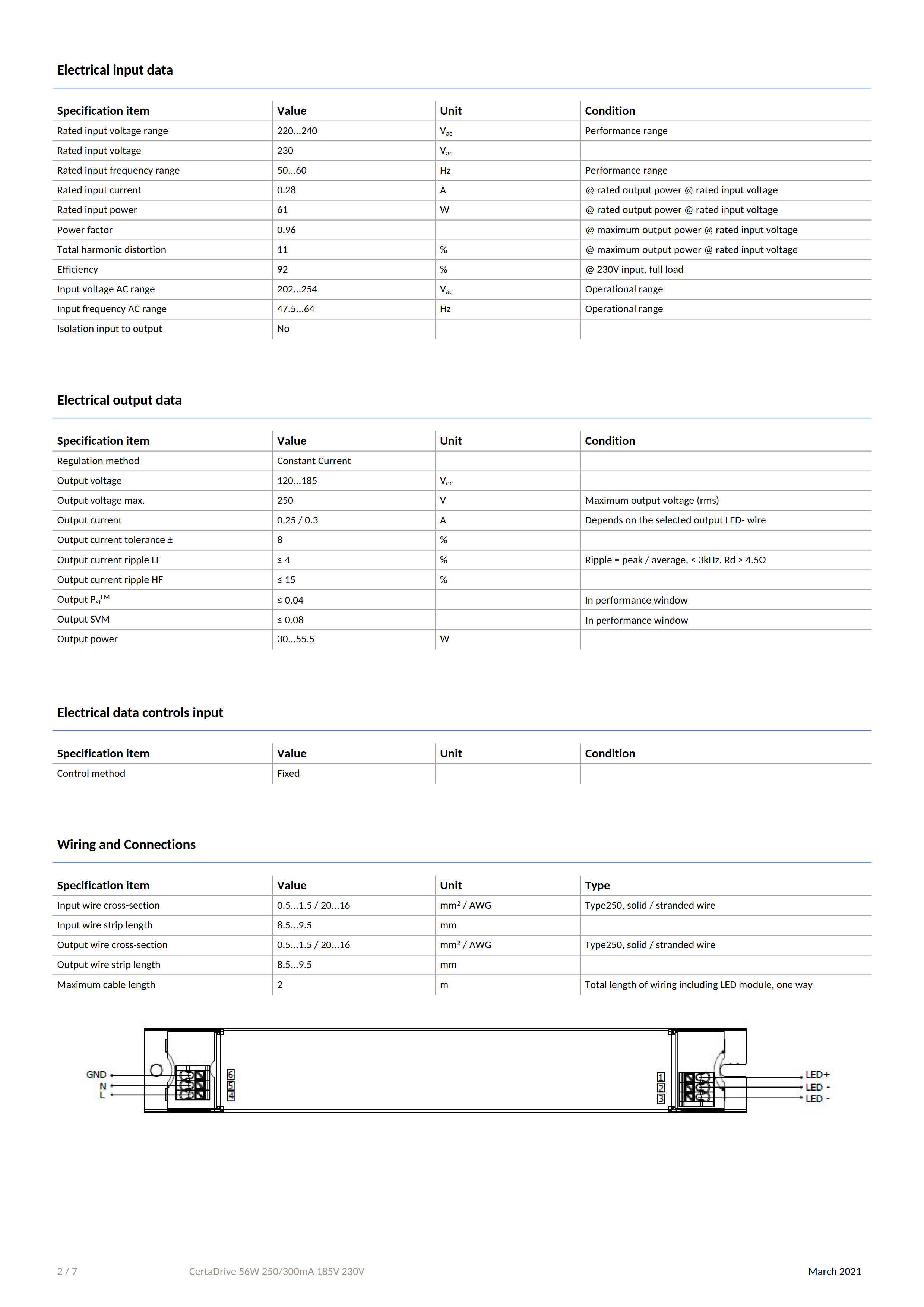

Output voltage: 120 to 185 Vdc

Output current: 0.25 / 0.3 A

Output power: 30 to 55.5 W

Pieces per box: 20

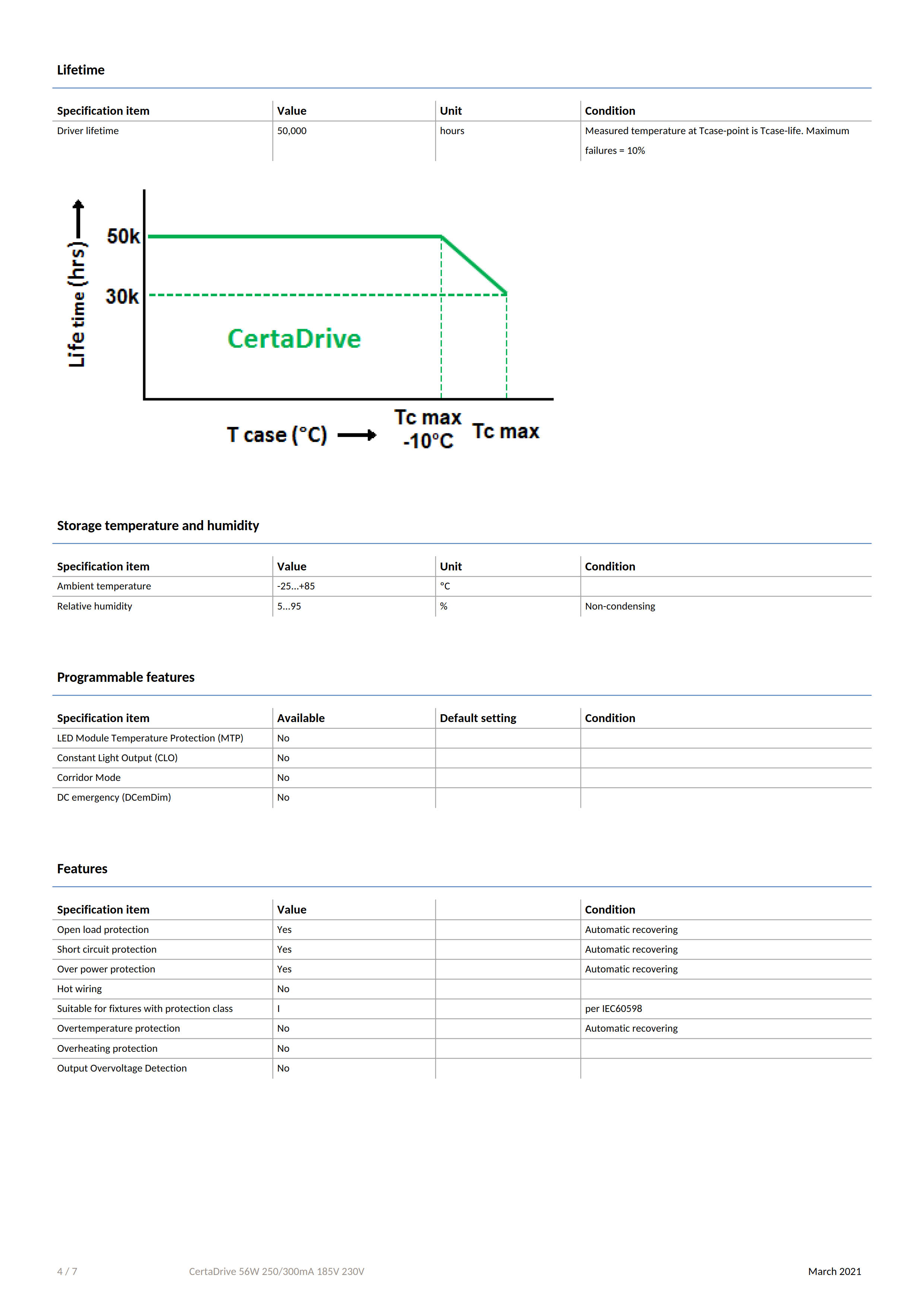

Driver lifetime: 50,000 hours

Control method: Fixed

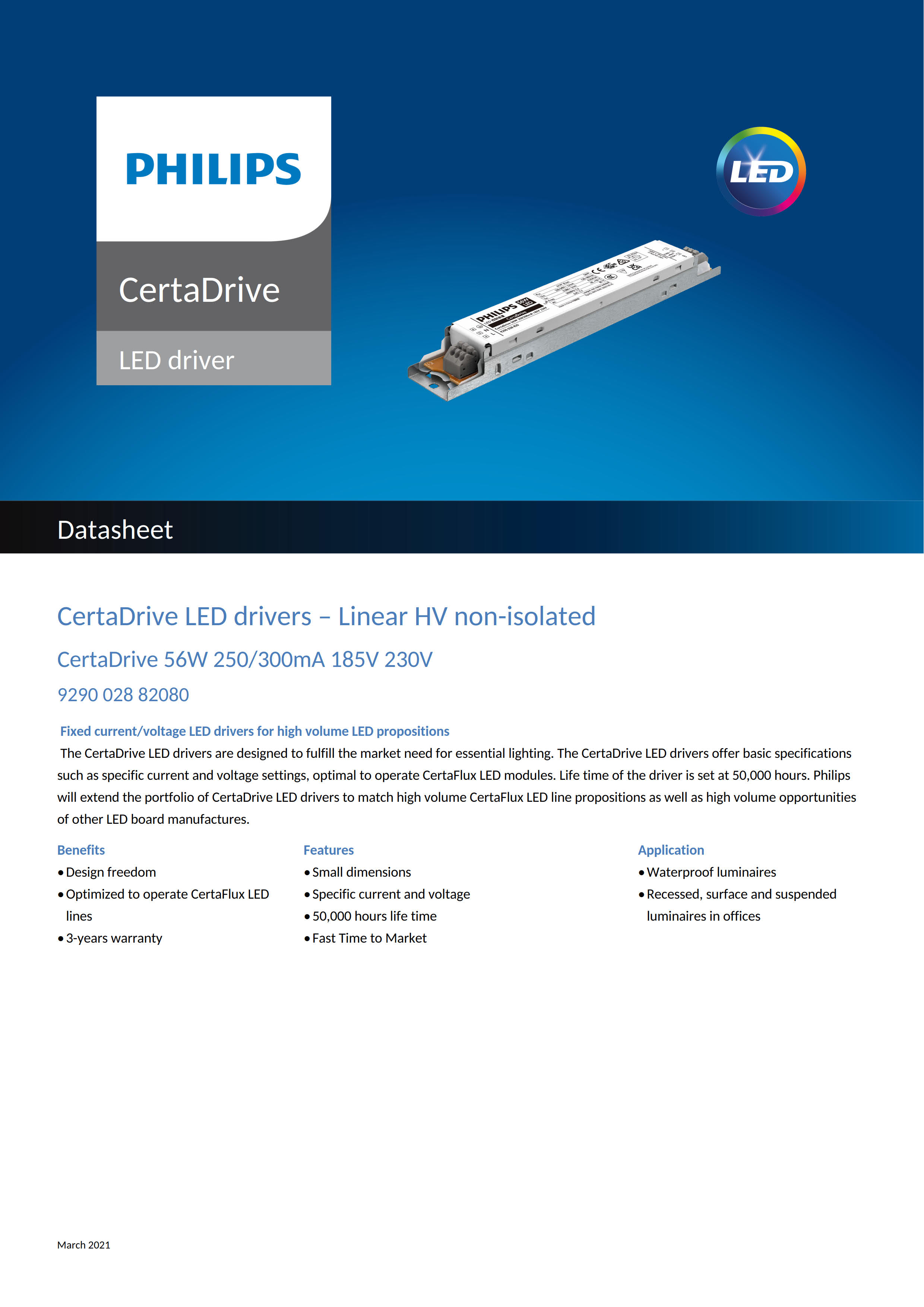

CertaDrive LED drivers – Linear HV non-isolated CertaDrive 56W 250/300mA 185V 230V 9290 028 82080

The CertaDrive LED drivers are designed to fulfill the market need for essential lighting. The CertaDrive LED drivers offer basic specifications such as specific current and voltage settings, optimal to operate CertaFlux LED modules. Life time of the driver is set at 50,000 hours. Philips will extend the portfolio of CertaDrive LED drivers to match high volume CertaFlux LED line propositions as well as high volume opportunities of other LED board manufactures.

Benefits

•Design freedom • Optimized to operate CertaFlux LED lines • 3-years warranty

Features

• Small dimensions

• Specific current and voltage

• 50,000 hours life time

• Fast Time to Market

Application

•Waterproof luminaires

• Recessed, surface and suspended luminaires in offices

12NC List:

929002874380 CertaDrive 19W 200/350mA 54V 230V

929002874480 CertaDrive 44W 200/350mA 125V 230V

929002874580 CertaDrive 65W 200/350mA 185V 230V

929002881980 CertaDrive 38W 250/300mA 125V 230V

929002882080 CertaDrive 56W 250/300mA 185V 230V
