Product date
Model name:PHILIPS Xitanium 100W 0.25-0.7A 220V S 230V 92900152950
12NC:92900152950
Output voltage: 50 to 220 Vdc
Output current: 0.25 A - 0.7 A
Output power: 28 to 100 W
Pieces per box: 24

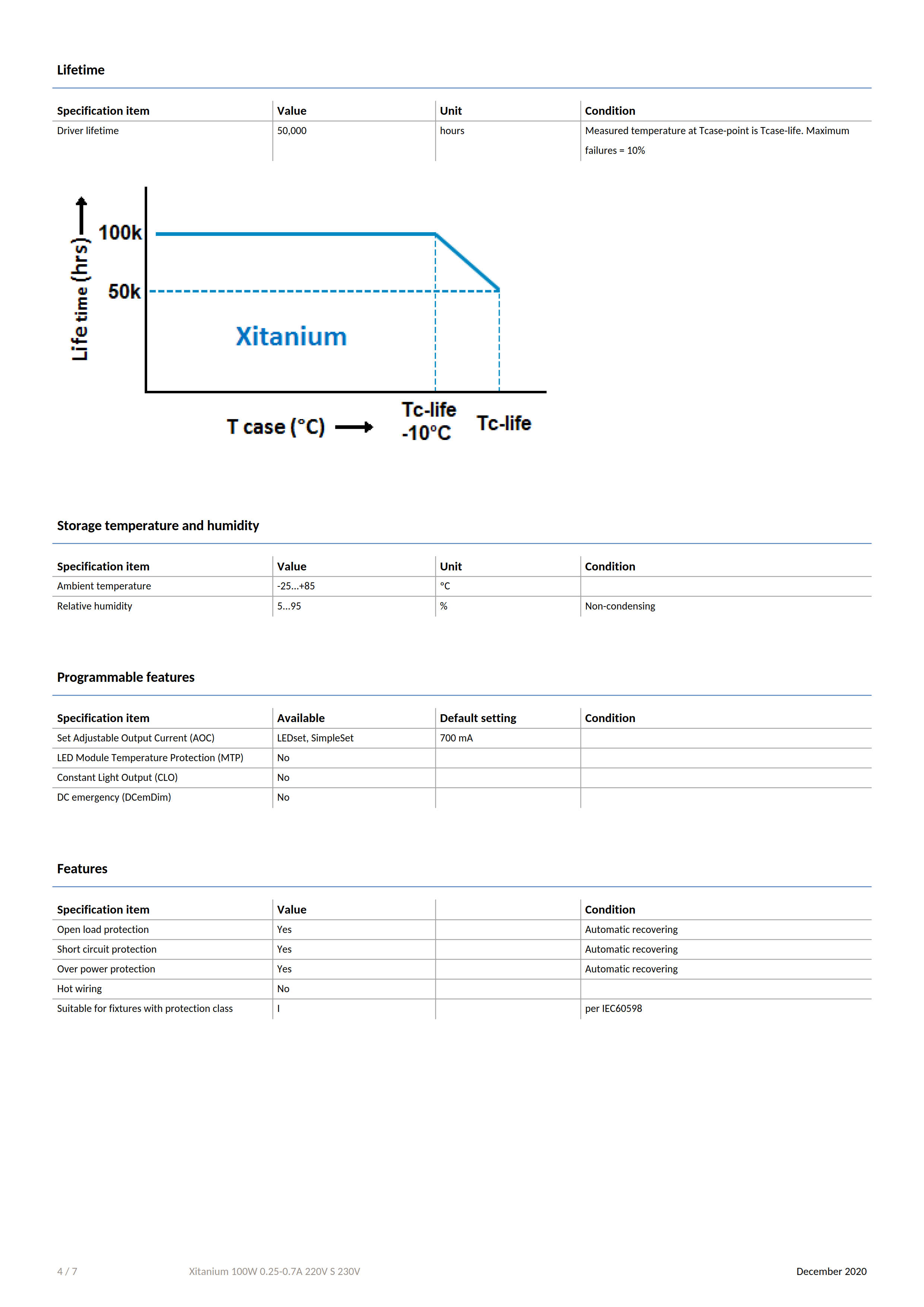

Driver lifetime: 50,000 hours
Control method: Fixed

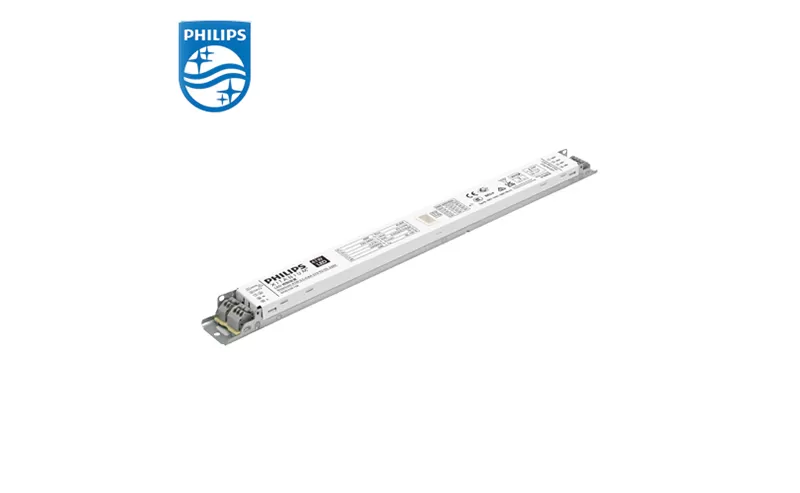

PHILIPS Xitanium 100W 0.25-0.7A 220V S 230V 92900152950
Benefits
• High reliability underpinned by 5 year warranty
• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management
• Compatibility - adjustable output current enables operation of various LED solutions from different manufacturers or OEM own designs
Features
•Up to 95% efficiency, lowest cost and smallest dimensions
• Operating windows - output current can be adjusted via the Philips MultiOne configurator (TD drivers) or with a resistor outside the driver
• Reduced output ripple current and thermal de-rating for increased reliability
• Multiple versions - DALI dimmable & programmable, 1-10V dimmable, and fixed-output;
Application
• 17W, 35W, 36W, 60W and 75W LED drivers for office applications
• 100W, 150W and 300W LED drivers for industry, warehouses, public areas, distribution centers and shopping malls
