Product date

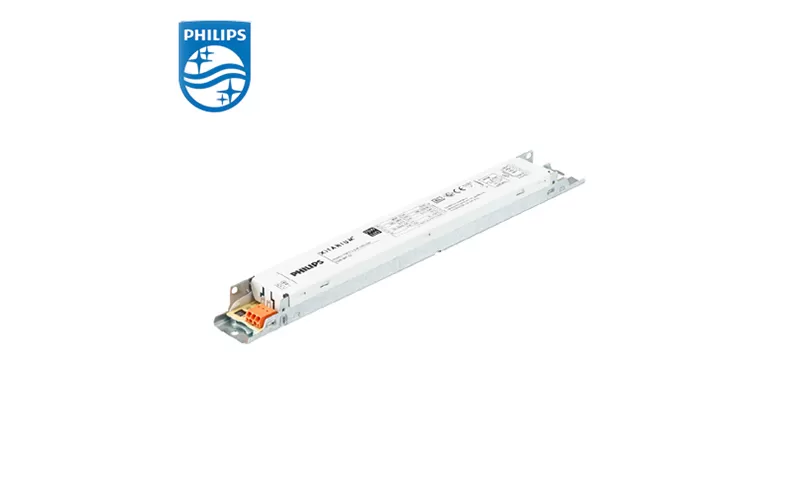

Model name:PHILIPS Xitanium 75W 0.12-0.4A 220V 230V 929000950706
12NC:929000950706

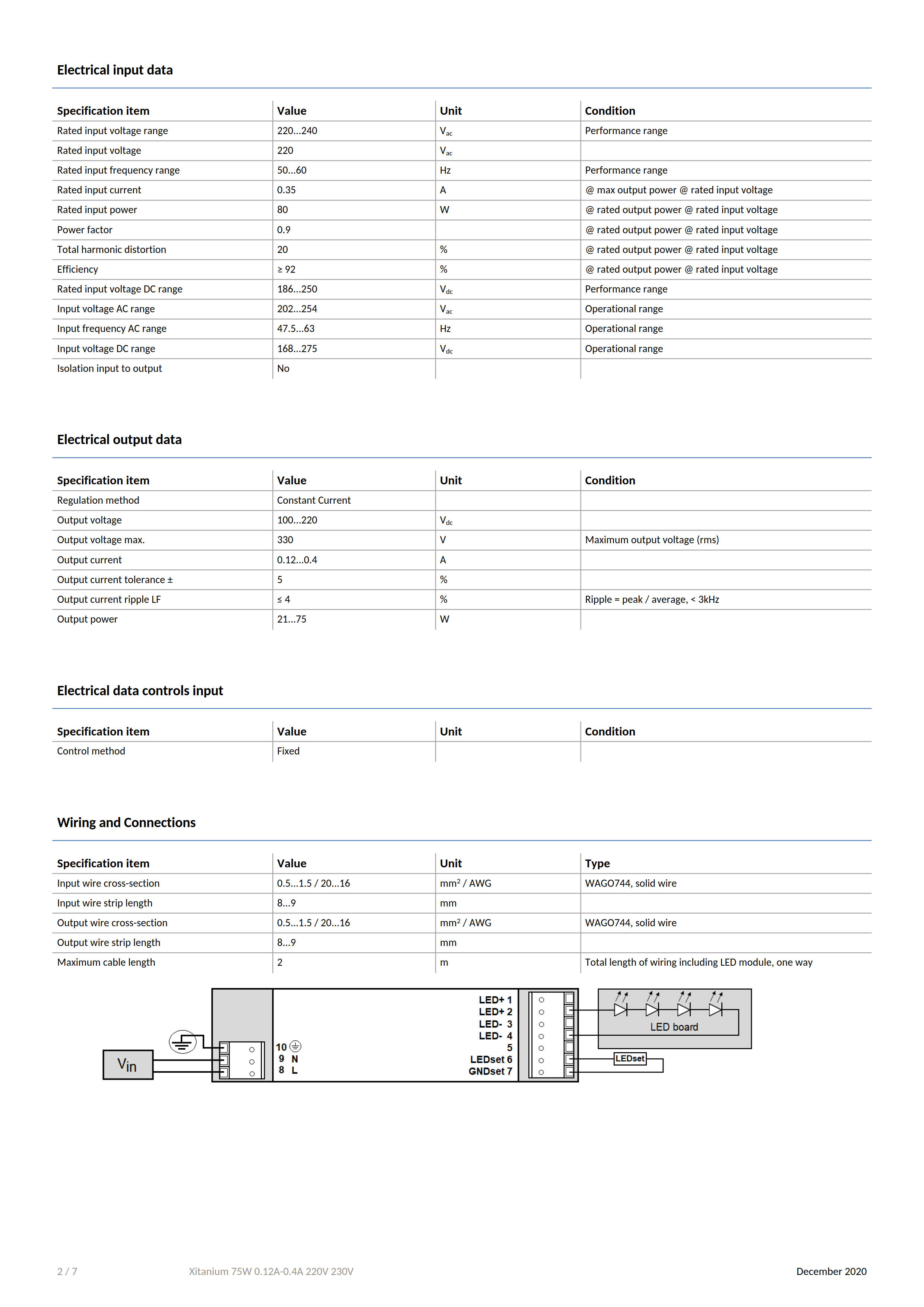

Output voltage: 100 to 220 Vdc
Output current: 0.12 A - 0.4 A
Output power: 21 to 75 W
Pieces per box: 24

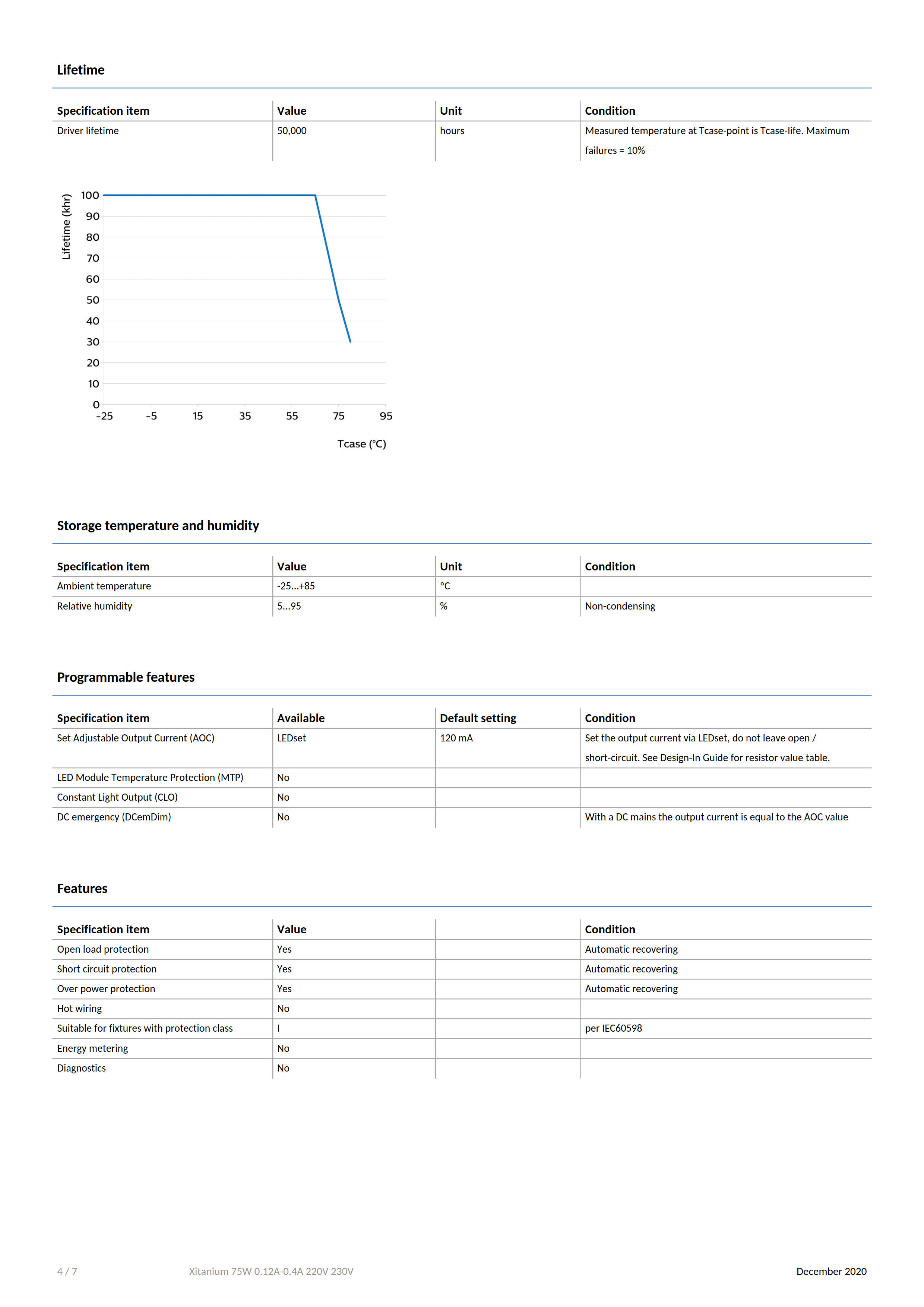

Driver lifetime: 50,000 hours
Control method: Fixed

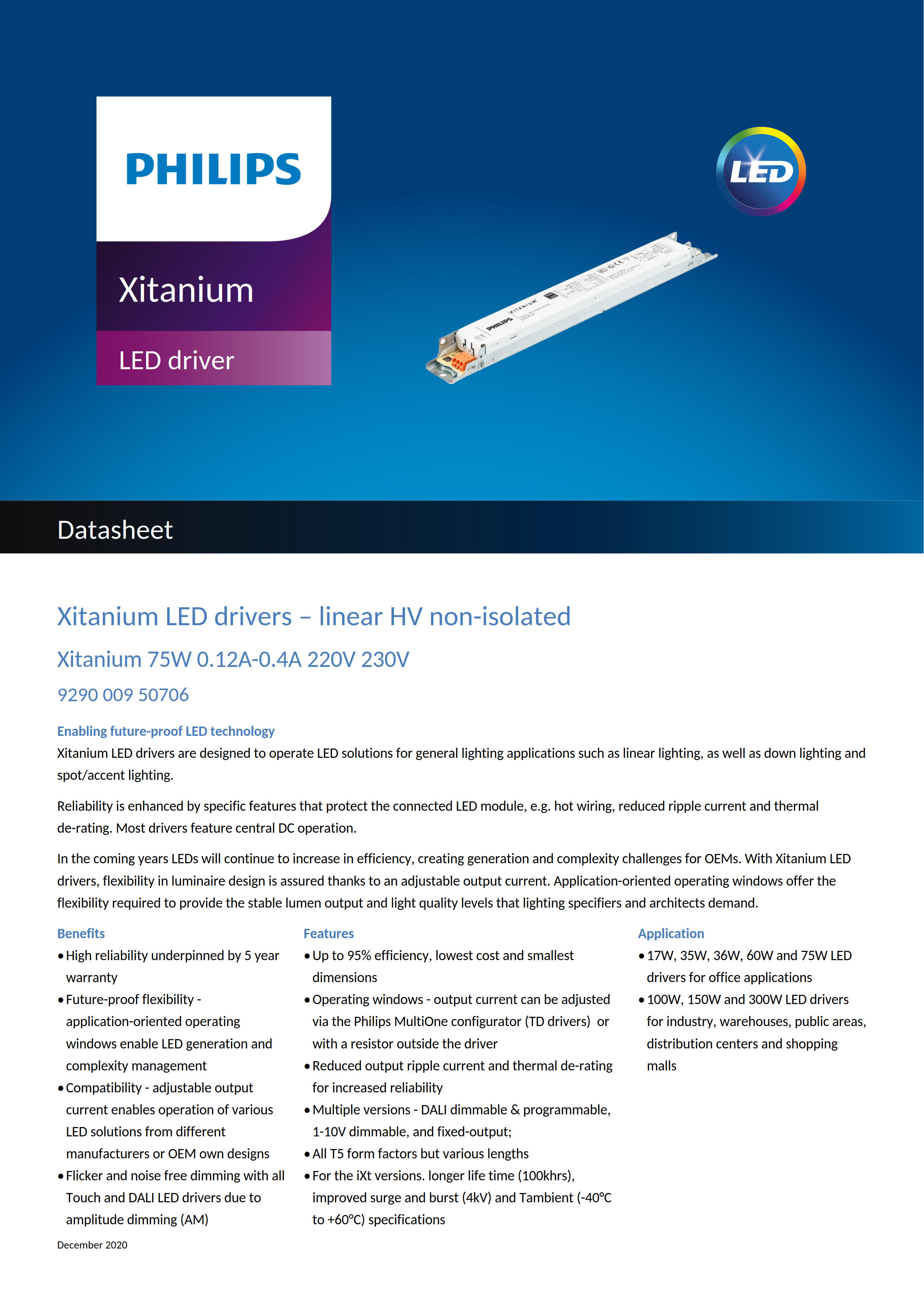

PHILIPS Xitanium 75W 0.12-0.4A 220V 230V 929000950706
Enabling future-proof LED technology
Xitanium LED drivers are designed to operate LED solutions for general lighting applications such as linear lighting, as well as down lighting and
spot/accent lighting.
Reliability is enhanced by specific features that protect the connected LED module, e.g. hot wiring, reduced ripple current and thermal
de-rating. Most drivers feature central DC operation.
In the coming years LEDs will continue to increase in efficiency, creating generation and complexity challenges for OEMs. With Xitanium LED
drivers, flexibility in luminaire design is assured thanks to an adjustable output current. Application-oriented operating windows offer the
flexibility required to provide the stable lumen output and light quality levels that lighting specifiers and architects demand.
Benefits
• High reliability underpinned by 5 year warranty
• Future-proof flexibility - application-oriented operating windows enable LED generation and complexity management
• Compatibility - adjustable output current enables operation of various LED solutions from different manufacturers or OEM own designs
Features
•Up to 95% efficiency, lowest cost and smallest dimensions
• Operating windows - output current can be adjusted via the Philips MultiOne configurator (TD drivers) or with a resistor outside the driver
• Reduced output ripple current and thermal de-rating for increased reliability
Application
• 17W, 35W, 36W, 60W and 75W LED drivers for office applications
• 100W, 150W and 300W LED drivers for industry, warehouses, public areas, distribution centers and shopping malls
