Product date

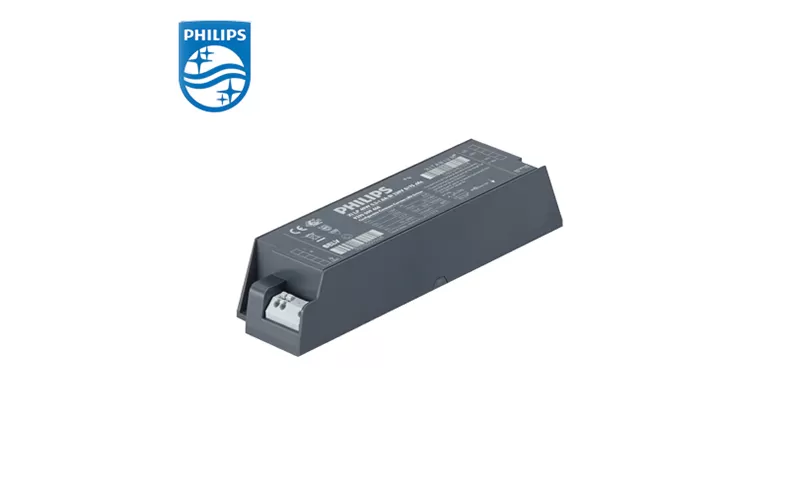

Model name:PHILIPS Xi FP 40W 0.3-1.0A SNLDAE 230V S175 sXT 929000989306
12NC:929000989306
Output voltage: 20 to 54 Vdc
Output current: 0.3 to 1.05 A
Output power: 1.4 to 40 W

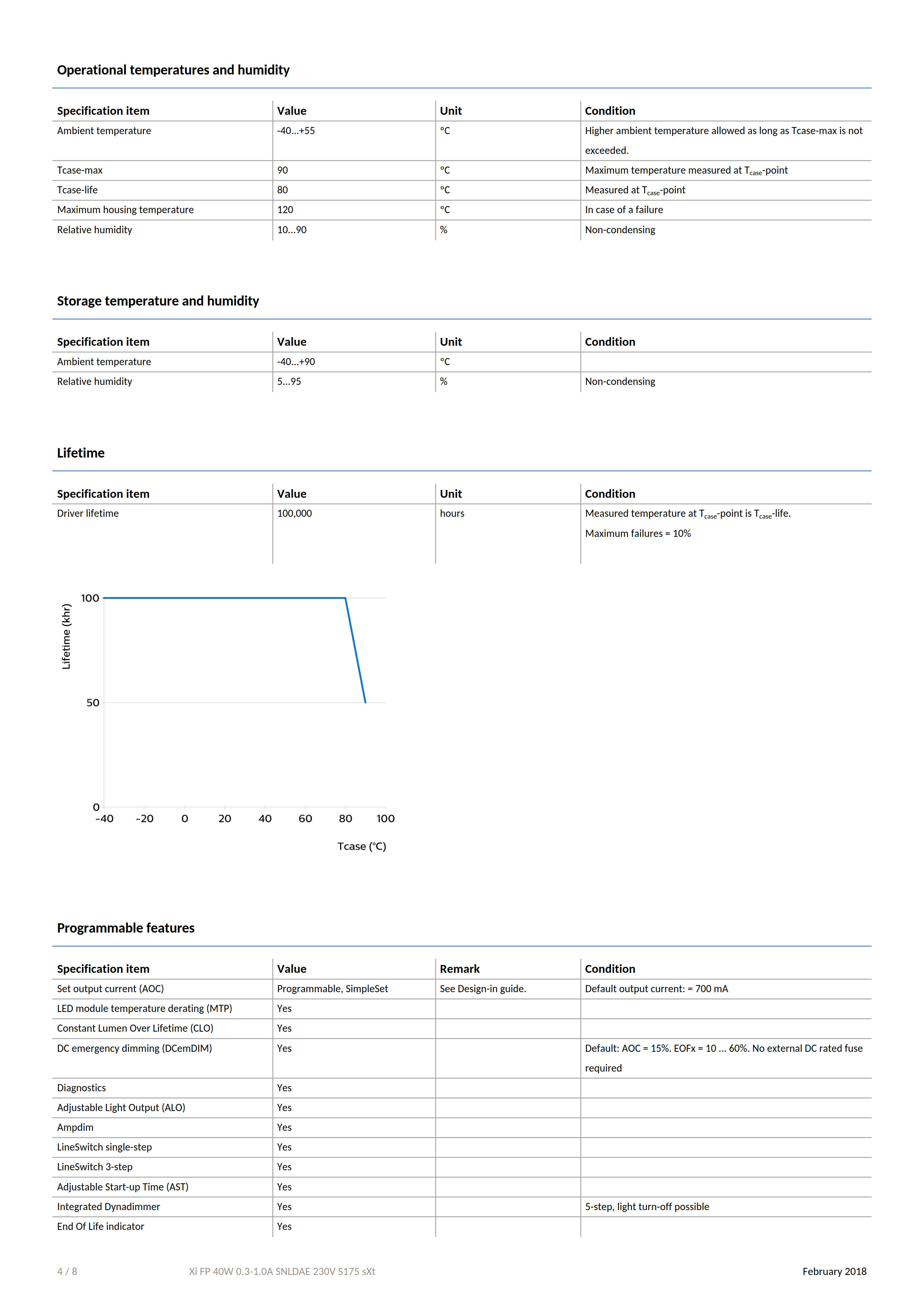

Driver lifetime: 100,000 hours
PHILIPS Xi FP 40W 0.3-1.0A SNLDAE 230V S175 sXT 929000989306
Benefits
• Ultimate robustness, offering peace of mind and lower maintenance costs
• Fully programmable LED-drivers designed for the new digital and connected lighting world
• Extended diagnostics via SimpleSet® and MultiOne
• Easy to design-in, configure and install for insulation Class I and Class II applications
• Energy savings through high efficiency and via multiple dimming options
Features
• SimpleSet® , wireless configuration interface
• High surge immunity (CM/DM)
• Long lifetime and robust protection against moisture, vibration and temperature
• Configurable operating windows (AOC)
• Multiple control interfaces: DALI, LineSwitch, AmpDim
• Autonomous dimming via integrated DynaDimmer
• Suitable for central DC operation (DCemDim)
• Thermal protection for LED module (MTP)
• Constant Light Output (CLO)
• Adjustable Start-up Time (AST)
• Adjustable Light Output (ALO)
• End-Of-Life indicator (EOL)
Application
• Road and street lighting
• Area lighting
• Tunnel lighting
• Industrial lighting
