Product date:

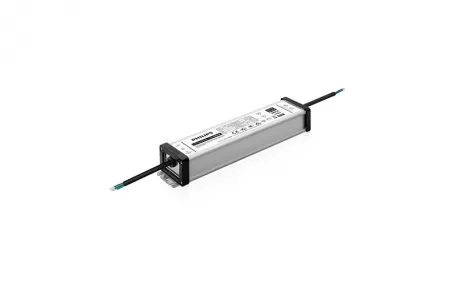

Model name:PHILIPS Xi LP 110W 0.3-1.0A S1 230V C133 sXt 929001655106
12NC:929001655106

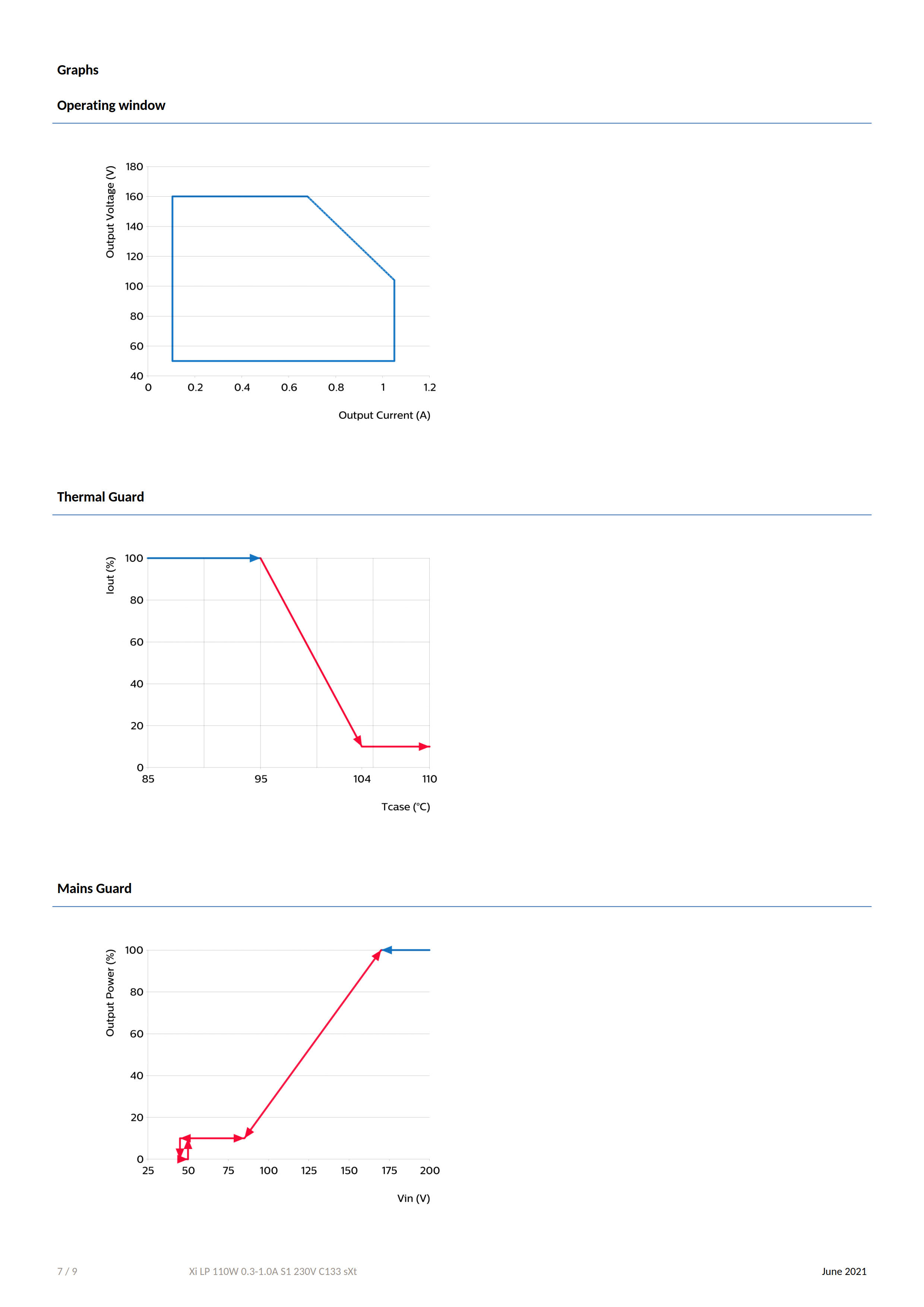

Output voltage: 50 to 160 Vdc
Output current: 0.3 to 1.05 A
Output power: 5 to 110 W

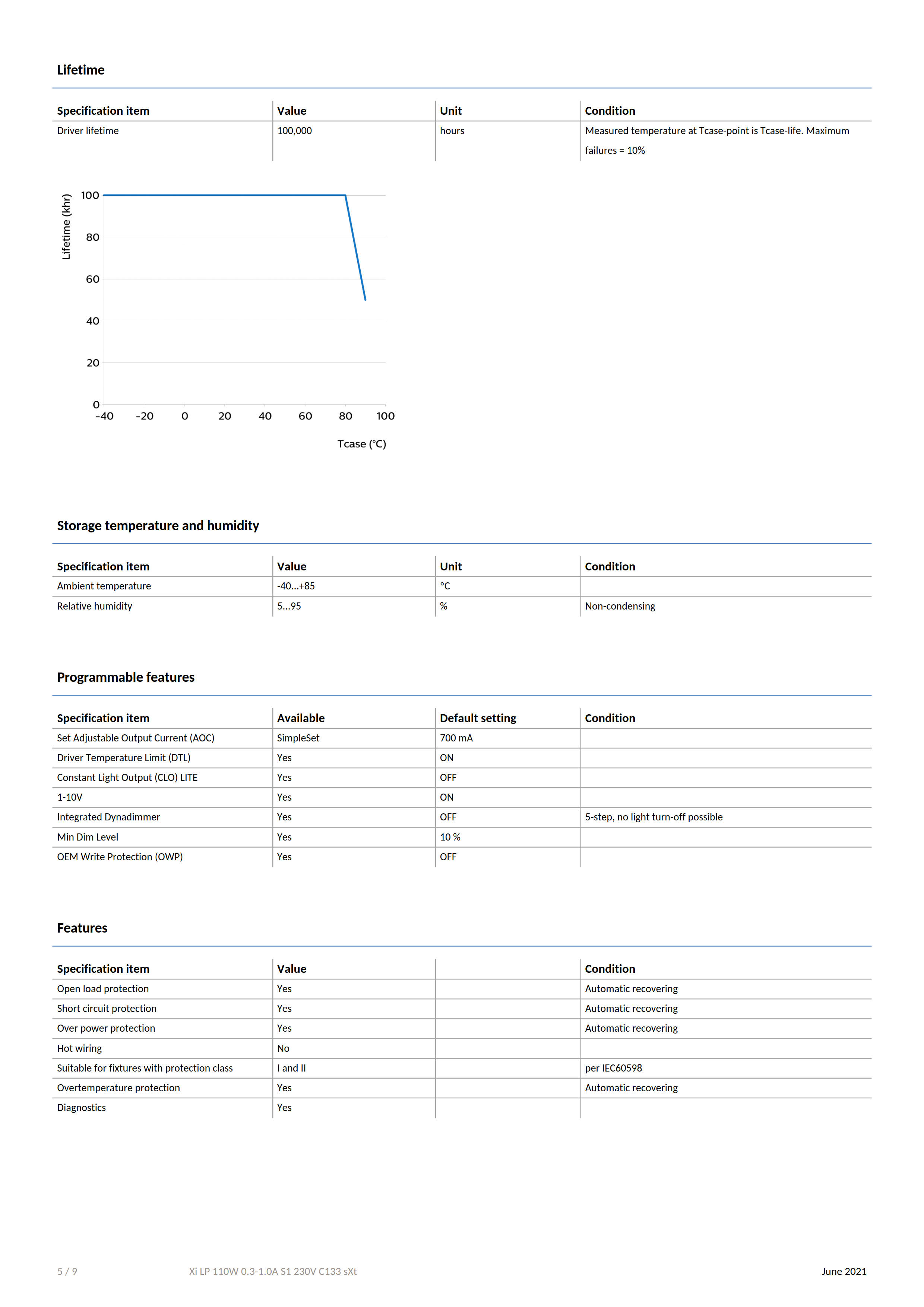

Driver lifetime: 100,000 hours
Control method: 1-10V, Dynadimmer

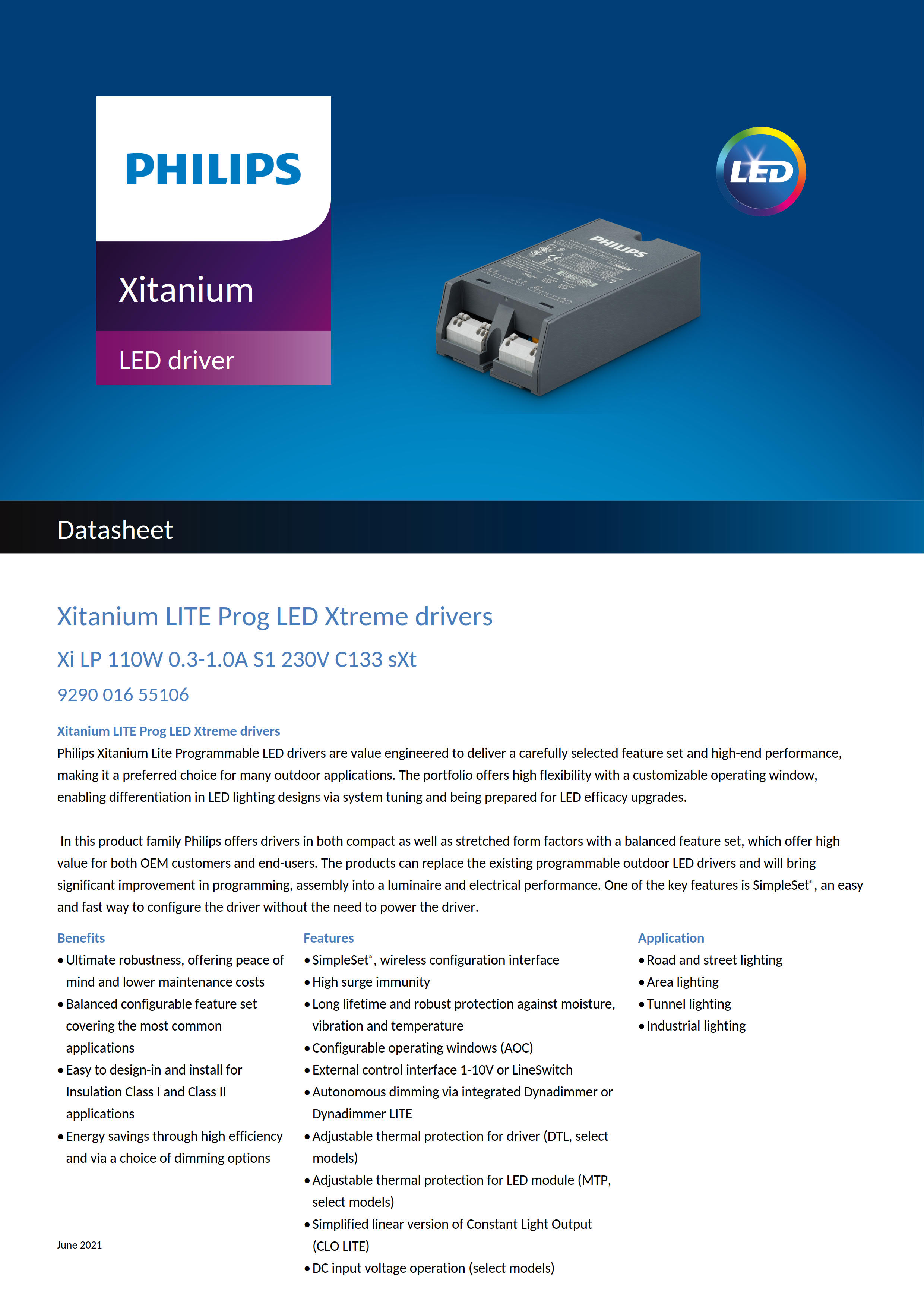

Xitanium LITE Prog LED Xtreme drivers Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips offers drivers in both compact as well as stretched form factors with a balanced feature set, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.
Benefits
•Ultimate robustness, offering peace of mind and lower maintenance costs
•Balanced configurable feature set covering the most common applications
• Easy to design-in and install for Insulation Class I and Class II applications
• Energy savings through high efficiency and via a choice of dimming options
Features
• SimpleSet®, wireless configuration interface
• High surge immunity
• Long lifetime and robust protection against moisture, vibration and temperature
•Configurable operating windows (AOC)
• External control interface 1-10V or LineSwitch
•Autonomous dimming via integrated Dynadimmer or Dynadimmer LITE
•Adjustable thermal protection for driver (DTL, select models)
•Adjustable thermal protection for LED module (MTP, select models)
• Simplified linear version of Constant Light Output (CLO LITE)
•DC input voltage operation (select models)
Application
•Road and street lighting
•Area lighting
• Tunnel lighting
• Industrial lighting
