PRODUCT DATA
Product date

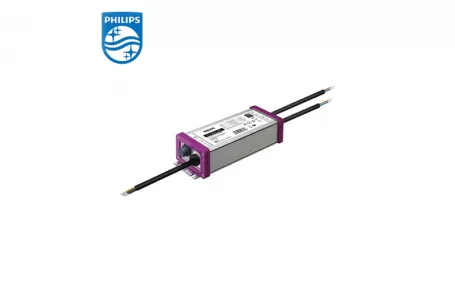

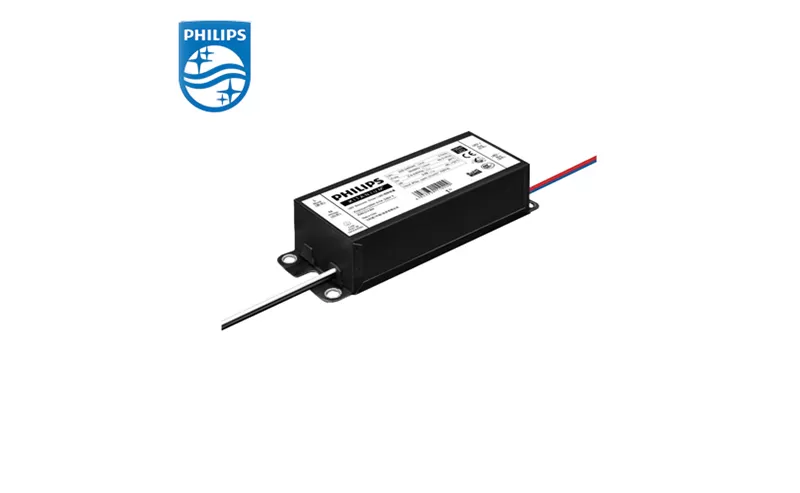

Model name:PHILIPS Xitanium Dim 100W 1.05A 1-10V 230V Y 929001402380
12NC:929001402380
Output voltage: 42 to 95 Vdc
Output current: 1050 - 105 mA
Output power: 100 W
Pieces per box: 12
Driver lifetime: 100,000 hours

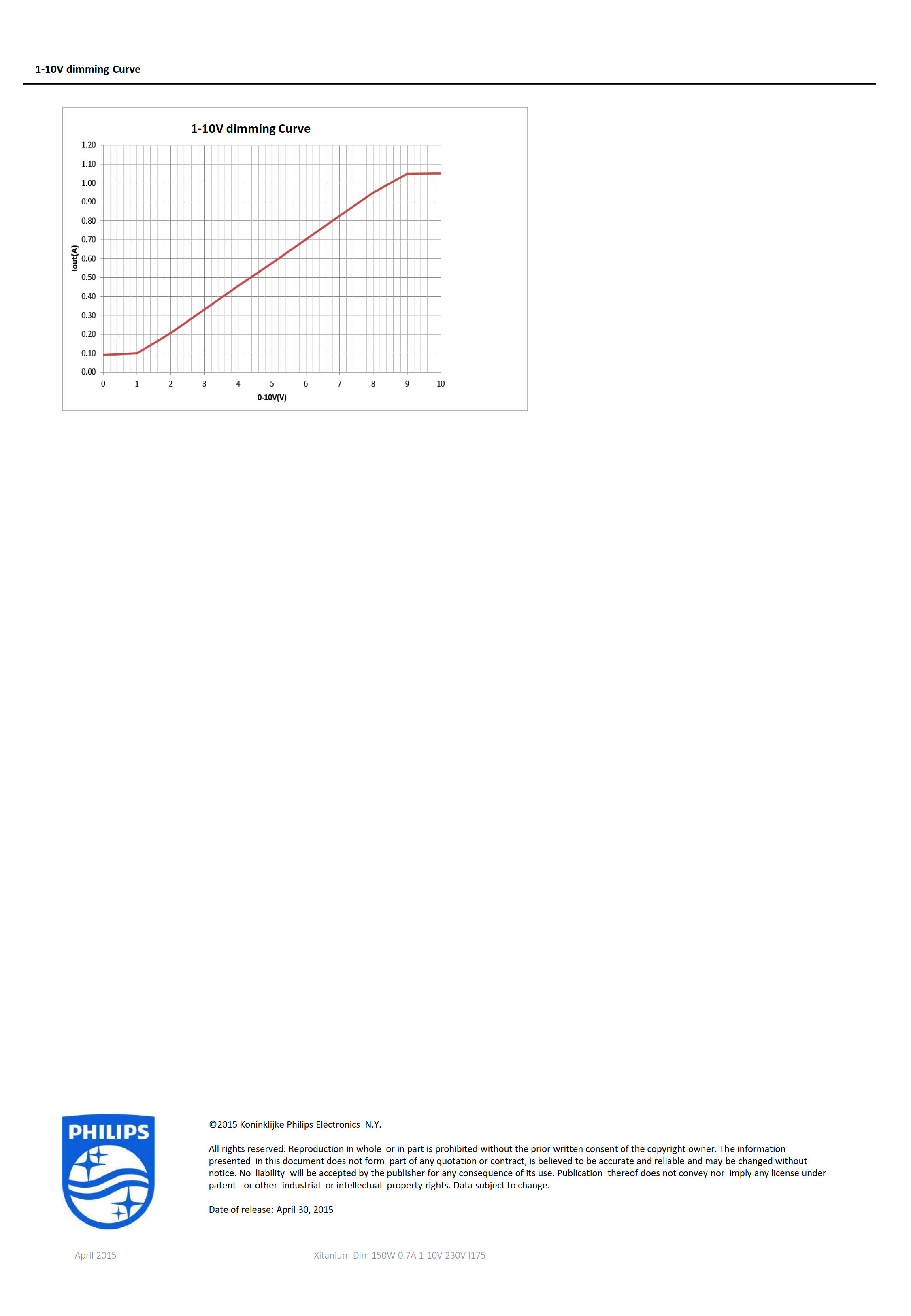

Control method: 1 - 10V

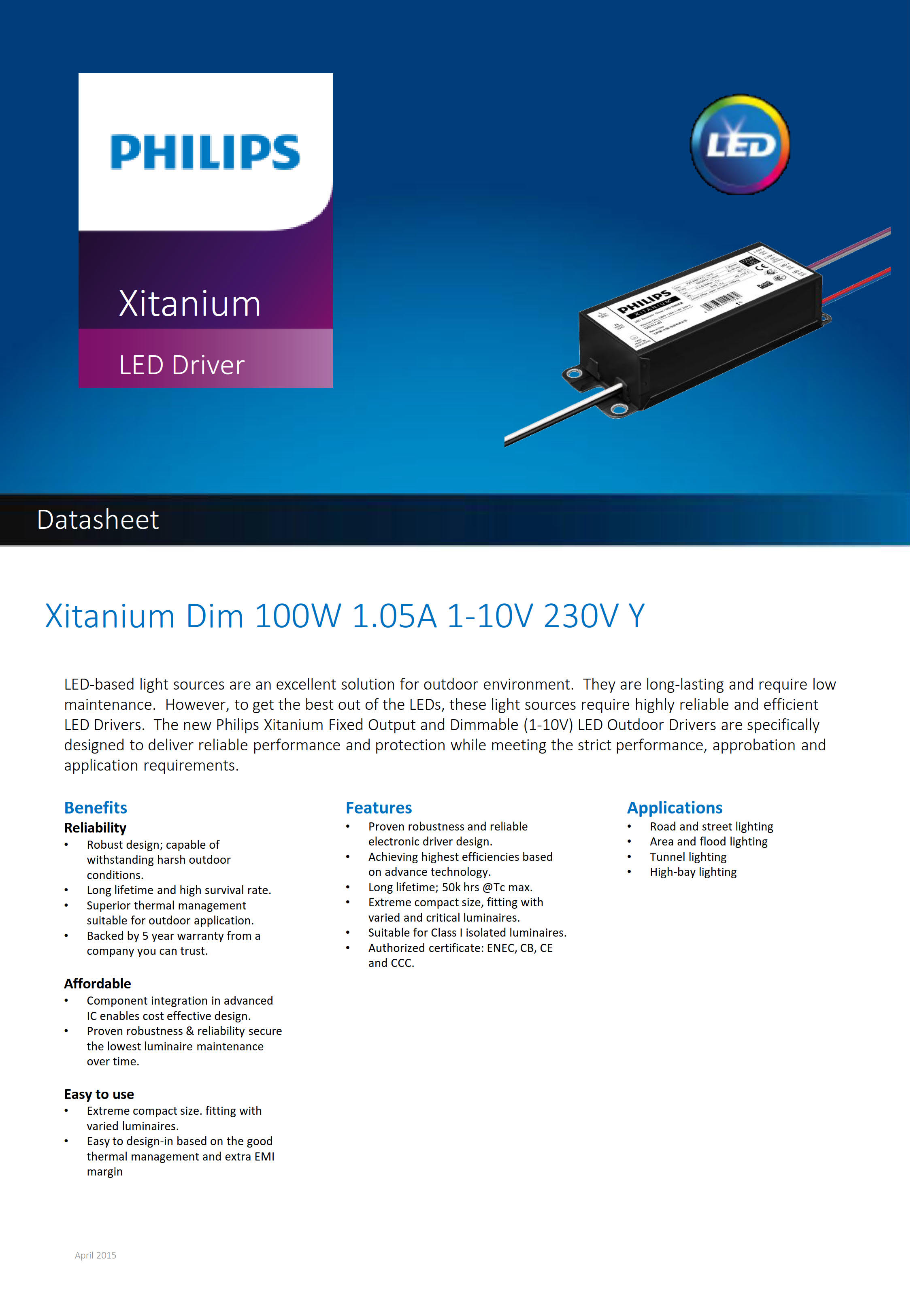

PHILIPS Xitanium Dim 100W 1.05A 1-10V 230V Y 929001402380
Benefits
• Robust design; capable of withstanding harsh outdoor conditions • Long lifetime and high survival rate
• Superior thermal management suitable for outdoor application
• Backed by 5 year warranty from a company you can trust
Features
• Proven robustness and reliable electronic driver design
• Achieving highest efficiencies based on advance technology
• Long lifetime; 50k hrs@Tc max
• Extreme compact size, fitting with varied and critical luminaires
• Suitable for Class I isolated luminaires
Application
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• Highbay lighting
PHILIPS Product 12NC List
12NC List:
929001402280 Xitanium Dim 100W 0.7A 1-10V 230V Y
929001402380 Xitanium Dim 100W 1.05A 1-10V 230V Y
929001401680 Xitanium Dim 150W 0.7A 1-10V 230V Y
929001401780 Xitanium Dim 150W 1.05A 1-10V 230V Y
929001401880 Xitanium Dim 100W 0.7A 1-10V 230V I175
929001402080 Xitanium Dim 100W 1.05A 1-10V 230V I175
929001401280 Xitanium Dim 150W 0.7A 1-10V 230V I175
929001401480 Xitanium Dim 150W 1.05A 1-10V 230V I175
