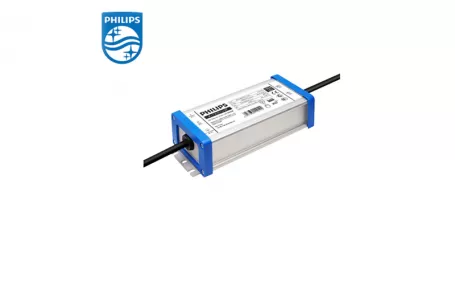

PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

Product date:

Model name:PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

12NC:929003414380

Output voltage: 31 to 93 Vdc

Output current: 0.3 to 1.05 A

Output power: 2.5 to 65 W

Pieces per box: 16

Driver lifetime: 50,000 hours

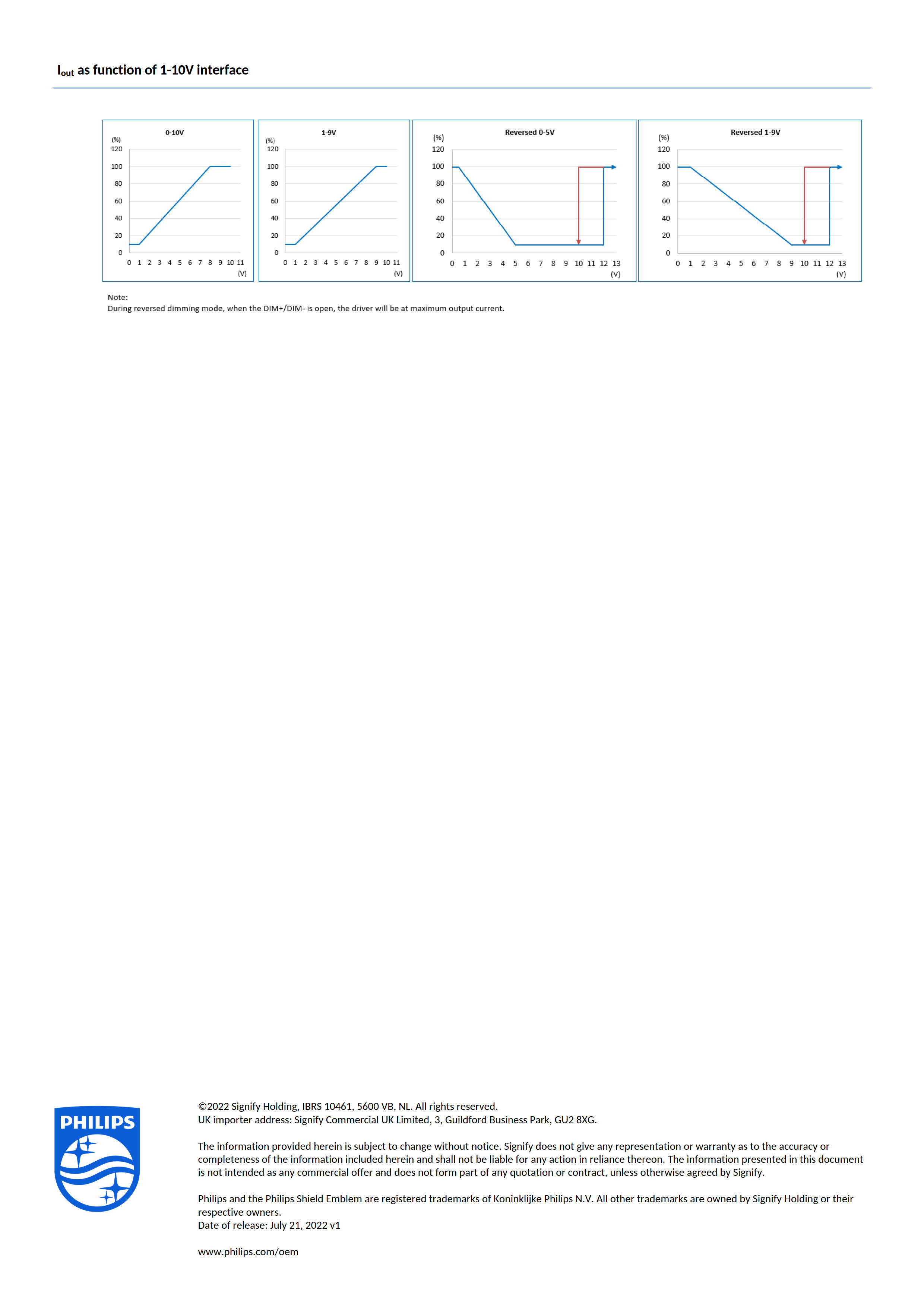

Control method: 1 -10V




PRODUCT DATA

Product date:

Model name:PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

12NC:929003414380

Output voltage: 31 to 93 Vdc

Output current: 0.3 to 1.05 A

Output power: 2.5 to 65 W

Pieces per box: 16

Driver lifetime: 50,000 hours

Control method: 1 -10V

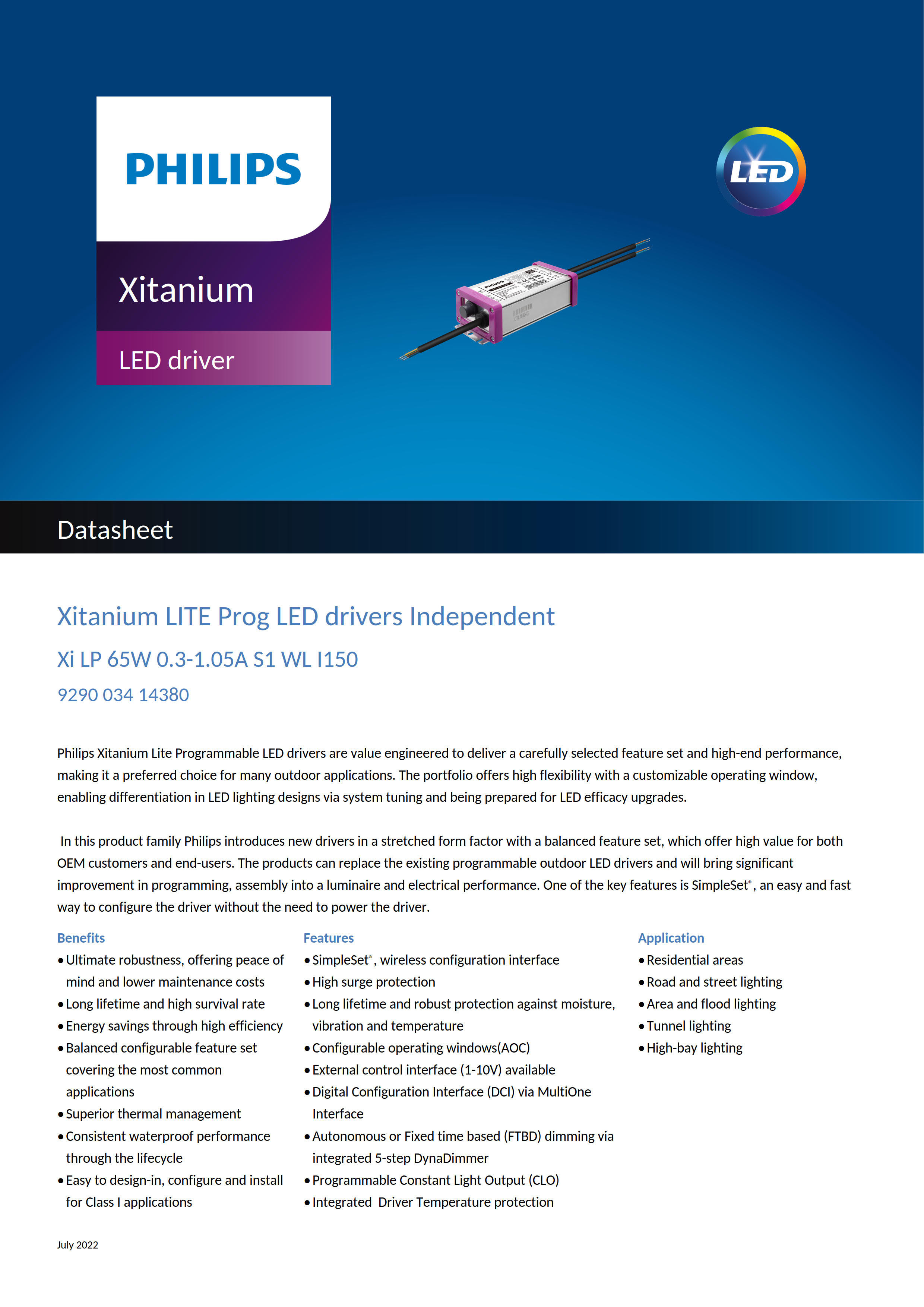

Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.


Benefits

•Ultimate robustness, offering peace of mind and lower maintenance costs

• Long lifetime and high survival rate

• Energy savings through high efficiency

•Balanced configurable feature set covering the most common applications

• Superior thermal management

•Consistent waterproof performance through the lifecycle


Features

• SimpleSet®, wireless configuration interface

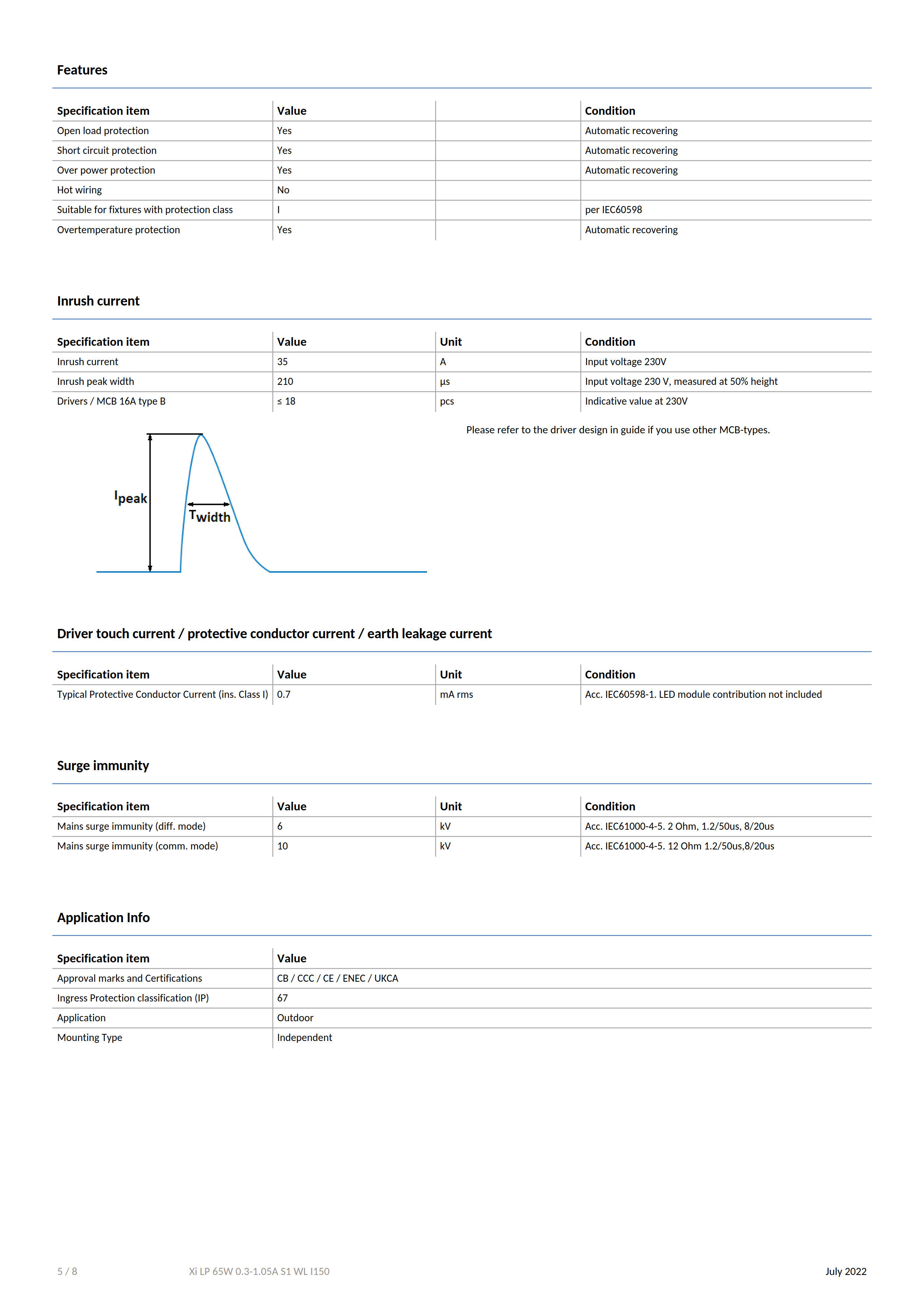

• High surge protection

• Long lifetime and robust protection against moisture, vibration and temperature

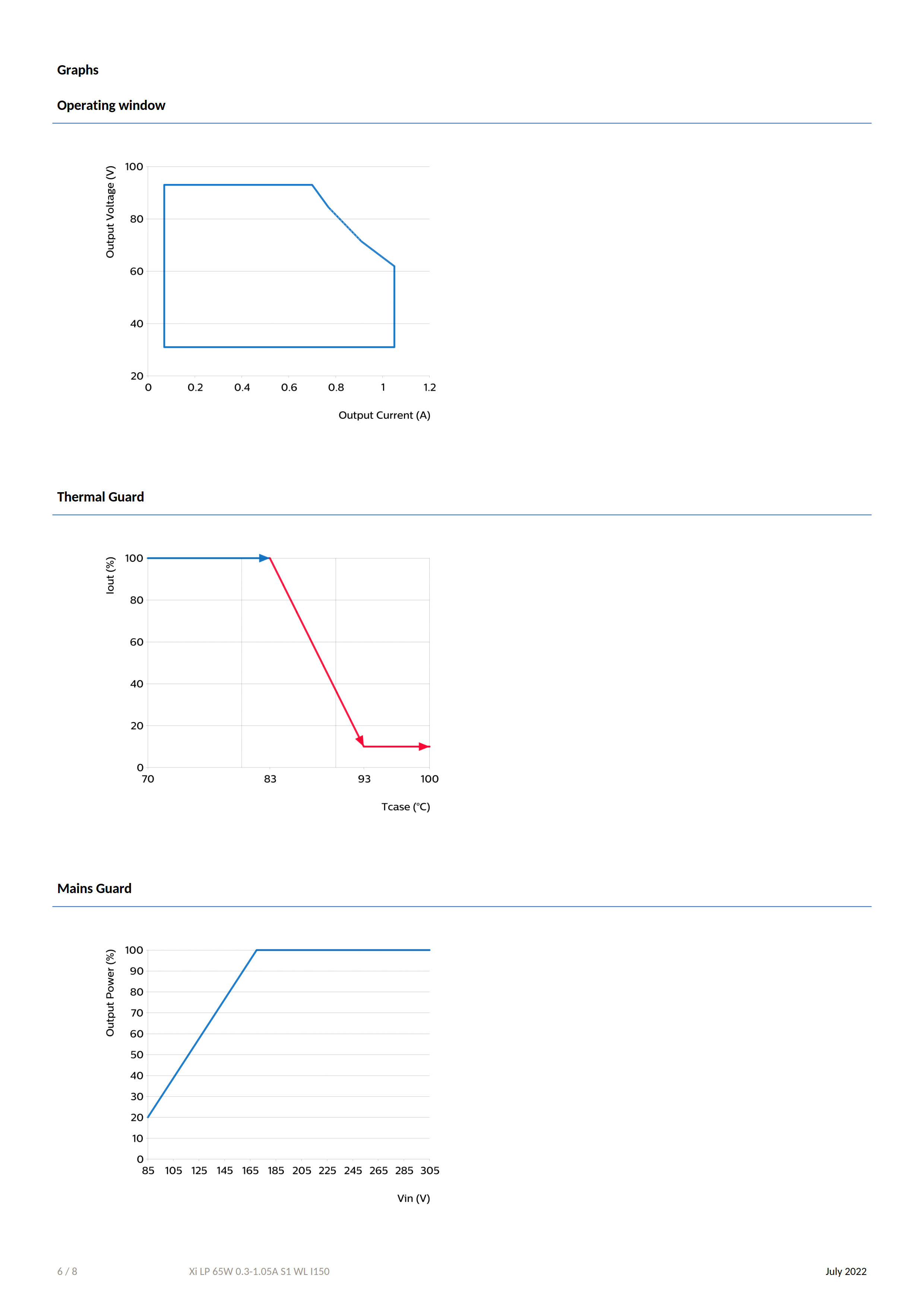

•Configurable operating windows(AOC)

• External control interface (1-10V) available

•Digital Configuration Interface (DCI) via MultiOne Interface

•Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer

• Programmable Constant Light Output (CLO)

• Integrated Driver Temperature protection


Application

•Residential areas

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• High-bay lighting

PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380

PHILIPS Xi LP 65W 0.3-1.05A S1 WL I150 929003414380


PHILIPS Product 12NC List

929003414280 Xi LP 40W 0.3-1.05A S1 WL I150

929003414380 Xi LP 65W 0.3-1.05A S1 WL I150

929002878980 Xi LP 100W 0.3-1.05A S1 WL I155

929002879080 Xi LP 150W 0.3-1.05A S1 WL I175

929002879180 Xi LP 200W 0.3-1.05A S1 WL I195

929003389180 Xi LP 250W 0.3-1.05A S1 WL I215
