Product date:

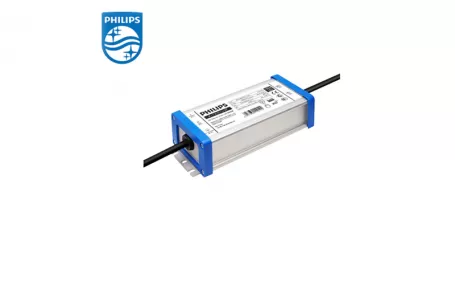

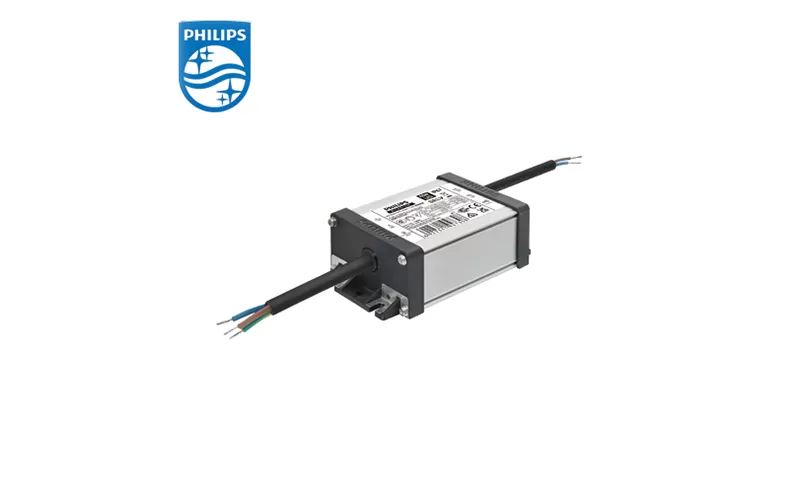

Model name:PHILIPS Xitanium driver Outdoor Xi EP LV 150W 2.0-5.0A WL I175 929003392880
12NC:929003392880

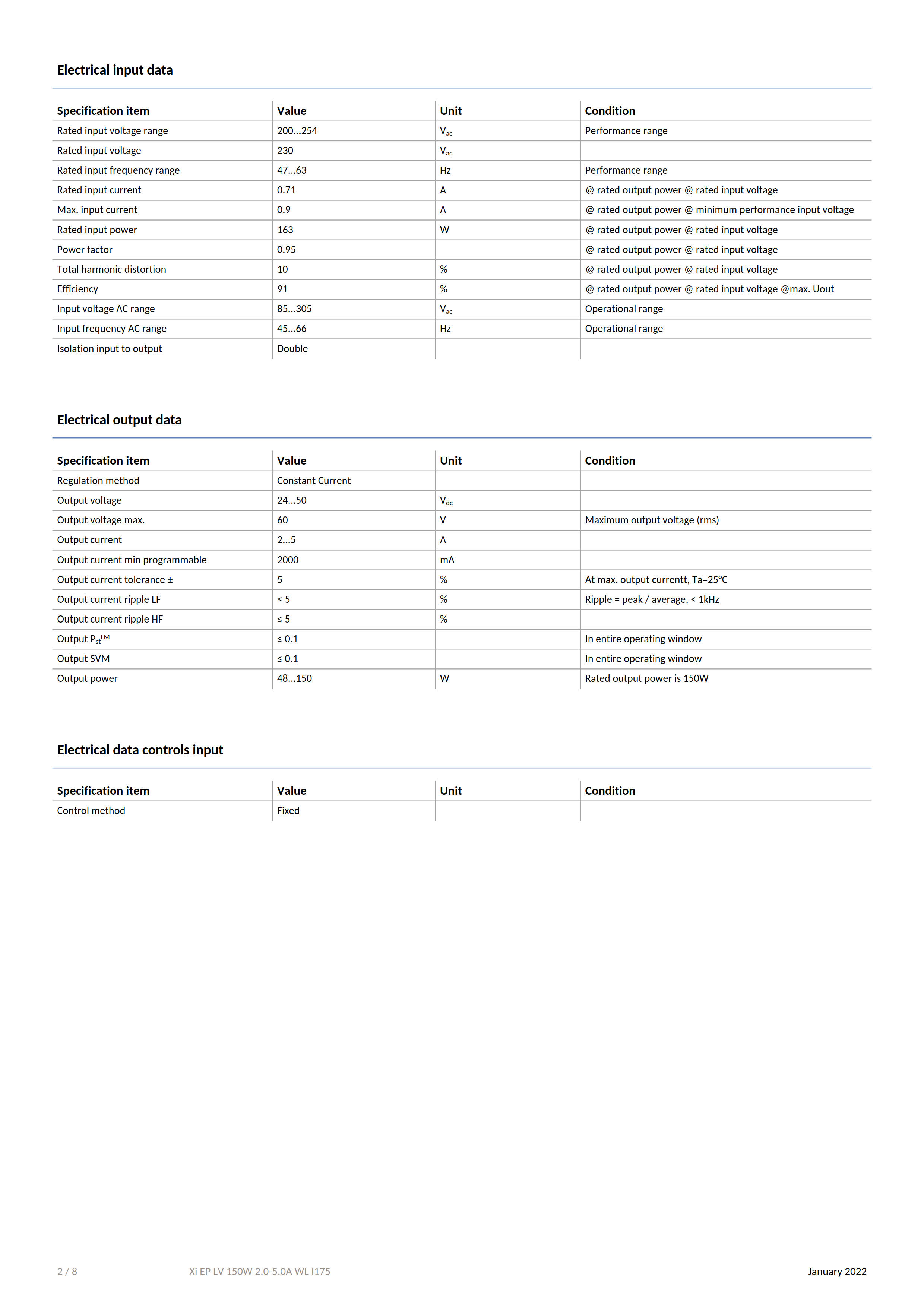

Output voltage: 24 to 50 Vdc
Output current: 2 to 5 A
Output power: 48 to 150 W
Pieces per box: 12

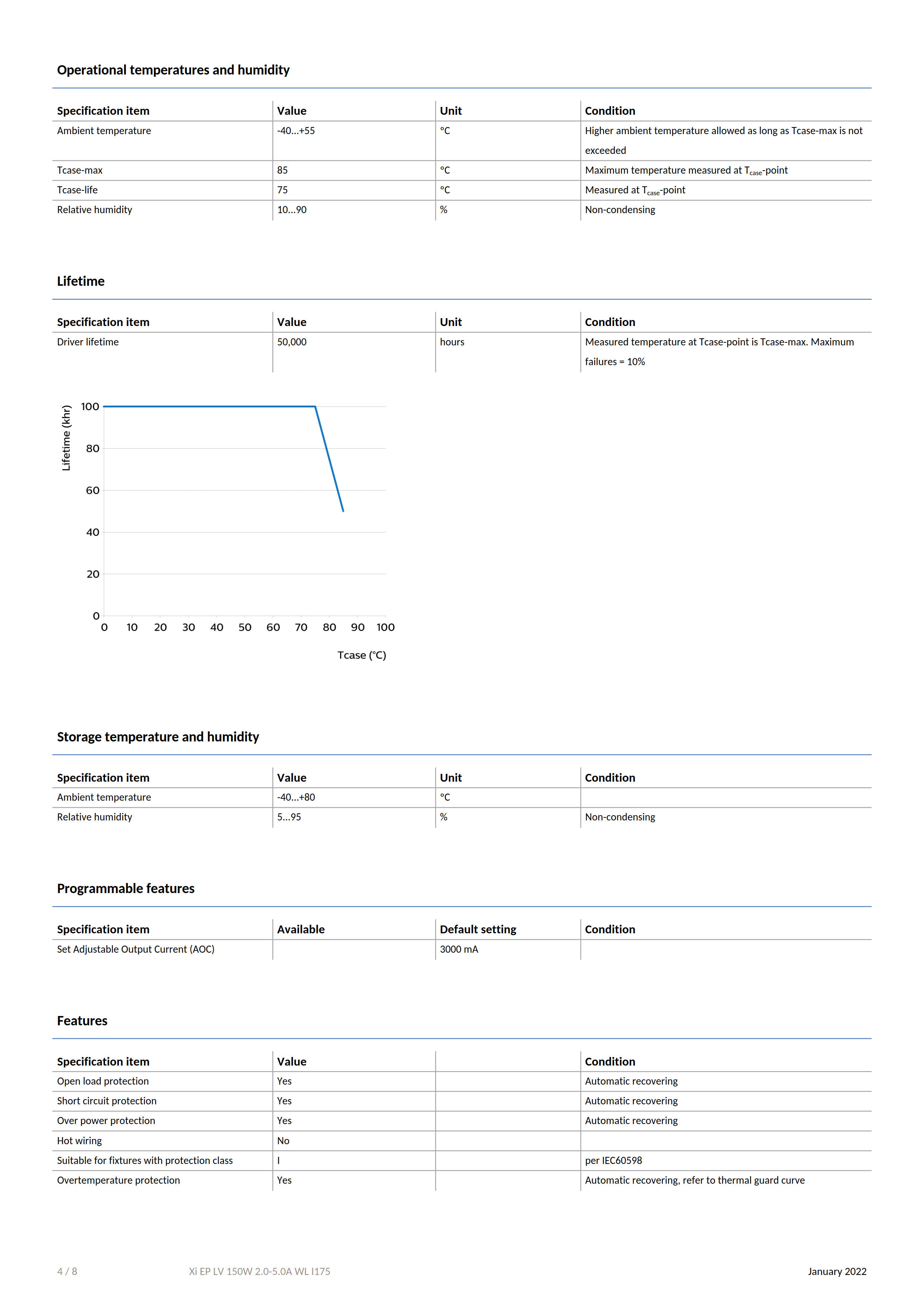

Driver lifetime: 50,000 hours
Control method: Fixed
Ingress Protection classification: IP67

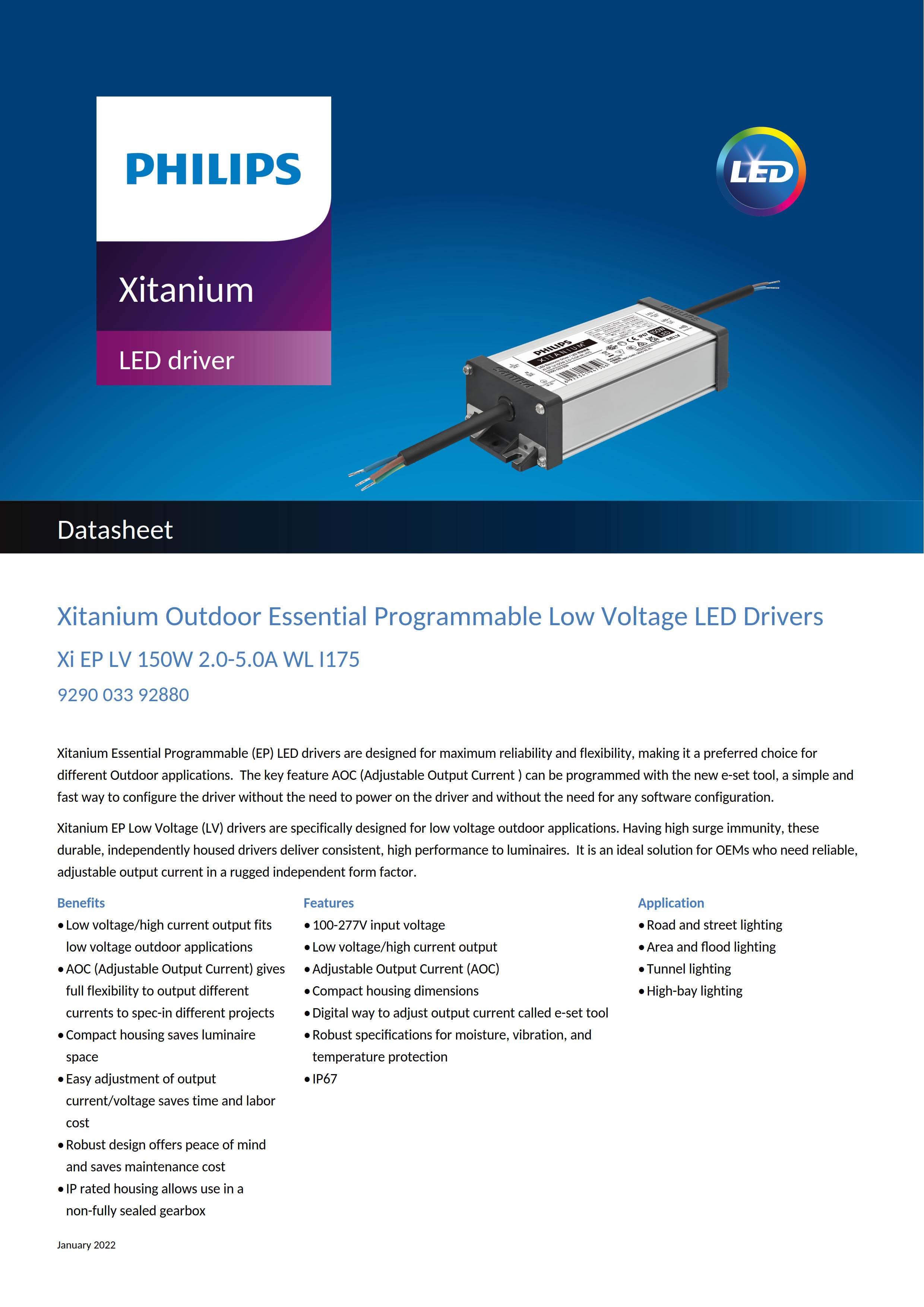

Xitanium Essential Programmable (EP) LED drivers are designed for maximum reliability and flexibility, making it a preferred choice for different Outdoor applications. The key feature AOC (Adjustable Output Current ) can be programmed with the new e-set tool, a simple and fast way to configure the driver without the need to power on the driver and without the need for any software configuration. Xitanium EP Low Voltage (LV) drivers are specifically designed for low voltage outdoor applications. Having high surge immunity, these durable, independently housed drivers deliver consistent, high performance to luminaires. It is an ideal solution for OEMs who need reliable, adjustable output current in a rugged independent form factor.
Benefits
• Low voltage/high current output fits low voltage outdoor applications
• AOC (Adjustable Output Current) gives full flexibility to output different currents to spec-in different projects
• Compact housing saves luminaire space
• Easy adjustment of output current/voltage saves time and labor cost
• Robust design offers peace of mind and saves maintenance cost • IP rated housing allows use in a non-fully sealed gearbox
Features
• 100-277V input voltage
• Low voltage/high current output
• Adjustable Output Current (AOC)
• Compact housing dimensions
• Digital way to adjust output current called e-set tool
• Robust specifications for moisture, vibration, and temperature protection
• IP67
Application
•Road and street lighting
•Area and flood lighting
• Tunnel lighting
•High-bay lighting
