Product date
Model name:PHILIPS Xitanium Dim 150W 0.70A 1-10V TWE I220 929001425880
12NC:0 929001425880
Output voltage: 90 to 214 Vdc
Output current: 0.07 to 0.7 A
Output power: 7 to 150 W
Pieces per box: 10
Driver lifetime: 50,000 hours
Control method: 1-10 V

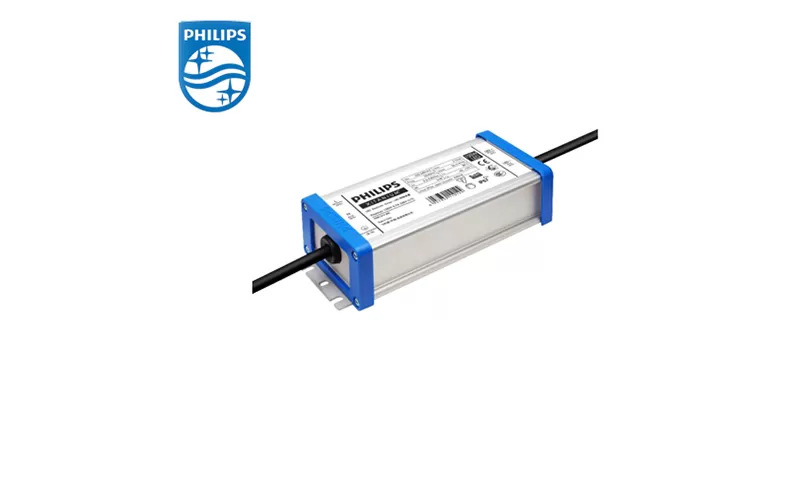

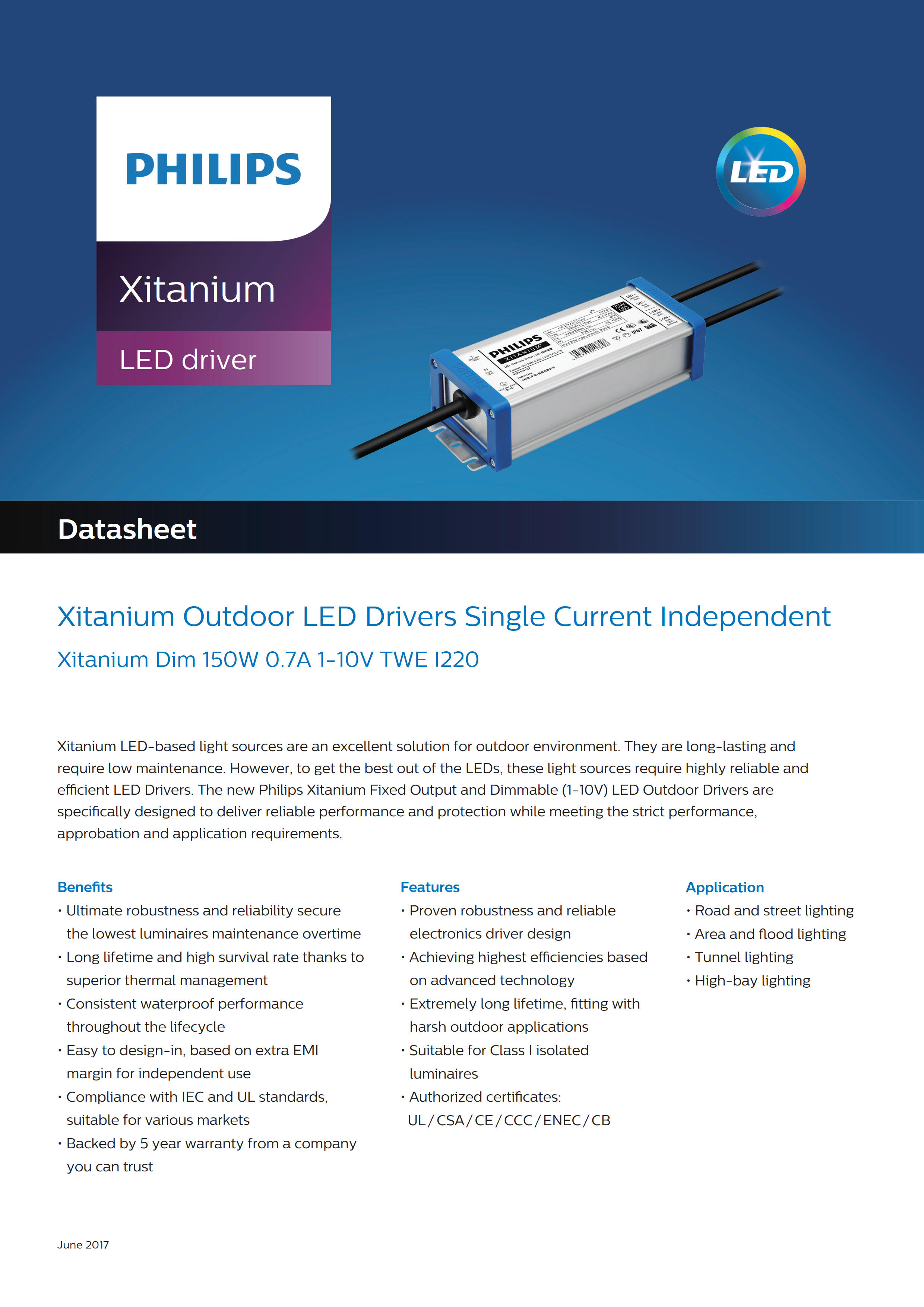

PHILIPS Xitanium Dim 150W 0.70A 1-10V TWE I220 929001425880
Xitanium LED-based light sources are an excellent solution for outdoor environment. They are long-lasting and require low maintenance. However, to get the best out of the LEDs, these light sources require highly reliable and e cient LED Drivers. The new Philips Xitanium Fixed Output and Dimmable (1-10V) LED Outdoor Drivers are speci cally designed to deliver reliable performance and protection while meeting the strict performance, approbation and application requirements.
Benefits
• Ultimate robustness, offering peace of mind and lower maintenance costs
• Energy savings through high efficiency and via a choice of dimming options
• Balanced configurable feature set covering the most common applications
• Consistent waterproof performance through the lifecycle
• Easy to design-in, configure and install for Class I applications
Features
• SimpleSet®, wireless configuration interface
• High surge protection
• Long lifetime and robust protection against moisture, vibration and temperature
• Configurable operating windows (AOC)
• External control interface (1-10V) available
• Digital Configuration Interface (DCI) via MultiOne Interface
• Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer
• Programmable Constant Light Output (CLO)
• Integrated Driver Temperature protection
Application
• Residential areas
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting
