Product date:

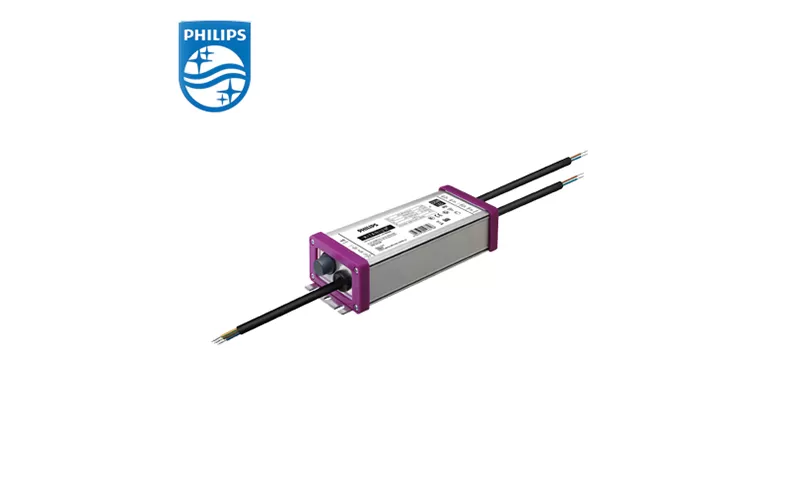

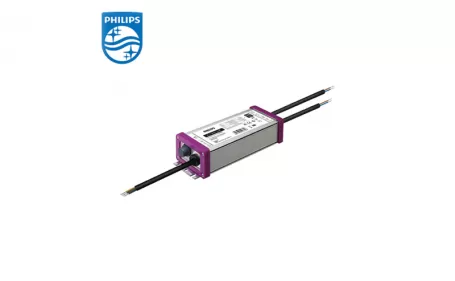

Model name:PHILIPS Xi LP 100W 0.3-1.05A S1 WL I155 929002878980
12NC:929002878980

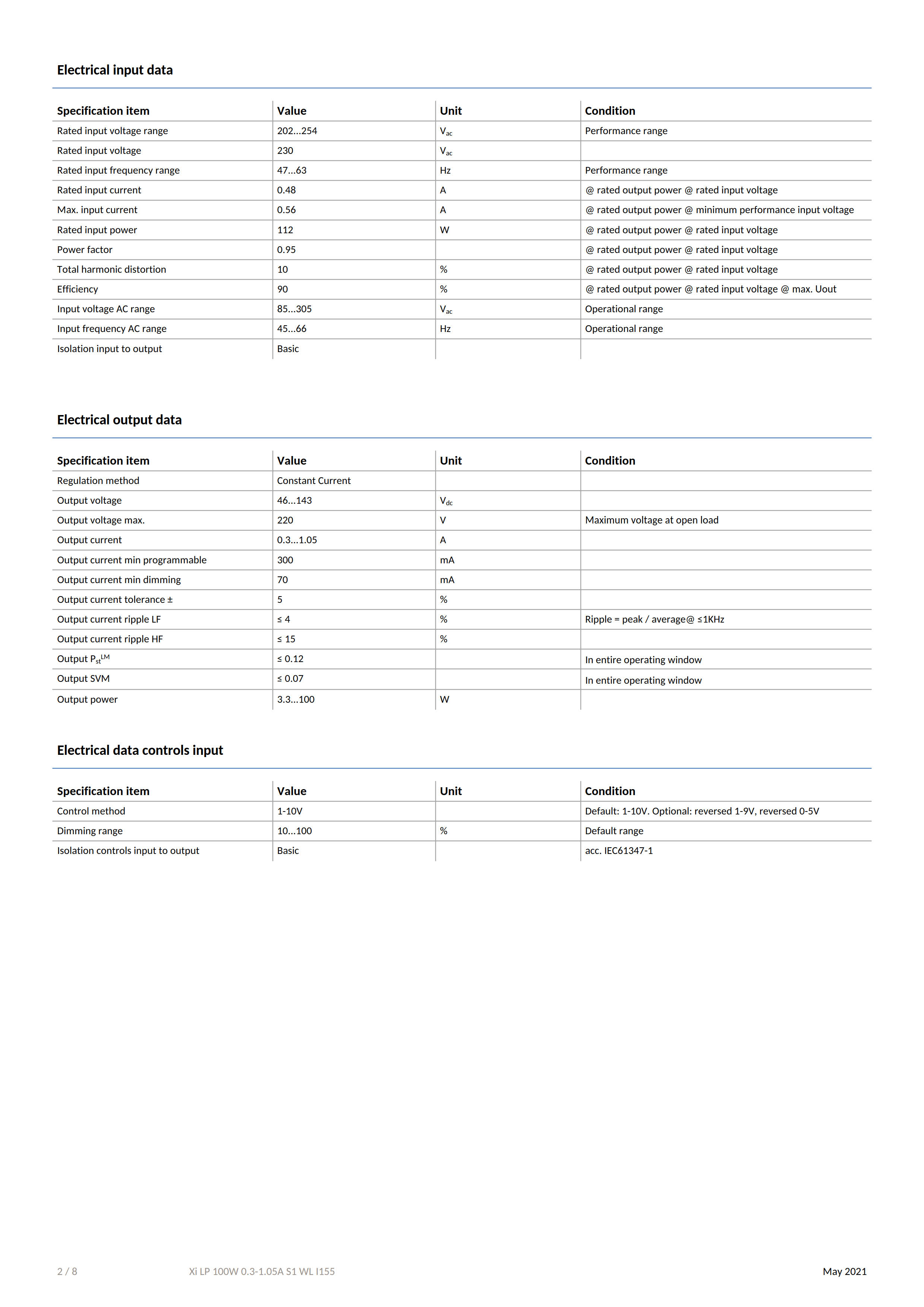

Output voltage: 46 to 143 Vdc
Output current: 0.3 to 1.05 A
Output power: 3.3 to 100 W
Pieces per box: 12

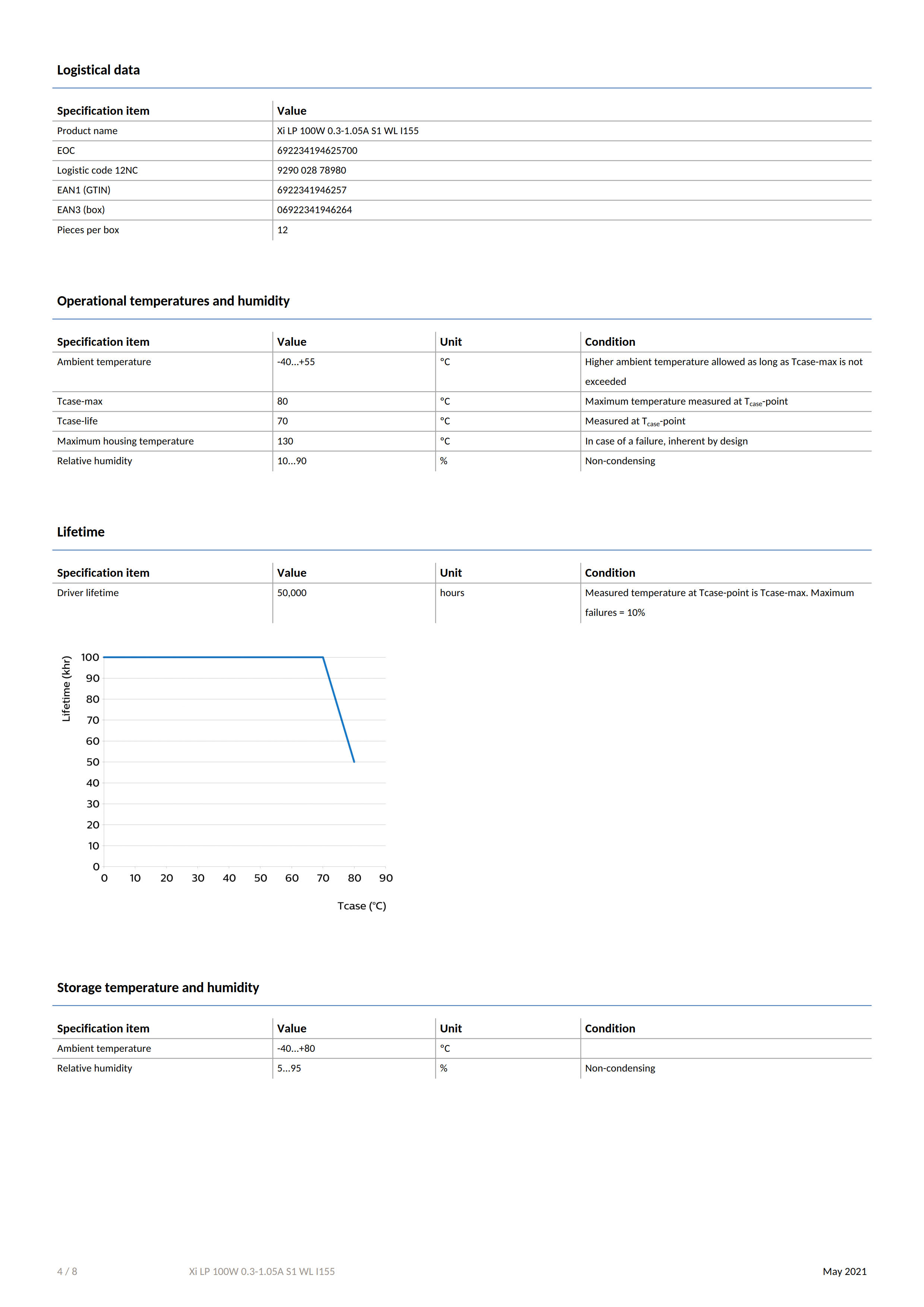

Driver lifetime: 50,000 hours
Control method: 1 -10V

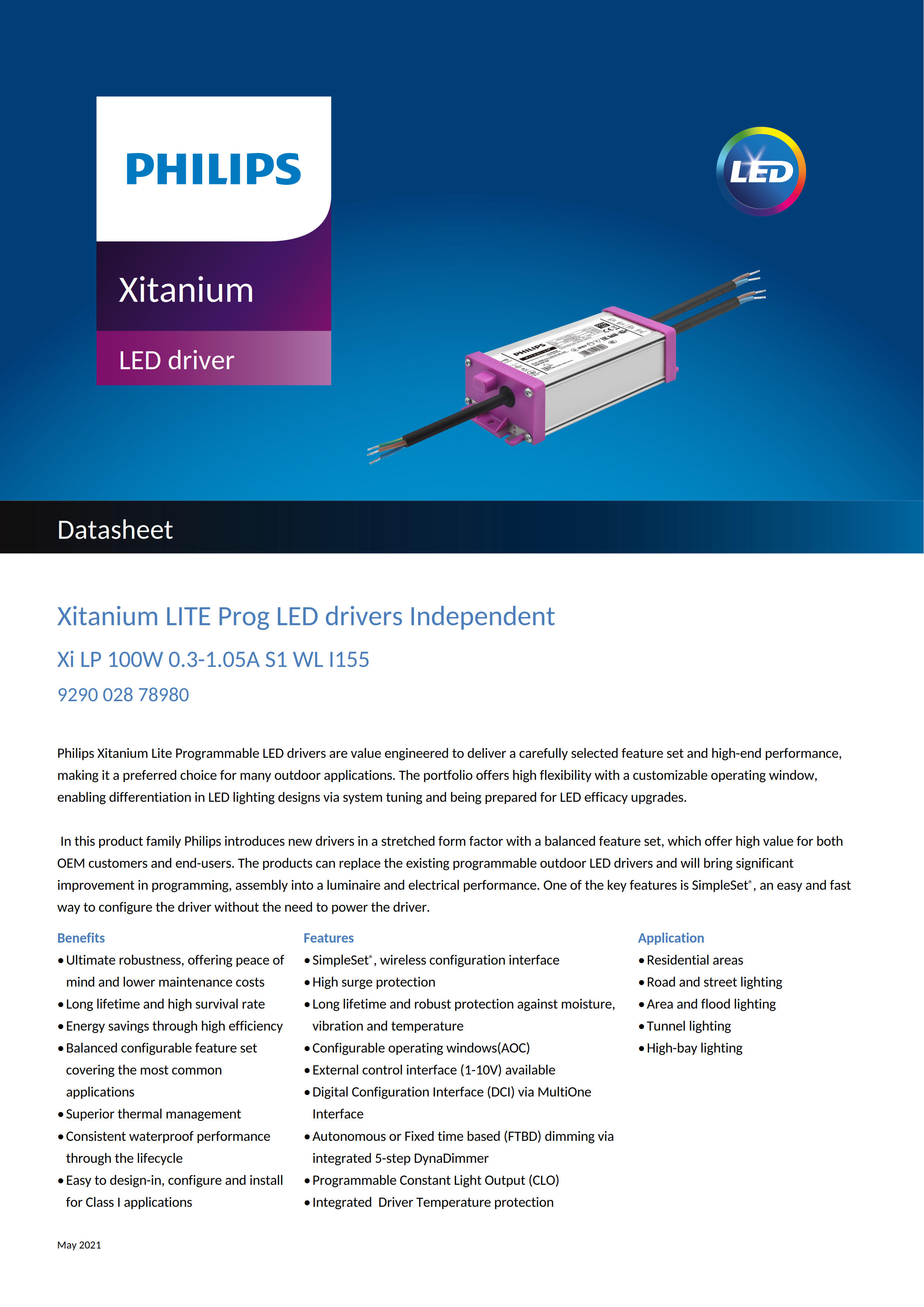

Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio offers high flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which offer high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to configure the driver without the need to power the driver.
Benefits
•Ultimate robustness, offering peace of mind and lower maintenance costs
• Long lifetime and high survival rate
• Energy savings through high efficiency
•Balanced configurable feature set covering the most common applications
• Superior thermal management
•Consistent waterproof performance through the lifecycle
Features
• SimpleSet®, wireless configuration interface
• High surge protection
• Long lifetime and robust protection against moisture, vibration and temperature
•Configurable operating windows(AOC)
• External control interface (1-10V) available
•Digital Configuration Interface (DCI) via MultiOne Interface
•Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer
• Programmable Constant Light Output (CLO)
• Integrated Driver Temperature protection
Application
•Residential areas
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting
