Product date

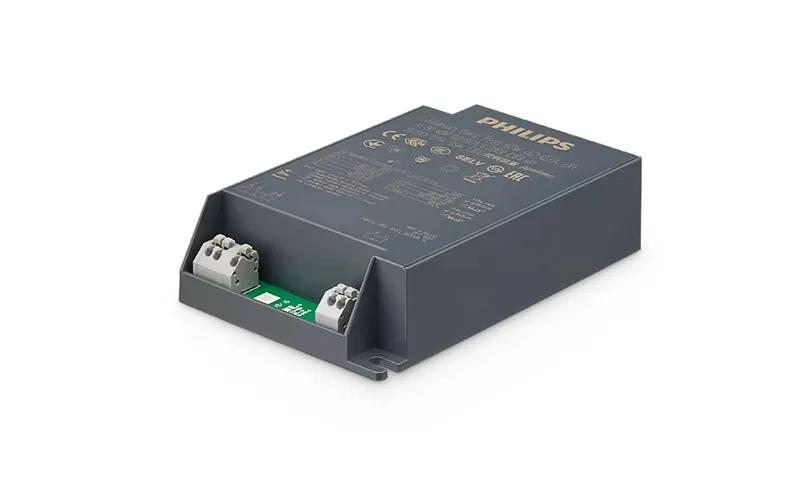

PHILIPS Xitanium LED Outdoor drivers Xi BP 40W 0.3-1.0A S 230V C123 sXt 929001499506
12NC:929001499506

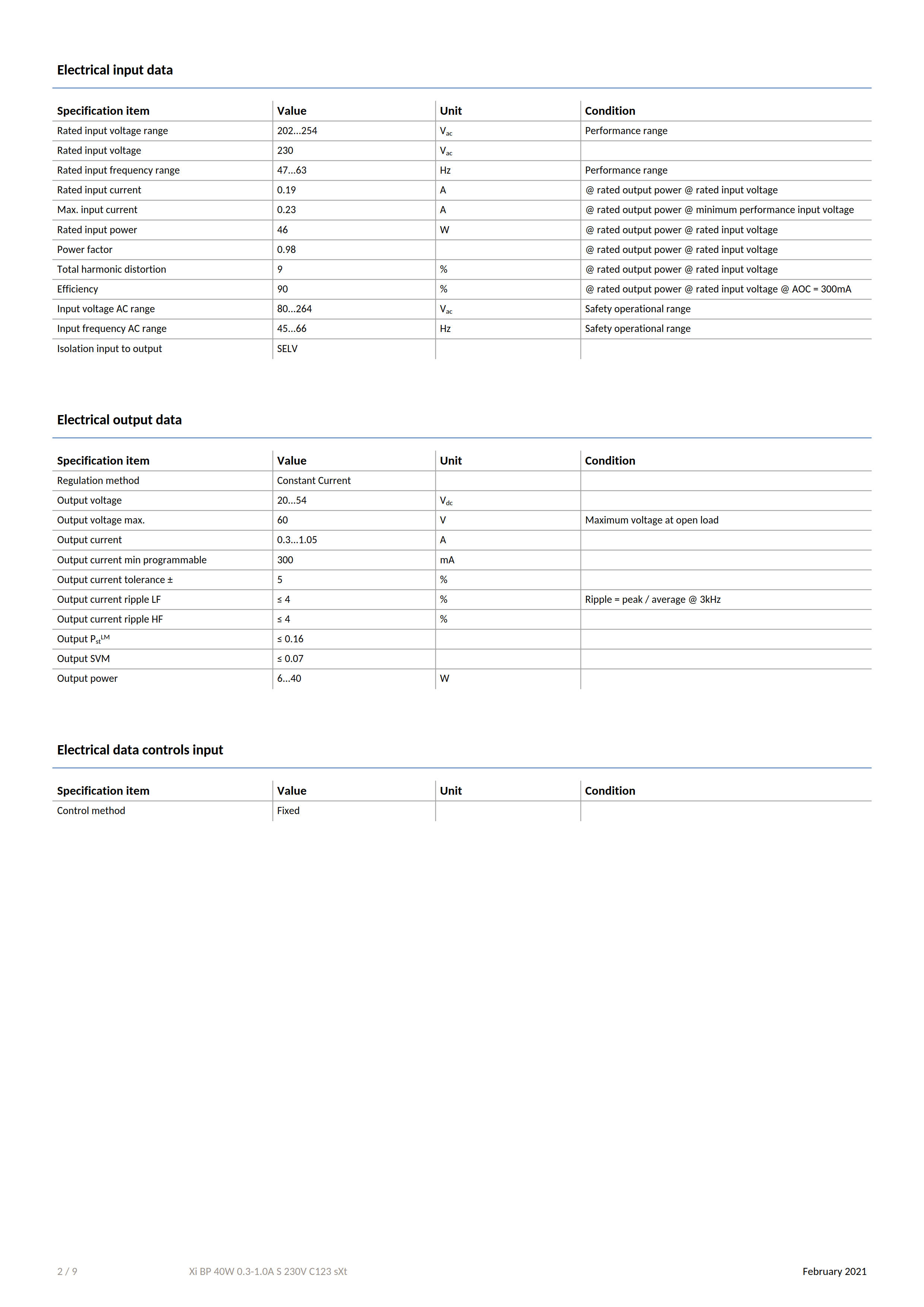

Operating and ElectricalOutput Current Ripple (Max) 4 %
Output Voltage (Max) 54 V
Maximum Efficiency at Full Load 89 %
Open Circuit Voltage (DC) (Max) 60 V
Output Power (Min) 6 W
Output Power (Max) 40 W
Output Voltage (Min) 20 V

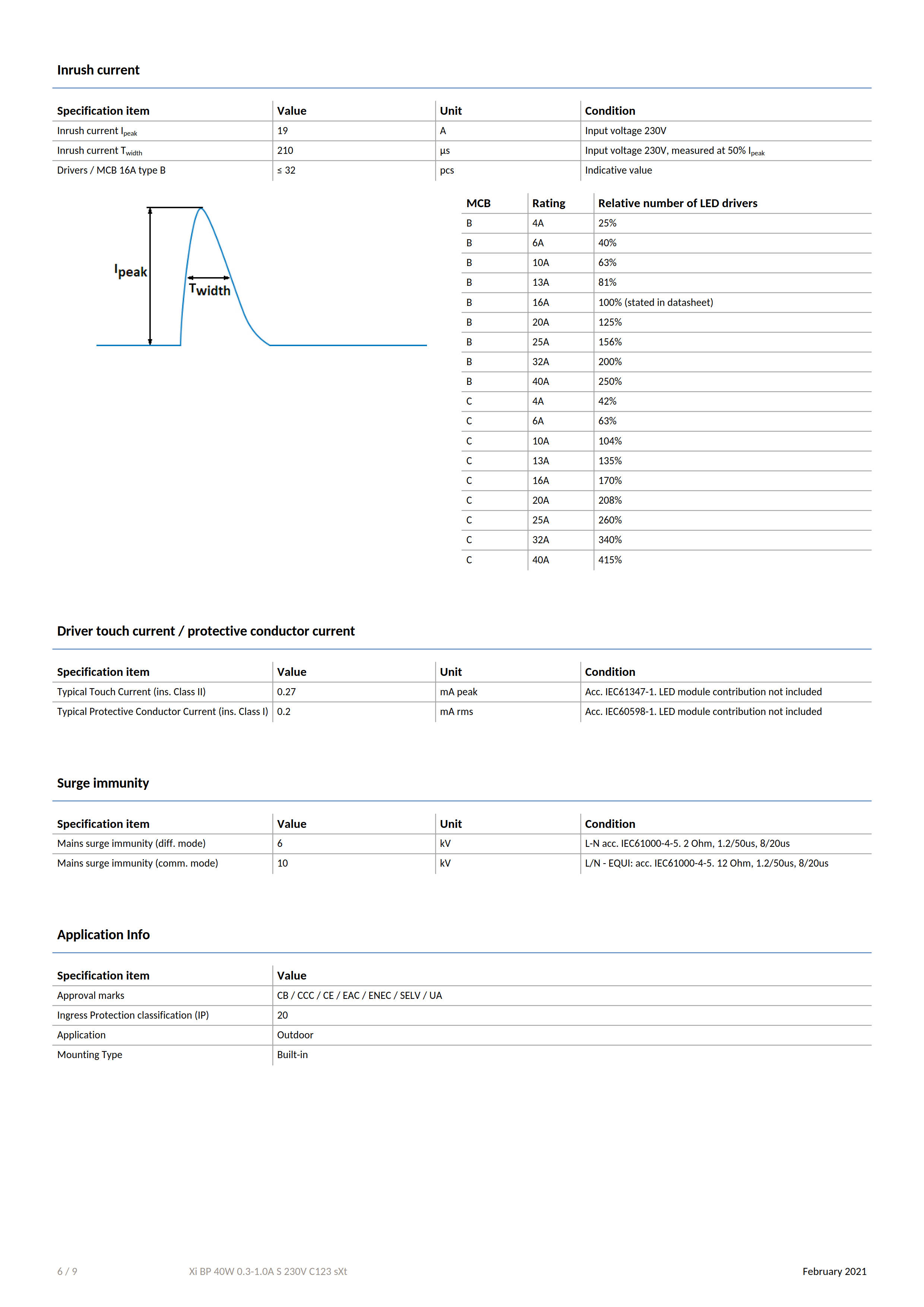

Inrush Current Width to 50% of Peak 210 µs
Output Current (Min) 300 mA
Diagnostics False
Output Current (Max) 1050 mA
Inrush Current Peak (Max) 19 A

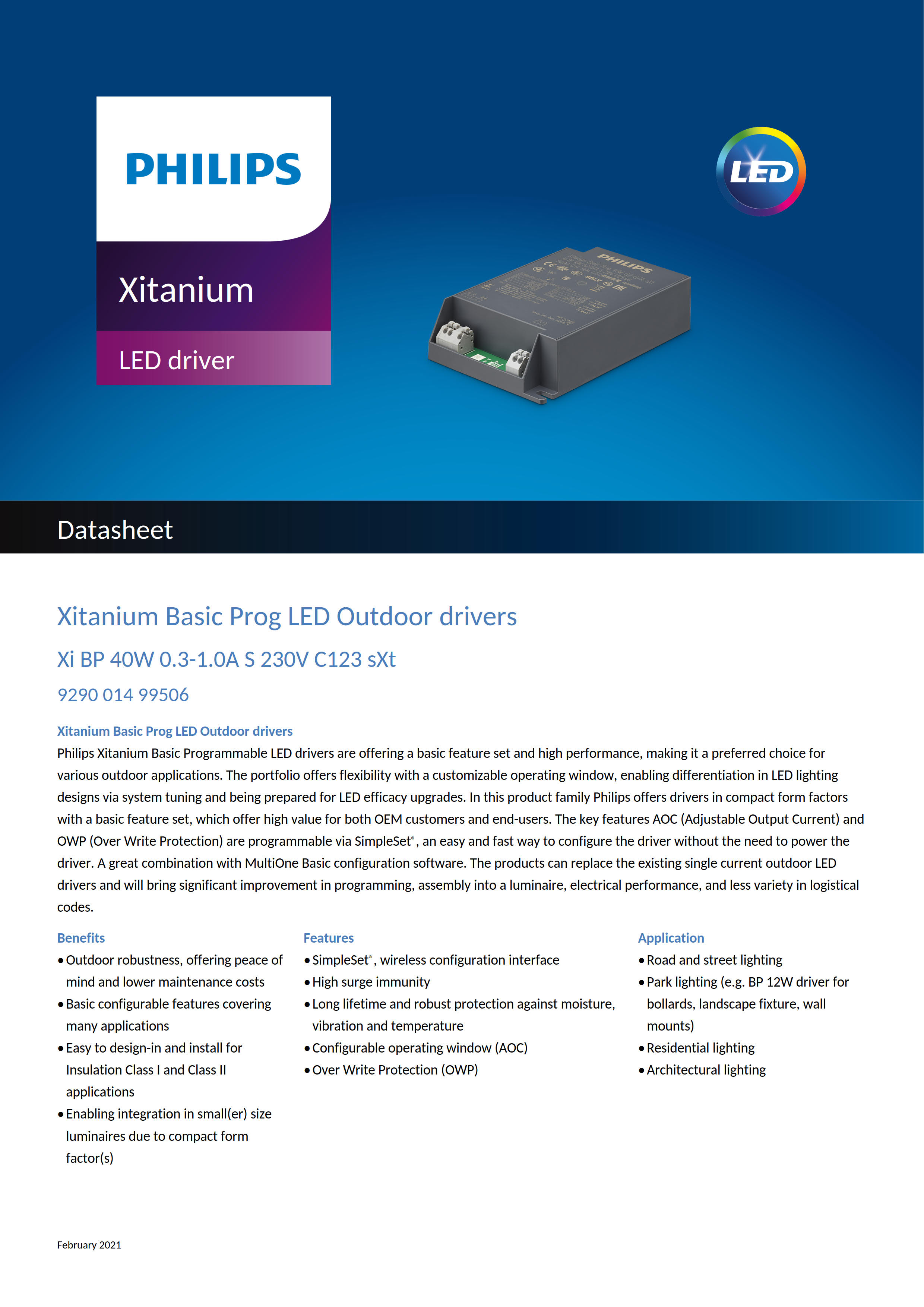

Xitanium Basic Prog LED Outdoor drivers
Xi BP 40W 0.3-1.0A S 230V C123 sXt 9290 014 99506
Xitanium Basic Prog LED Outdoor drivers Philips Xitanium Basic Programmable LED drivers are offering a basic feature set and high performance, making it a preferred choice for various outdoor applications. The portfolio offers flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips offers drivers in compact form factors with a basic feature set, which offer high value for both OEM customers and end-users. The key features AOC (Adjustable Output Current) and OWP (Over Write Protection) are programmable via SimpleSet®, an easy and fast way to configure the driver without the need to power the driver. A great combination with MultiOne Basic configuration software. The products can replace the existing single current outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire, electrical performance, and less variety in logistical codes.
Benefits
•Outdoor robustness, offering peace of mind and lower maintenance costs
•Basic configurable features covering many applications
• Easy to design-in and install for Insulation Class I and Class II applications
• Enabling integration in small(er) size luminaires due to compact form factor(s)
Features
• SimpleSet®, wireless configuration interface
• High surge immunity
• Long lifetime and robust protection against moisture, vibration and temperature
•Configurable operating window (AOC)
•Over Write Protection (OWP)
Application
•Road and street lighting
• Park lighting (e.g. BP 12W driver for bollards, landscape fixture, wall mounts)
•Residential lighting
•Architectural lighting
