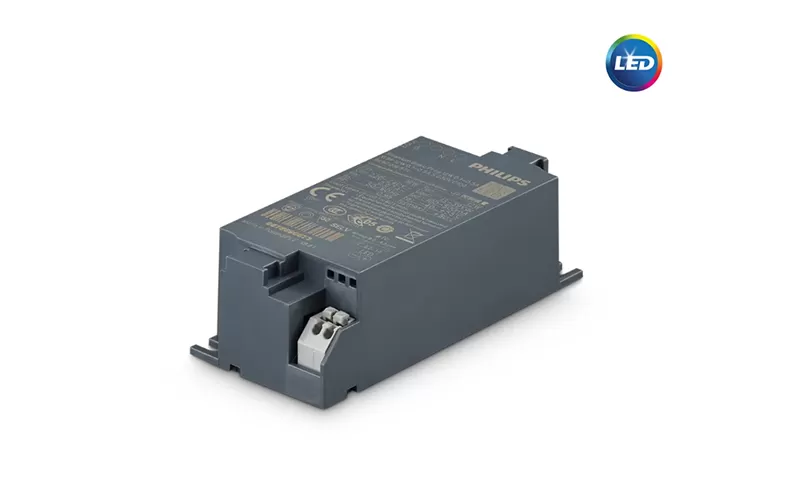

PHILIPS Xitanium Outdoor drivers Xi BP 12W 0.1-0.5A S 230V C100 929001657106
12NC:929001657106
Operating and ElectricalOutput Voltage (Max) 39 V
Output Voltage (Min) 13 V
Output Current (Min) 100 mA
Output Current (Max) 500 mA

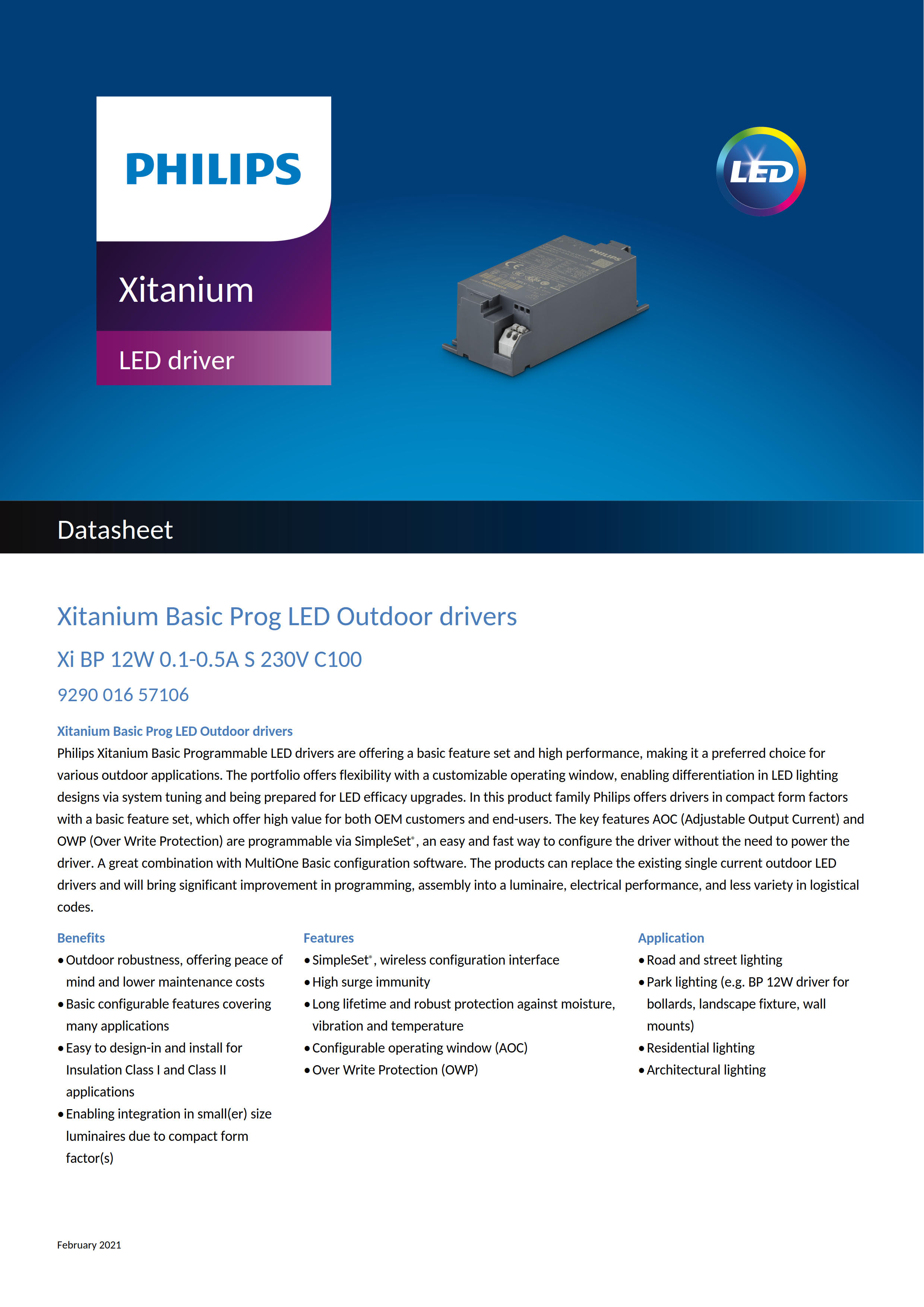

Xitanium Basic Prog LED Outdoor drivers
Xi BP 12W 0.1-0.5A S 230V C100 9290 016 57106
Xitanium Basic Prog LED Outdoor drivers Philips Xitanium Basic Programmable LED drivers are offering a basic feature set and high performance, making it a preferred choice for various outdoor applications. The portfolio offers flexibility with a customizable operating window, enabling differentiation in LED lighting designs via system tuning and being prepared for LED efficacy upgrades. In this product family Philips offers drivers in compact form factors with a basic feature set, which offer high value for both OEM customers and end-users. The key features AOC (Adjustable Output Current) and OWP (Over Write Protection) are programmable via SimpleSet®, an easy and fast way to configure the driver without the need to power the driver. A great combination with MultiOne Basic configuration software. The products can replace the existing single current outdoor LED drivers and will bring significant improvement in programming, assembly into a luminaire, electrical performance, and less variety in logistical codes.
Benefits
•Outdoor robustness, offering peace of
mind and lower maintenance costs
•Basic configurable features covering
many applications
• Easy to design-in and install for
Insulation Class I and Class II
applications
• Enabling integration in small(er) size
luminaires due to compact form
factor(s)
Features
• SimpleSet®, wireless configuration interface
• High surge immunity
• Long lifetime and robust protection against moisture,
vibration and temperature
•Configurable operating window (AOC)
•Over Write Protection (OWP)
Application
•Road and street lighting
• Park lighting (e.g. BP 12W driver for
bollards, landscape fixture, wall
mounts)
•Residential lighting
•Architectural lighting
