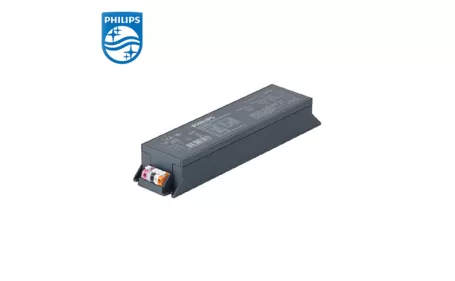

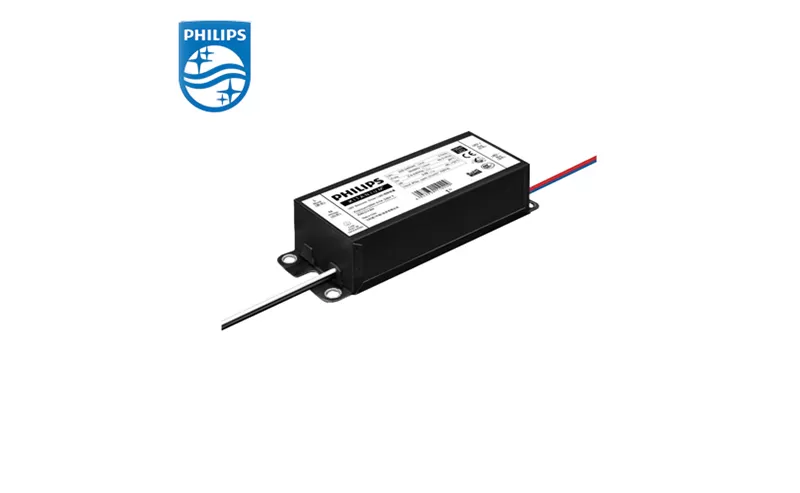

PHILIPS Xitanium Dim 150W 1.05A 1-10V 230V Y 929001401780

Product date

Model name:PHILIPS Xitanium Dim 150W 1.05A 1-10V 230V Y 929001401780

12NC:929001401780

Output voltage: 62 to 142 Vdc

Output current: 1050 - 105 mA

Output power: 150 W

Pieces per box: 12

Driver lifetime: 100,000 hours

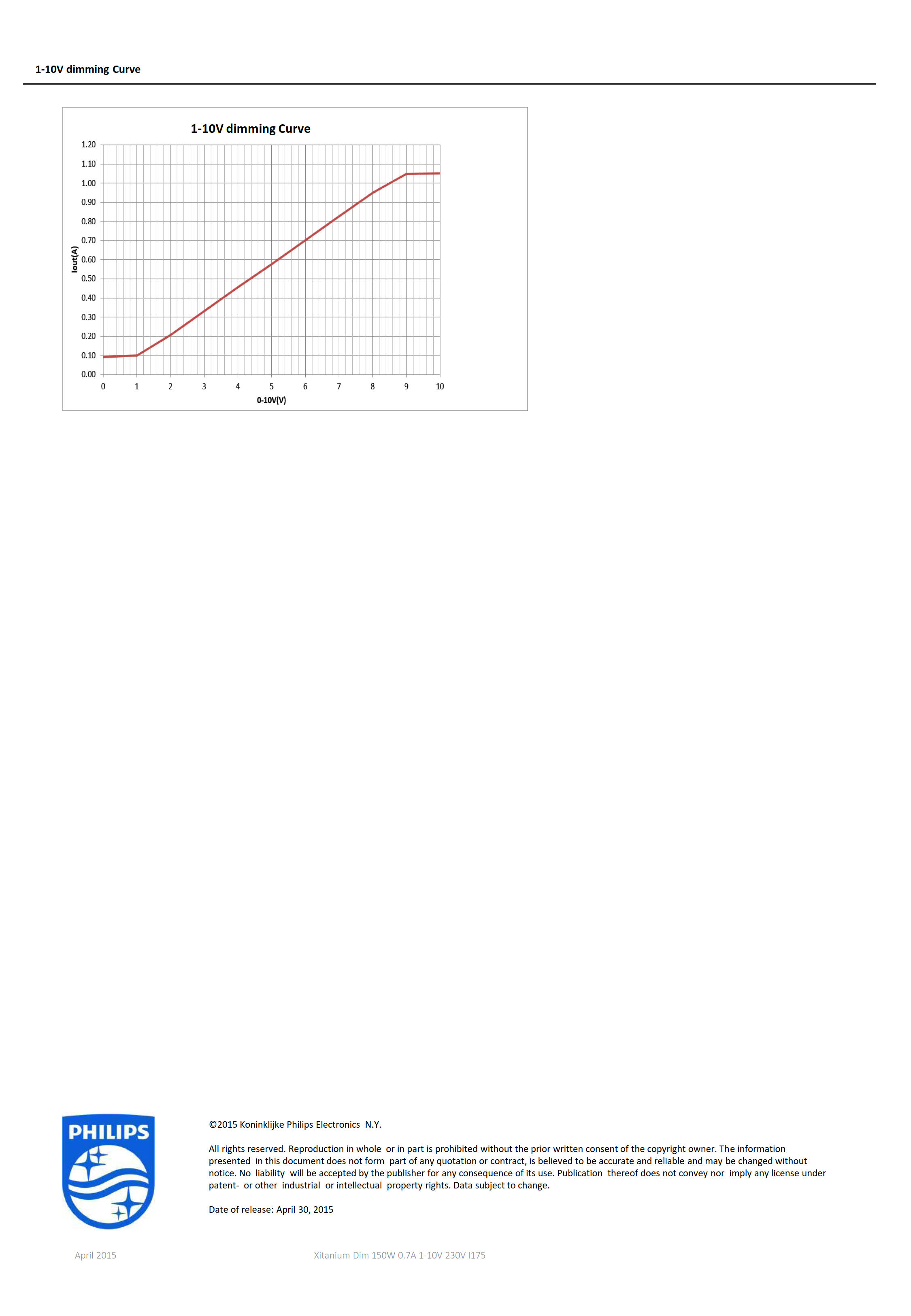

Control method: 1 - 10V

PHILIPS Xitanium Dim 150W 1.05A 1-10V 230V Y 929001401780

Benefits

• Robust design; capable of withstanding harsh outdoor conditions • Long lifetime and high survival rate

• Superior thermal management suitable for outdoor application

• Backed by 5 year warranty from a company you can trust

Features

• Proven robustness and reliable electronic driver design

• Achieving highest efficiencies based on advance technology

• Long lifetime; 50k hrs@Tc max

• Extreme compact size, fitting with varied and critical luminaires

• Suitable for Class I isolated luminaires

Application

• Road and street lighting

• Area and flood lighting

• Tunnel lighting

• Highbay lighting

12NC List:

929001402280 Xitanium Dim 100W 0.7A 1-10V 230V Y

929001402380 Xitanium Dim 100W 1.05A 1-10V 230V Y

929001401680 Xitanium Dim 150W 0.7A 1-10V 230V Y

929001401780 Xitanium Dim 150W 1.05A 1-10V 230V Y

929001401880 Xitanium Dim 100W 0.7A 1-10V 230V I175

929001402080 Xitanium Dim 100W 1.05A 1-10V 230V I175

929001401280 Xitanium Dim 150W 0.7A 1-10V 230V I175

929001401480 Xitanium Dim 150W 1.05A 1-10V 230V I175
