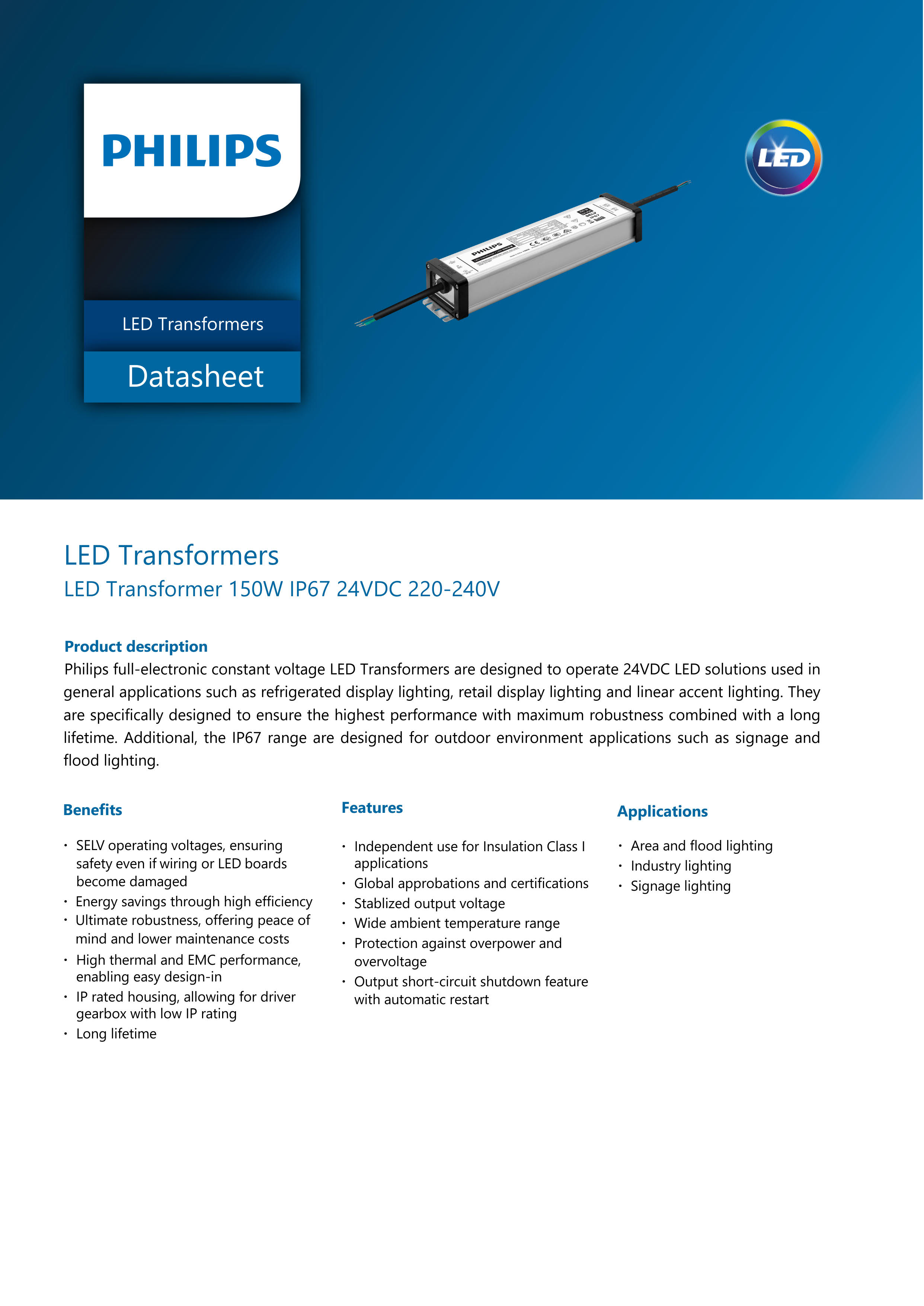

PRODUCT DATA
Product description

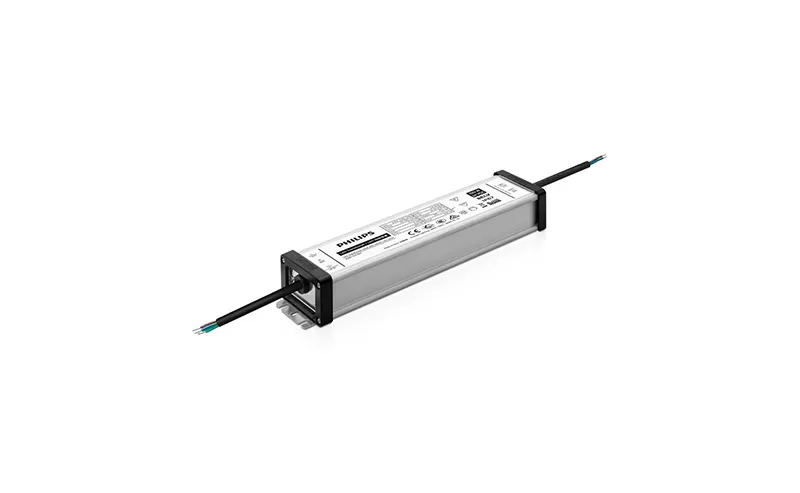

Philips full-electronic constant voltage LED Transformers are designed to operate 24VDC LED solutions used in
general applications such as refrigerated display lighting, retail display lighting and linear accent lighting. They
are specifically designed to ensure the highest performance with maximum robustness combined with a long
lifetime. Additional, the IP67 range are designed for outdoor environment applications such as signage and
flood lighting.

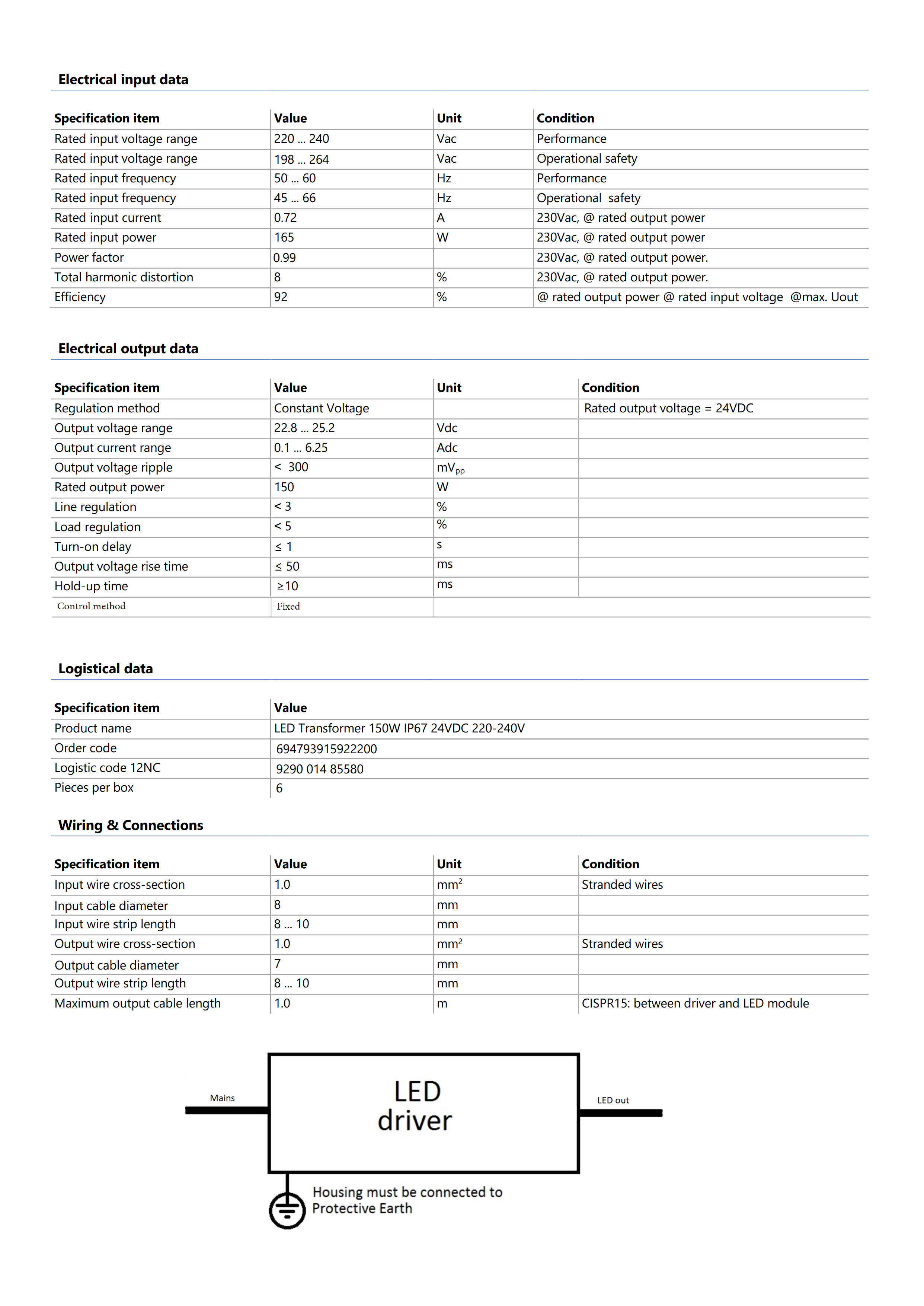

Technical Specifications
| Item | Parameter |
| Input Voltage Range | 220-240 V AC |
| Input Frequency | 50 / 60 Hz |
| Output Voltage | 24 V DC (constant voltage) |
| Rated Power | 150 W |
| Protection / Safety | Over-voltage, over-power, short-circuit auto restart |
| Ingress Protection | IP67 |
Product Benefits
SELV (Safety Extra Low Voltage) Operation
Output is limited to safe low voltage (24 V DC), ensuring added safety even under wiring faults or damaged LED boards.

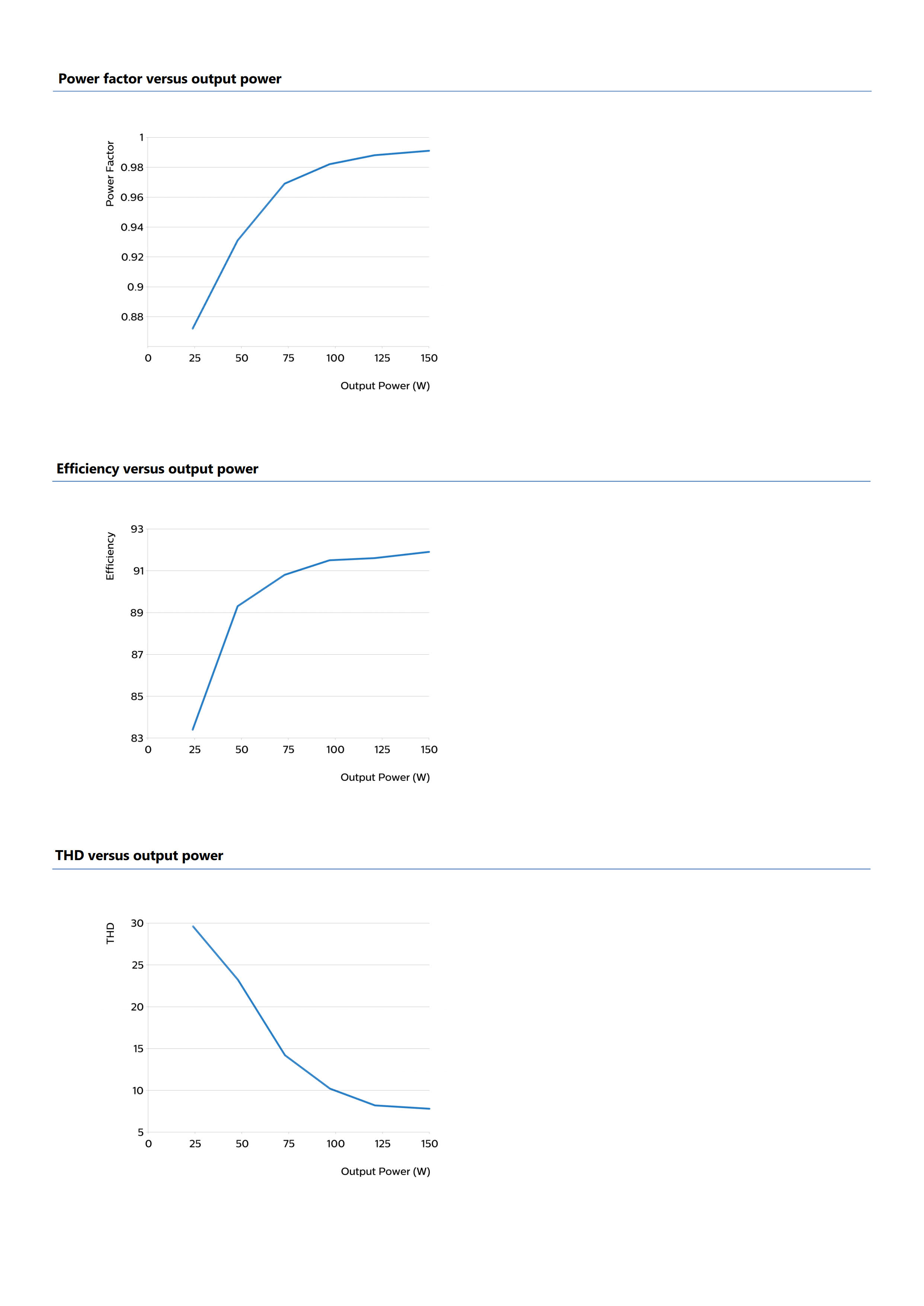

High Efficiency & Energy Saving
Minimizes power loss to maximize system efficiency and reduce operating costs.
Ultimate Robustness, Low Maintenance
With IP67-rated enclosure, it resists dust, moisture, and extreme weather, offering long-term reliability.
Thermal and EMC Performance
Designed to handle a wide ambient temperature range and meet electromagnetic compatibility (EMC) standards for easier design-in.

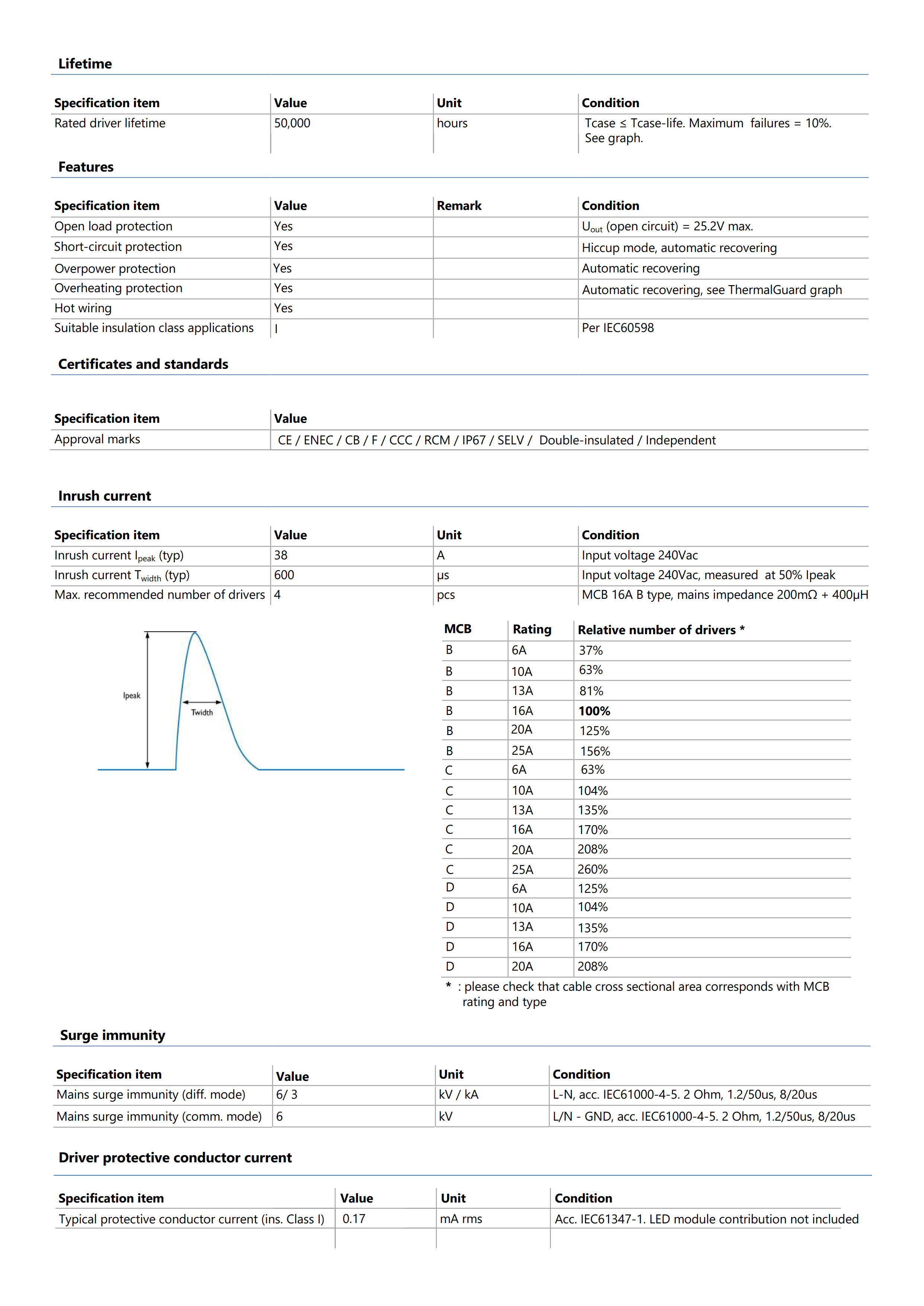

Protection Features
Over-power protection, over-voltage protection, automatic shutdown and restart in case of output short-circuit, ensuring safety and longevity.
Wide Ambient Temperature & Stable Output
Supports stable voltage output across fluctuating outdoor conditions.
Product Features
• Independent for Insulation Class I applications
• Global approbations and certifications
• Stablilized output voltage • Wide ambient temperature range
• Protection against overpower and overvoltage
• Output short-circuit shutdown feature with automatic restart
Application Scenarios
• Industry lighting
• Architectural Accent & Outdoor Features
• Signage & Channel Letters — reliable power for outdoor signage displays
• Refrigerated Display (Indoor / Semi-outdoor) — safe low-voltage lighting for display cases
