PRODUCT DATA
Product date

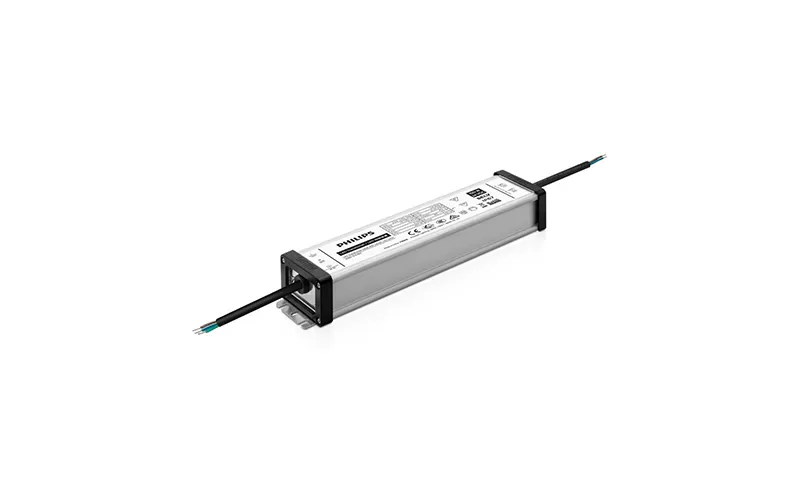

Model name:PHILIPS Xitanium LED Transformer 300W IP67 24VDC 220-240V 929001485680
12NC:929001485680
IP:IP65
LED Transformers LED Transformer
PHILIPS Xitanium LED Transformer 300W IP67 24VDC 220-240V 929001485680

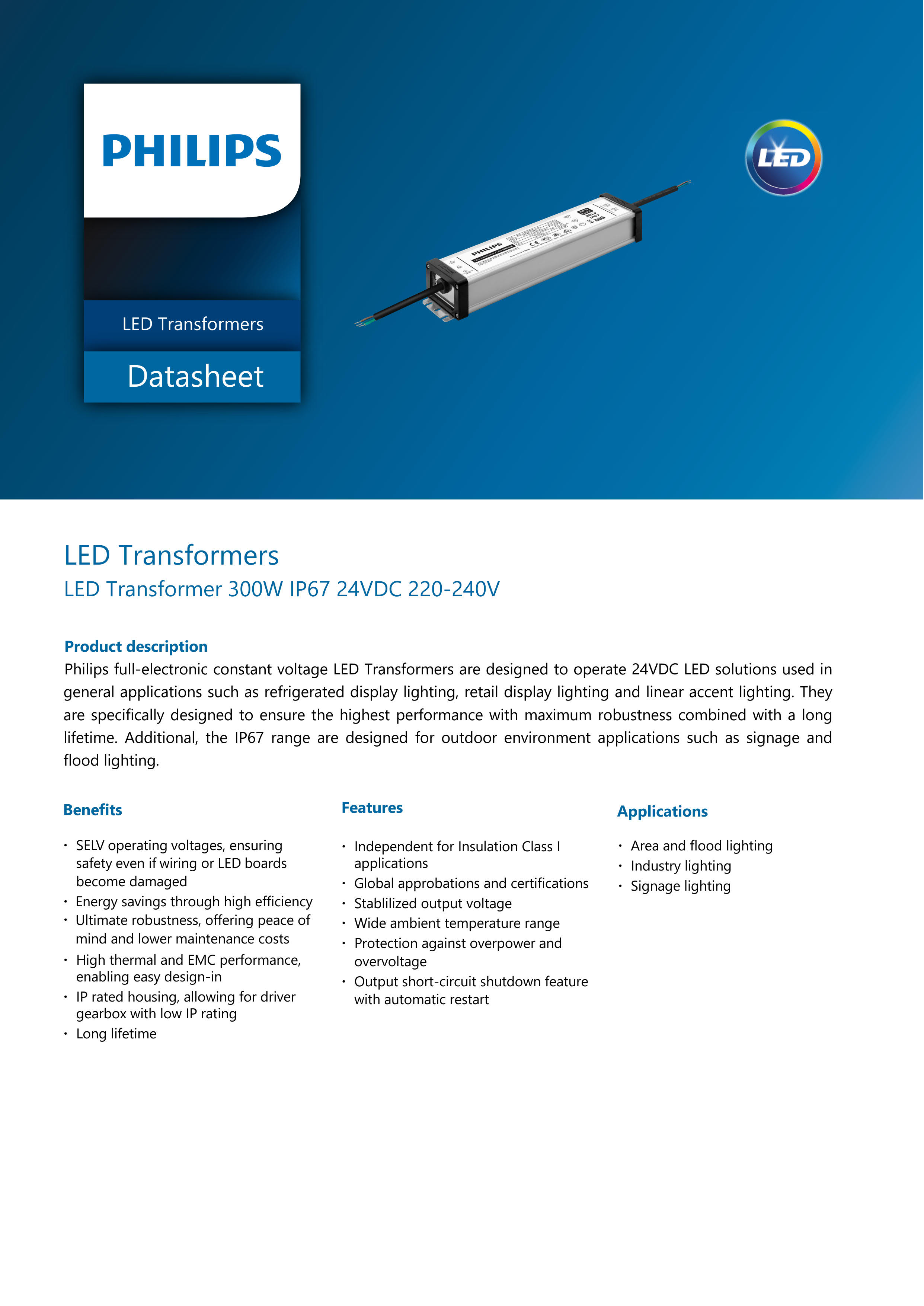

Product description Philips full-electronic constant voltage LED Transformers are designed to operate 24VDC LED solutions used in general applications such as refrigerated display lighting, retail display lighting and linear accent lighting. They are specifically designed to ensure the highest performance with maximum robustness combined with a long lifetime. Additional, the IP67 range are designed for outdoor environment applications such as signage and flood lighting.
Benefits
• SELV operating voltages, ensuring safety even if wiring or LED boards become damaged •
• Energy savings through high efficiency Ultimate robustness, offering peace of mind and lower maintenance costs
• High thermal and EMC performance, enabling easy design-in
• IP rated housing, allowing for driver gearbox with low IP rating
• Long lifetime
Features
• Independent for Insulation Class I applications
• Global approbations and certifications
• Stablilized output voltage • Wide ambient temperature range
• Protection against overpower and overvoltage
• Output short-circuit shutdown feature with automatic restart
Applications
• Area and flood lighting
• Industry lighting
• Signage lighting
PHILIPS Product 12NC List
12NC List:
PHILIPS Xitanium LED Transformer 150W IP67 24VDC 220-240V 929001485580
PHILIPS Xitanium LED Transformer 300W IP67 24VDC 220-240V 929001485680
