		Product date:
PHILIPS SPD Outdoor SPD Surge Protector Class-I 929001607006
12NC:929001607006
PRODUCT DATA
Product date:
PHILIPS SPD Outdoor SPD Surge Protector Class-I 929001607006
12NC:929001607006

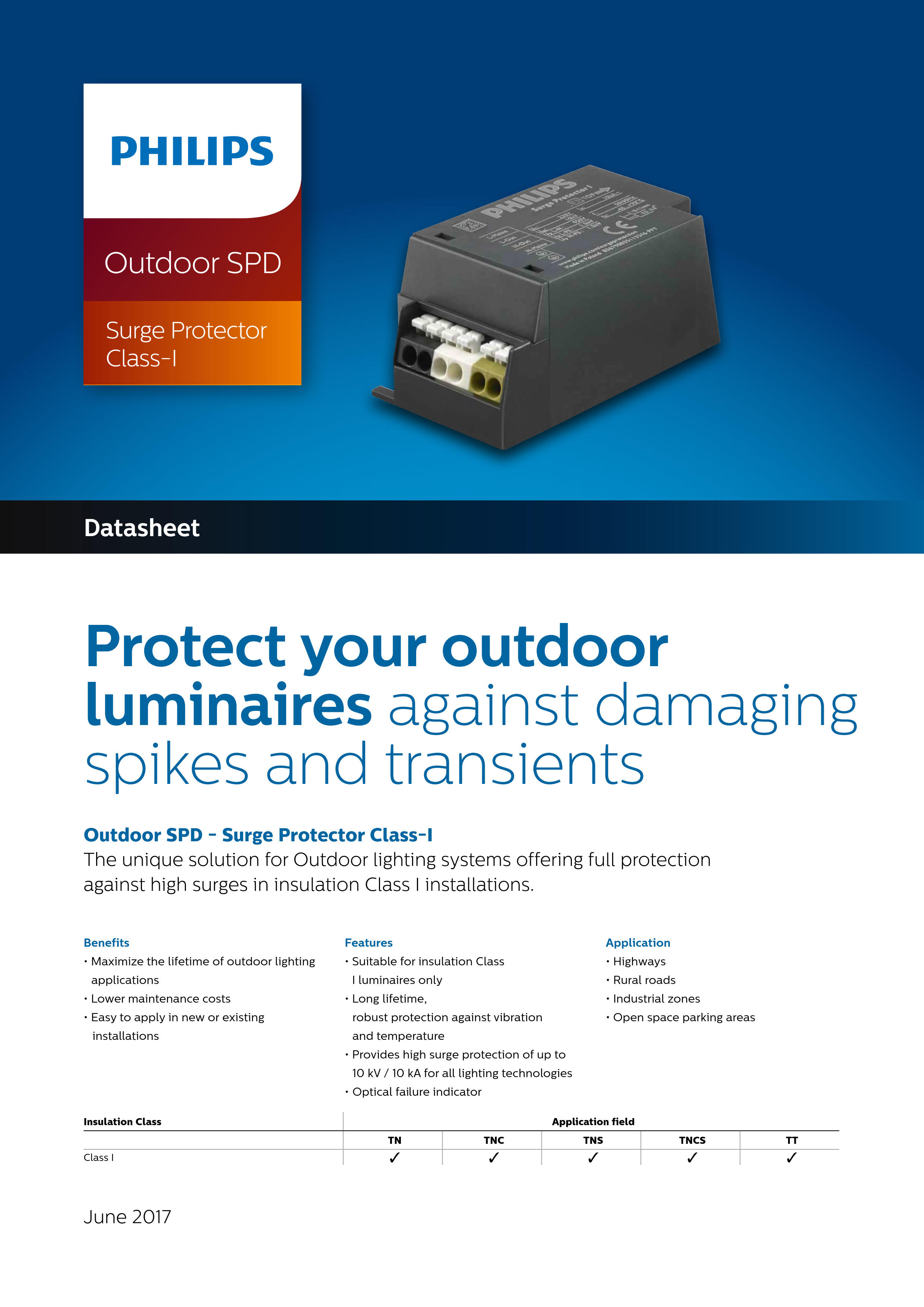

Protect your outdoor luminaires against damaging spikes and transients
Outdoor SPD - Surge Protector Class-I
The unique solution for Outdoor lighting systems offering full protection against high surges in insulation Class I installations.
Benefits
• Maximize the lifetime of outdoor lighting
applications
• Lower maintenance costs
• Easy to apply in new or existing
installations
Features
• Suitable for insulation Class
I luminaires only
• Long lifetime,
robust protection against vibration
and temperature
• Provides high surge protection of up to
10 kV / 10 kA for all lighting technologies • Optical failure indicator
Application
• Highways
• Rural roads
• Industrial zones
• Open space parking areas
