Product date

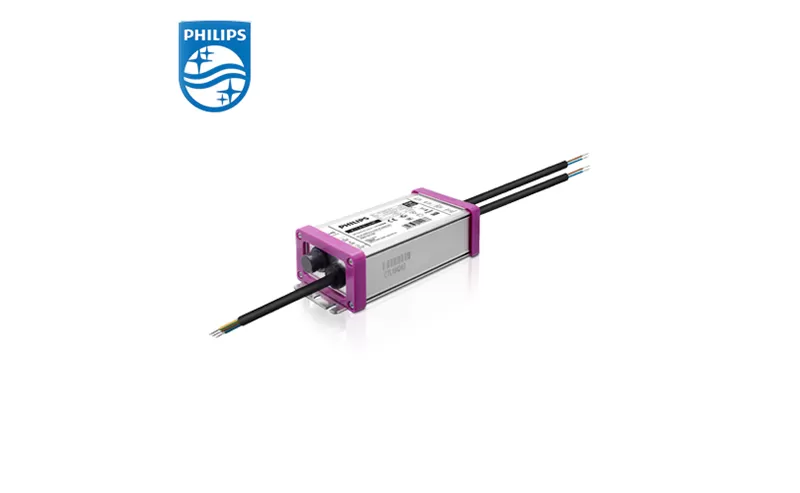

Model name:PHILIPS Xi LP 220W 0.3-1.05A S1 230V I230 929001424480
12NC:929001424480
Output voltage: 104 to 314 Vdc
Output current: 0.07 to 1.5 A
Output power: 7.28 to 220 W
Driver lifetime: 50,000 hours
Control method: 1-10V
PHILIPS Xi LP 220W 0.3-1.05A S1 230V I230 929001424480
Benefits
• Ultimate robustness, offering peace of mind and lower maintenance costs
• Energy savings through high efficiency and via a choice of dimming options
• Balanced configurable feature set covering the most common applications
• Consistent waterproof performance through the lifecycle
• Easy to design-in, configure and install for Class I applications
Features
• SimpleSet®, wireless configuration interface
• High surge protection
• Long lifetime and robust protection against moisture, vibration and temperature
• Configurable operating windows (AOC)
• External control interface (1-10V) available
• Digital Configuration Interface (DCI) via MultiOne Interface
• Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer
• Programmable Constant Light Output (CLO)
• Integrated Driver Temperature protection
Application
• Residential areas
• Road and street lighting
• Area and flood lighting
• Tunnel lighting
• High-bay lighting
