Signify Dynalite PHILIPS Dynalite DBC1210 Signal Dimmer Controller 913703036009

Model Name: Signify Dynalite PHILIPS Dynalite DBC1210 Signal Dimmer Controller 913703036009

12NC:913703036009

Wall mount multi-protocol control solution

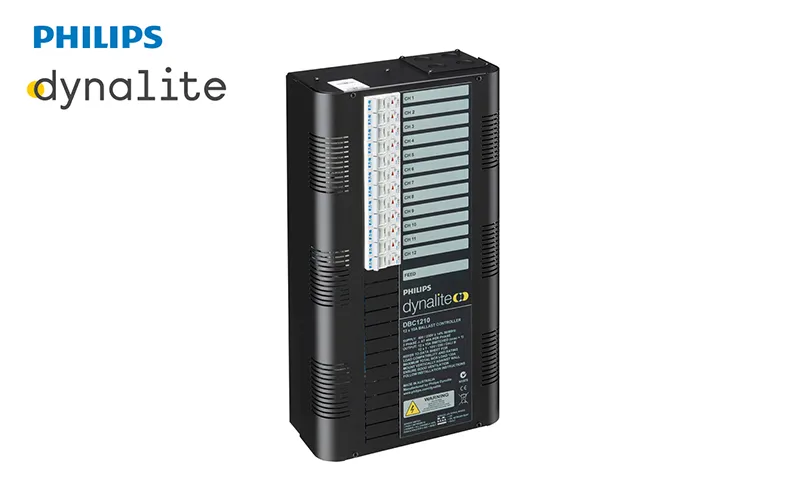

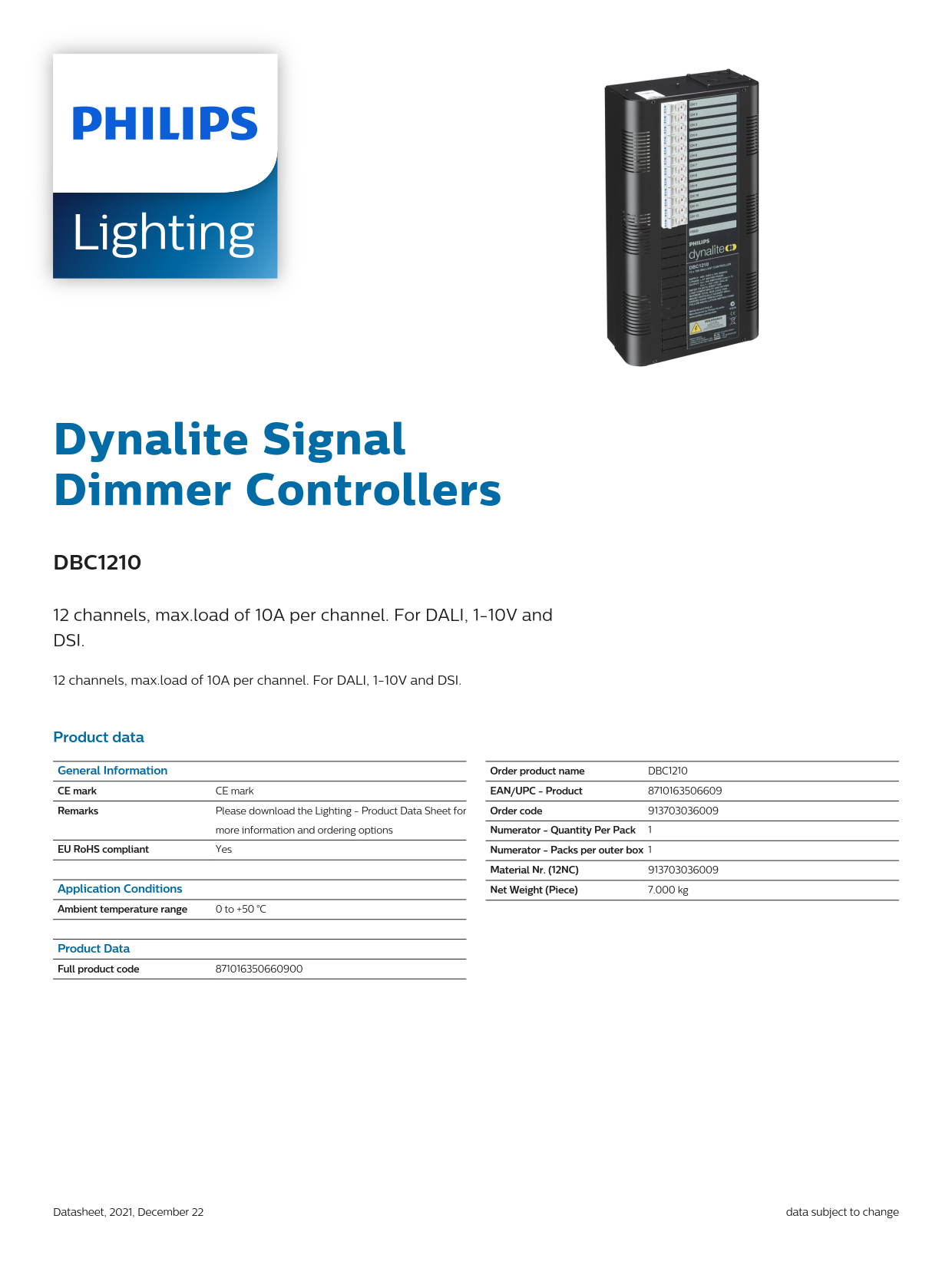

The Philips Dynalite DBC1210 is a 12-channel signal dimmer controller, featuring a maximum of load of 10 A per channel. It is designed for use with DALI, 1-10 V and DSI dimmable drivers and transformers.

Multiple protocols supported – Compatible with a range of fittings

and devices including; DSI drivers, DSI electronic low voltage transformers,

DALI drivers (broadcast mode only),

DALI electronic low voltage transformers (broadcast mode only), 1-10 V drivers and other switched loads.

Service override switch – Incorporated as standard, forces all channels to 100%.

Inbuilt diagnostic functionality – Features Device Online/Offline status indication.

Options available – Including an additional RS-485 DyNet/DMX512 port, circuit breaker trip reporting or earth leakage and overload protection on each channel.

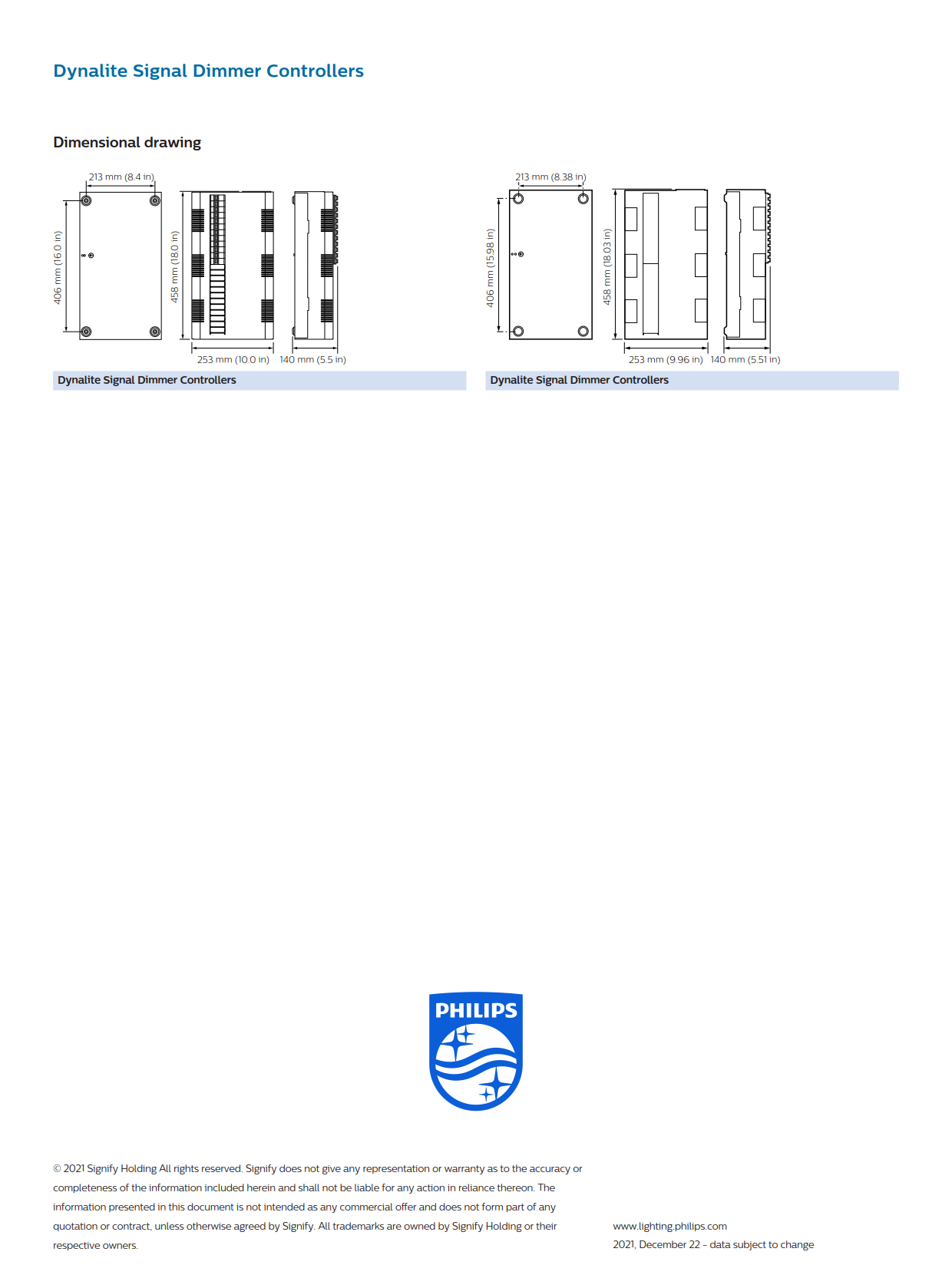

Dimensions:

Standard: 458 x 253 x 140 mm (18.31 x 9.96 x 5.51 in)

RCBO: 585 x 252 x 126 mm (23.03 x 9.92 x 4.96 in)

12NC:Signify Dynalite PHILIPS Dynalite DBC1210 Signal Dimmer Controller 913703036009
