PRODUCT DATA

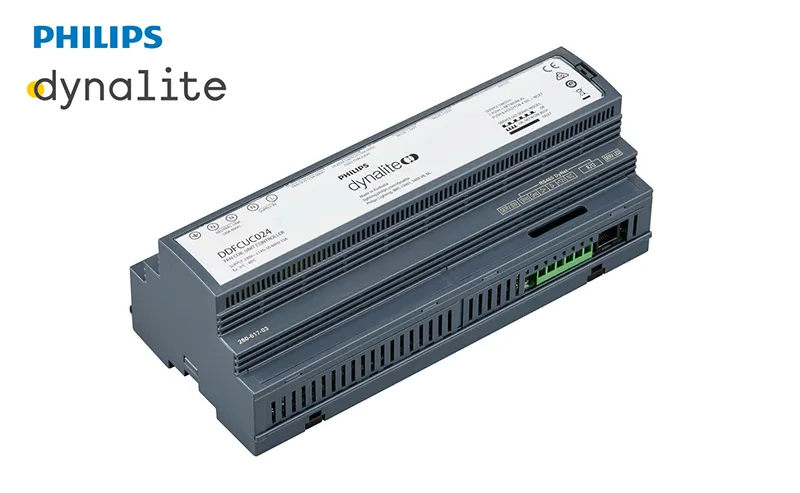

Model Name:Signify Dynalite PHILIPS Dynalite DDFCUC024 Fan Coil Unit Controller 913703081009
12NC: 913703081009

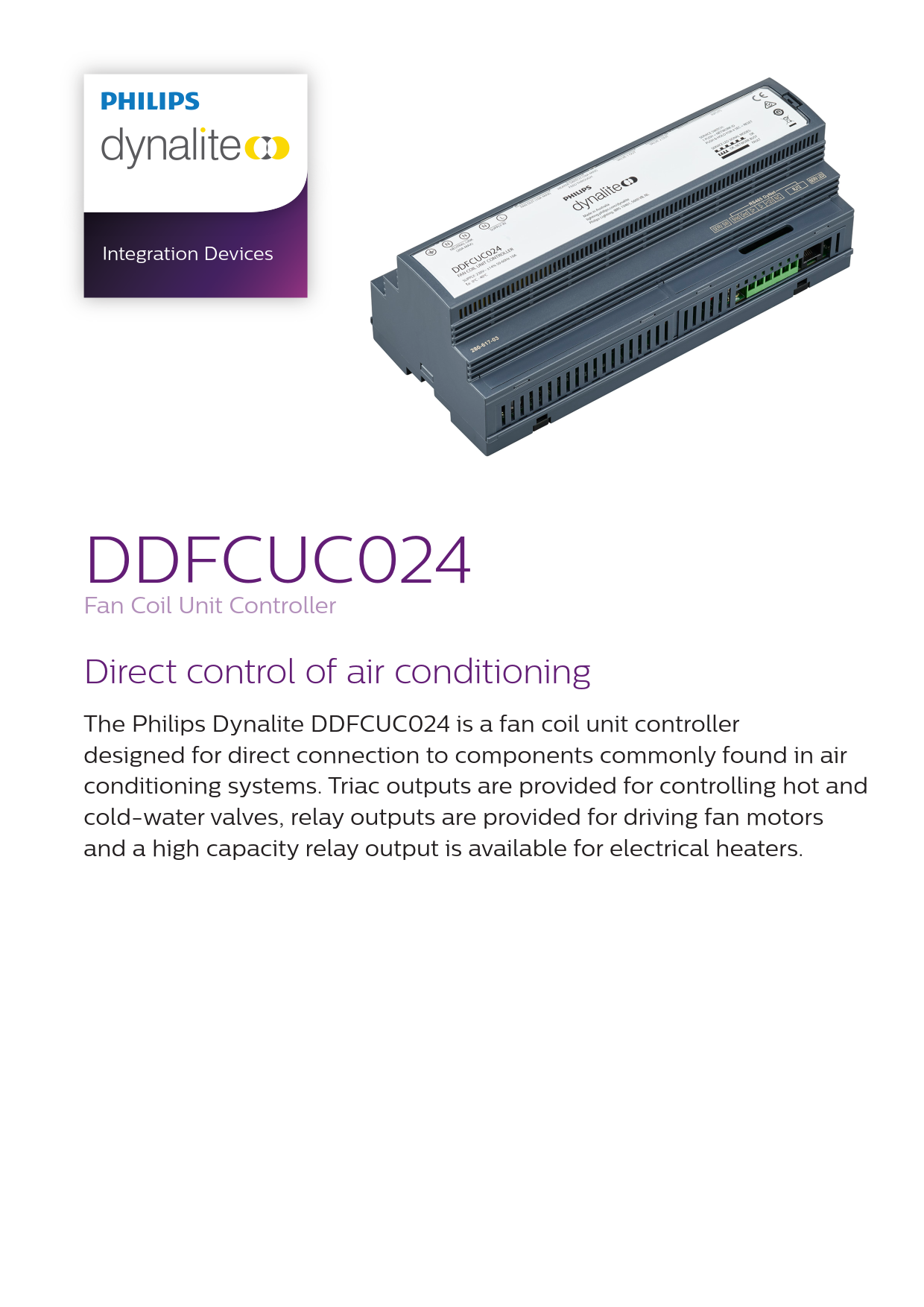

Direct control of air conditioning
The Philips Dynalite DDFCUC024 is a fan coil unit controller designed for direct connection to components commonly found in air conditioning systems. Triac outputs are provided for controlling hot and cold-water valves, relay outputs are
provided for driving fan motors and a high capacity relay output is available for electrical heaters.
0-24 V outputs – Provided for controlling hot and cold-water valves.
Relay outputs – Provided for driving fan motors.
High capacity relay – Provided for use with electrical heaters or power outlet switching.
Inputs for resistive temperature sensors – Allows the device to use data from a local temperature sensor or a networked temperature sensor, such as an Antumbra user interface.
Programmable auxiliary inputs – Provided for use with peripheral devices including smoke detectors, motion detectors, window open/close sensors, airflow detectors, drip trays, dirty air filters and hot water on cold valve.
Networkable – Can be networked with other equipment including Philips Dynalite user interfaces, via an on-board RS-485 DyNet port.

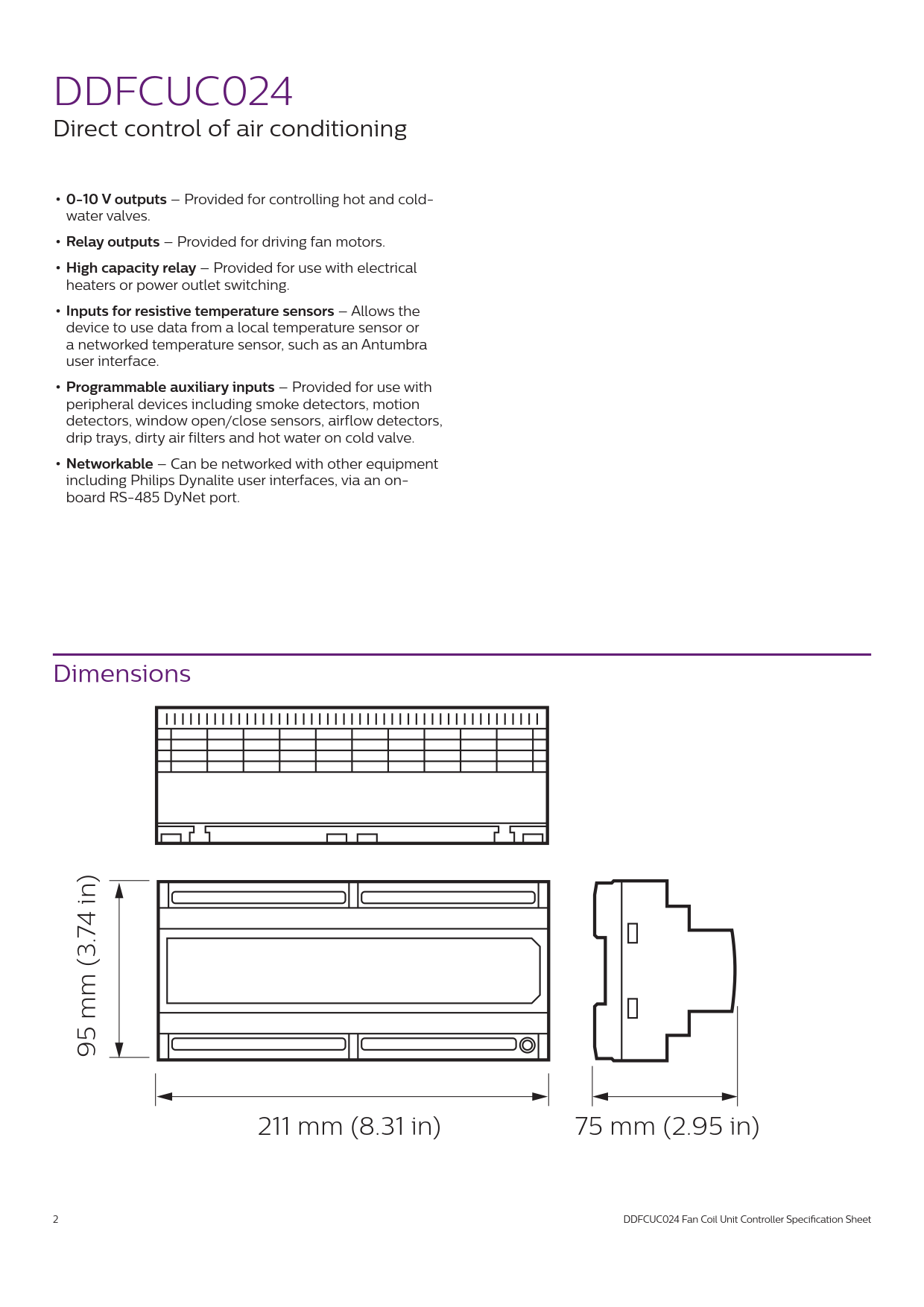

Dimensions:94 x 211 x 75 mm (3.70 x 8.31 x 2.95 in)
