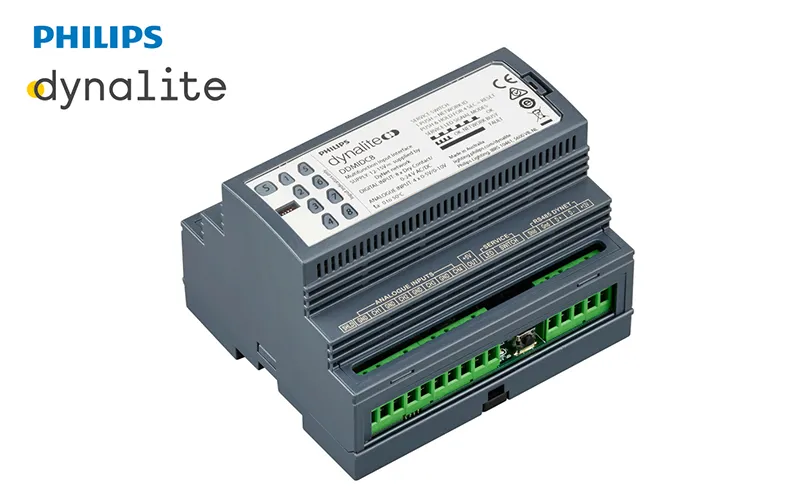

Signify Dynalite PHILIPS Dynalite DDMIDC8 Low Level Input Integrator 913703081109

Model Name:Signify Dynalite PHILIPS Dynalite DDMIDC8 Low Level Input Integrator 913703081109

12NC:913703081109

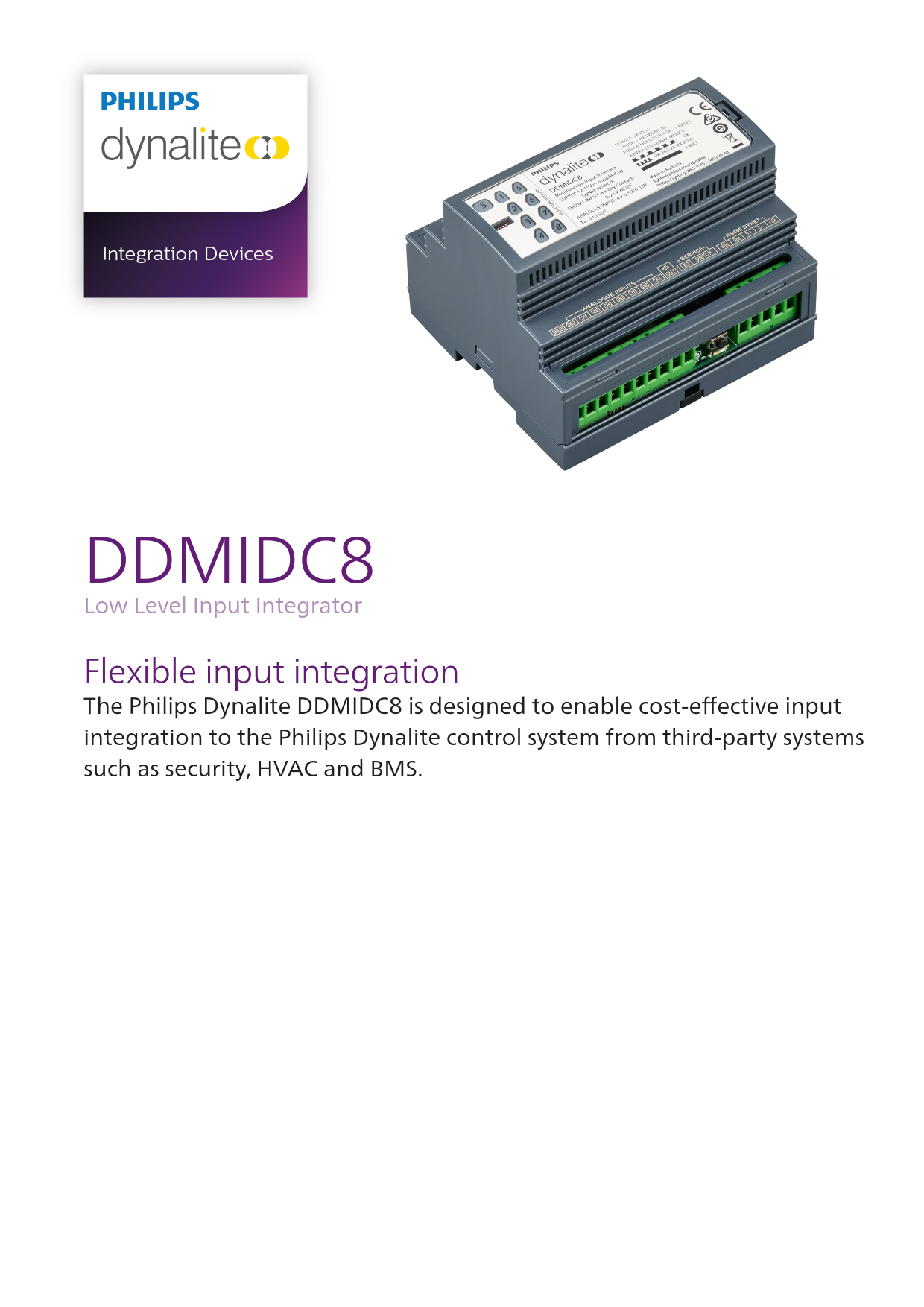

Flexible input integration

The Philips Dynalite DDMIDC8 is designed to enable cost-effective input integration to the Philips Dynalite control system from third-party systems such as security, HVAC and BMS.

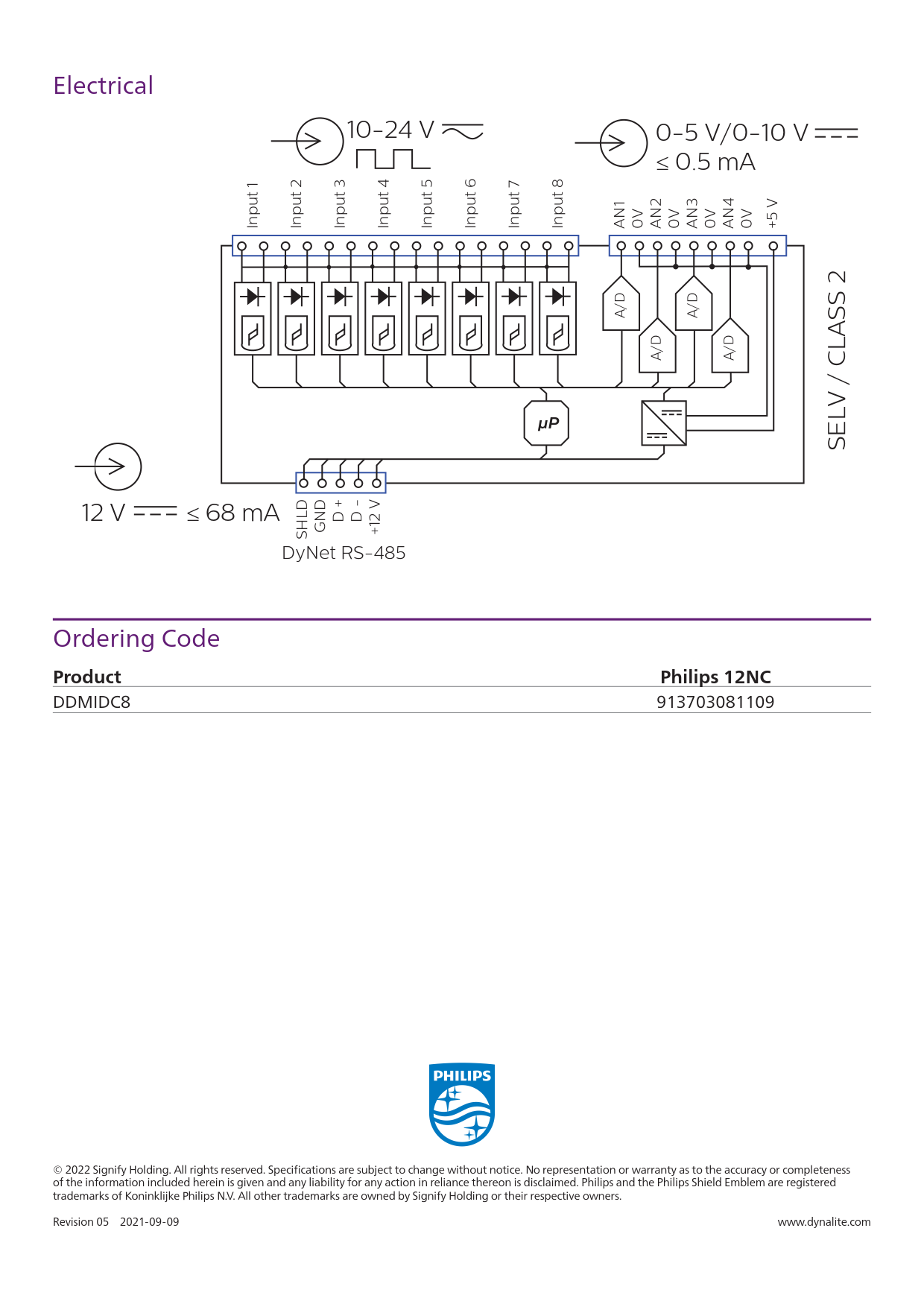

Eight digital inputs – Each can be individually configured as a dry contact or 0-24V AC/DC input.

LED indicator on each input – Provides visual status indication.

Optical isolation – All inputs isolated for high noise immunity.

Four 0-5/0-10 V analogue inputs – Software selectable.

Programmable Logic Controller – Processes comprehensive conditional and sequential logic and arithmetic functions.

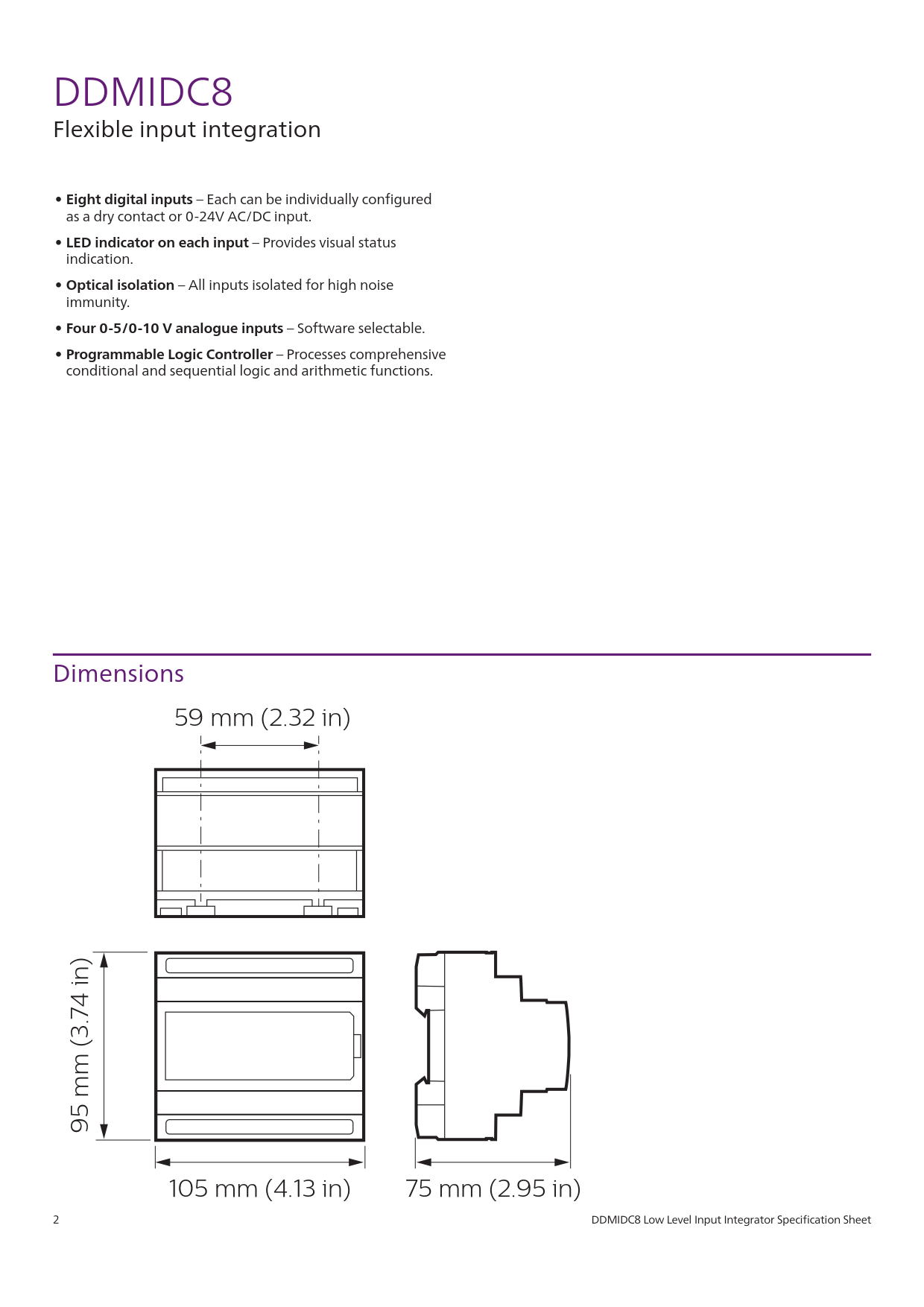

Dimensions:95 x 105 x 75 mm (3.74 x 4.34 x 2.95 in)

12NC:Signify Dynalite PHILIPS Dynalite DDMIDC8 Low Level Input Integrator 913703081109
