PRODUCT DATA

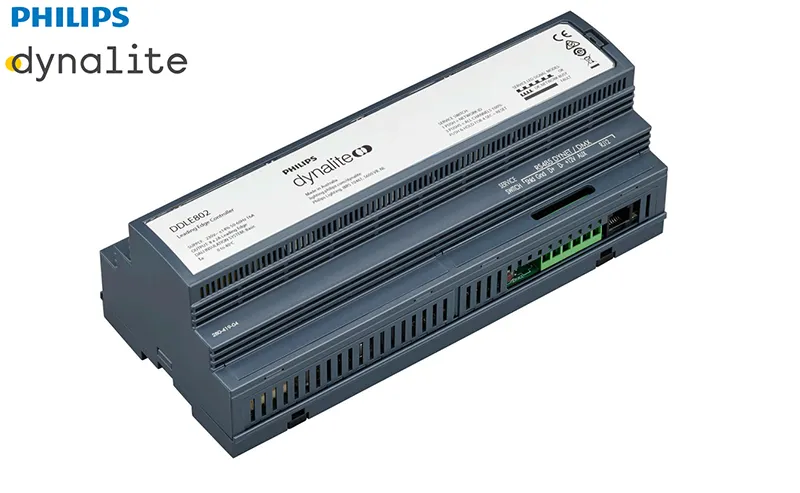

Model Name:Signify Dynalite PHILIPS Dynalite DDLE802 Leading Edge Dimmer Controller 913703000009
12NC/Part Number: 913703000009
The DDLE802 is an eight-channel leading edge dimmer with a maximum load per channel of 2 Amps. It is suitable for use
with incandescent, low voltage, neon and selected fluorescent fixtures. It is also highly recommended for use in residential
and hotel applications. The DDLE802 features Philips Dynalite’s superior voltage regulation and soft start technologies, which
protect low voltage lamps and dramatically increase lamp life.
The front panel of the DDLE802-MO (Manual Override) version includes a rear-lit keypad that provides status indication
and local control of individual channels. It also features an LED illuminated service switch for diagnostics and local override.
Adjacent to the keypad is a network socket for ease of programming. The device is DIN-rail mountable, designed to be
installed in a switchboard, optionally next to circuit breakers feeding the circuits to be controlled.
PHILIPS Product 12NC List
12NC:Signify Dynalite PHILIPS Dynalite DDLE802 Leading Edge Dimmer Controller 913703000009
