PRODUCT DATA

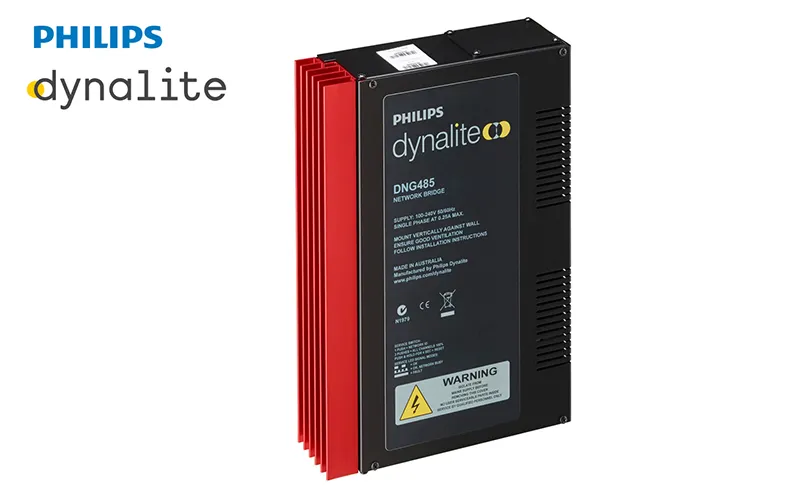

Model Name:Signify Dynalite PHILIPS Dynalite DNG485 RS-485/DMX512 Gateway 913703082209
12NC:913703082209
Wall mount flexible network communications gateway

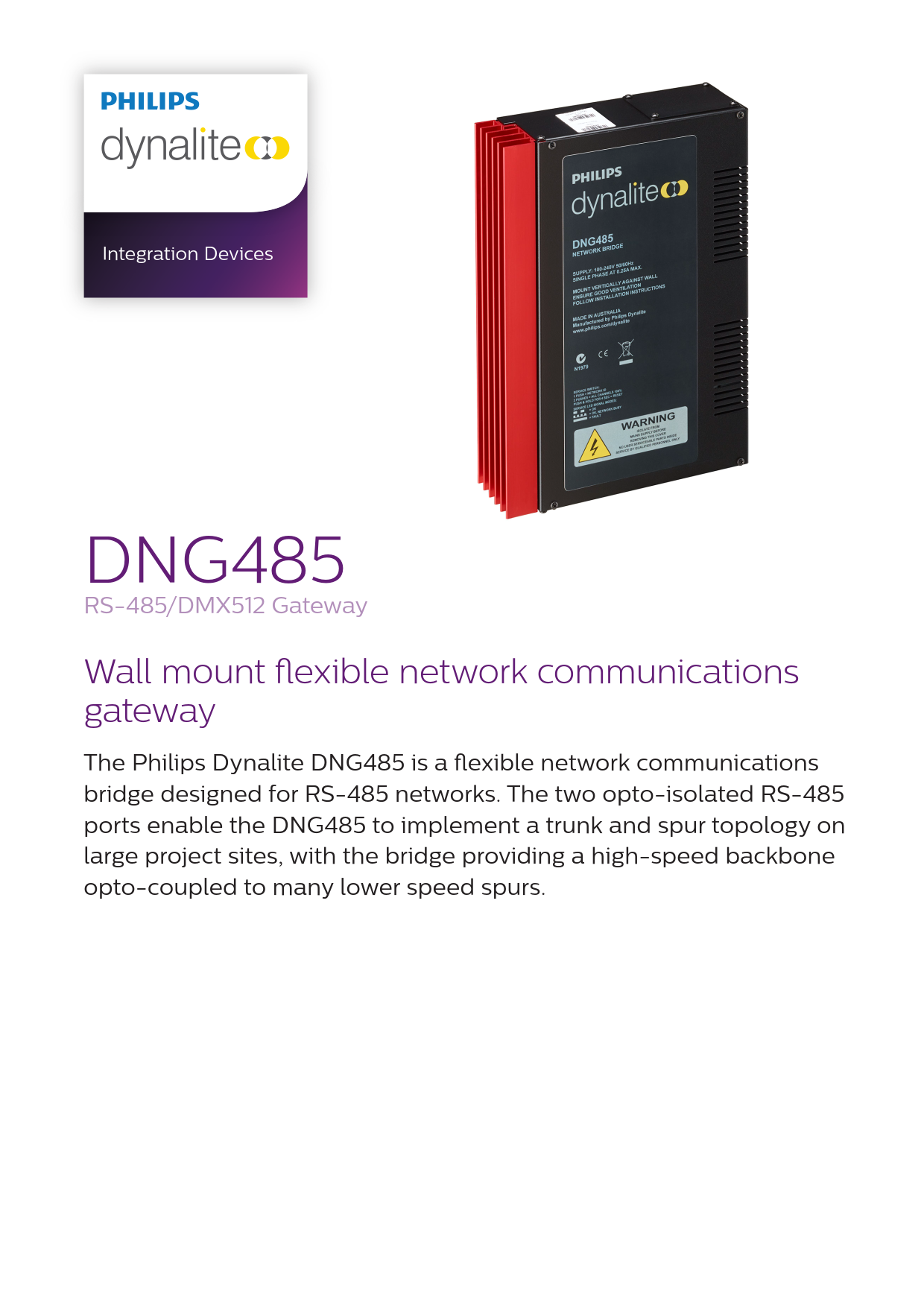

The Philips Dynalite DNG485 is a flexible network communications bridge designed for RS-485 networks. The two opto-isolated RS-485 ports enable the DNG485
to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone opto-coupled to many lower speed spurs.
Increased network security – Definition of packet filtering rules for each direction provides augmented security and robustness.
Route DyNet to third-party systems– Such as audio-visual, Somfy blind controllers, Modbus meters and building automation systems, providing an integrated approach to total building control and energy management.
DMX512 mode – Transmit or receive up to 64 channels of DMX512, with automatic DyNet conversion and task triggering.
Electrical fault isolation – Faults can be isolated to individual network spurs.
Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation
Dimensions:320 x 225 x 79 mm (12.60 x 8.86 x 3.11 in)
