PRODUCT DATA
Model Name:Signify Dynalite PHILIPS Dynalite DDNG485 RS-485/DMX512 Gateway 913703081209
12NC:913703081209
Flexible network communications gateway

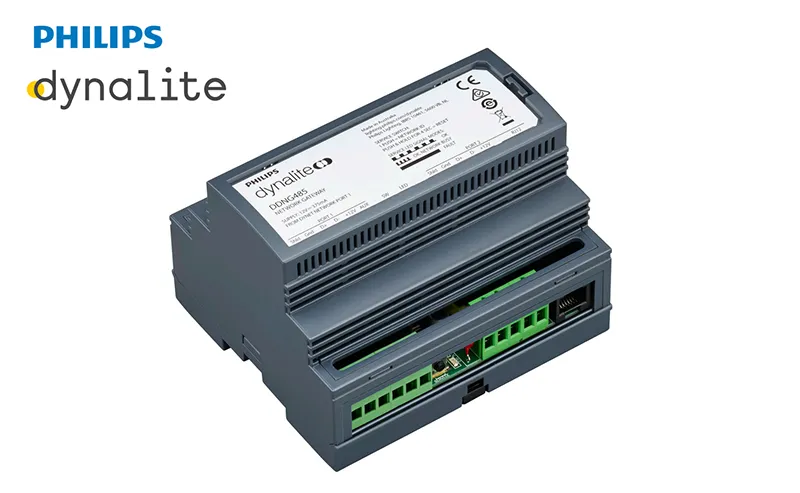

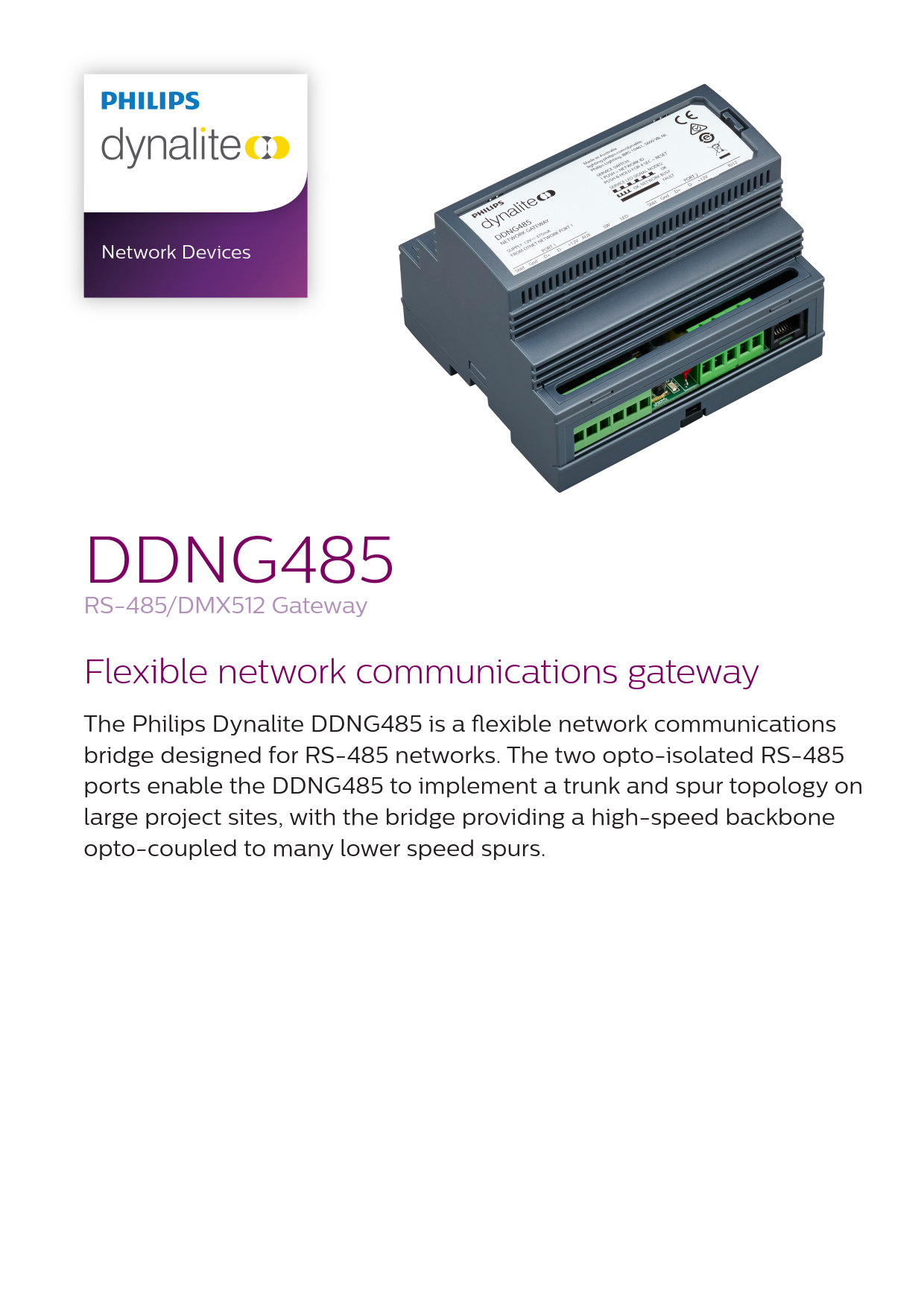

The Philips Dynalite DDNG485 is a flexible network communications bridge

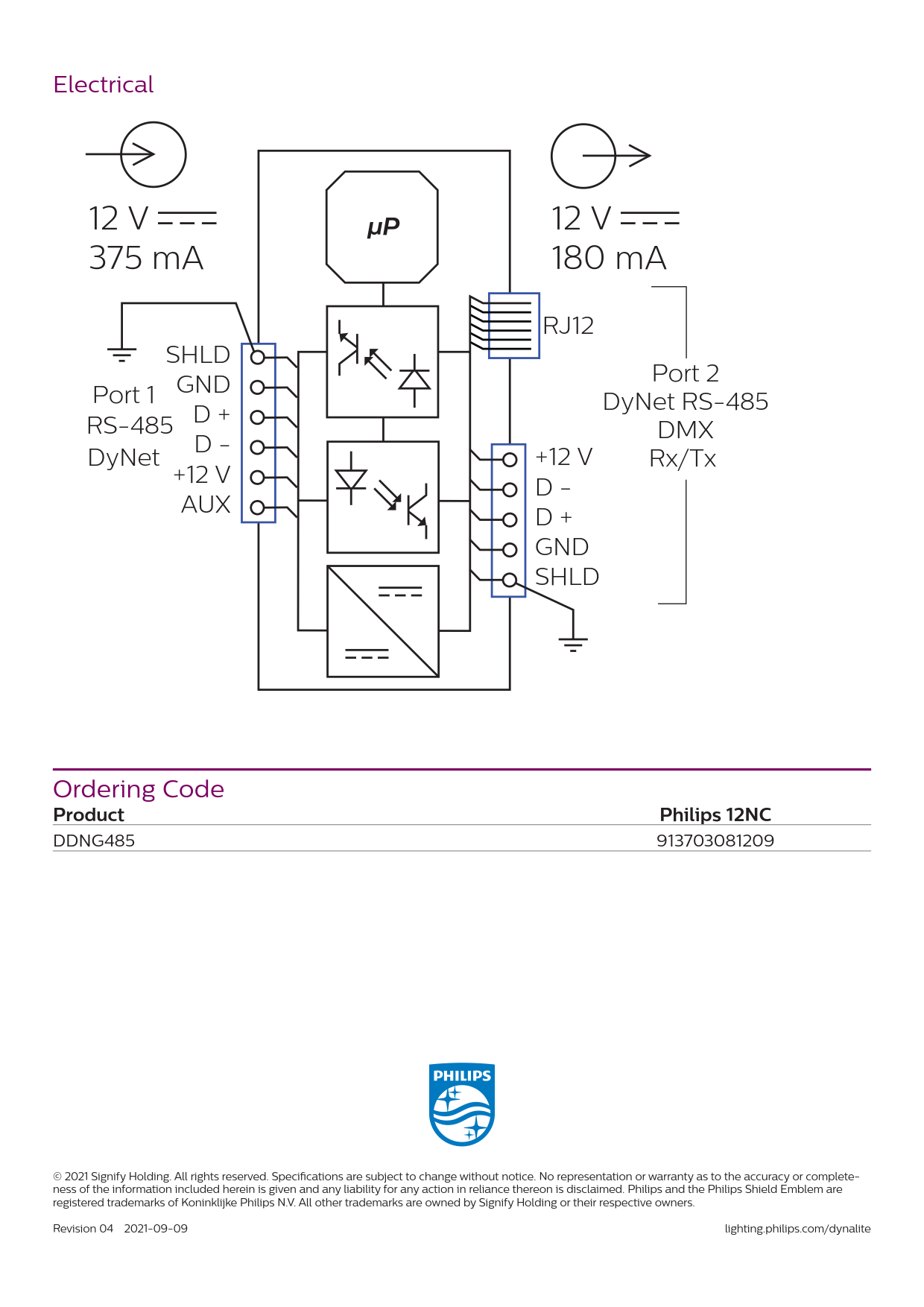

designed for RS-485 networks. The two opto-isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites,
with the bridge providing a high-speed backbone opto-coupled to many lower speed spurs.
Route DyNet to third-party systems
– Such as audio-visual, Somfy blind controllers, Modbus meters and building automation systems, providing an integrated approach to total building control and energy management.
DMX512 mode – Transmit or receive up
to 64 channels of DMX512, with automatic DyNet conversion and task triggering. Provides temporary control of house
lights from the DMX512 console in an auditorium scenario.
Electrical fault isolation – Faults can be isolated to individual network spurs.
Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
Flexible mounting solution – DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.

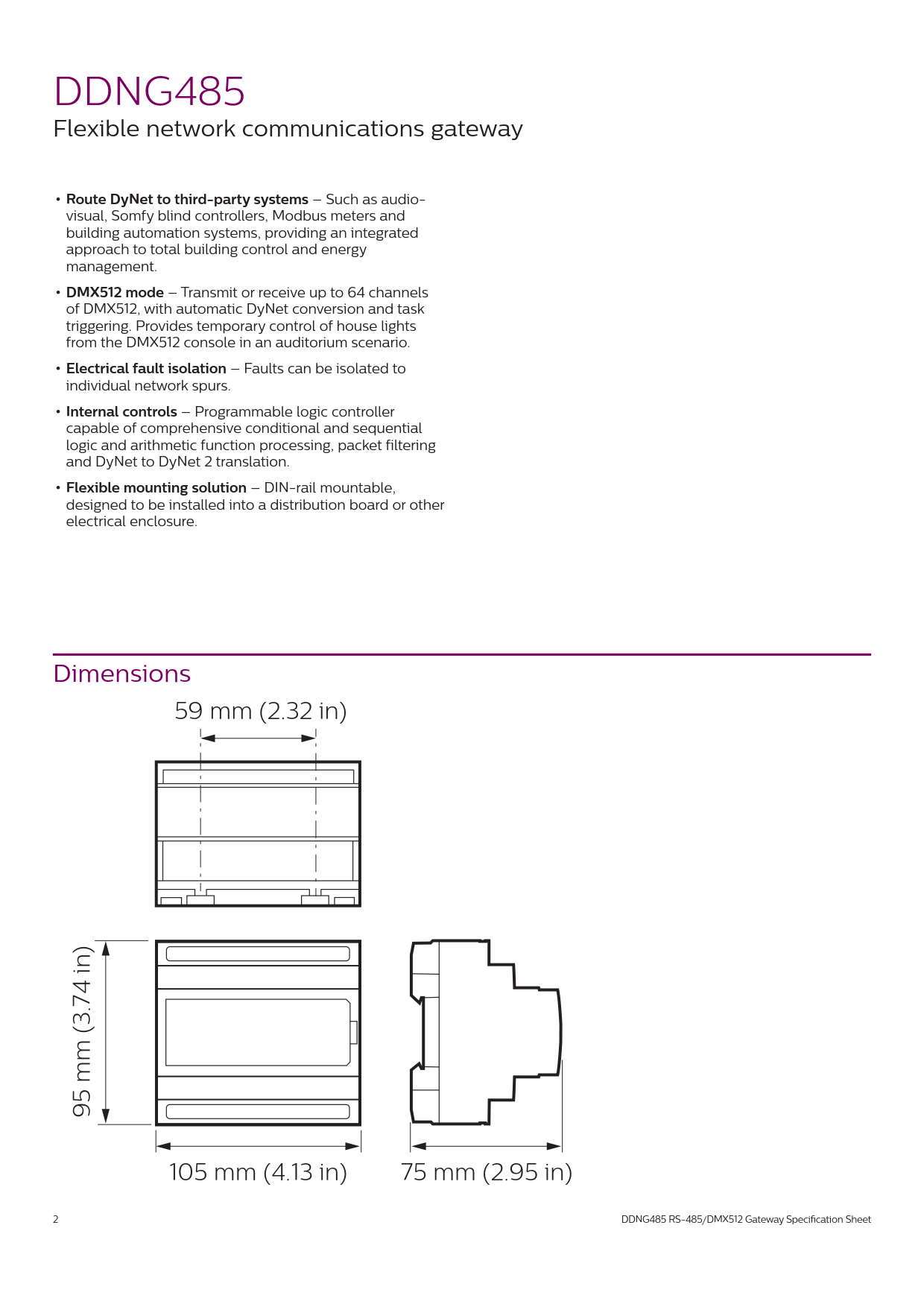

Dimensions:95 x 105 x 75 mm (3.74 x 4.34 x 2.95 in)
