PRODUCT DATA

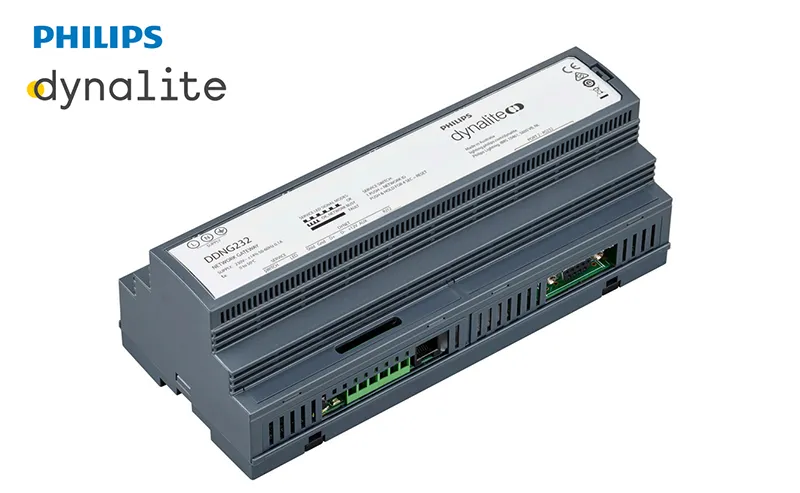

Model Name:Signify Dynalite PHILIPS Dynalite DDNG232 RS-232 Network Gateway 913703081809
12NC:913703081809
DIN-rail serial port integration

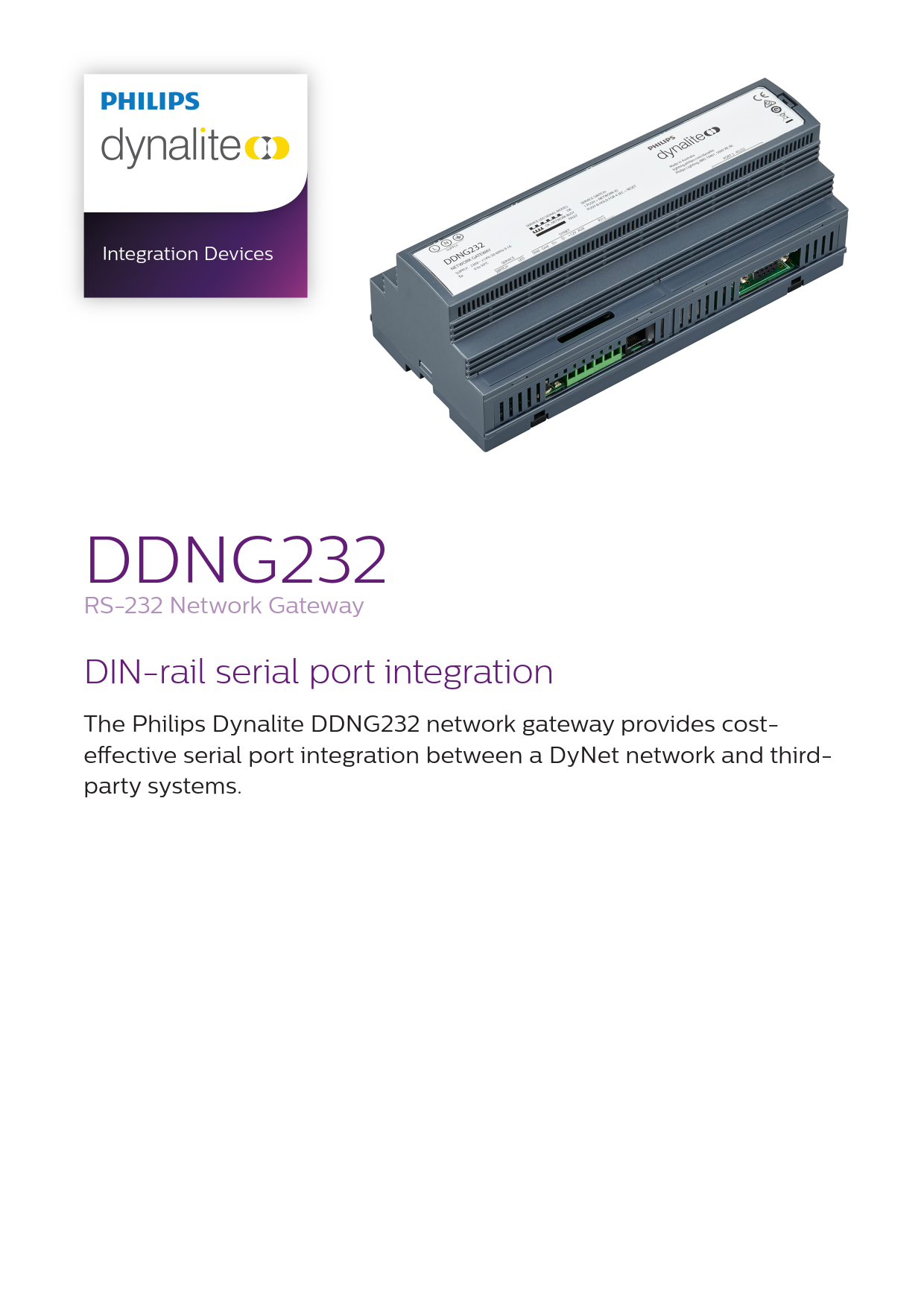

The Philips Dynalite DDNG232 network gateway provides cost-effective serial port
integration between a DyNet network and third-party systems.
Seamless integration with third-party systems – Including AV systems, lighting desks, data projectors, HVAC, BMS and security systems.
Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing.
Predefined data format library or create your own – A library of data formats is available for systems integrators, or can
be created using the onboard conditional logic engine to assemble and transmit user-defined data strings.
Macro functions available – To simplify the control of multiple devices.
Flexible mounting solution – DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.

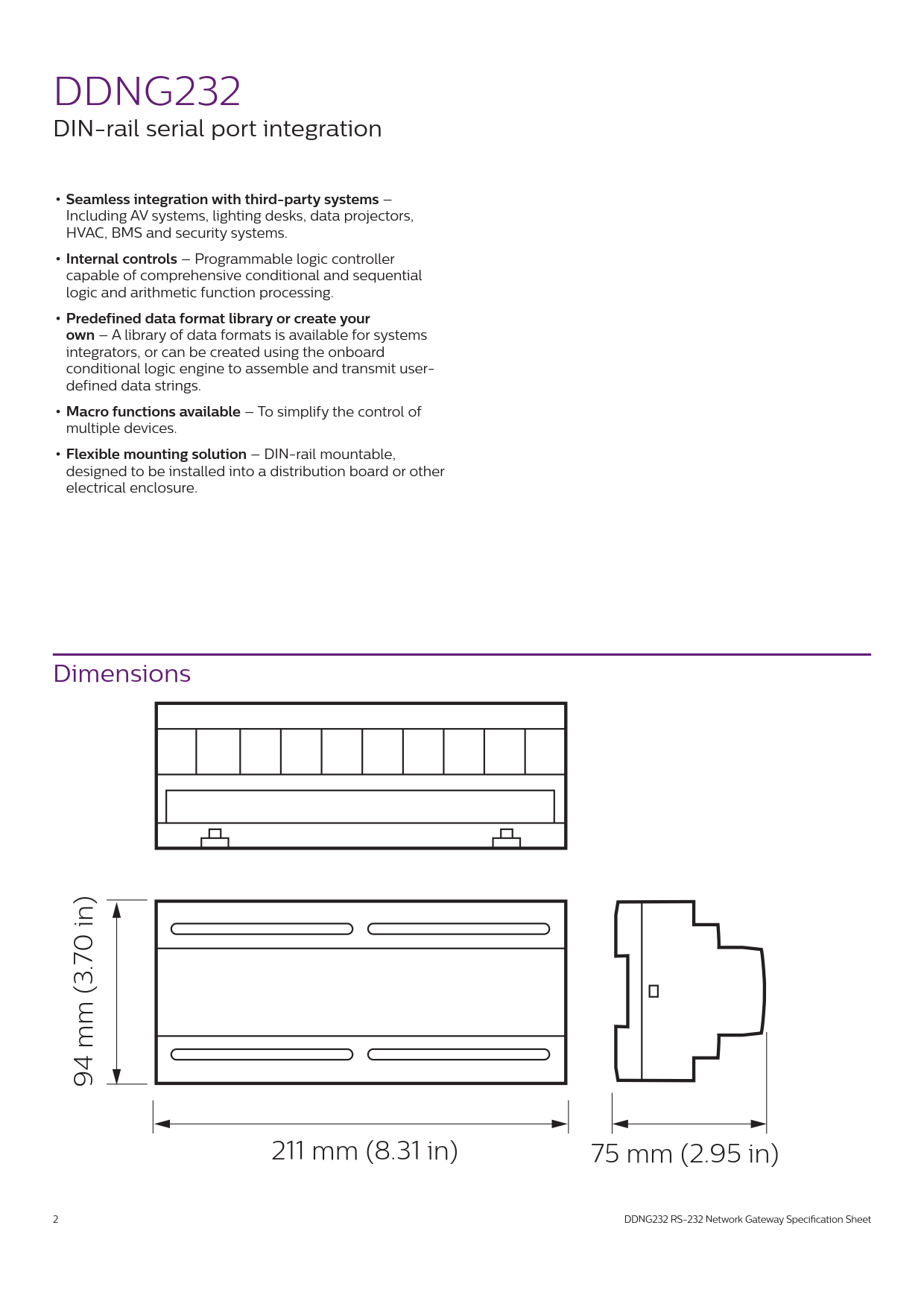

Dimensions:94 x 211 x 75 mm (3.70 x 8.31 x 2.95 in)
PHILIPS Product 12NC List
12NC:Signify Dynalite PHILIPS Dynalite DDNG232 RS-232 Network Gateway 913703081809
