PRODUCT DATA
Model Name:
12NC:913703243509
Control different load types with one device

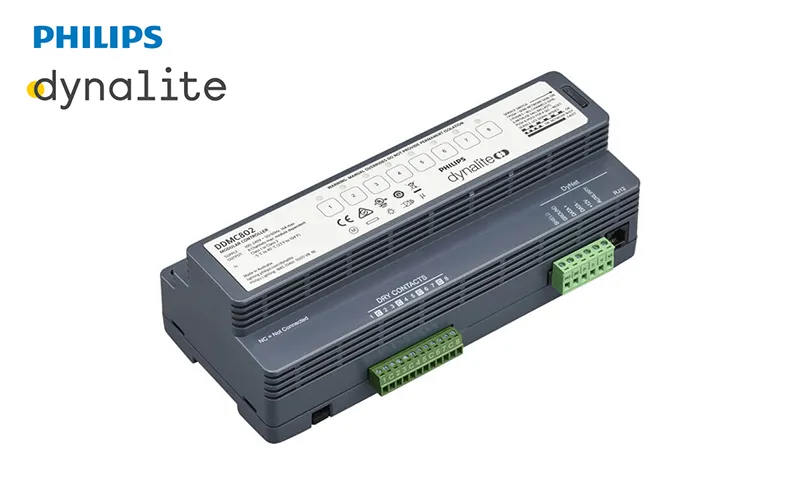

The Philips Dynalite DDMC802 provides up to eight configurable output channels, controlled by up to four interchangeable control modules. A selection of control modules is available for a variety of load types
Single controller solution – Control a variety of load types from one device.
Four module bays module – Accommodates any combination of up to four single modules or two double-size modules.
Leading edge phase control dimmer module – Suitable for use with incandescent lamps and some types of dimmable electronic transformers.
Trailing edge phase control dimmer module – Suitable for use with
most types of dimmable electronic transformers.
Relay control module – Suitable for controlling most types of switched loads.
Fan control module – 400 VA three-speed fan control.
Curtain control module – Provides control of curtains, blinds and other motorized window treatments.
Flexible mounting solution –
DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit
PHILIPS Product 12NC List
12NC:Signify Dynalite PHILIPS Dynalite DDMC802 Multipurpose Modular Controller 913703243509
