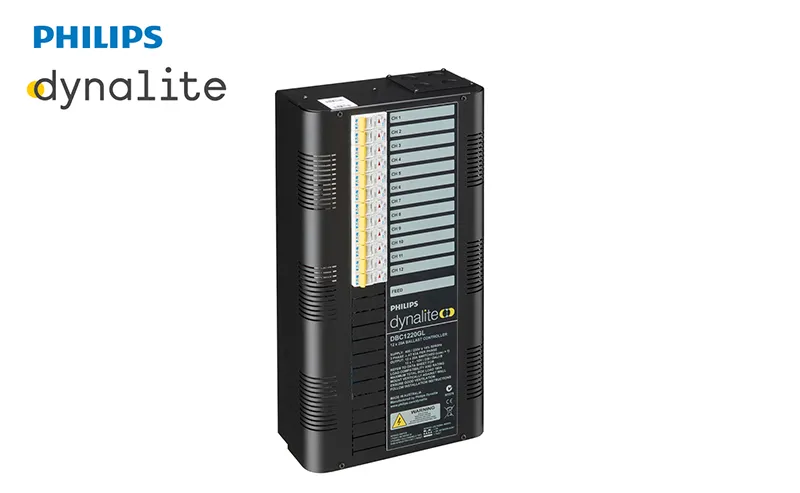

Signify Dynalite PHILIPS Dynalite DBC1220GL Signal Dimmer Controller 913703038009

Model Name:Signify Dynalite PHILIPS Dynalite DBC1220GL Signal Dimmer Controller 913703038009

12NC:913703038009

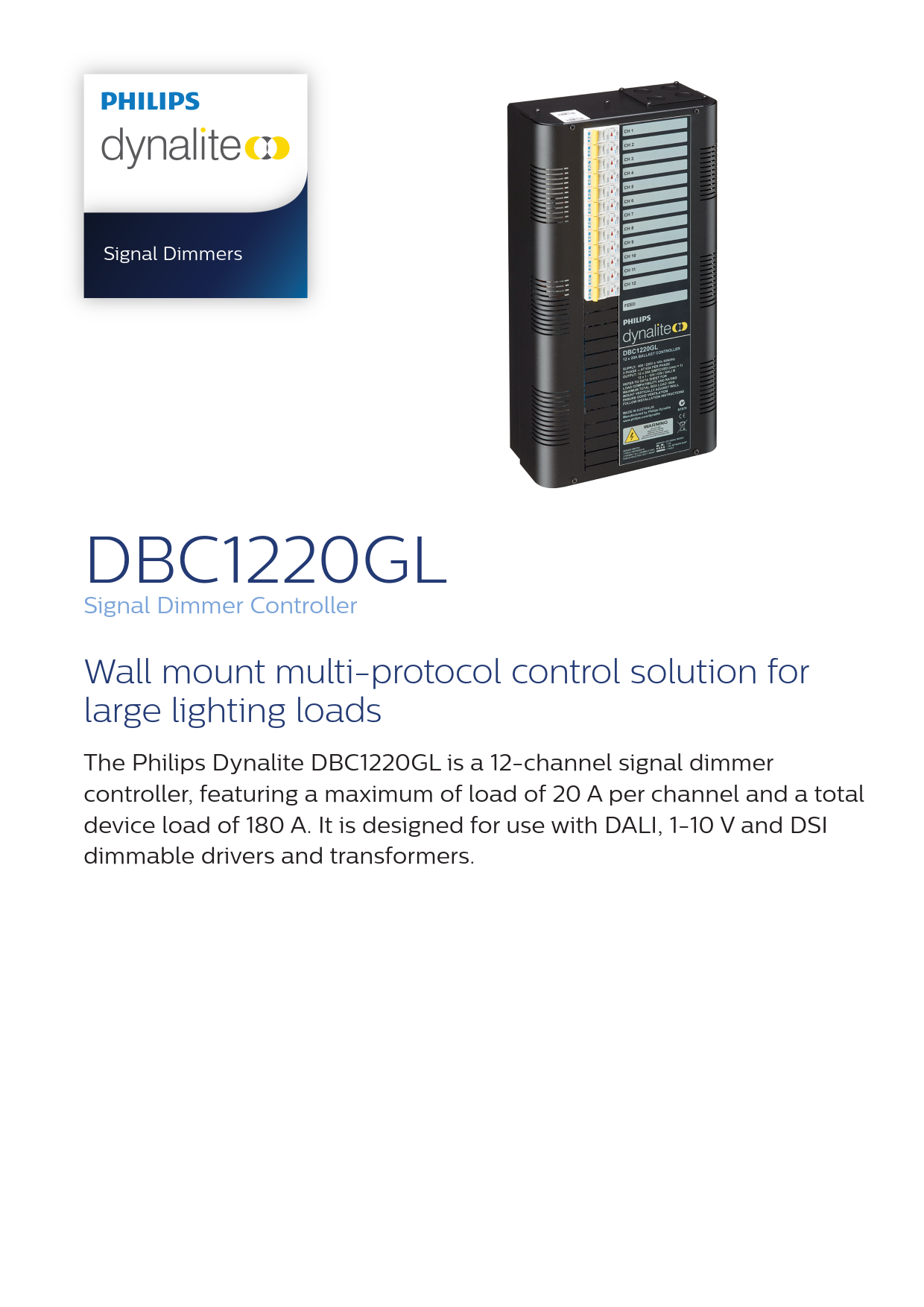

Wall mount multi-protocol control solution for large lighting loads The Philips Dynalite DBC1220GL is a 12-channel signal dimmer controller, featuring a maximum of load of 20 A per channel and a total device load of 180 A. It is designed for use with DALI, 1-10 V and DSI dimmable drivers and transformers.

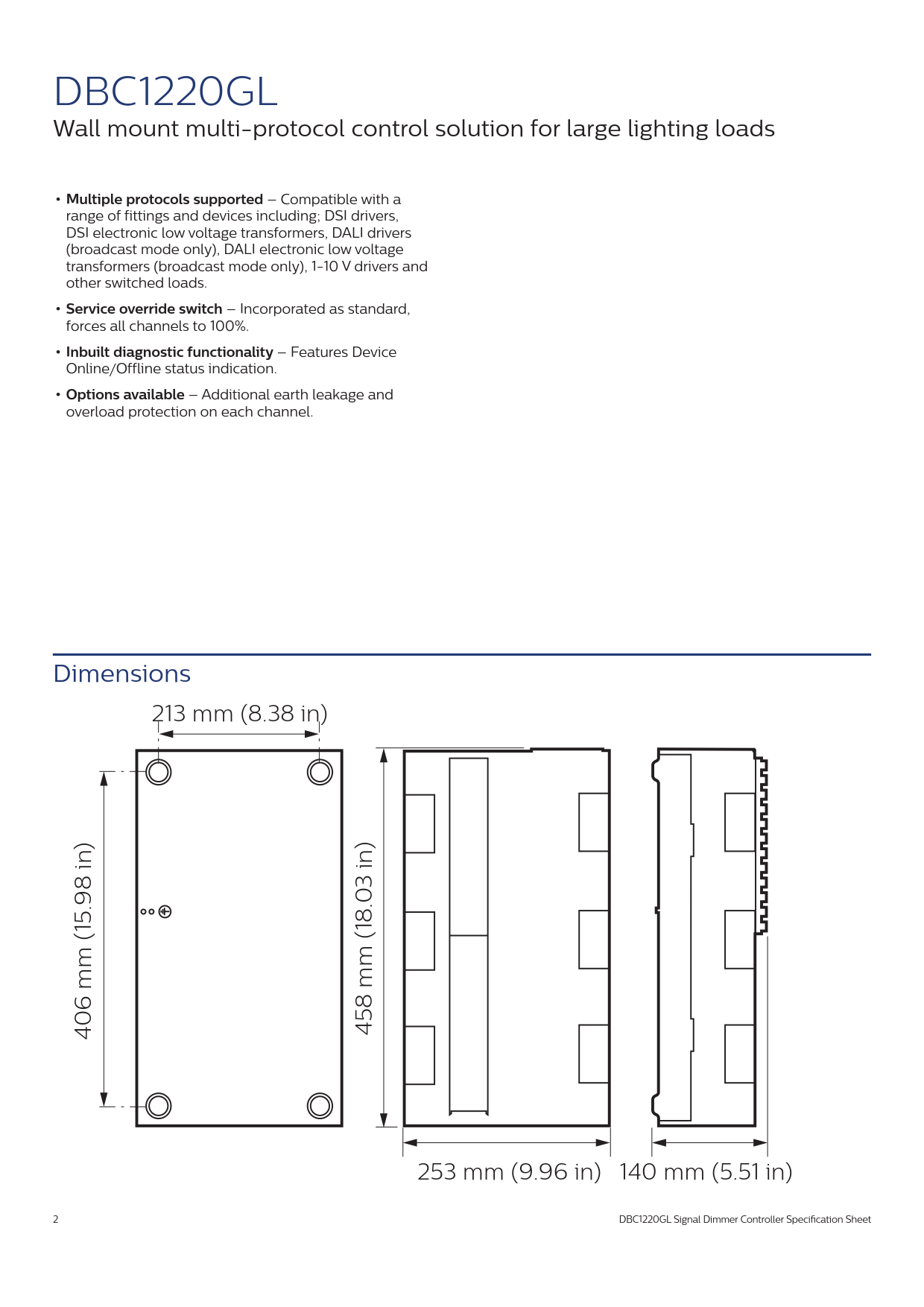

• Multiple protocols supported – Compatible with a range of fittings and devices including; DSI drivers, DSI electronic low voltage transformers, DALI drivers (broadcast mode only), DALI electronic low voltage transformers (broadcast mode only), 1-10 V drivers and other switched loads.

• Service override switch – Incorporated as standard, forces all channels to 100%.

• Inbuilt diagnostic functionality – Features Device Online/Offline status indication.

• Options available – Additional earth leakage and overload protection on each channel.

12NC:Signify Dynalite PHILIPS Dynalite DBC1220GL Signal Dimmer Controller 913703038009
