PRODUCT DATA
Model Name:Signify Dynalite PHILIPS Dynalite DDNP1501 Network Power Supply 913703090309
12NC:913703090309
Supplements DyNet network DC supply

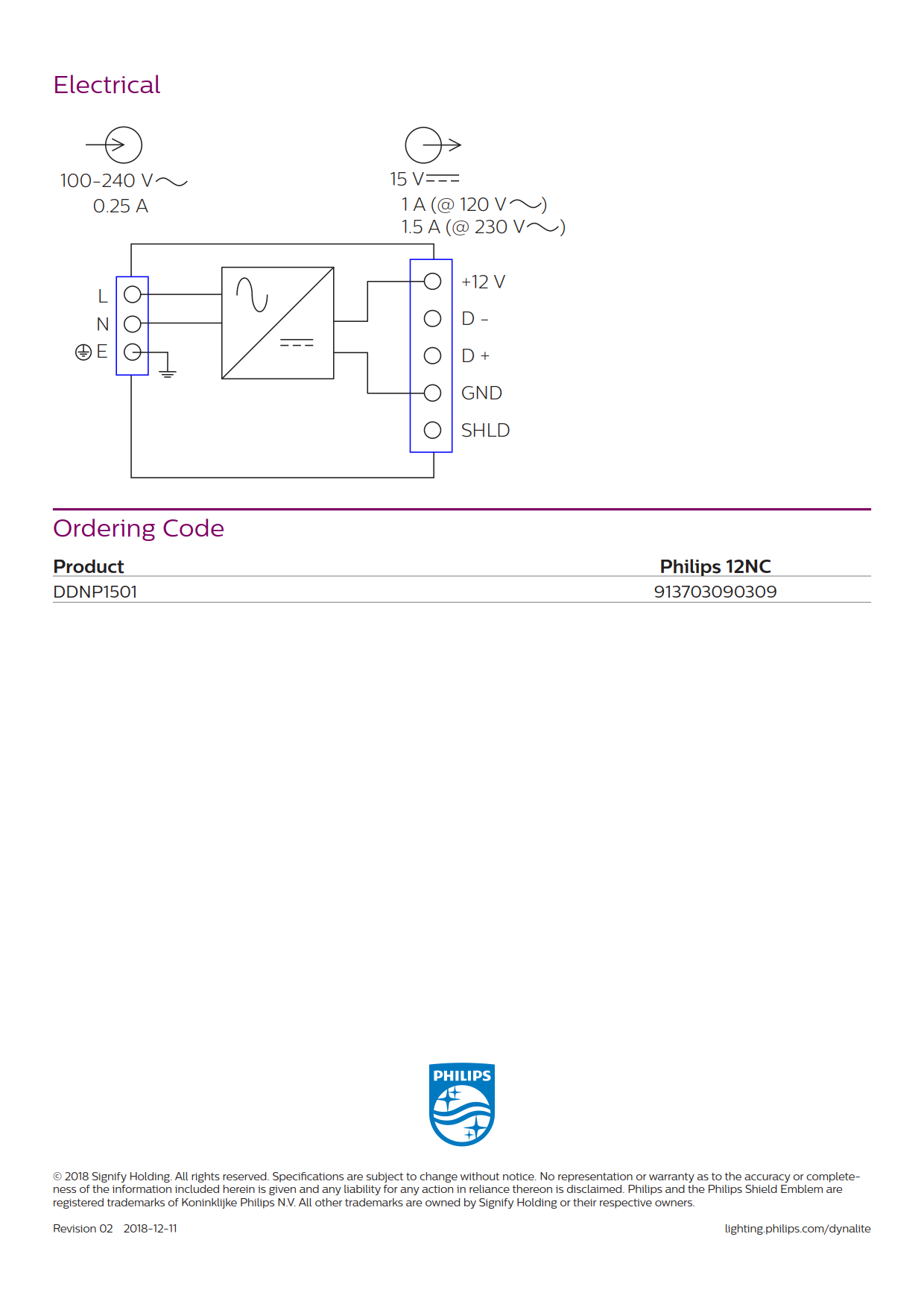

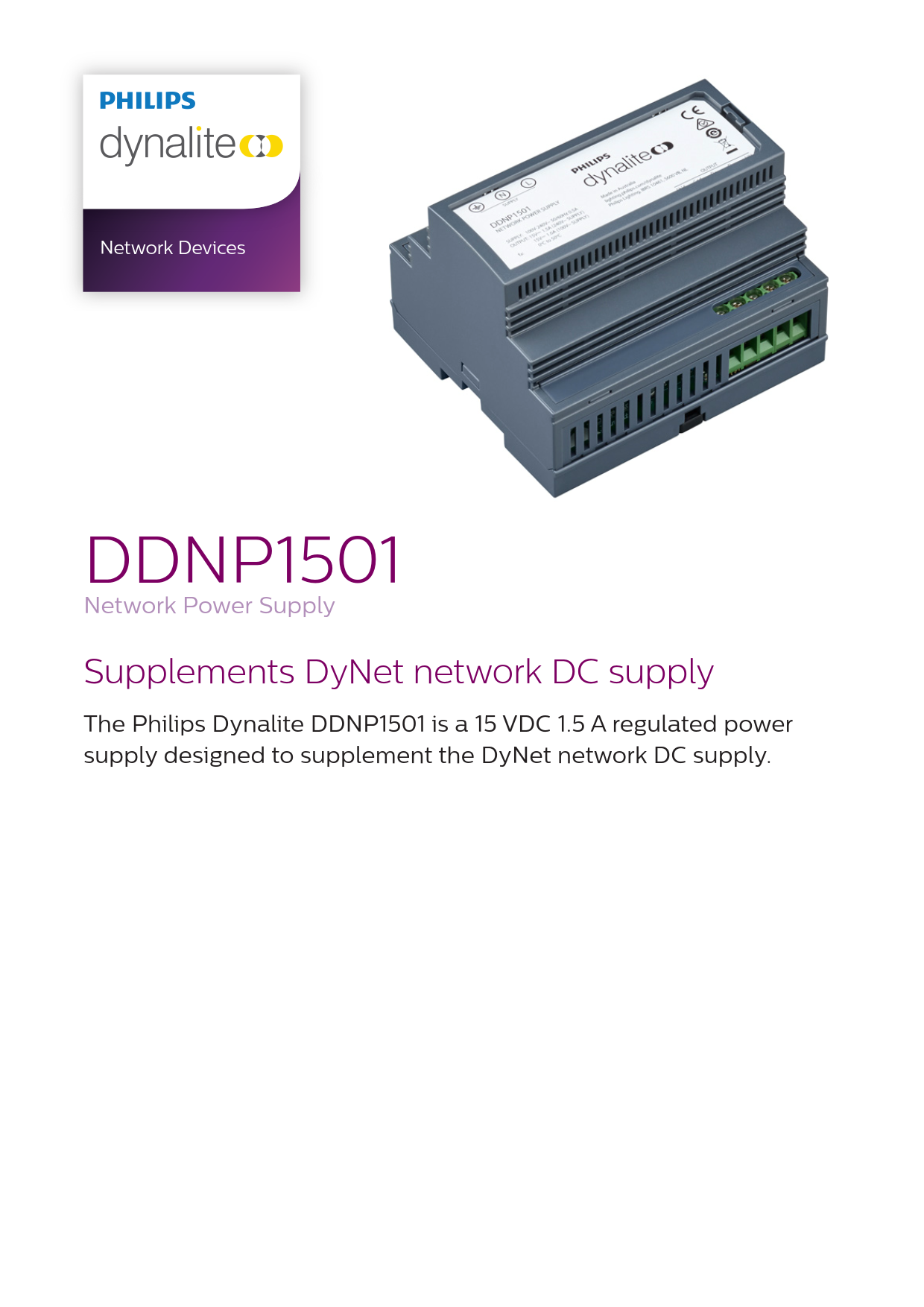

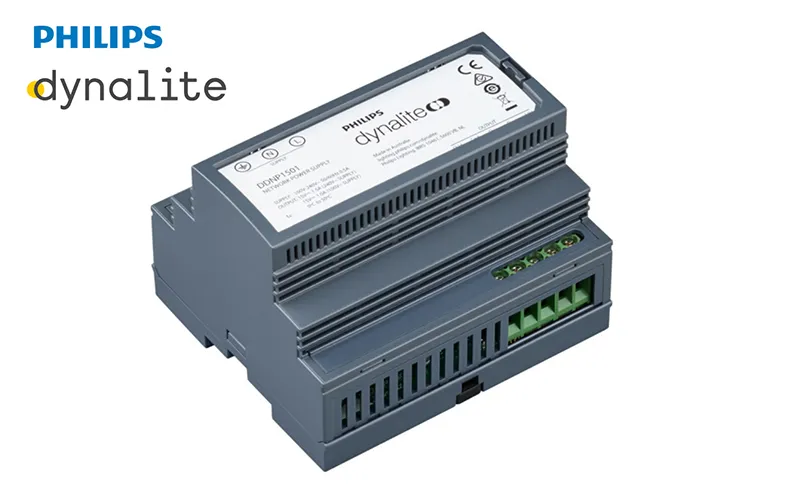

The Philips Dynalite DDNP1501 is a 15 V DC 1.5 A regulated power supply designed to supplement the DyNet network DC supply.
No manual selection required – The switch-mode design allows the device to be used with a range of input voltages.
Used when high consumption devices are employed – The DyNet network is self-powered via built-in DC supplies integrated within all mains powered devices. Use of high consumption devices, such as edge-lit touchscreens, can necessitate a requirement for additional power.
Flexible mounting solution – A DIN-rail mountable device, with a circuit breaker profile designed to be installed into alltypes of distribution board enclosures, including those with cover apertures specifically designed for circuit breakers.

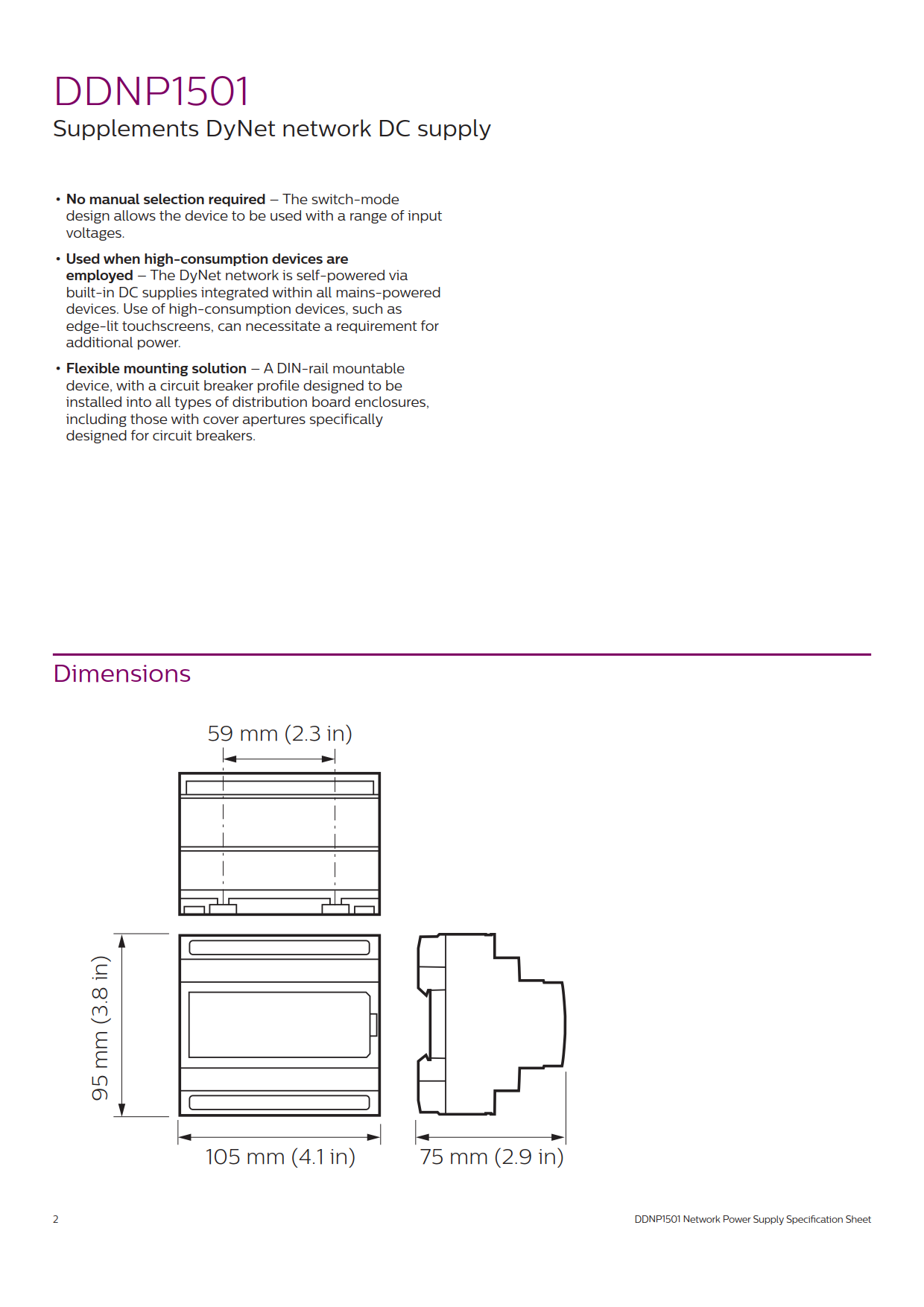

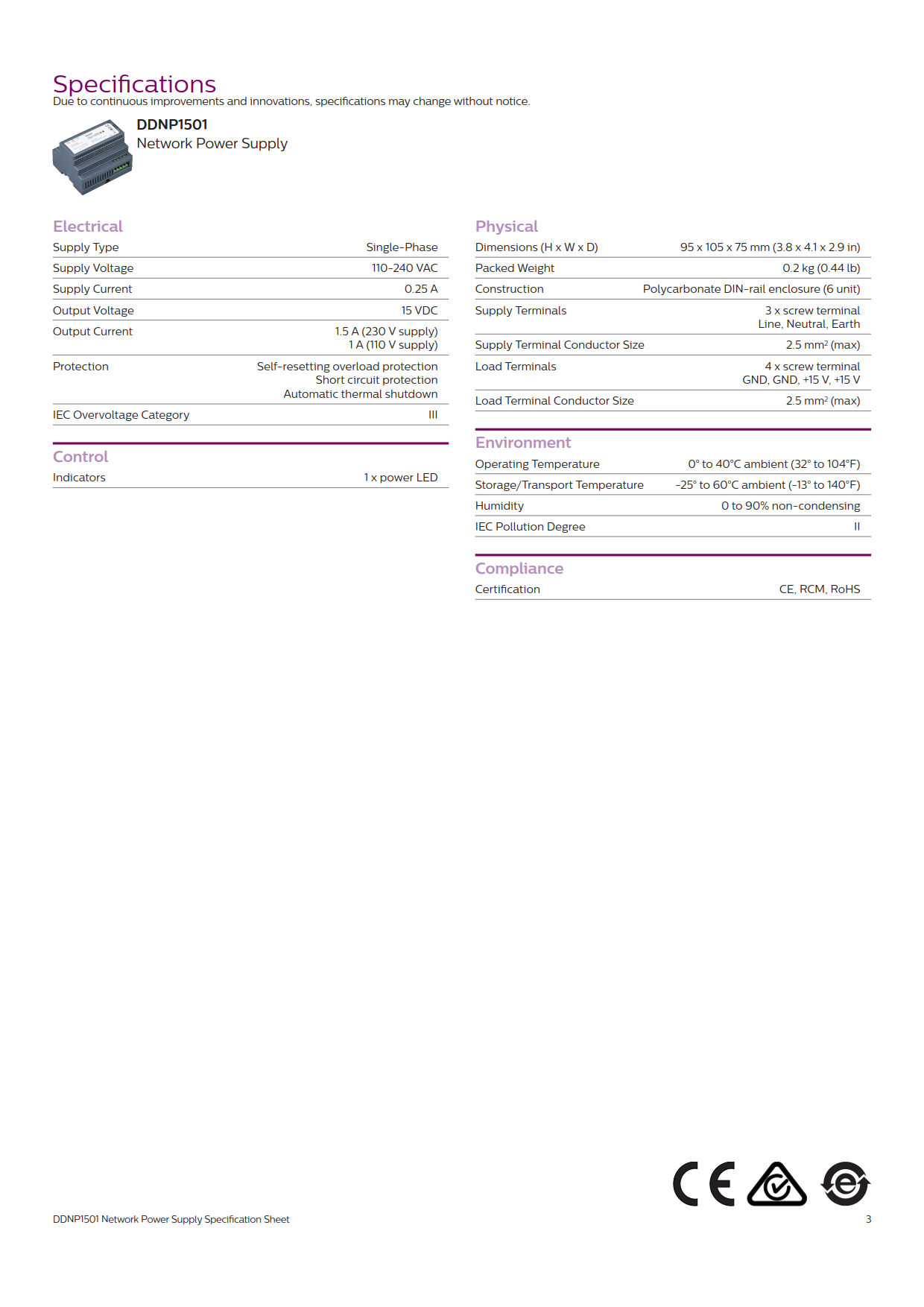

Dimensions:95 x 105 x 75 mm (3.74 x 4.34 x 2.95 in)
PHILIPS Product 12NC List
12NC:Signify Dynalite PHILIPS Dynalite DDNP1501 Network Power Supply 913703090309
