PRODUCT DATA
Model Name:Signify Dynalite PHILIPS Dynalite DLLI8I8O Dry Contact Interface 913703023009
12NC:913703023009

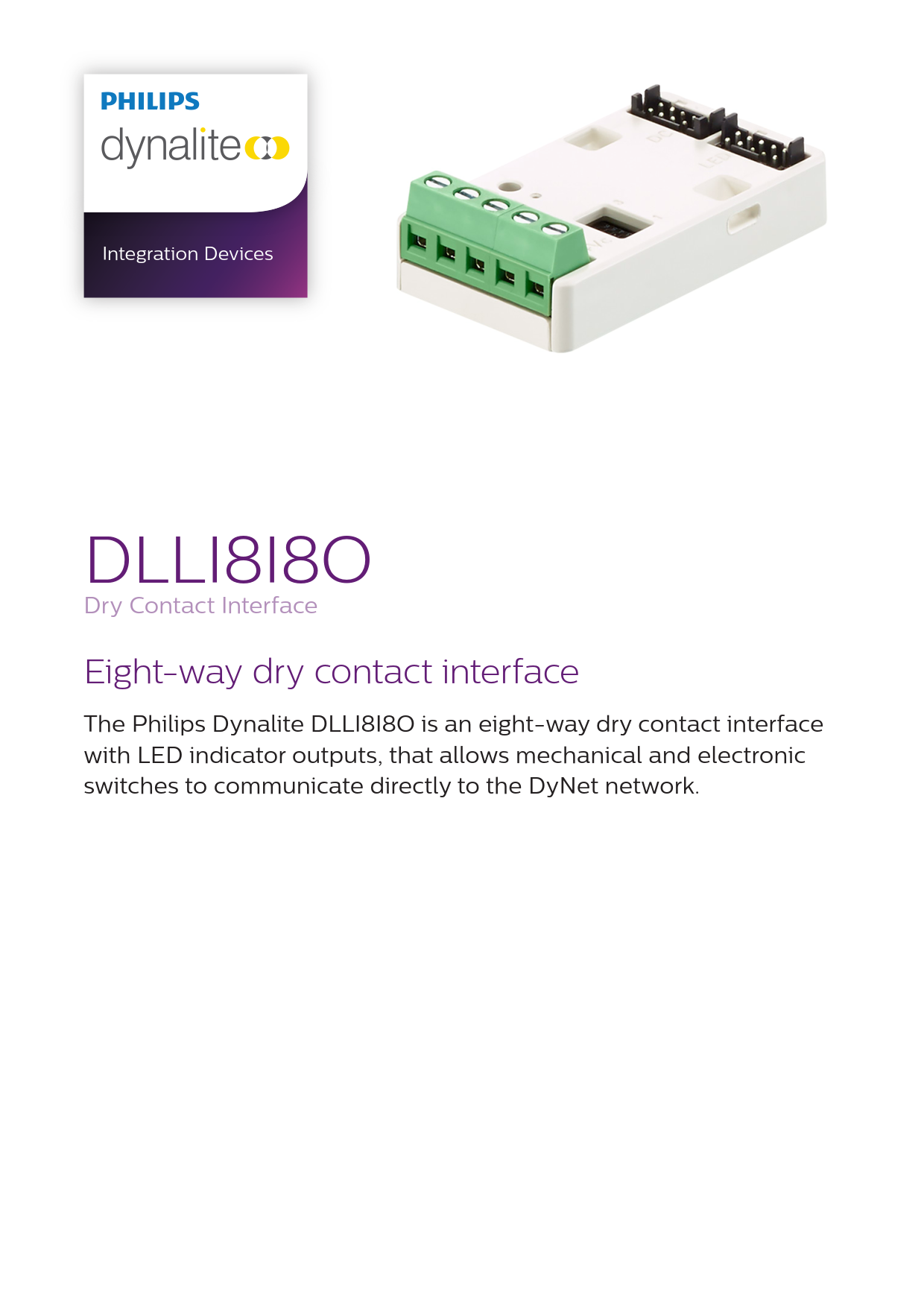

Eight-way dry contact interface

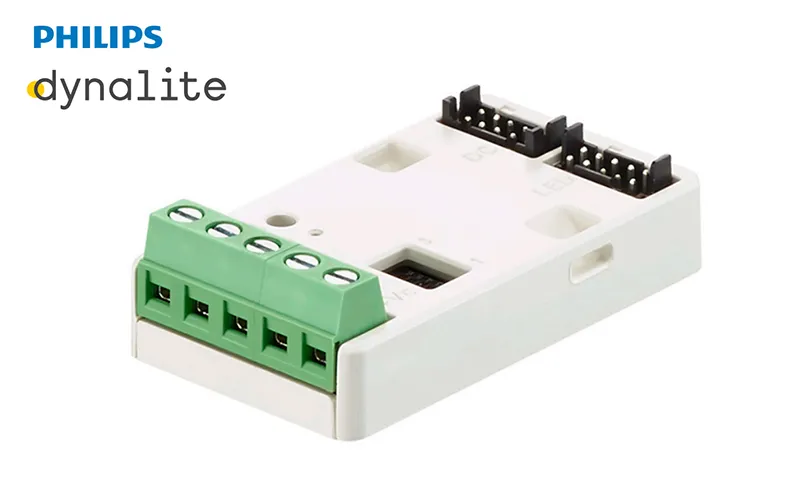

The Philips Dynalite DLLI8I8O is an eight-way dry contact interface with LED indicator outputs, that allows mechanical and electronic switches to communicate directly to the DyNet network.
Compact size – Allows installation in electrical wall boxes for easy integration with third-party user interfaces.
Eight dry contact inputs – Each dry contact trigger is individually programmable for a range of tasks.
Eight indicator outputs – Each output is individually programmable to drive an external LED indicator sharing a common cathode, communicating current system status or settings.
Allows up to 20 m cable runs – Enables convenient connection to dry contact interfaces in multiple rooms.

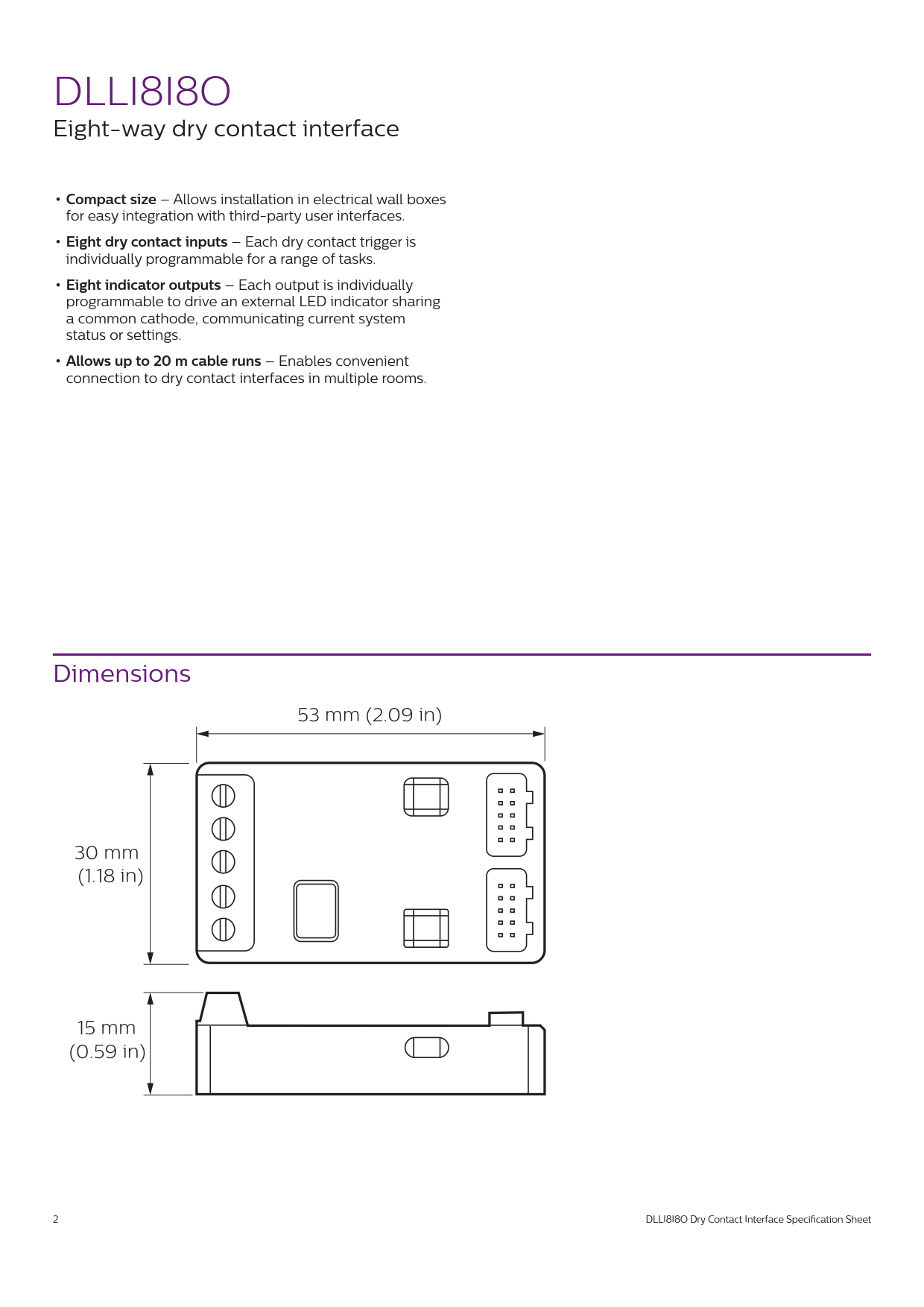

Dimensions:53 x 30 x 15 mm (2.09 x 1.18 x 0.59 in)
PHILIPS Product 12NC List
12NC:Signify Dynalite PHILIPS Dynalite DLLI8I8O Dry Contact Interface 913703023009
