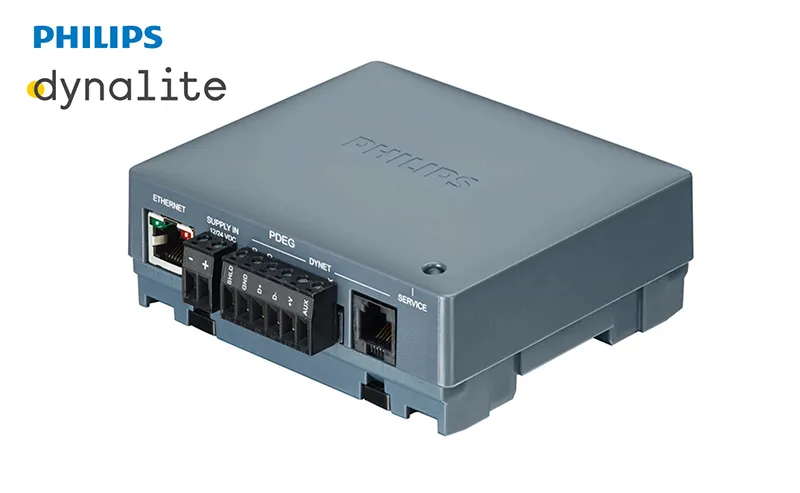

Model Name:Signify Dynalite PHILIPS Dynalite PDEG Ethernet Gateway 913703013809
12NC:913703013809

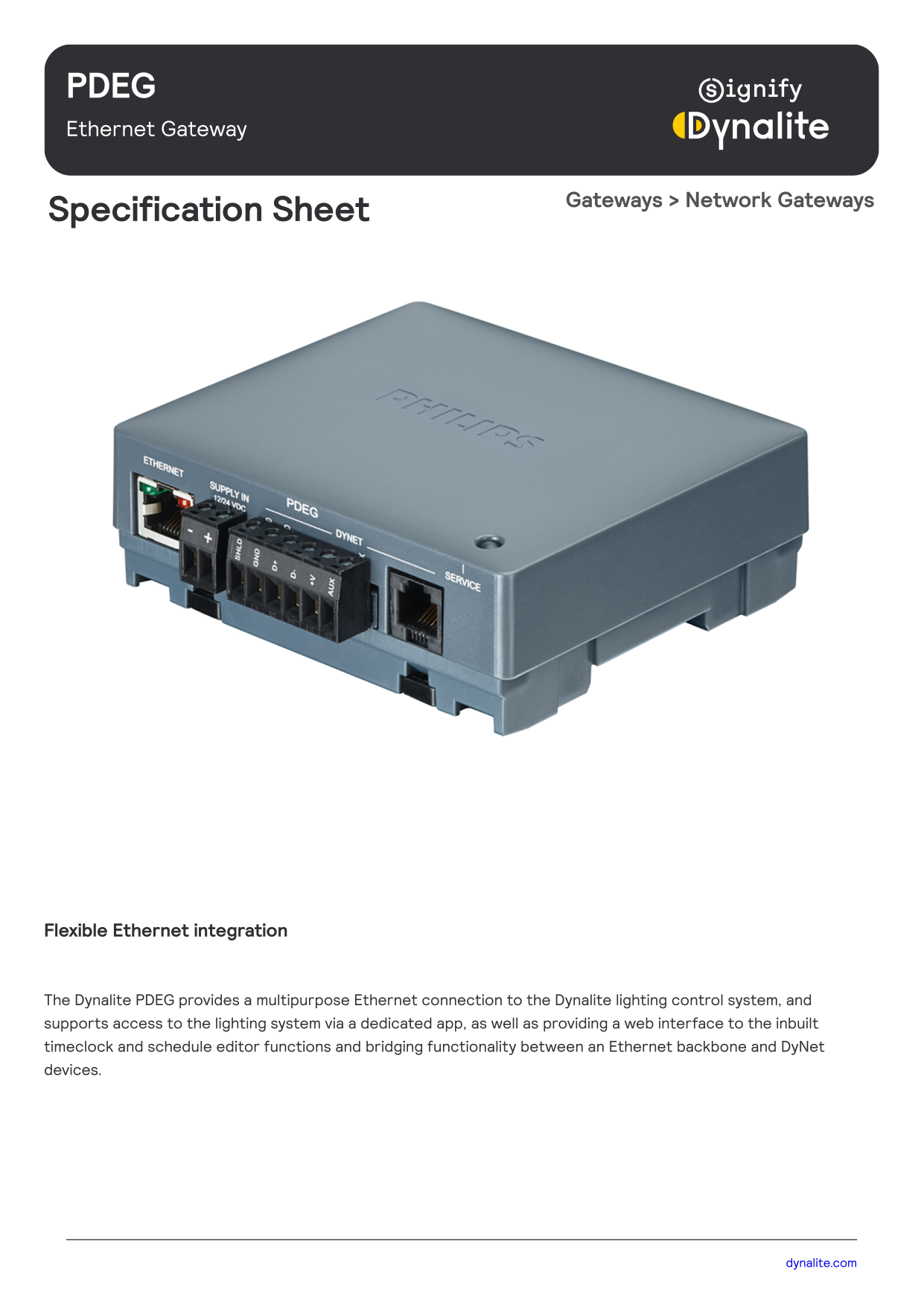

Flexible Ethernet integration The Dynalite PDEG provides a multipurpose Ethernet connection to the Dynalite lighting control system, and supports access to the lighting system via a dedicated app, as well as providing a web interface to the inbuilt timeclock and schedule editor functions and bridging functionality between an Ethernet backbone and DyNet devices.

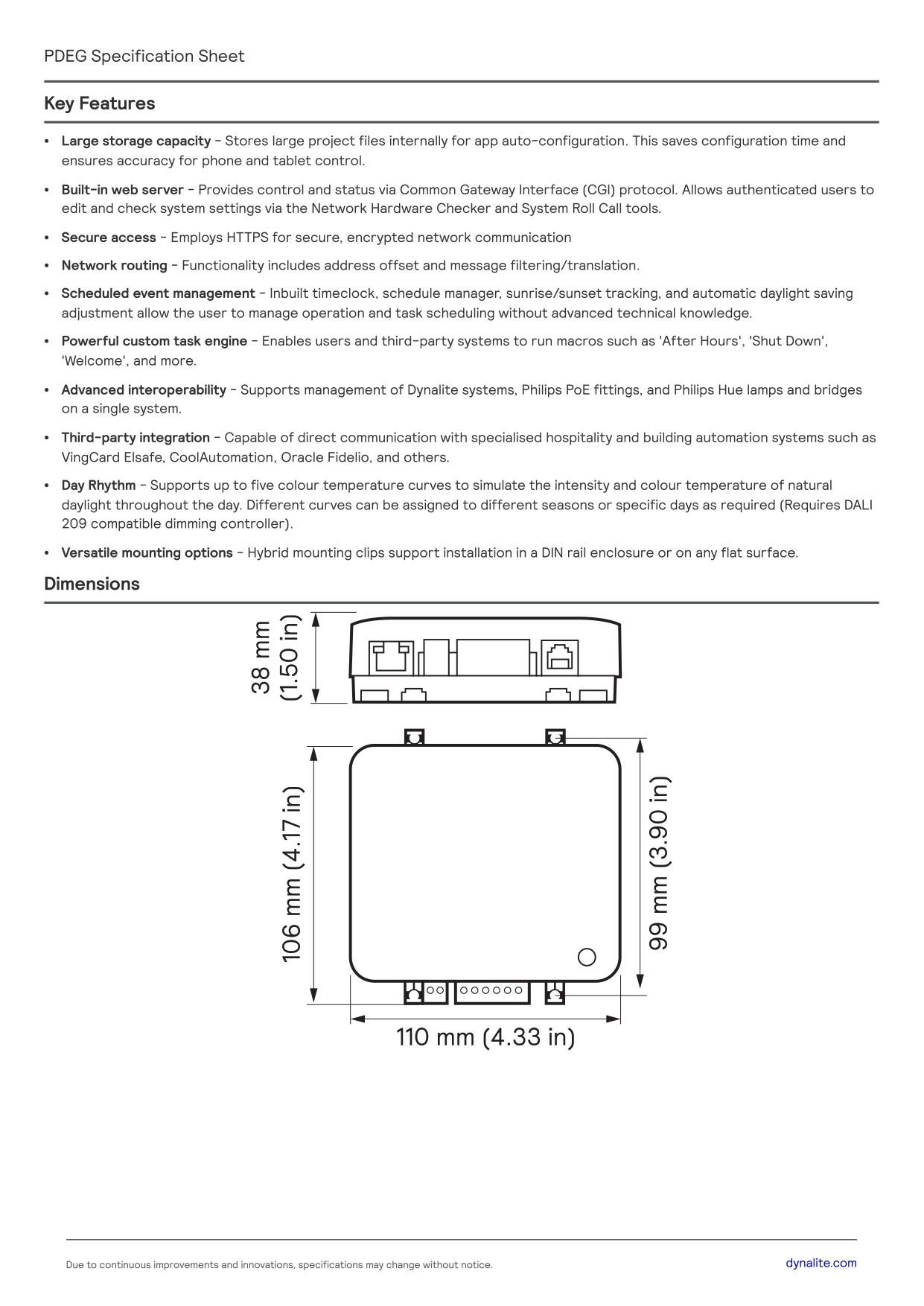

Large storage capacity - Stores large project files internally for app auto-configuration. This saves configuration time and
ensures accuracy for phone and tablet control.
Built-in web server - Provides control and status via Common Gateway Interface (CGI) protocol. Allows authenticated users to
edit and check system settings via the Network Hardware Checker and System Roll Call tools.
Secure access - Employs HTTPS for secure, encrypted network communication
Network routing - Functionality includes address offset and message filtering/translation.
Scheduled event management - Inbuilt timeclock, schedule manager, sunrise/sunset tracking, and automatic daylight saving
adjustment allow the user to manage operation and task scheduling without advanced technical knowledge.
Powerful custom task engine - Enables users and third-party systems to run macros such as 'After Hours', 'Shut Down',
'Welcome', and more.
Advanced interoperability - Supports management of Dynalite systems, Philips PoE fittings, and Philips Hue lamps and bridges
on a single system.
Third-party integration - Capable of direct communication with specialised hospitality and building automation systems such as
VingCard Elsafe, CoolAutomation, Oracle Fidelio, and others.
Day Rhythm - Supports up to five colour temperature curves to simulate the intensity and colour temperature of natural
daylight throughout the day. Different curves can be assigned to different seasons or specific days as required (Requires DALI
209 compatible dimming controller).
Versatile mounting options - Hybrid mounting clips support installation in a DIN rail enclosure or on any flat surface.
