PRODUCT DATA
Model Name: Signify Dynalite PHILIPS Dynalite DMC810GL Multipurpose Controller 913703028009
12NC:913703028009

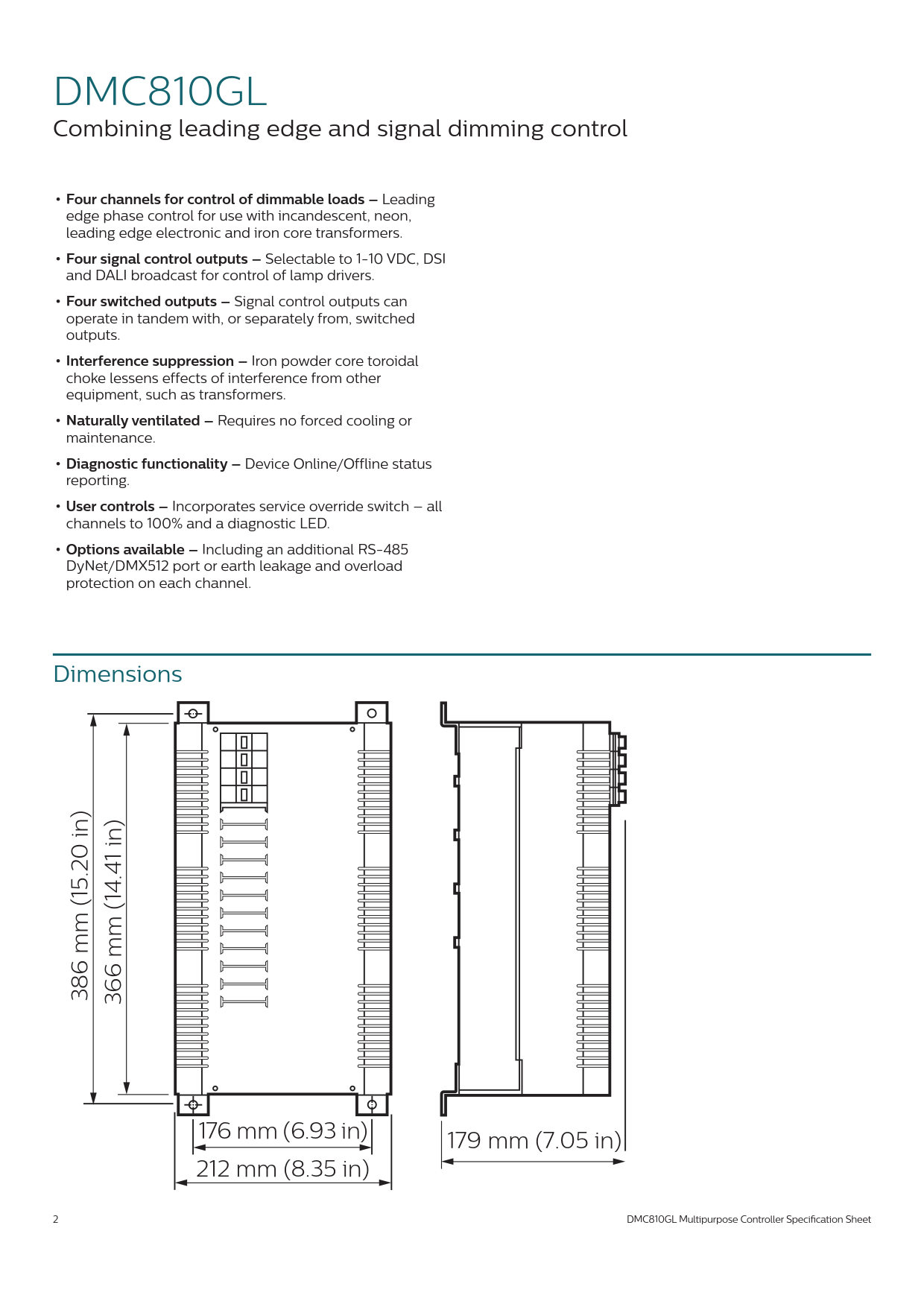

Combining leading edge and signal
dimming control

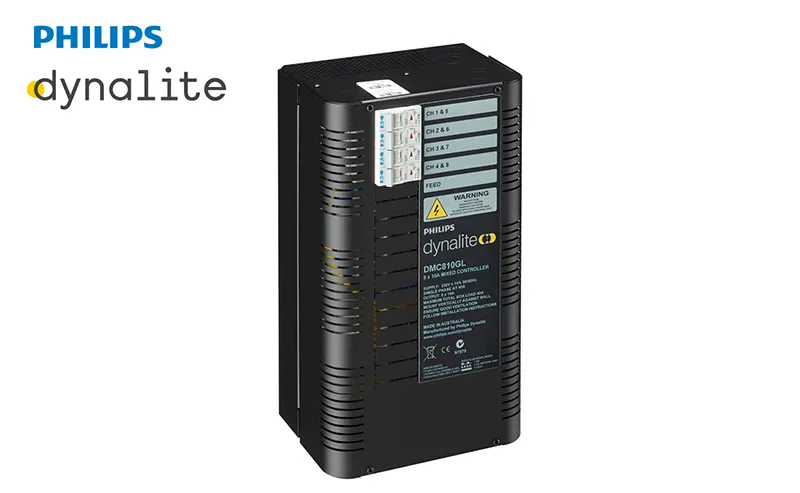

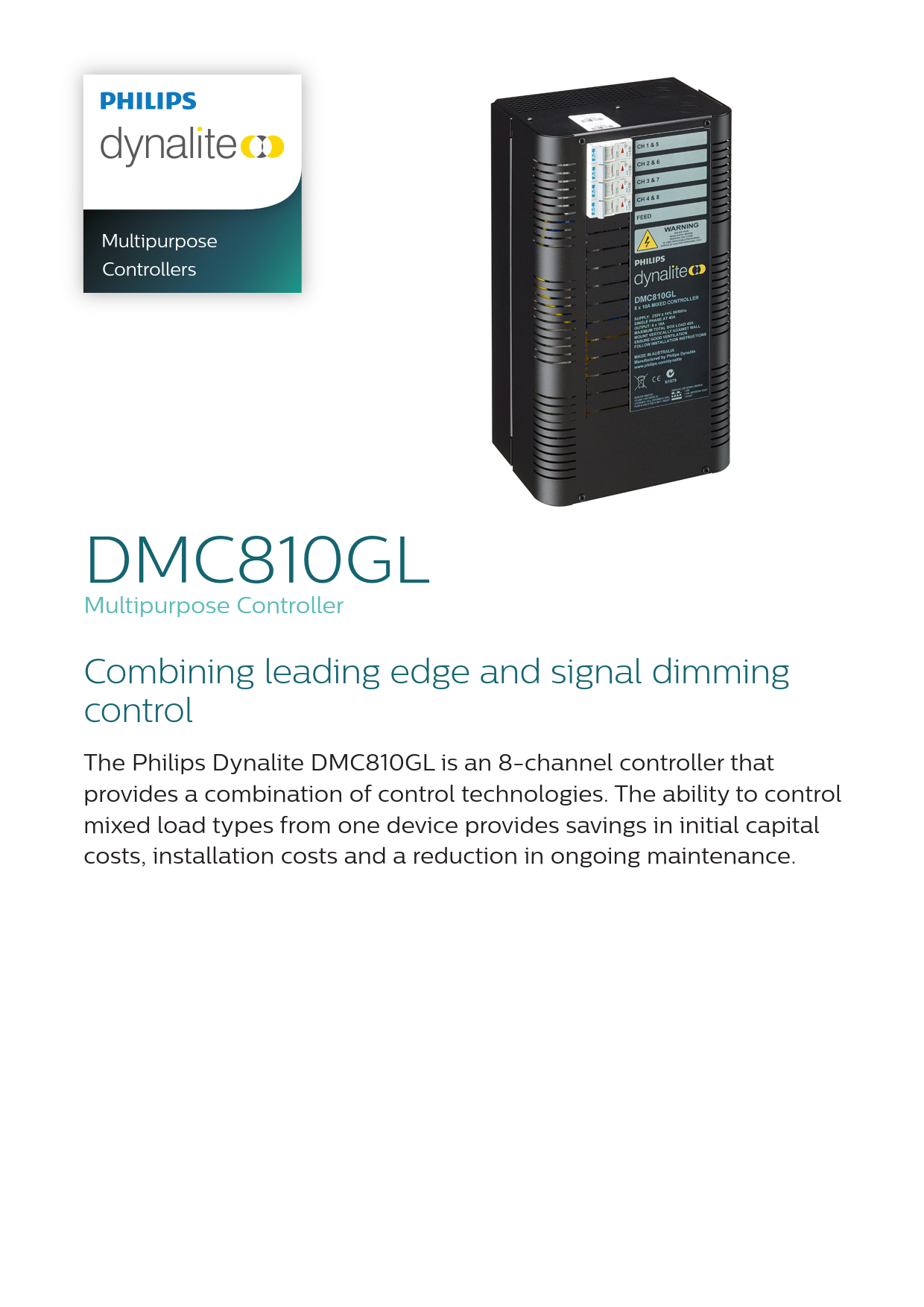

The Philips Dynalite DMC810GL is an 8-channel controller that provides a combination of control technologies. The ability to control mixed load types from one device provides savings in initial capital costs, installation costs and a reduction in ongoing maintenance.
Four channels for control of dimmable loads – Leading edge phase control
for use with incandescent, neon,
leading edge electronic and iron core transformers.
Four signal control outputs – Selectable to 1-10 VDC, DSI and DALI broadcast for control of lamp drivers.
Four switched outputs – Signal control outputs can operate in tandem with, or separately from, switched outputs.
Interference suppression – Iron powder core toroidal choke lessens effects of interference from other equipment, such as transformers.
Naturally ventilated – Requires no forced cooling or maintenance.
Diagnostic functionality – Device Online/Offline status reporting.
User controls – Incorporates service override switch – all channels to 100% and a diagnostic LED.
Options available – Including an additional RS-485 DyNet/DMX512 port
or earth leakage and overload protection on each channel.
