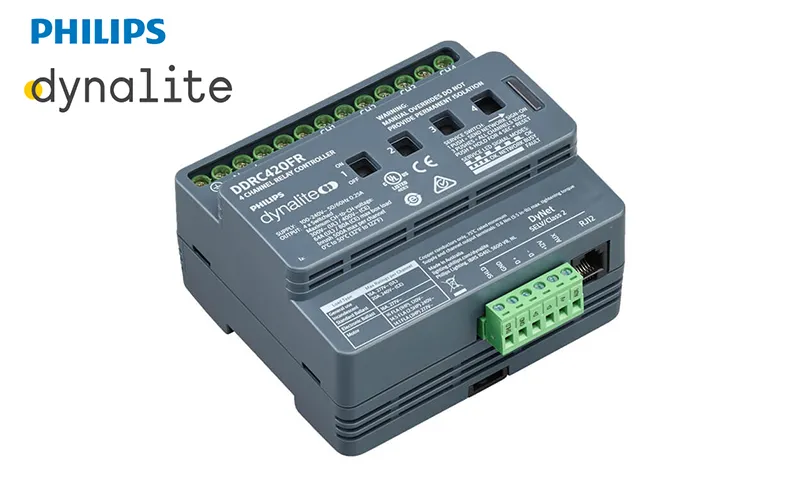

Signify Dynalite PHILIPS Dynalite DDRC420FR Relay Controller 913703244609

Model Name:Signify Dynalite PHILIPS Dynalite DDRC420FR Relay Controller 913703244609

12NC/Part Number: 913703244609

The Philips Dynalite DDRC420FR provides control of any type of switched load, including difficult lighting loads. This four channel device supports all types of switched loads up to 20 A inductive.

Inbuilt diagnostic functionality:

Features circuit run time tracking on each channel and Device Online/Offline status indication.

Multiple wiring schemes supported:

Controls single phase and neutral or three phase and neutral (star) wiring configurations.

Hardware override: Service override switch accessible from front panel.

Feed-through power circuit design: Electrically equivalent to a 4 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.

Flexible mounting solution: A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.

12NC:Signify Dynalite PHILIPS Dynalite DDRC420FR Relay Controller 913703244609
