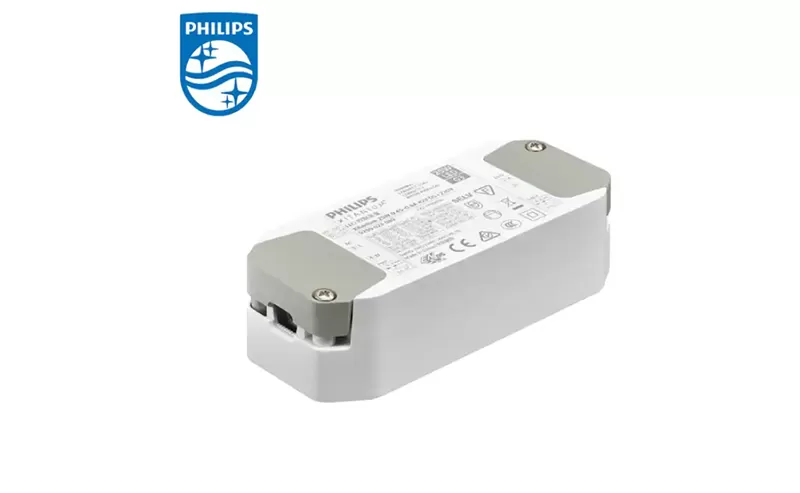

Xitanium G3 15W 0.2-0.35A 42V DS I 230V 929002808806

Product date

Wattage:15W

Rated input voltage range:220-240 V

Rated input current:0.1 / 0.12 / 0.13 / 0.14 A

Rated input power:22 / 25 / 27 / 30 W

Power factor:0.9

Output voltage:30-42 V

Output current:0.45 / 0.5 / 0.55 / 0.6 A

Output power:13.5-25.2 W

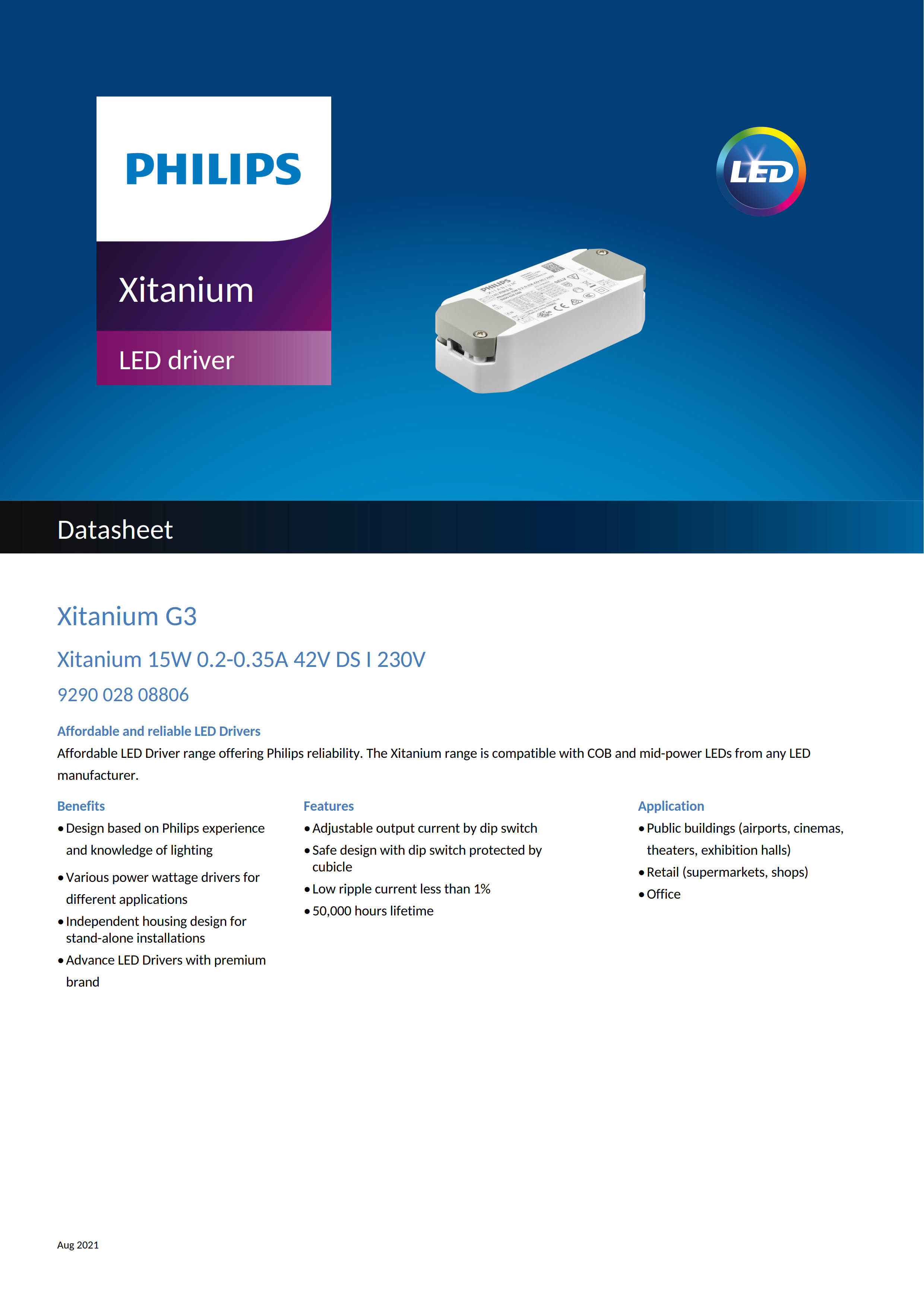

Xitanium G3

Xitanium 15W 0.2-0.35A 42V DS I 230V 9290 028 08806

Affordable and reliable LED Drivers Affordable LED Driver range offering Philips reliability. The Xitanium range is compatible with COB and mid-power LEDs from any LED manufacturer

Benefits

• Driver design based on Philips experience and knowledge of conventional fluorescent and HID technologies

• Various power wattage Drivers that are related to the lumen packages/applications

• Fixed output Drivers

• Independent-version housing design for stand-alone installation

Features

• Small, compact dimensions

• Specific, optimized output current and voltage

• 50,000 hours lifetime

• Fast Time to Market

• Low ripple, low THD

Application

• Public buildings (airports, cinemas, theaters, exhibition halls)

• Retail (supermarkets, shops)

• Office

12NC List:

929002808806 Xitanium G3 15W 0.2-0.35A 42V DS I 230V

929002808906 Xitanium G3 25W 0.45-0.6A 42V DS I 230V

929002809006 Xitanium G3 36W 0.7-0.85A 42V DS I 230V

929002809106 Xitanium G3 44W 0.9-1.05A 42V DS I 230V

929001423380 Xitanium G3 50W 1.1/1.2A 42V I 230V

929001423480 Xitanium G3 59W 1.3/1.4A 42V I 230V

929001423580 Xitanium G3 64W 1.5/1.6A 40V I 230V
